2 Channels DC 6V/9V/12V/24V Output Wireless Remote Switch Work in Self-locking and Momentary Mode Optional (Model 0020418)

Regular price $30.00

Shipping calculated at checkout.
You can visit the website about the video of wireless remote control 2 DC lamps: https://www.youtube.com/watch?v=kFmMSLCvWQM

Package Include:

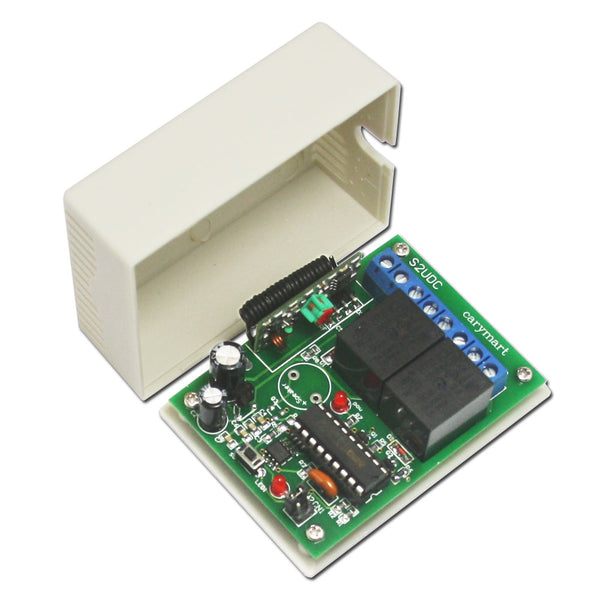

1 x Receiver: S2XT-DC
2 x Transmitter: C-2
1 x User manual

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

Receiver Parameters:
Model No.: S2XT-DC06 / S2XT-DC09 / S2XT-DC12 / S2XT-DC24
Power Supply (Operating Voltage): DC6V (S2XT-DC06), DC12V±2V (S2XT-DC12), DC9V±1V (S2XT-DC09), DC24V±1V (S2XT-DC24)
Output: DC6V (S2XT-DC06), DC12V (S2XT-DC12), DC9V (S2XT-DC09), DC24V (S2XT-DC24)
Working Frequency: 433MHz
Channel: 2 CH
Control Modes: Self-locking
Static Current: ≤6mA
Maximum Working Current: 10A / each channel
PCB Size: 67mm x 50mm x 18mm
Case Size: 75mm x 54mm x 27mm
Work with Fixed code transmitters or Learning code transmitters.

Transmitter Parameters:
Model No.: 0021001 (C-2)
With Sliding Cover to protect the button.
Channel/Button: 2
Button Symbol:1, 2
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 6mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262/ PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes.
Transmitting Distance: 100m / 300ft (theoretically)
The distance of 100m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 100m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 58mm x 39mm x 16mm
Weight: 30g

Matching Transmitters:
The receiver can work with different transmitters, such as model C-2 (100M), CWB-2 (50M, waterproof), CP-2 (500M), or CB-2 (1000M) etc.

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Usage (with the transmitter C-2):
The receiver can be used to control DC 6V / 9V / 12V / 24V equipments. If the power supply of those equipments is DC 12V, you should choose the receiver with same DC 12V version; and if the power supply of those equipments is DC 24V, you should choose the receiver with same DC 24V version.

Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “+”, and connect the negative pole of DC power supply to terminal “-”.
2) Connect the positive pole of lamp to terminal "B", and connect the negative pole of lamp to terminal "A".

Operation:
Control mode Self-locking (with the transmitter C-2): Press -> On; Press again -> Off.
Press button 1: Turn on the relay 1, terminal OUT 1 (A&B) outputs DC power, the lamp 1 is on.
Press button 1 again: Turn off the relay 1, terminal OUT 1 no output, the lamp 1 is off.
Press button 2: Turn on the relay 2, terminal OUT 2 (A&B) outputs DC power, the lamp 2 is on.
Press button 2 again: Turn off the relay 2, terminal OUT 2 no output, the lamp 2 is off.
