How to wireless remote control DC lamp
Feature:
Wireless control, easy to install
Control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
Adopt singlechip technology to build millions of code.
Two or more transmitter & receivers set can be used in the same place.
Transmitting Frequency: 433MHz

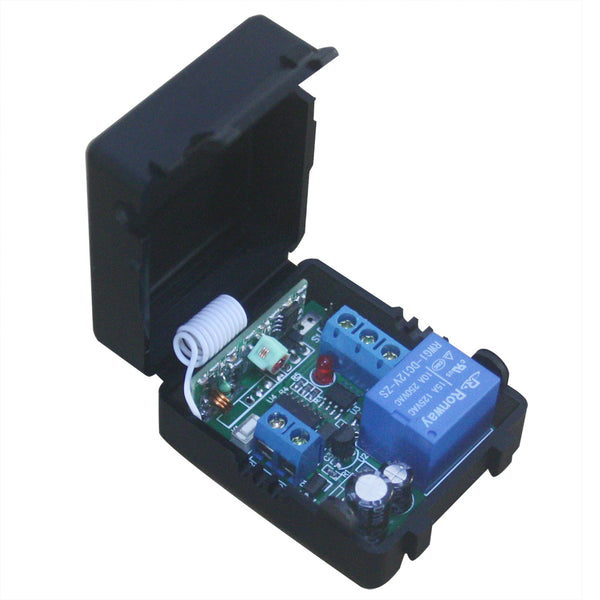

Receiver:
Model No.: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code or learning code
Coding Setting: By learning
Power Supply (Operating Voltage): DC6V (S1RU-DC06), DC9V±1V (S1RU-DC09), DC12V±1V (S1RU-DC12), DC24V±1V (S1RU-DC24)
PCB size: 44mm x 37mm x 19mm
Case size: 55mm x 45mm x 28mm
Maximum Working Current: 10A
Usage:

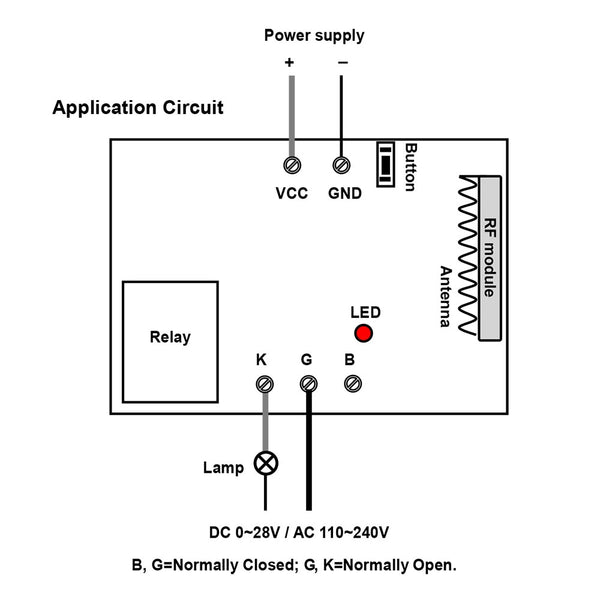

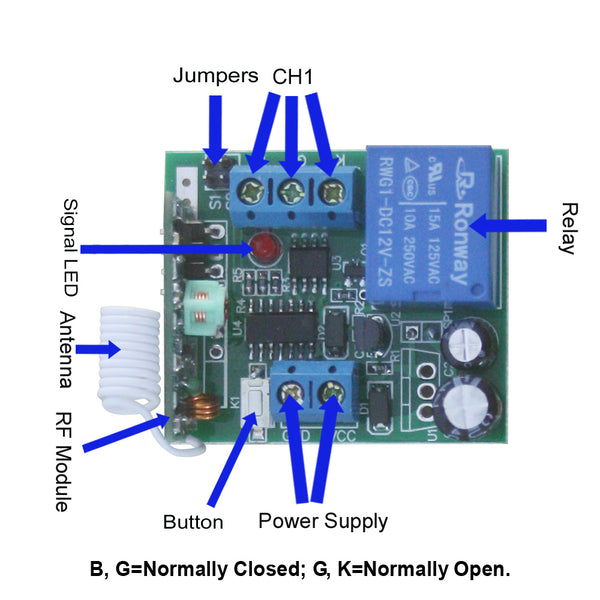

Initial state: B, G = Normally Closed; G, K = Normally Open.
Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
Setting control mode Self-locking: Connect S1.
Control mode Self-locking: Press -> On; Press again -> Off.
Press button A: Turn on the relay (connect G and K, disconnect B and G)
Press button A again: Turn off the relay (disconnect G and K, connect B and G)
Setting control mode Momentary: Disconnect S1 and S2.
Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button A: Turn on the relay (connect G and K, disconnect B and G)
Release button A: Turn off the relay (disconnect G and K, connect B and G)
Setting control mode Interlocking: Connect S2.
Control mode Interlocking: Press -> On, other relays Off; Press another button -> Off.
Press button A: Turn on the relay (connect G and K, disconnect B and G)
Press button B: Turn off the relay (disconnect G and K, connect B and G)
Package Include:
1 x Receiver: S1RU-DC06 / S1RU-DC09 / S1RU-DC12 / S1RU-DC24
1 x User manual
