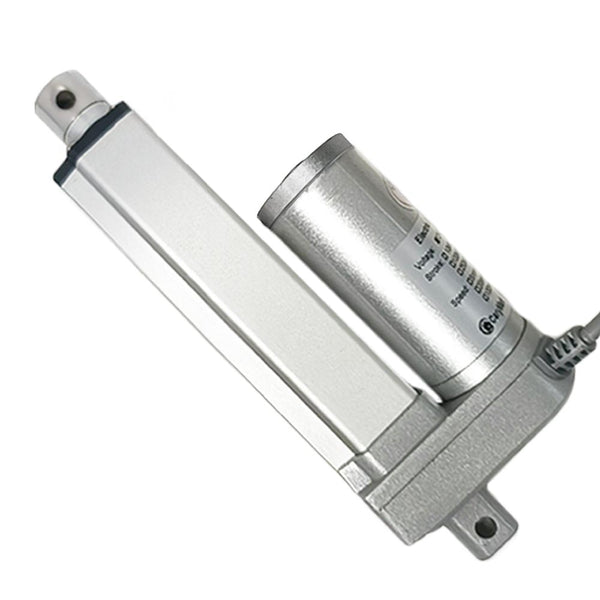

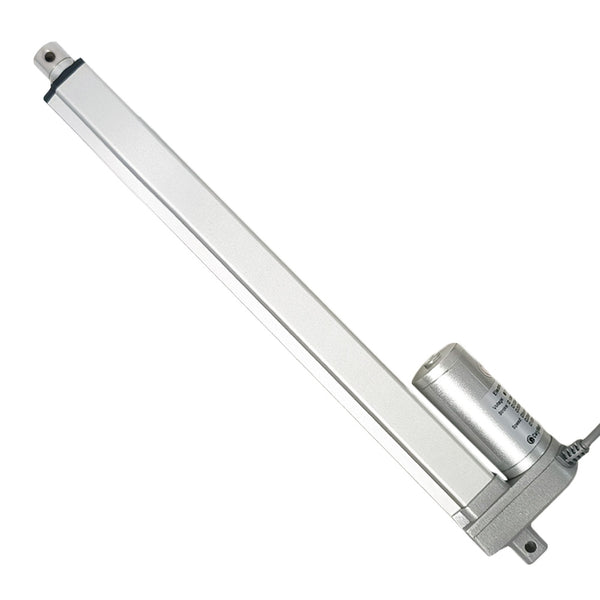

2000N Linear Actuator A

Electric linear actuators A are mainly composed of DC linear motor and control devices, the telescopic rod moves in a straight linear motion. They usually work with 12 volts or 24 volts DC voltage, and you can use our remote control switch kit to operate them.

IP rating: IP65
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Strong thrust, up to 2000N / 200Kgs / 450lbs
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm, 660mm, 950mm and so on.
Multiple speed options, from 5 mm/second to high speed 160 mm/second

Electric linear actuators A mainly used for trapdoors, hatchways, windows, cars, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

We can provide 3D  CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.


The introduction of linear actuator A

Pull test of linear actuator A

Thrust test of linear actuator A

The working condition of linear actuator A at different speeds

How to delete/pair the transmitter for the remote control switch

How to use the Remote Control Set to Control the Electric Linear Actuators A (Model 0020317)

Wireless Controller Remotely Controls Linear Actuator Speed (Model 0020151)

Use the Wireless Controller to Remotely Control the Linear Actuator Speed (Model 0020153)

How to use the Speed Governor to Control the Electric Linear Actuator (Model 0044009)

How to use the Manual Switch to Control the Electric Linear Actuator (Model 0040024)

How to use the Control Handle to Control the Electric Linear Actuator (Model 0043011)

How to use the Hand Controller to Control Linear Actuator (Model 0043012)

How to use the Toggle Switch to Control the Electric Linear Actuator (Model 0043013)

How to Connect Two External Limit Switches to Electric Linear Actuator (Model 0010013)

Electric Linear Actuator Packaging

Electric Linear Actuator Unpackaging
