DC Motor Linear Actuator 500MM Stroke / 2000N Electric Putter (Model 0041505)

Regular price $110.00

Shipping calculated at checkout.

Video:

Pull test of linear actuator A

Thrust test of linear actuator A

The working condition of linear actuator A at different speeds

How to use the Remote Control Set to Control the Electric Linear Actuators A (Model 0020317)

Wireless Controller Remotely Controls Linear Actuator Speed (Model 0020151)

Use the Wireless Controller to Remotely Control the Linear Actuator Speed (Model 0020153)

How to use the Speed Governor to Control the Electric Linear Actuator (Model 0044009)

How to use the Manual Switch to Control the Electric Linear Actuator (Model 0040024)

How to use the Control Handle to Control the Electric Linear Actuator (Model 0043011)

How to use the Hand Controller to Control Linear Actuator (Model 0043012)

How to use the Toggle Switch to Control the Electric Linear Actuator (Model 0043013)

How to Connect Two External Limit Switches to Electric Linear Actuator (Model 0010013)

Feature:
High-quality products and high-quality services
New housing design, high working stability
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear

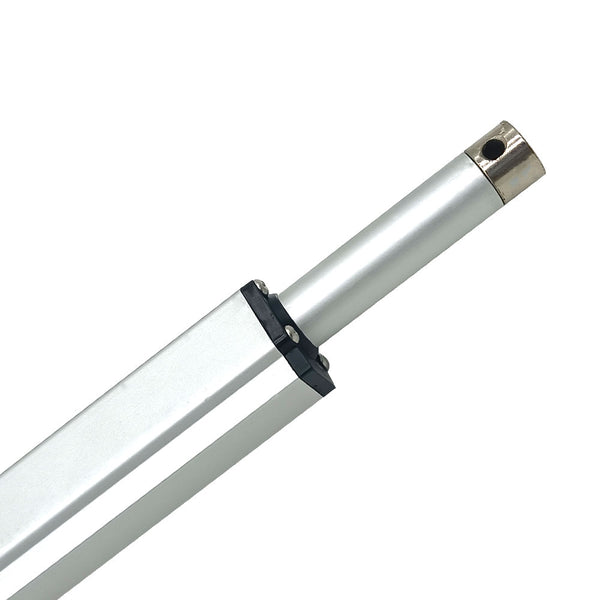

Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 2000N / 200 Kgs / 450 lbs
Multiple speed options, from 5 mm/second to 160 mm/second
Multiple stroke options, from 10 mm to 1000 mm
We can customize any stroke length from 10mm to 1000mm, such as 225mm, 660mm, 950mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 20 inches or 500 mm
Optional speed: 5±1mm/s, 10±2mm/s, 15±3mm/s, 20±4mm/s, 30±5mm/s, 50±10mm/s, 100±15mm/s, 160±20mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 2000N / 200 Kgs / 450 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 0.5~1A at 12V or 0.3~0.5A at 24V
Full load current: 3~6A at 12V or 1.5~3A at 24V
Please use a 12V/6A or 24V/3A power supply to power a linear actuator or use a 12V/10A or 24V/5A power supply to power two linear actuators, or use a 12V/20A or 24V/10A power supply to power four linear actuators.
Shaft diameter: 20mm
Mounting holes diameter: 6mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Steel Alloy
Motor Type: Brushed DC Motor
Duty Cycle: 20%, max 5mins continuous use
Plug Standard: Ordinary Two-core Wire
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 46dB~56dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP65

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please click here to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

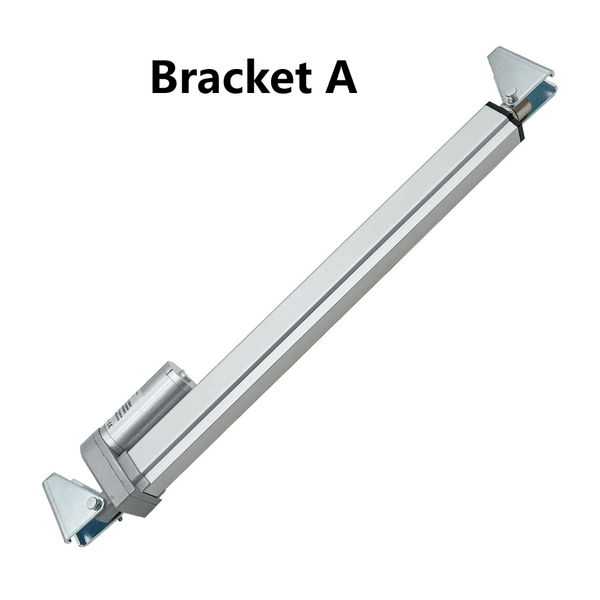

3. Compatible Mounting Brackets: Bracket A and Bracket C.

Operation:
When linear actuator is connected to DC power supply, the stroke rod will extend outward; after switching the power in the reverse direction, the stroke rod will retract inward.
The direction of movement of the stroke rod can be changed by switching the polarity of DC power supply.

Note:
1. If you want to operate two or more linear actuators to fully synchronize movement, please contact us for specific solutions.
2. If you need a power supply to power linear actuator, please click here to purchase.
3. If you want to use external limit switches to stop linear actuator at any position, please click here to purchase.
4. If you want to use a remote control switch to operate linear actuator wirelessly, please click here to purchase.

Different speeds and corresponding maximum thrust:

No-load Speed Maximum Thrust
5mm/s 2000N / 200 kg / 450 lbs
10mm/s 1000N / 100 kg / 200 lbs
15mm/s 800N / 80 kg / 180 lbs
20mm/s 700N / 70 kg / 160 lbs
30mm/s 500N / 50 kg / 110 lbs
50mm/s 300N / 30 kg / 60 lbs
100mm/s 150N / 15 kg / 30 lbs
160mm/s 100N / 10 kg / 20 lbs


Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. When the speed of the linear actuator is 100mm/s or 160mm/s, the self-locking force is much smaller than the thrust. At other speeds the self-locking force is greater than the thrust.
7. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

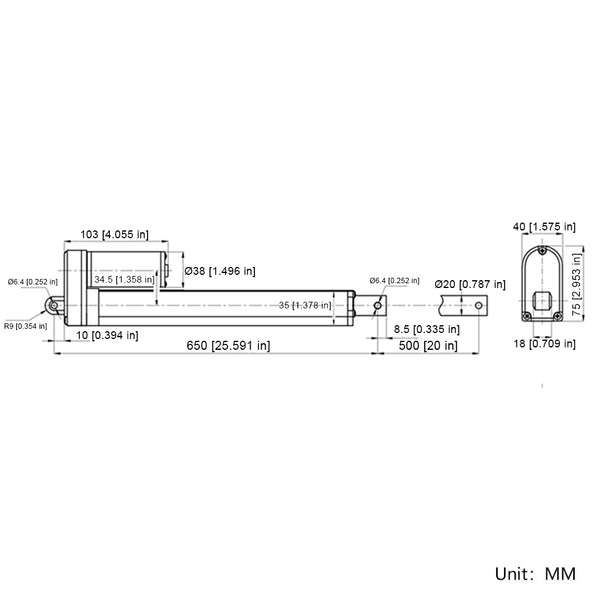

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
