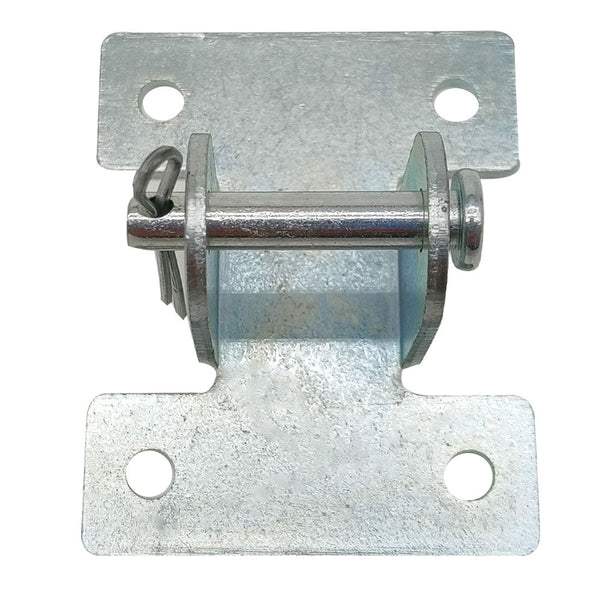

Fixed mounting bracket for electric linear actuator.

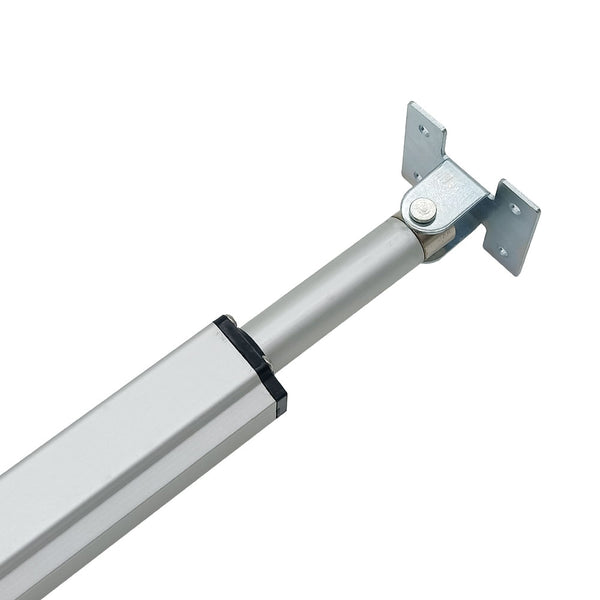

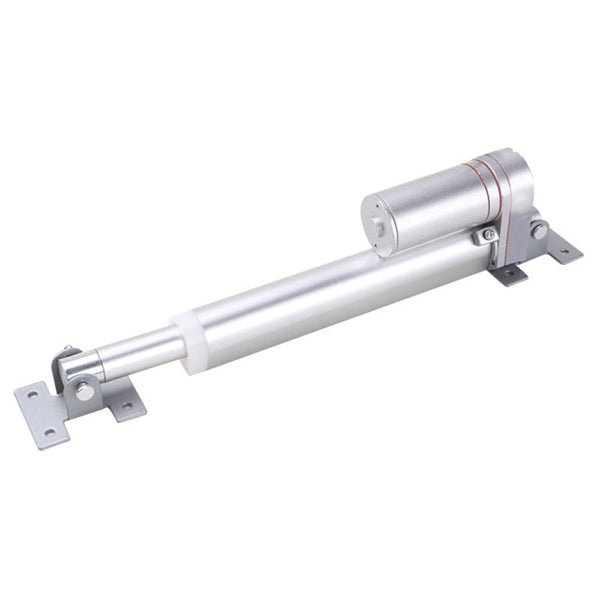

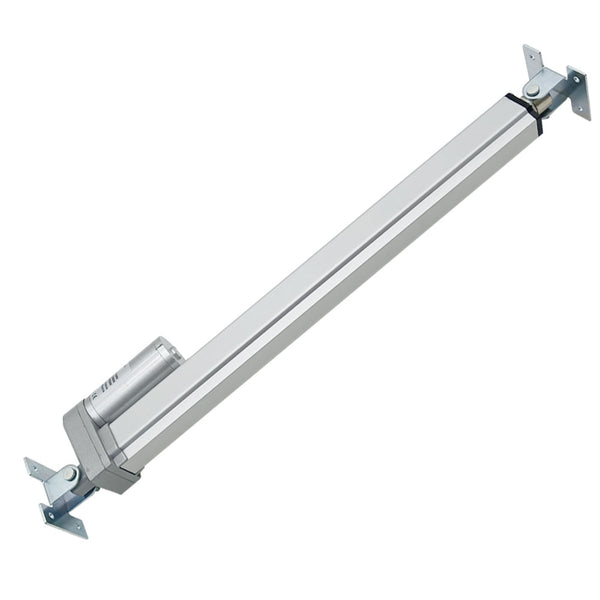

Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.

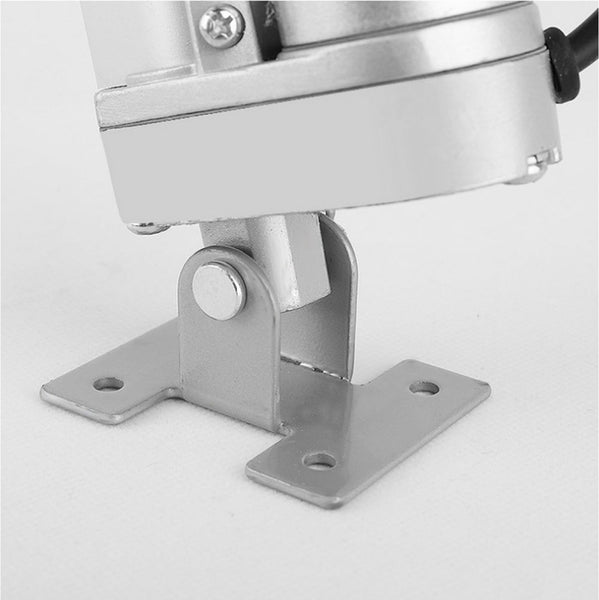

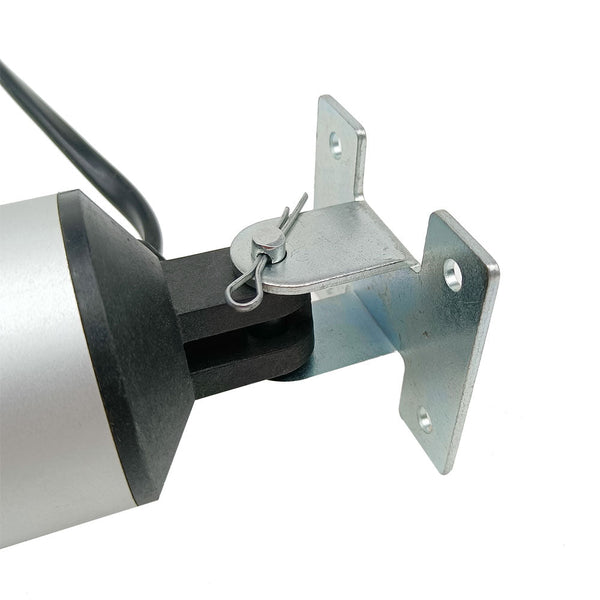

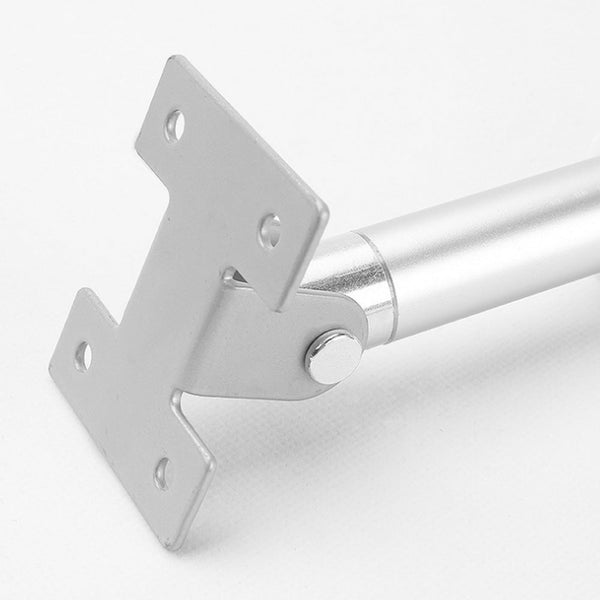

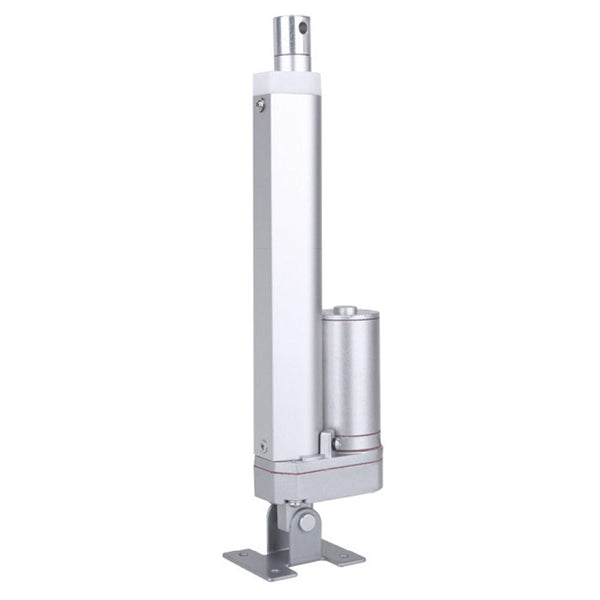

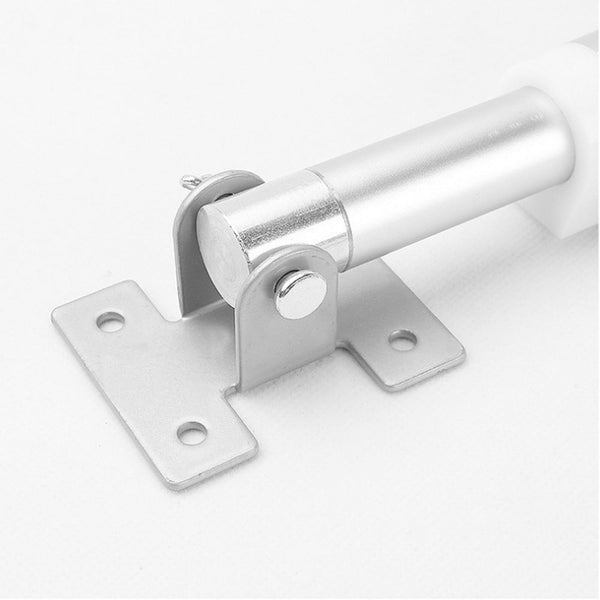

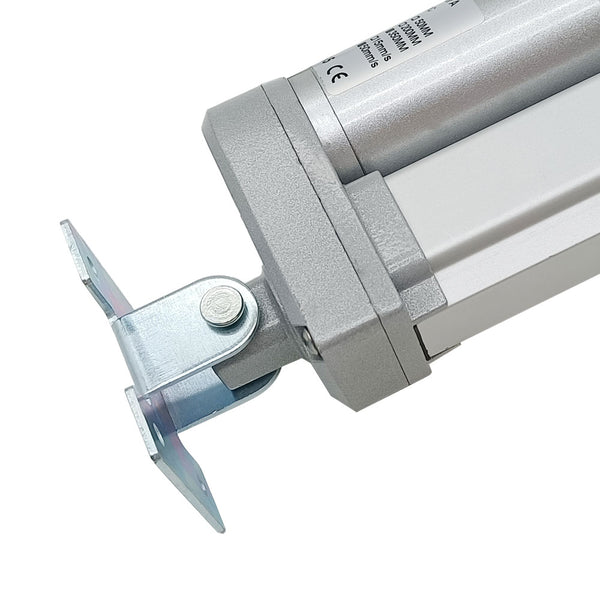

This mounting bracket can be installed on linear actuator A , and it can also be installed at the bottom of linear actuator D .
Iron material.

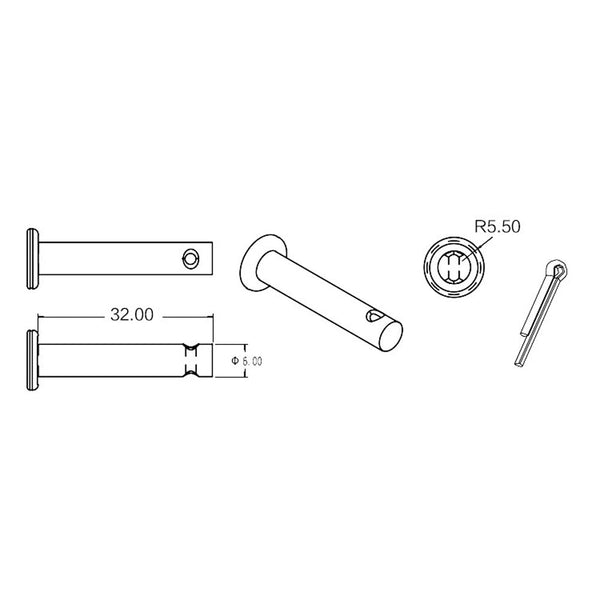

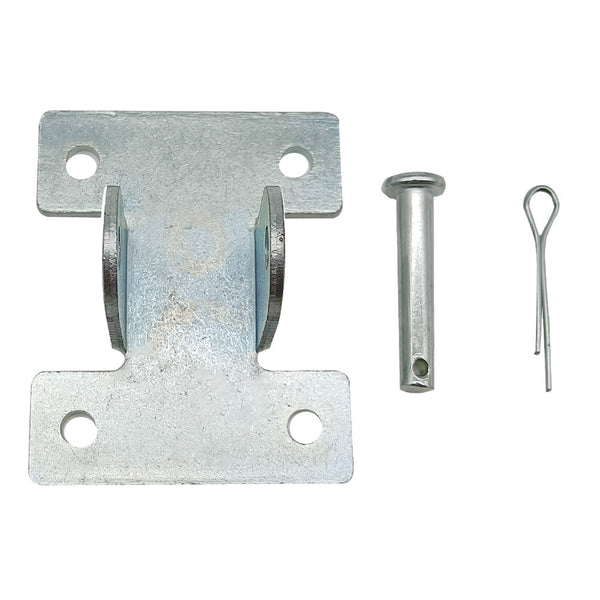

Includes a bracket, a wedge, a needle

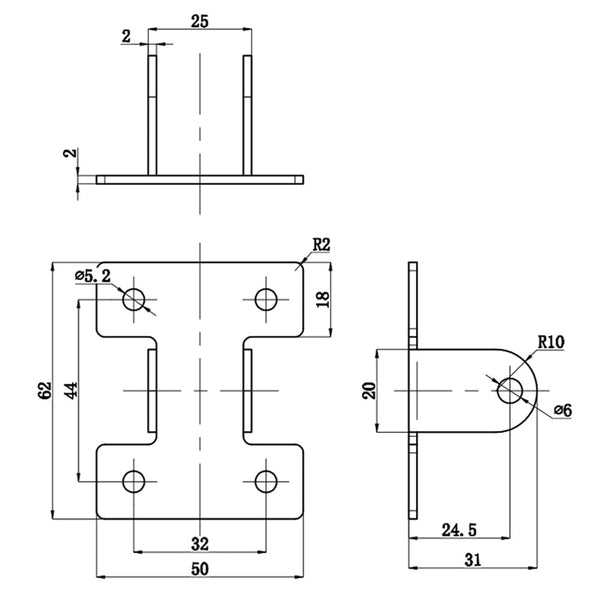

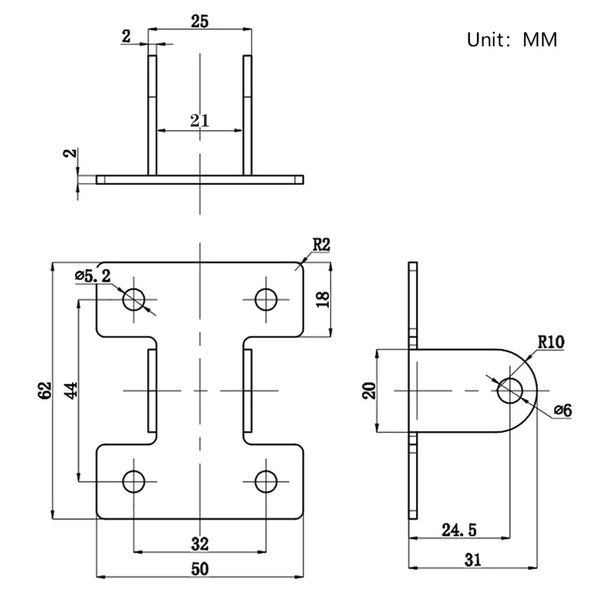

Thickness: 2mm [0.079 in]
Diameter of the wedge hole: 6mm [0.236 in]

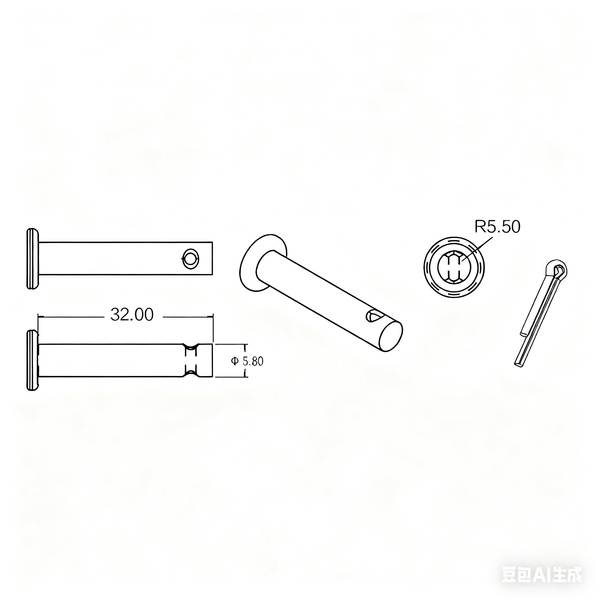

Diameter of the wedge: 5.8mm [0.228 in]
Diameter of the mounting hole: 5.2mm [0.205 in]
Spacing: 21mm [0.827 in]
