1 Remote Control 6 Receivers Remote System With 30A High Power AC Output (Model 0020739)

Regular price $218.00

Shipping calculated at checkout.
The receiver is designed for one-transmitter-many-receivers system. Use a 6 buttons transmitter to control 6 receivers.

Package Include:
6 x Receiver: S1PXB-AC
1 x Transmitter: CV-6
1 x User manual

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install.

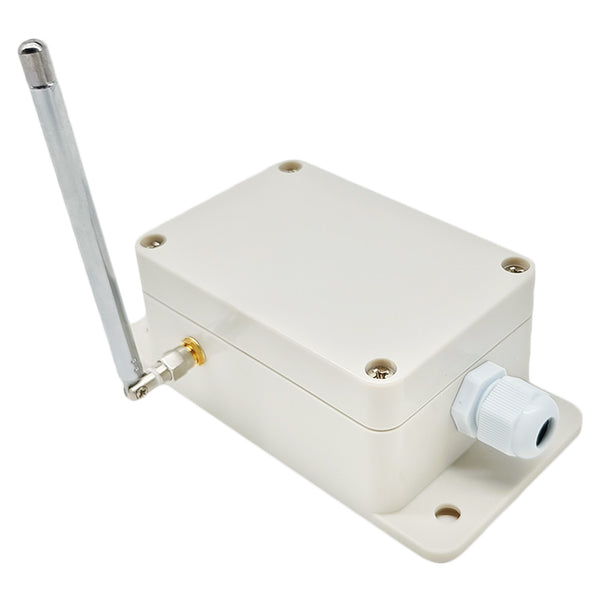

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support voltage of AC110V (100V~120V), widely used in US, Canada... and voltage of AC220V (200V~240V), used in UK, France...
AC Power Output: It can control AC equipment with voltage 110V / 120V / 220V / 240V AC.
High Power: Each channel can work at maximum current 30A, such as 3100W/110V, 3400W/120V, 6400W/220V, 7000W/240V.
With wired control terminals: You can connect sensors, limit switches, manual switches or external devices to control the receiver.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
With reverse power protection and over current protection.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.

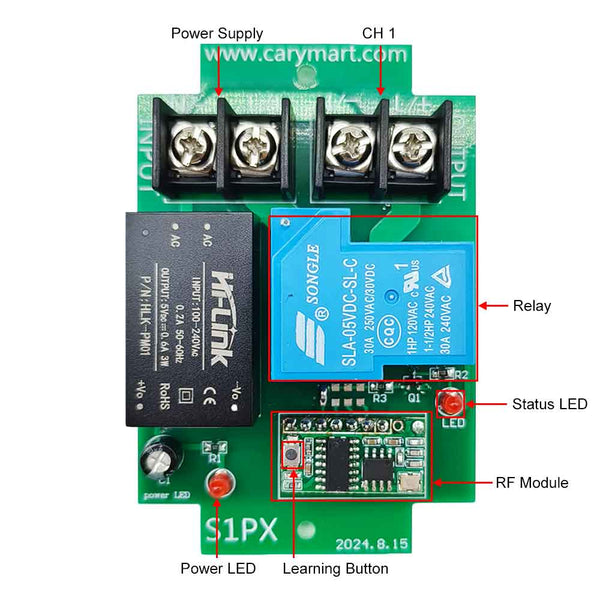

Receiver Parameters:
Model No.: S1PXB-AC
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1CH
Control Modes: Self-locking, Momentary, Interlocking
Static Current: ≤6mA
Maximum Working Current: 30A / each channel
PCB size: 90mm x 59mm x 18mm
Case size: 100mm x 68mm x 50mm

Transmitter:
Model No.: CV-6
Button Symbol: 1, 2, 3, 4, 5, 6

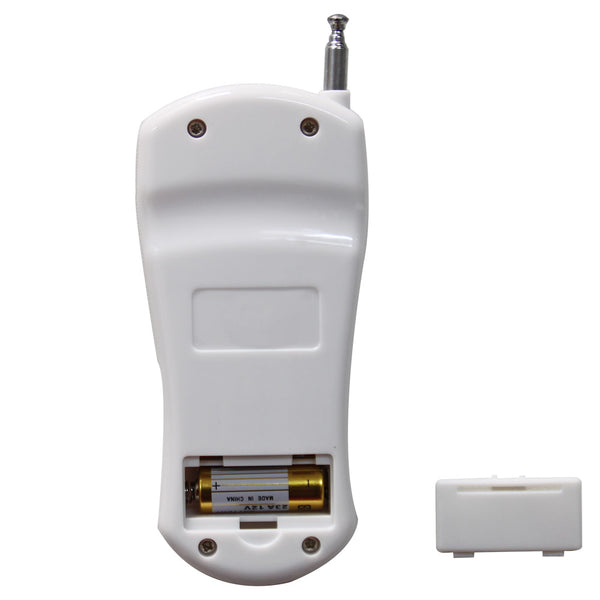

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262/PT2264/SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm

Working Range:
With a transmitter (such as CV-6) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Usage:
The receiver can be used to control AC 110~240V equipments.

Wiring:
If you want to control an AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal “L / +” of INPUT, and connect the neutral wire of AC power supply to terminal “N / -” of INPUT.
2) Connect one side of AC lamp to terminal "L / +" of OUTPUT, and connect another side of AC lamp to terminal "N / -" of OUTPUT.

Setting different control modes:
Control mode Self-locking: Press -> On; Press again -> Off.
Press button 1 of the transmitter: Output terminal of the receiver 1 outputs AC power, the lamp 1 is on.
Press button 1 again: Output terminal of the receiver 1 stops outputting, the lamp 1 is off.

Press button 6 of the transmitter: Output terminal of the receiver 6 outputs AC power, the lamp 6 is on.
Press button 6 again: Output terminal of the receiver 6 stops outputting, the lamp 6 is off.

Control mode Momentary: Press and hold -> On; Release -> Off.
Press and hold button 1 of the transmitter: Output terminal of the receiver 1 outputs AC power, the lamp 1 is on.
Release button 1 of the transmitter: Output terminal of the receiver 1 stops outputting, the lamp 1 is off.

Press and hold button 6 of the transmitter: Output terminal of the receiver 6 outputs AC power, the lamp 6 is on.
Release button 6 of the transmitter: Output terminal of the receiver 6 stops outputting, the lamp 6 is off.

Control mode Interlocking: Press -> On, Press another button -> Off.
Press button 1 of the transmitter: Output terminal of the receiver 1 outputs AC power, the lamp 1 is on.
Press other button of the transmitter: Output terminal of the receiver 1 stops outputting, the lamp 1 is off.

Press button 6 of the transmitter: Output terminal of the receiver 6 outputs AC power, the lamp 6 is on.
Press other button of the transmitter: Output terminal of the receiver 6 stops outputting, the lamp 6 is off.

Wired control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to manual terminals 1 (Signal -) and terminal 2 (Signal +), then the external device’s output signal can control the receiver.
When the external device outputs low level signal to manual terminal 1 and terminal 2, turn on the relay. Output terminal outputs AC power, the lamp is on.
When the external device stops to output signal, turn off the relay. Output terminal stops outputting, the lamp is off.

2) The manual switches:
You can connect manual switch to terminals 1 and 2, and then you can use this manual switch to control the receiver.
When connect terminals 1 and 2, turn on the relay. Output terminal outputs AC power, the lamp is on.
And when disconnect terminals 1 and 2, turn off the relay. Output terminal stops outputting, the lamp is off.
