Feature:
Wireless control, easy to install
DC power output, can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC 6V/ 9V/ 12V/ 24V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
You can use one transmitter to control several receivers, such as each two buttons on transmitter controls one receiver. They can pair different model transmitters, includes model C-4 (100M), CWB-4 (50M, waterproof), CP-4 / CV-4 (500M), or CB-4 (1000M) etc.
For example, you can use one 4 buttons transmitter CV-4 or CB-4 to control two receivers, use one 6 buttons transmitter CV-6 or CB-6 to control three receivers, use one 8 buttons transmitter CV-8 or CB-8 to control four receivers, use one 12 buttons transmitter CV-12 or CB-12 to control six receivers, etc…
Receiver Parameters:
Model No.: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24
Power Supply (Operating Voltage): DC6V (S1XB-DC06), DC12V±1V (S1XB-DC12), DC9V±1V (S1XB-DC09), DC24V±2V (S1XB-DC24)
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Output: DC6V (S1XB-DC06), DC12V (S1XB-DC12), DC9V (S1XB-DC09), DC24V (S1XB-DC24)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Maximum Working Current of Relay: 10A / each channel
Static Current: ≤6mA
PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm
Work with Fixed code transmitters or Learning code transmitters.
If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic mount antenna (model 0020909), which working range is three times as much as it used to be. Or telescopic antenna (model 0020908), which working range is twice as much as it used to be.
Usage (with the transmitter like CV-6):

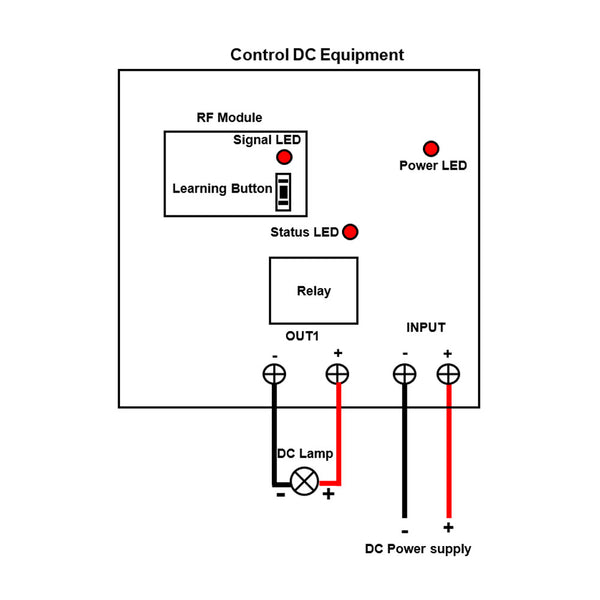

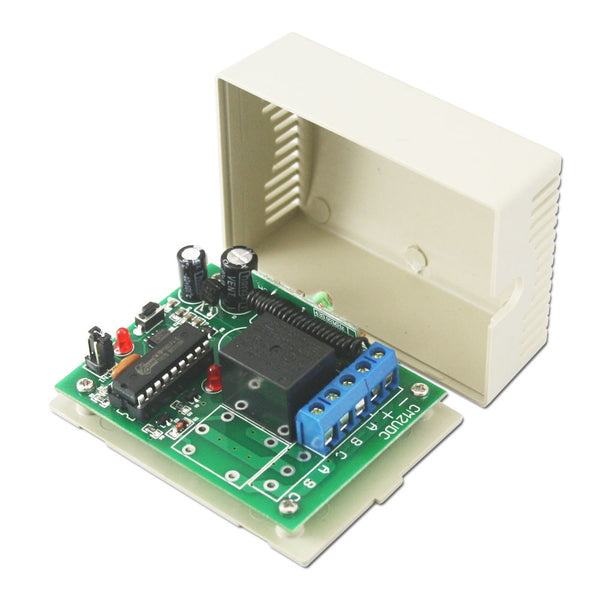

Connect DC power to terminal “+” and “-“.
Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following):
1) Setting control mode Self-locking: Only connect Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press button 1 again: Terminal A&B of receiver 1 no output.
…
Press button 6: Terminal A&B of receiver 6 outputs DC power.
Press button 6 again: Terminal A&B of receiver 6 no output.
2) Setting control mode Momentary: Only connect Jumper-1.
Press and hold button 1: Terminal A&B of receiver 1 outputs DC power.
Release button 1: Terminal A&B of receiver 1 no output.
Press and hold button 6: Terminal A&B of receiver 6 outputs DC power.
Release button 6: Terminal A&B of receiver 6 no output.
3) Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press other buttons: Terminal A&B of receiver 1 no output.
Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Press other buttons: Terminal A&B of receiver 6 no output.
Product Description:

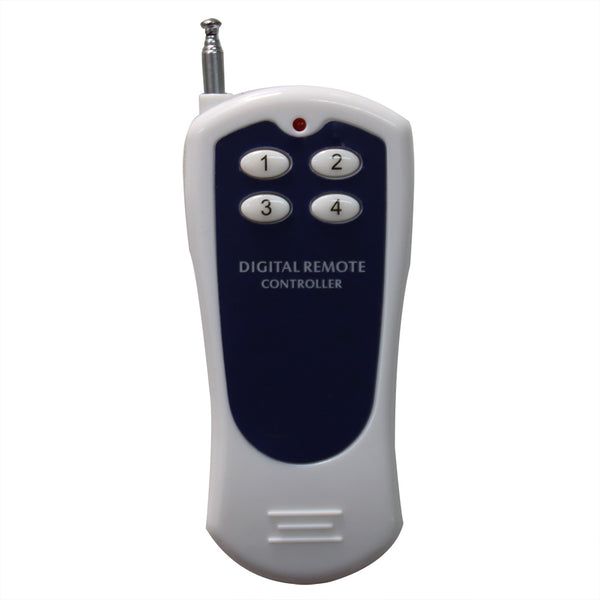

Model No.: 0021018 (CV-4)
Shell Color: White
Channel/Button: 4
Button Symbol: 1, 2, 3, 4

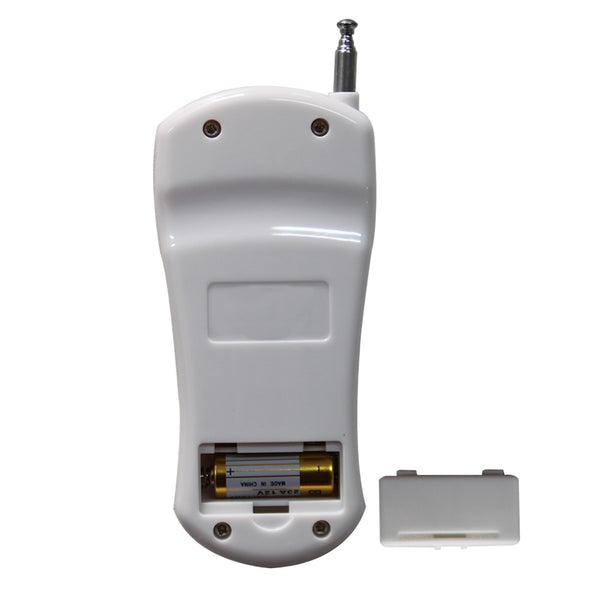

Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: LX2260A-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Weight: 55g
Uses:
garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
Wireless control, easy to install
DC power output, can control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances with DC 6V/ 9V/ 12V/ 24V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
You can use one transmitter to control several receivers, such as each two buttons on transmitter controls one receiver. They can pair different model transmitters, includes model C-4 (100M), CWB-4 (50M, waterproof), CP-4 / CV-4 (500M), or CB-4 (1000M) etc.
For example, you can use one 4 buttons transmitter CV-4 or CB-4 to control two receivers, use one 6 buttons transmitter CV-6 or CB-6 to control three receivers, use one 8 buttons transmitter CV-8 or CB-8 to control four receivers, use one 12 buttons transmitter CV-12 or CB-12 to control six receivers, etc…
Receiver Parameters:
Model No.: S1XB-DC06 / S1XB-DC09 / S1XB-DC12 / S1XB-DC24
Power Supply (Operating Voltage): DC6V (S1XB-DC06), DC12V±1V (S1XB-DC12), DC9V±1V (S1XB-DC09), DC24V±2V (S1XB-DC24)
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Output: DC6V (S1XB-DC06), DC12V (S1XB-DC12), DC9V (S1XB-DC09), DC24V (S1XB-DC24)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Maximum Working Current of Relay: 10A / each channel
Static Current: ≤6mA
PCB size: 67mm x 50mm x 18mm
Case size: 75mm x 54mm x 27mm
Work with Fixed code transmitters or Learning code transmitters.
If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic mount antenna (model 0020909), which working range is three times as much as it used to be. Or telescopic antenna (model 0020908), which working range is twice as much as it used to be.
Usage (with the transmitter like CV-6):
Connect DC power to terminal “+” and “-“.
Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following):
1) Setting control mode Self-locking: Only connect Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press button 1 again: Terminal A&B of receiver 1 no output.
…
Press button 6: Terminal A&B of receiver 6 outputs DC power.
Press button 6 again: Terminal A&B of receiver 6 no output.
2) Setting control mode Momentary: Only connect Jumper-1.
Press and hold button 1: Terminal A&B of receiver 1 outputs DC power.
Release button 1: Terminal A&B of receiver 1 no output.
Press and hold button 6: Terminal A&B of receiver 6 outputs DC power.
Release button 6: Terminal A&B of receiver 6 no output.
3) Setting control mode Interlocking: Do not connect Jumper-1 and Jumper-2.
Press button 1: Terminal A&B of receiver 1 outputs DC power.
Press other buttons: Terminal A&B of receiver 1 no output.
Press button 6: Turn on the relay, terminal A&B of receiver 6 outputs DC power.
Press other buttons: Terminal A&B of receiver 6 no output.
Product Description:
Model No.: 0021018 (CV-4)
Shell Color: White
Channel/Button: 4
Button Symbol: 1, 2, 3, 4
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 15mA
Operating Frequency: 433Mhz
Encoding Chip: LX2260A-R4
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 110mm x 50mm x 18mm
Weight: 55g
Uses:
garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
