Package Include:
1 x Signal Repeater: R-01
1 x User Manual
Feature:

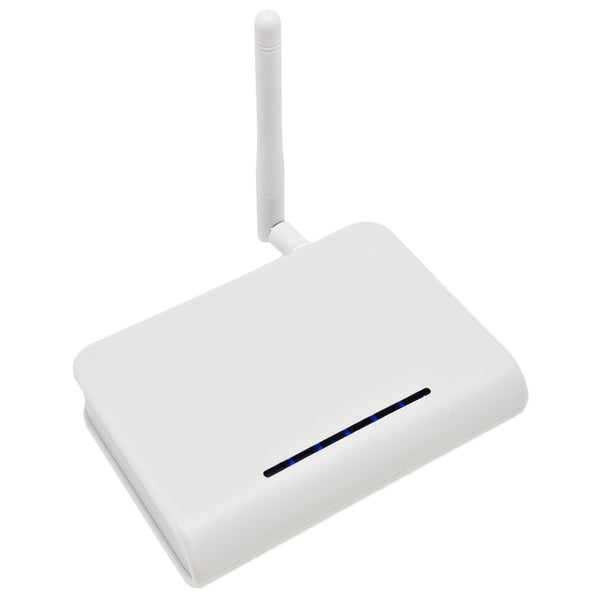

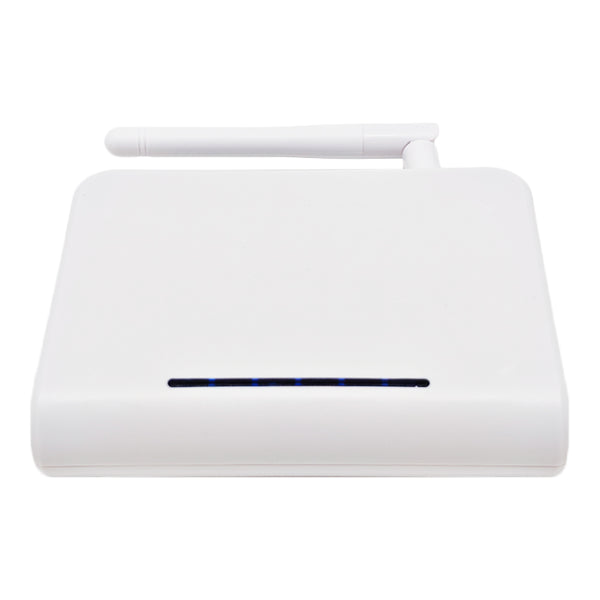

The signal repeater is a transceiver equipment that relays wireless RF
signal. It receives weak wireless signal and then send out this wireless
signal with strong power to extend the transmission distance.

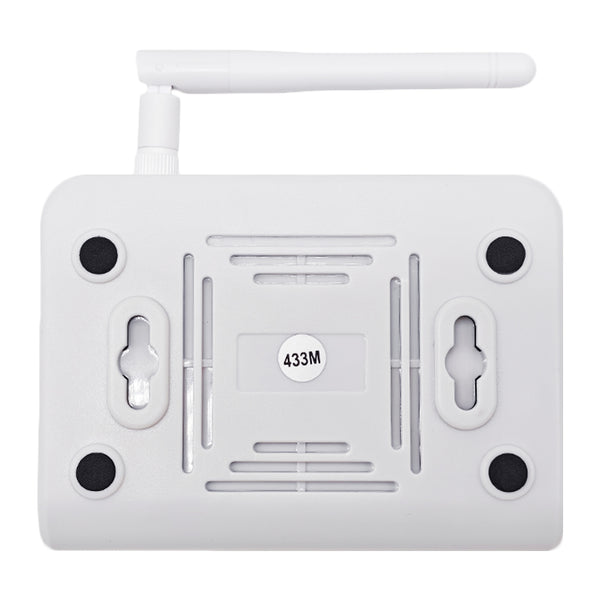

Two frequency versions are available: 315Mhz and 433Mhz, you need to
choose same frequency for the repeater according to your signal.
Support multiple learning code and fixed code encoding chips.
Supports multiple oscillation resistors.
The repeater has learning function, it can learn and store 100 different
transmitter signals.
The repeater only relays signals that have already been learned,
avoiding other unrelated signals.
Specification:
Working Frequency: 315MHz / 433.92MHz
Working Voltage: DC 12V
Support fixed code encoding chips: 2264, 2262, 2260, 2240
Support learning code encoding chips: 1527
Oscillation resistance range: 1.5M ~ 4.7M for fixed code, or 120K ~ 430K
for learning code
Standby Current: ≤20mA
Working Current: ≤260mA
Transmission Distance: 1000M in the open area
Repeating Time: 1-2 seconds
Size: 110 x 80 x 26 mm (4.3 x 3.1 x 1.0 inches)

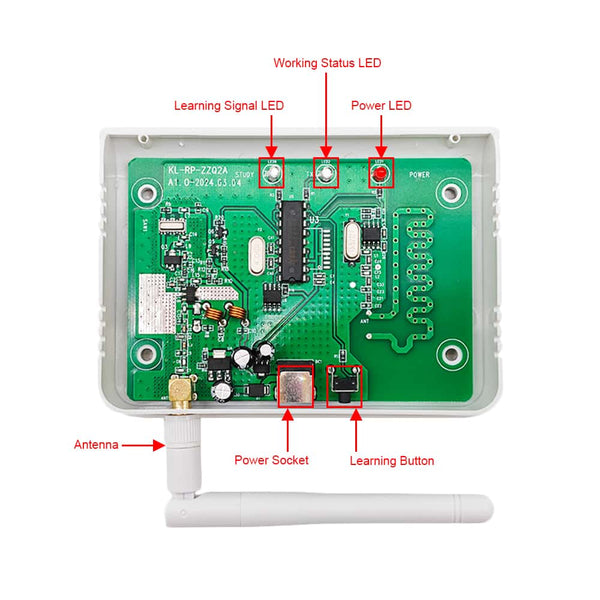

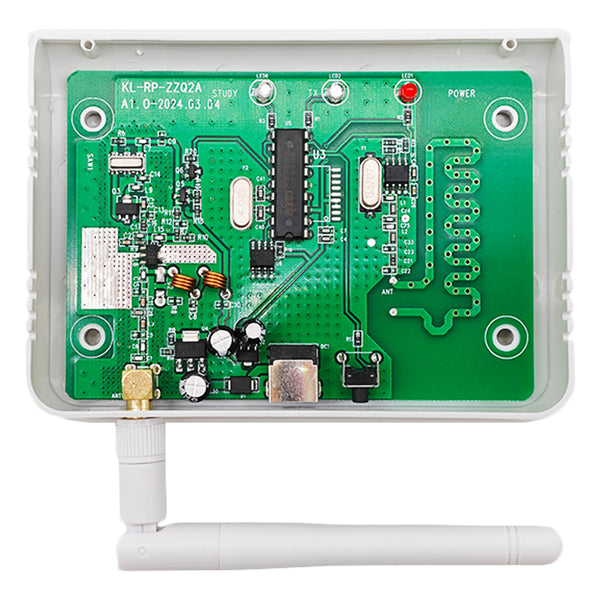

WORKING STATUS LED: When the signal is being relayed, this LED will
flash rapidly.
LEARNING SIGNAL LED: When the repeater enters the learning state, this
LED will flash rapidly.
POWER LED: The power indicator.
How to use the repeater:

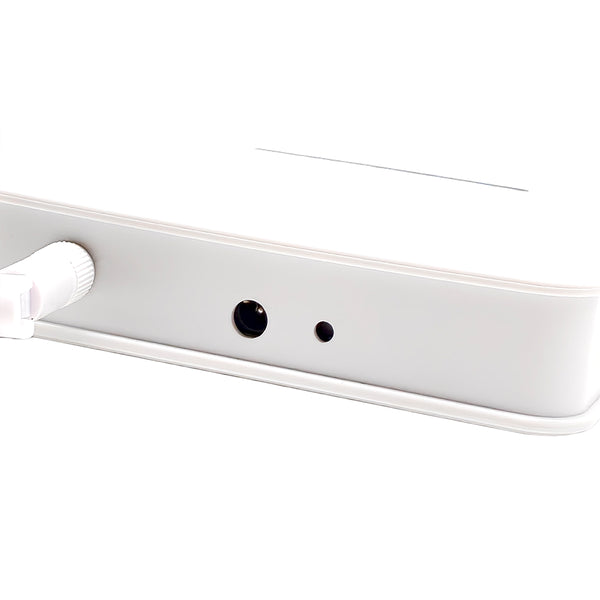

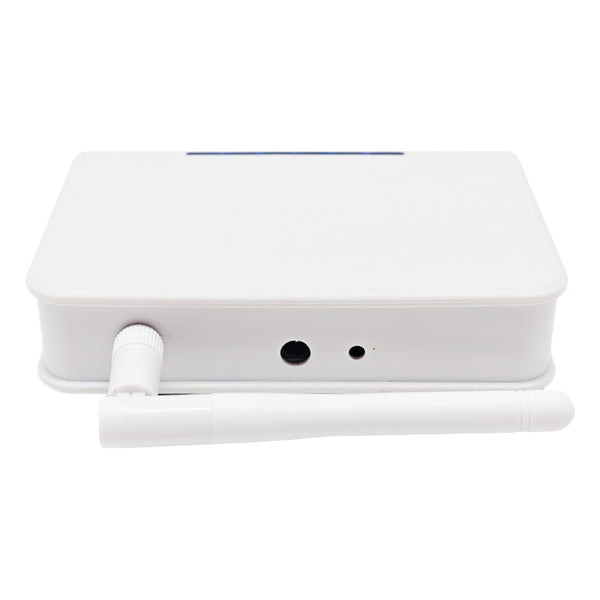

1) Connect to DC 12V power supply to the repeater, and the power LED
will be on.
2) Operate the repeater to learn the signal of the transmitter that need
to be relayed.
3) Test: Press the button on the transmitter for 1-2 seconds to transmit
a signal. The repeater's working status LED flashes quickly, which means
the repeater is repeating this signal. The receiver then receives this
signal and triggers the relay.

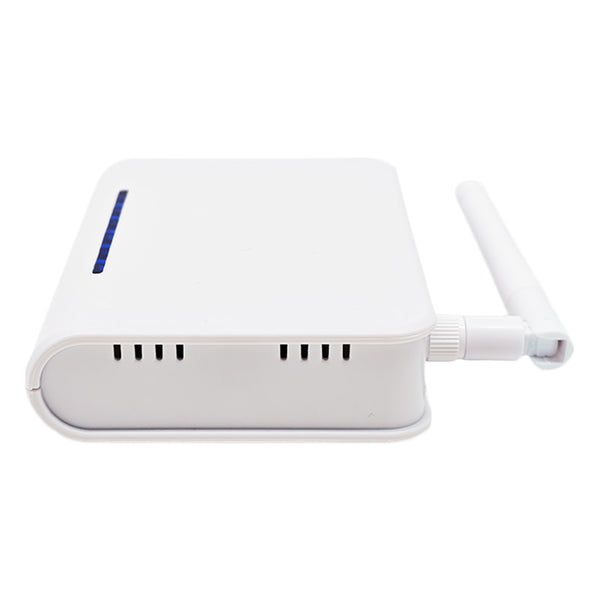

4) Put the repeater in the suitable position between the transmitter and

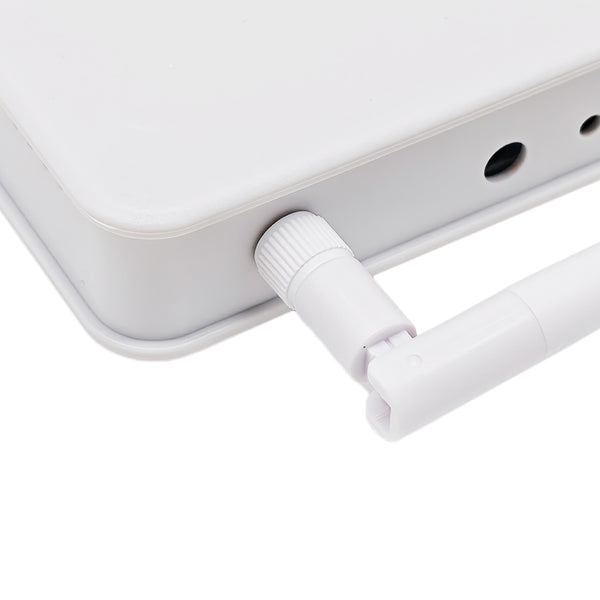

the receiver, and fully extend its telescopic antenna.
How to learn the signals:
1) Press and hold the learning button of the repeater for about 3-4
seconds until the signal LED lights up and flashes rapidly, then release
the button. This means the repeater enters the learning state.
2) Within 8 seconds, press the button on the transmitter to transmit a
signal. The signal LED will turn off after the repeater receives the
signal. This means the repeater has successfully learned this signal.
3) The repeater can learn 100 signals with different codes.
How to delete all stored signals:
If you don't want the repeater to work with the transmitter, you can
delete all the signals stored in the repeater.
Operation: Press and hold the learning button of the repeater for
approximately 8 seconds until the signal LED flashes and then turns off,
then release the button. At this time, all stored signals are deleted.
Note:
1) The repeater cannot learn or transmit the null-code signal, such as
the fixed-code signal with code 00000000.
2) The transmission time of each signal cannot be too long, and the best
time is 1~5 seconds. If the transmission time is too long, the repeater
is easily damaged.
