Package Include:
1 x Receiver: S1X-DC-ANT3
1 x Transmitter: CB-1/CB-2
1 x User manual
Introduction:
This is a wireless remote switch kit with 1 channel DC power output. It including a S1X-DC-ANT3 receiver and a CB-1 / CB-2 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
Receiver S1X-DC-ANT3 Parameters:
Transmitter CB-1 (1 Button) / CB-2 (2 Buttons) Parameters:

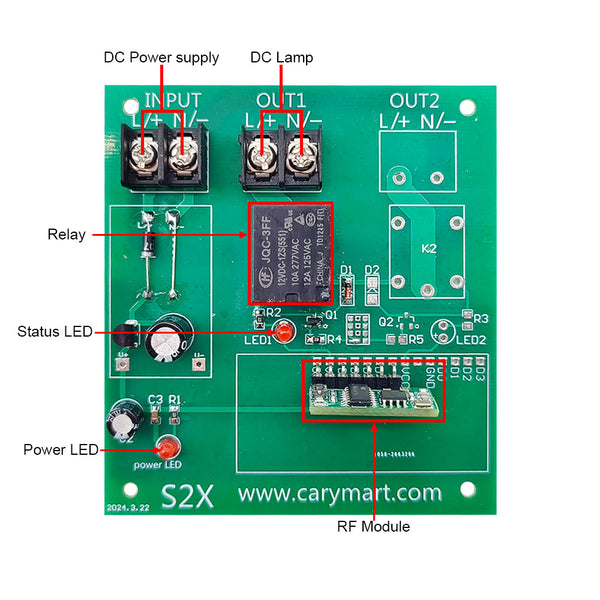

Wiring:

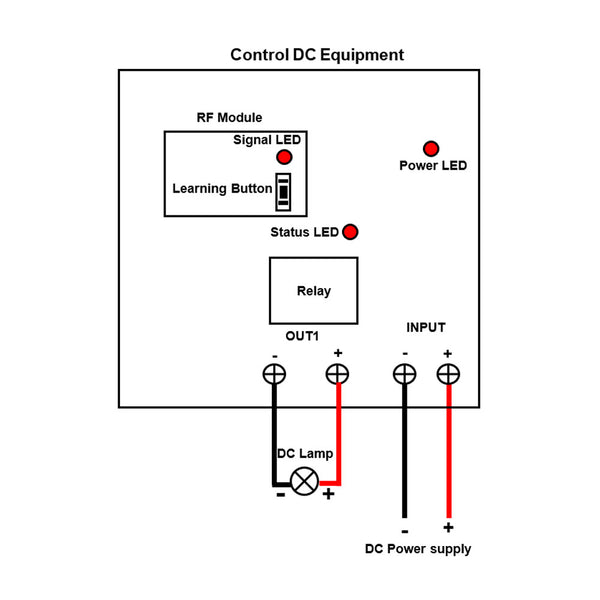

If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of INPUT, and connect the negative pole of DC power supply to terminal <-> of INPUT.
2) Connect terminal <+> of OUT1 to the positive pole of DC lamp, and connect terminal <-> of OUT1 to the negative pole of DC lamp.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CB-1:
Hold button → The output terminals outputs DC power (lamp ON)
Release → The output terminals stops outputting (lamp OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CB-1:
Press button → The output terminals outputs DC power (lamp ON)
Press again → The output terminals stops outputting (lamp OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CB-2:
Press Button A → The output terminals outputs DC power (lamp ON)
Press Button B → The output terminals stops outputting (lamp OFF)
1 x Receiver: S1X-DC-ANT3
1 x Transmitter: CB-1/CB-2
1 x User manual
Introduction:
This is a wireless remote switch kit with 1 channel DC power output. It including a S1X-DC-ANT3 receiver and a CB-1 / CB-2 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
DC Power Output: It can control DC equipment with voltage DC 6V / 9V / 12V / 24V.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
Receiver S1X-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | DC 6V, 9V, 12V, or 24V (specify when ordering) |
| Output Type | DC Power Output, same as input voltage |
| Channel | 1 CH |
| Working Frequency | 433.92MHz |
| Maximum Load Current | 10A |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |
| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |
| Matching Transmitters |
C-1 (100M) /
CWB-1 (50M, waterproof) /
CP-1 (500M) /
CB-1
(1000M) for Self-locking / Momentary C-2 (100M) / CWB-2 (50M, waterproof) / CP-2 (500M) / CB-2 (1000M) for Interlocking |
Transmitter CB-1 (1 Button) / CB-2 (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 9V (1 x 6F22 -9V battery, can be used for 12 months) |
| Button Symbol | No symbol (CB-1) / A, B (CB-2) |
| Operating Frequency | 433.92 Mhz |
| Encoding Chip | PT2262 / PT2264 / SC2262 |
| Transmitting Distance | 1000m / 3000ft (theoretically) |
| Unit Size | 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches) |
Wiring:
If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal <+> of INPUT, and connect the negative pole of DC power supply to terminal <-> of INPUT.
2) Connect terminal <+> of OUT1 to the positive pole of DC lamp, and connect terminal <-> of OUT1 to the negative pole of DC lamp.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CB-1:
Hold button → The output terminals outputs DC power (lamp ON)
Release → The output terminals stops outputting (lamp OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CB-1:
Press button → The output terminals outputs DC power (lamp ON)
Press again → The output terminals stops outputting (lamp OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CB-2:
Press Button A → The output terminals outputs DC power (lamp ON)
Press Button B → The output terminals stops outputting (lamp OFF)
