Here is the operation video: https://www.youtube.com/watch?v=H_UlKSrbvLk&feature=youtu.be
Feature:
Wireless control.
You can control the receiver with transmitter (remote control) from any place within a reliable distance, the wireless signal can pass through walls, floors and doors.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
Transmitting Frequency: 433MHz

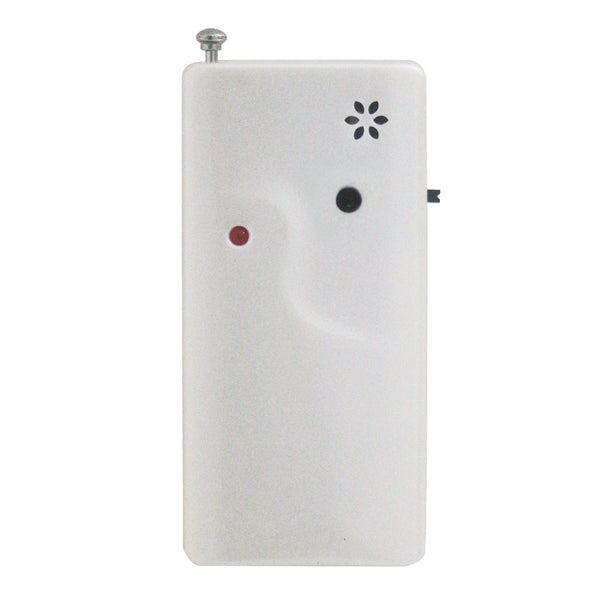

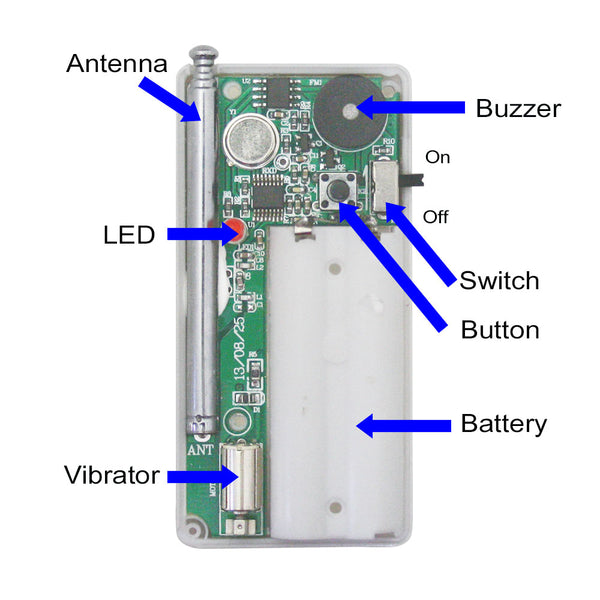

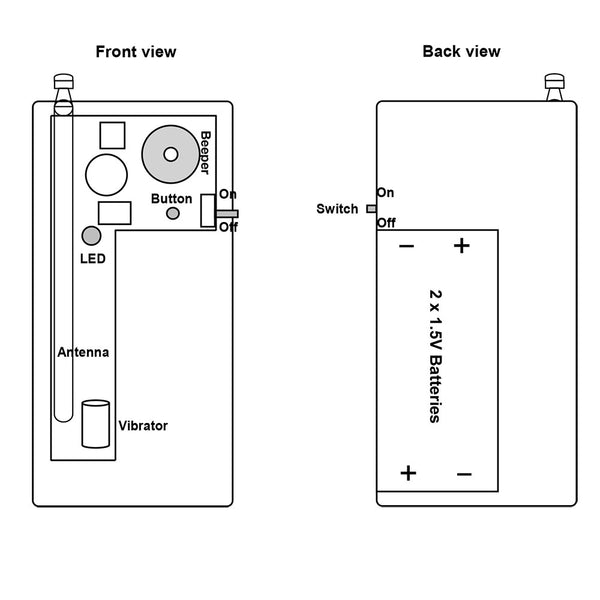

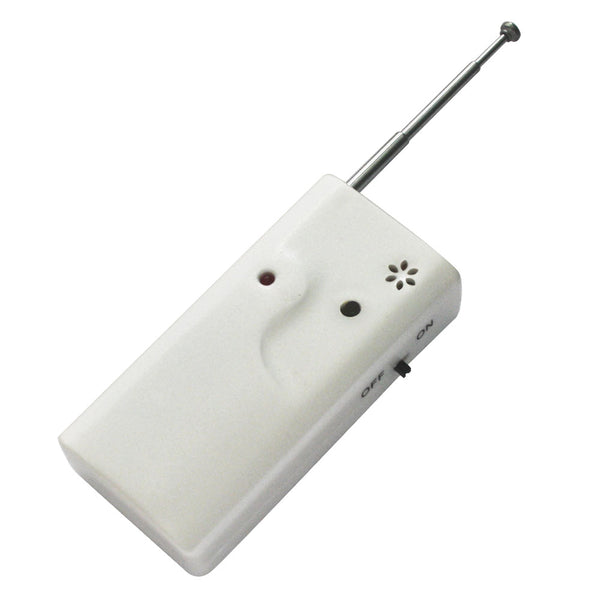

Receiver:
Model No.: Z-06
3 Modes: Vibration, Beep, Vibration and Beep
Decode: Learning code

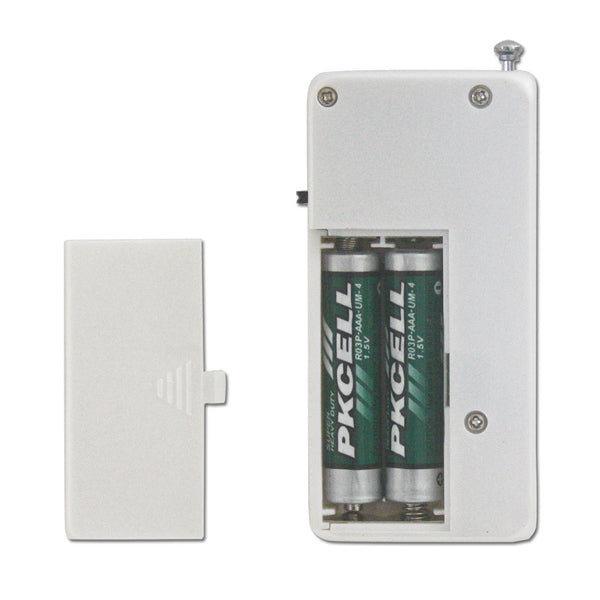

Power Supply: 2 x AAA 1.5V Battery (included)
Size: 77mm x 38mm x 17mm

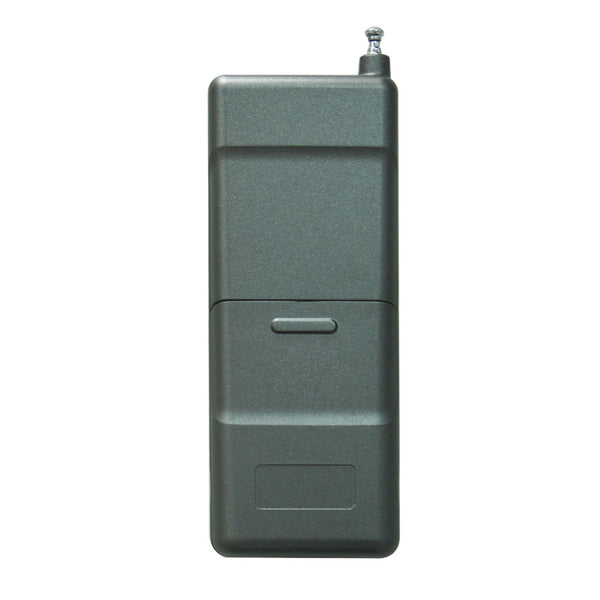

Transmitter:
Model: CM-999
Channel: 999 CH
Button: 12 buttons
Remote Control Distance: 1000m / 3000ft (theoretically)
Encode: Learning code
Unit size: 117mm x 46mm x 15mm
Power Supply: 3 x 1.5V batteries (included, can be used for 12 months)
Frequency: 433MHz
Usage of transmitter:
Transmit a wireless signal: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to transmit this wireless signal.
Delete wrong digit: If you press wrong digit before pressing the "Send" button, you can press "Delete" button to delete all numbers you pressed previously.
Usage of receiver:
Vibration mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to transmit this wireless signal, the corresponding receiver vibrates for 5 seconds.
Beep mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to transmit this wireless signal, the corresponding receiver beeps for 5 seconds.
Vibration & Beep mode: Press digits button to select a number from 1 to 999 by combination of the digits 0~9, then press the "Send" button to transmit this wireless signal, the corresponding receiver vibrates and beeps together for 5 seconds.
Each channel of transmitter can control one receiver.
Changing modes: As long as press the button of receiver, you can switch those three working modes optionally. Such as press the button of receiver, switch to beep mode from vibration mode; press the button of receiver again, switch to vibration & beep mode; press the button of receiver again, switch to vibration mode.
Note:
If you want to delete all stored codes, you should first switch off the receiver and switch on again, then you can go on deleting codes.
Package Include:
24 x Receiver: Z-06 (Vibration & Beep mode)
1 x Transmitter: CM-999
1 x User manual
