Package Include:

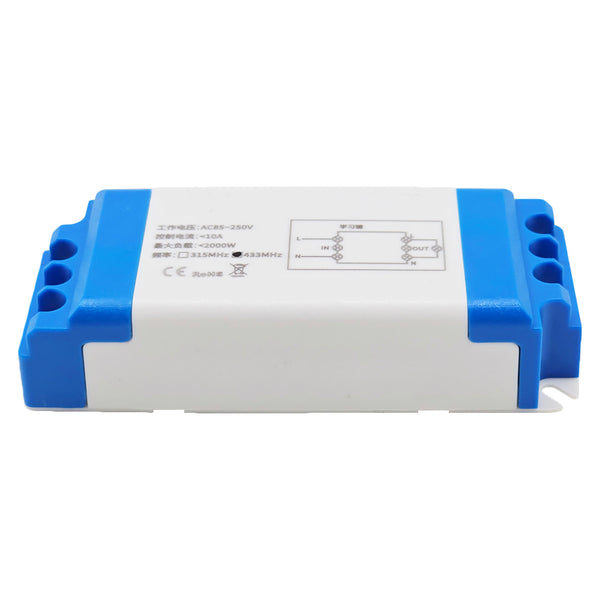

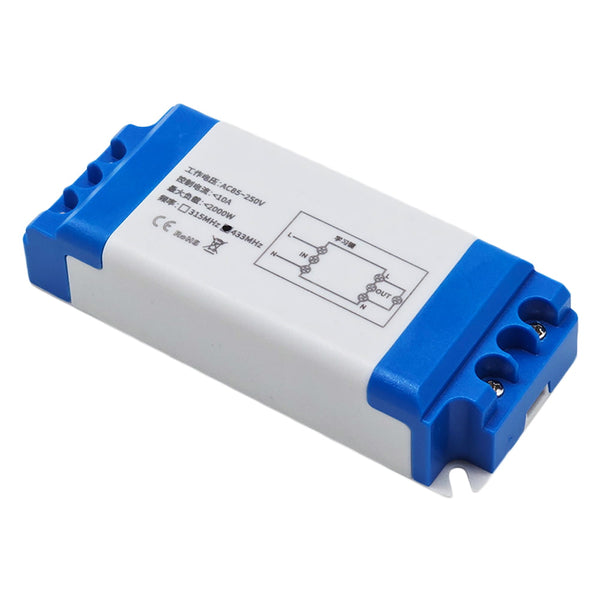

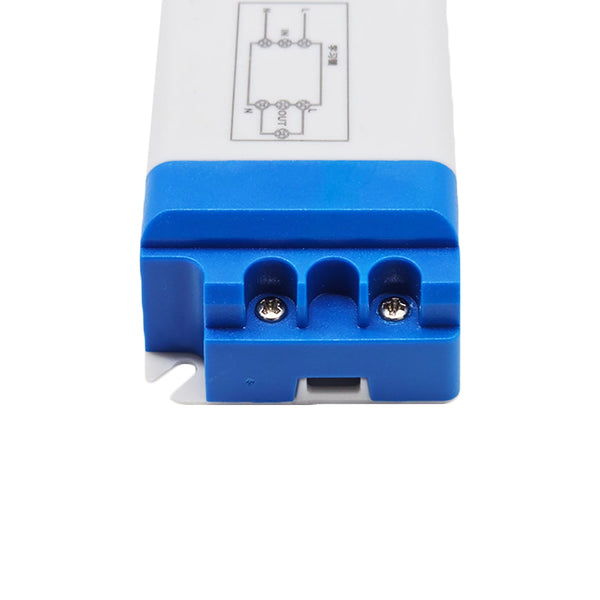

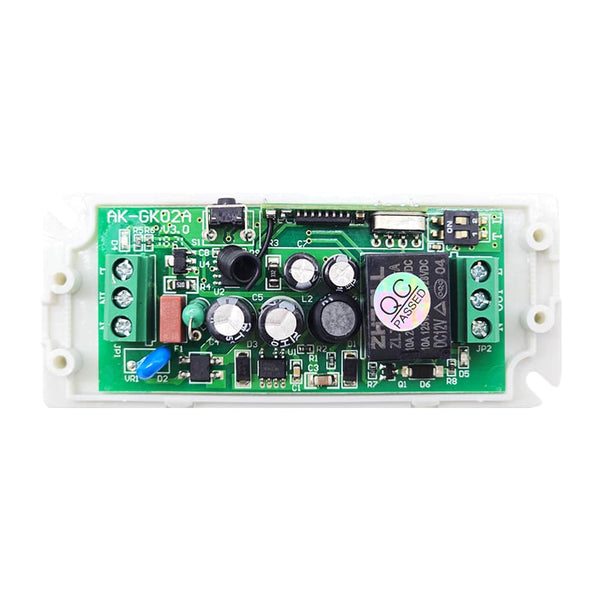

1 x Receiver: S1XC-AC

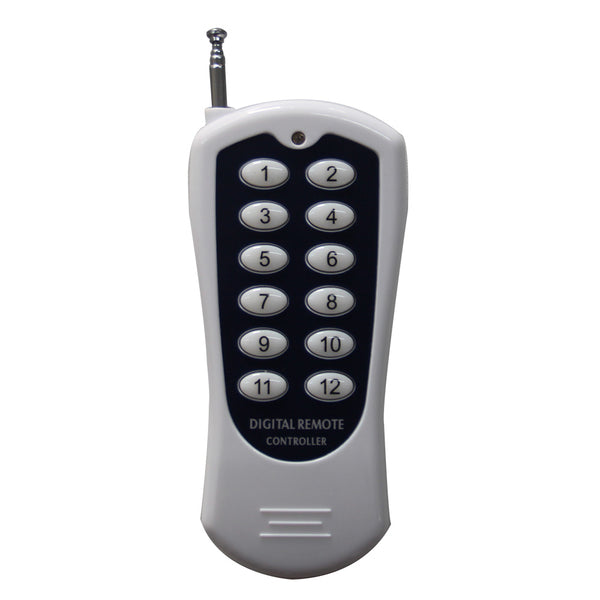

1 x Transmitter: CV-12
1 x User manual
Introduction:
This is one-transmitter-many-receivers system with AC power output. It including twelve S1XC-AC receivers and a CV-12 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Universal Power Supply: AC 85V~250V.
AC Power Output: It can control AC equipment with a voltage range of 85~250V AC (Such as AC devices with 110V, 120V, 220V, or 240V).
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S1XC-AC Parameters:
Transmitter CV-12 (12 Buttons) Parameters:

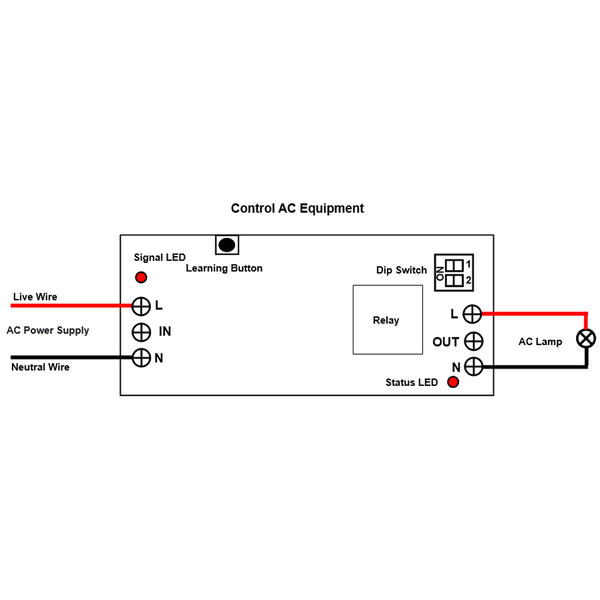

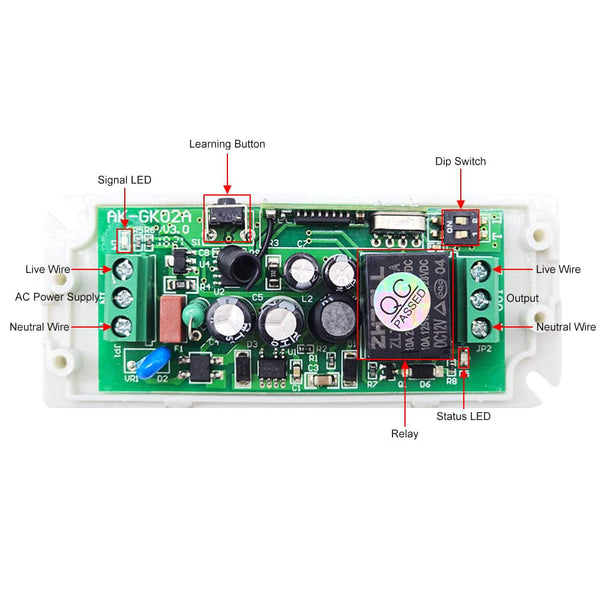

Wiring:
If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal <L> of IN, and connect the neutral wire of AC power supply to terminal <N> of IN.
2) Connect the live wire of AC lamp to terminal <L> of OUT, and connect the neutral wire of AC lamp to terminal <N> of OUT.
Setting different working modes:
The receiver will be set in Momentary mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the first bit of the dip switch.
Operation with CV-12:
Press button 1 → The output terminals of receiver 1 outputs AC power (lamp 1 ON)
Press button 1 again → The output terminals of receiver 1 stops outputting (lamp 1 OFF)
......
Press button 12 → The output terminals of receiver 12 outputs AC power (lamp 12 ON)
Press button 12 again → The output terminals of receiver 12 stops outputting (lamp 12 OFF)
2) Setting Momentary mode: Turn off the first bit and the second bit of the dip switch.
Operation with CV-12:
Hold button 1 → The output terminals of receiver 1 outputs AC power (lamp 1 ON)
Release button 1 → The output terminals of receiver 1 stops outputting (lamp 1 OFF)
......
Hold button 12 → The output terminals of receiver 12 outputs AC power (lamp 12 ON)
Release button 12 → The output terminals of receiver 12 stops outputting (lamp 12 OFF)
3) Setting Interlocking mode: Turn on the second bit and turn off the first bit of the dip switch.
Operation with CV-12:
Press Button 1 → The output terminals of receiver 1 outputs AC power (lamp 1 ON). The output terminals of the other 11 receivers stop outputting (other 11 lamps OFF)
......
Press Button 12 → The output terminals of receiver 12 outputs AC power (lamp 12 ON). The output terminals of the other 11 receivers stop outputting (other 11 lamps OFF)
1 x Receiver: S1XC-AC
1 x Transmitter: CV-12
1 x User manual
Introduction:
This is one-transmitter-many-receivers system with AC power output. It including twelve S1XC-AC receivers and a CV-12 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Universal Power Supply: AC 85V~250V.
AC Power Output: It can control AC equipment with a voltage range of 85~250V AC (Such as AC devices with 110V, 120V, 220V, or 240V).
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S1XC-AC Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 85V~250V AC |
| Output Type | 85~250V AC (110V/120V/220V/240V), same as input voltage |
| Channel | 1 CH |
| Working Frequency | 433MHz |
| Maximum Load Current | 10A |
| Maximum Load Power | <2KW |
| Receiver Sensitivity | ≥-105dB |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-16 AWG |
| Operating Temperature | -40 °C ~ +80 °C |
| PCB size | 76 x 34 x 18 mm (3.0 x 1.3 x 0.7 inches) |
| Case size | 98 x 40 x 23 mm (3.9 x 1.6 x 0.9 inches) |
| Matching Transmitters | Can work with different transmitters, such as model C-1 / C-2 / C-4 (100M), CWB-1 / CWB-2 / CWB-4 (50M, waterproof), CP-1 / CP-2 / CP-4 / CP-6 / CP-8 / CV-2 / CV-4 / CV-6 / CV-8 / CV-12 (500M) and CB-1 / CB-2 / CB-4 / CB-6 / CB-8 / CB-12 (1000M) etc. |
Transmitter CV-12 (12 Buttons) Parameters:
| Parameters | Detail |
|---|---|

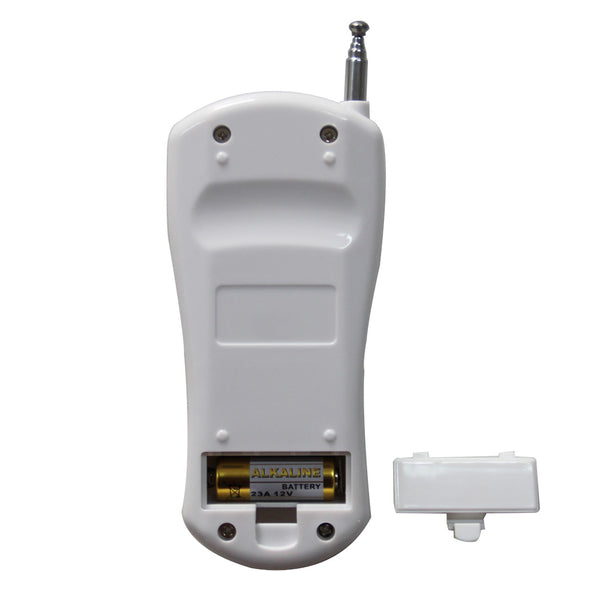

| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
