Here is the products exhibition video about CP remote controls
https://www.youtube.com/watch?v=vI53_oyeuIY
Product Description:

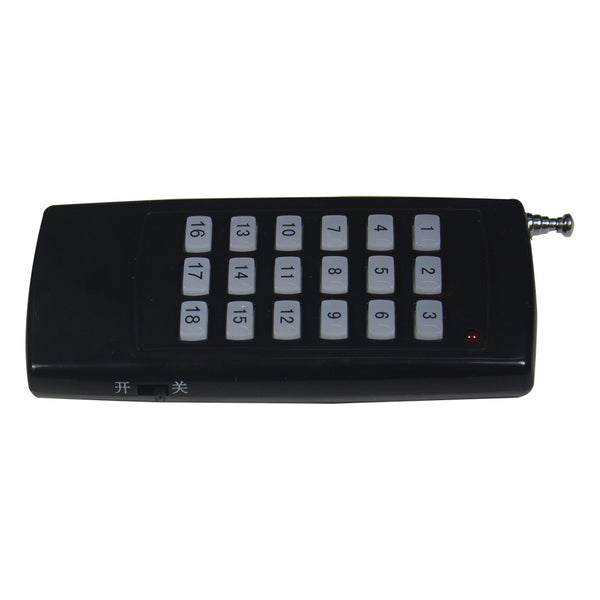

Model No.: 0021058 (CP-18)
Shell Color: black
Channel/Button: 18
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15,16,17,18
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262 / PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
PCB size: 82mm x 37mm x 1mm
Case size:100 mm x 45mm x 15mm
Weight: 75g
Uses:
garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
https://www.youtube.com/watch?v=vI53_oyeuIY
Product Description:
Model No.: 0021058 (CP-18)
Shell Color: black
Channel/Button: 18
Button Symbol: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 15,16,17,18
Operating Voltage: 12V (1 x 23A -12V battery, can be used for 12 months)
Operating Current: 8mA
Operating Frequency: 433Mhz
Encoding Chip: PT2262 / PT2264/ SC2262
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 500m / 1500ft (theoretically)
The distance of 500m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 500m.
If you stretches the telescopic antenna, it can have a further working range, which is twice as much as it used to be.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
PCB size: 82mm x 37mm x 1mm
Case size:100 mm x 45mm x 15mm
Weight: 75g
Uses:
garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
