Package Include:
1 x Receiver: S1U-AC-ANT3
1 x User manual
Introduction:
This receiver S1U-AC-ANT3 is an electric device with 1 channel relay output that can be used in one-transmitter-many-receivers system. For example, you can use a 1 button transmitter to control 1 receiver, or use a 2 buttons transmitter to control 2 receivers, or use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers. The transmitter and receiver form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC or AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
You can use one transmitter to control multiple receivers, and each transmitter button controlling one receiver. For example, you can use a 1 button transmitter to control 1 receiver, or use a 2 buttons transmitter to control 2 receivers, or use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers, etc.
Receiver S1U-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 110~240V AC (110V/120V/220V/240V) |
| Output Type | Relay Output (With Normally Open and Normally Closed Terminals) |
| Channel | 1 CH |
| Working Frequency | 433.92MHz |
| Load Capacity | 240VAC or 28VDC, Max 10A |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |
| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |
| Matching Transmitters | Can work with different transmitters, such as model C-1 / C-2 / C-4 (100M), CWB-1 / CWB-2 / CWB-4 (50M, waterproof), CP-1 / CP-2 / CP-4 / CP-6 / CP-8 / CV-2 / CV-4 / CV-6 / CV-8 / CV-12 (500M) and CB-1 / CB-2 / CB-4 / CB-6 / CB-8 / CB-12 (1000M) etc. |
Wiring:

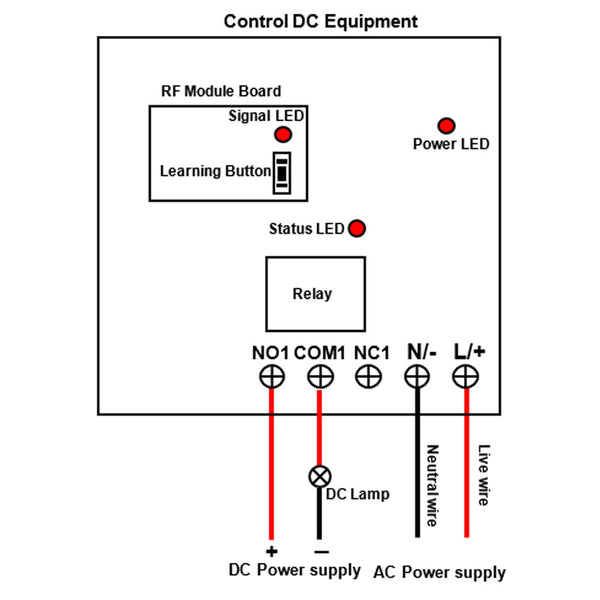

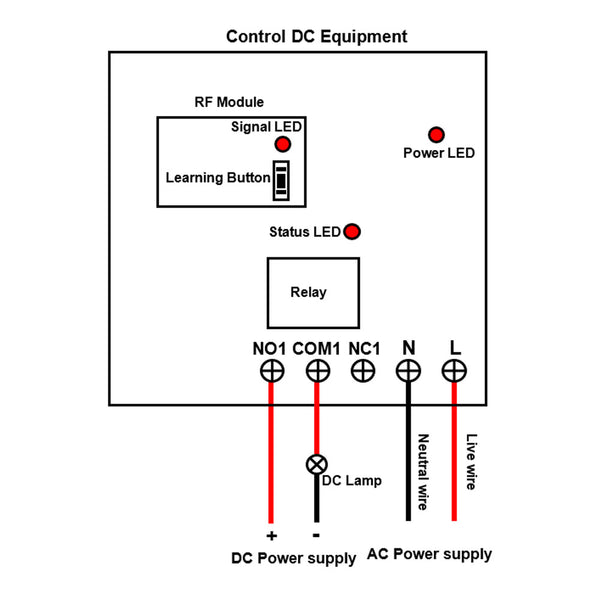

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

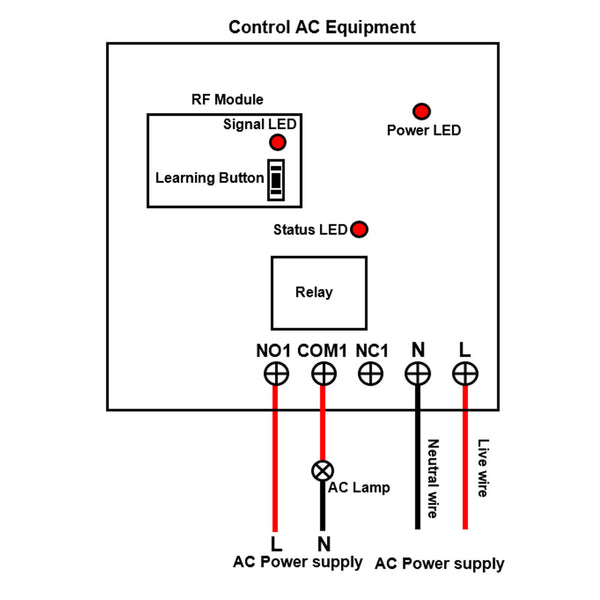

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with C-1:
Hold button → Relay activated (device ON)
Release → Relay deactivated (device OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with C-1:
Press button → Relay activated (device ON)
Press again → Relay deactivated (device OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with C-2:
Press Button A → Relay activated (device ON)
Press Button B → Relay deactivated (device OFF)
