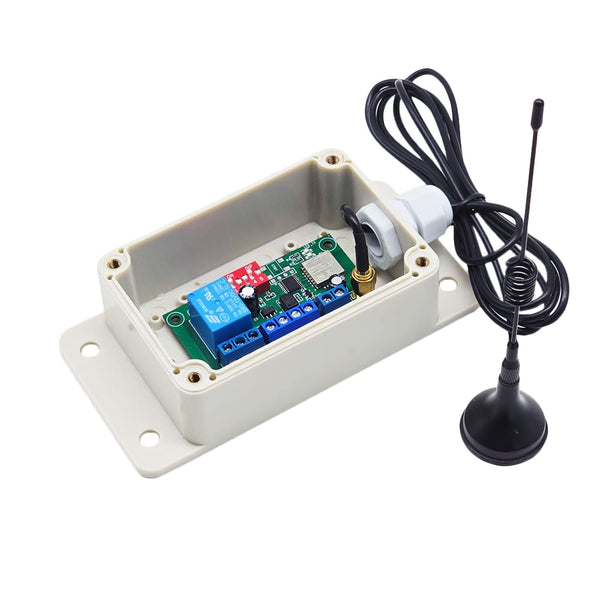

1 x Bidirectional Synchronous Module: SM001-1D-2000
1 x User manual
Introduction:

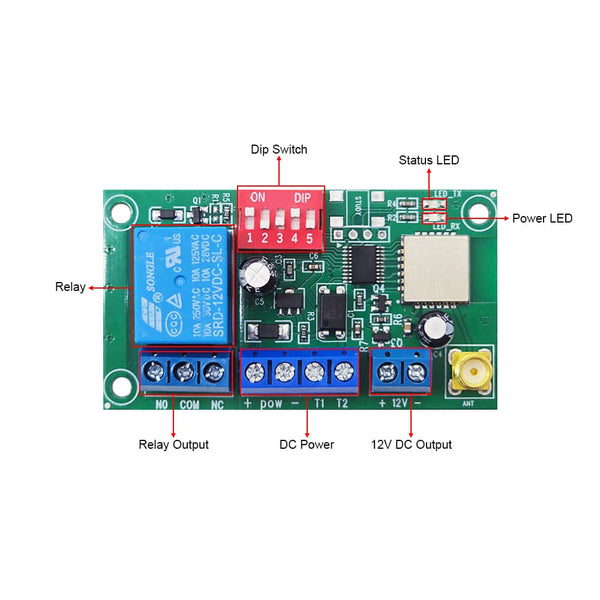

This synchronization module is a bi-directional wireless device with integrated transmit and receive functions. It has a 12V DC voltage output, a dry relay output and two trigger terminals.
The module also features a repeater function. When the distance between two synchronous modules is too far and wireless signal cannot be transmitted smoothly, you can install another synchronous module between these two synchronous modules and turn on its repeater function.
It also supports multi-module cascading relay. For example, when using four synchronous modules simultaneously, the first module acts as a transmitter, the second and third modules act as repeaters, and the fourth module acts as a receiver. The first module transmits a signal, the second module receives the signal and is triggered, then passes the signal to the third module. The third module receives the signal from the second module and is triggered, then passes the signal to the fourth module. The fourth module receives the signal from the third module and is triggered.
Application:
Two or more synchronization modules can form a wireless synchronized remote control system. Any module in the system can be used as the transmitter or the receiver. All modules in the system will be automatically synchronized to maintain the same state.
For example, when two trigger terminals of any module are connected, this module will send a wireless signal and output a 12V DC voltage, at the same time its relay output also will be activated. When other modules receive this wireless signal, they will also be triggered synchronously, these modules will also output a 12V DC voltage, and their relay outputs also will be activated. When two triggered terminals of this module are disconnected, this module will again send a wireless signal and stop to output 12V DC voltage, at the same time its relay output also will be disactivated. When other modules receive this wireless signal, they will also be triggered synchronously, these modules will also stop to output 12V DC voltage, and their relay outputs also will be disactivated.
If these modules are connected to different devices, such as LED indicators, alarms, or other DC or AC devices, all these devices will be synchronized to remain in the same state of being turned on or off.
This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC / AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Switch SM001-1D-2000 Parameters:

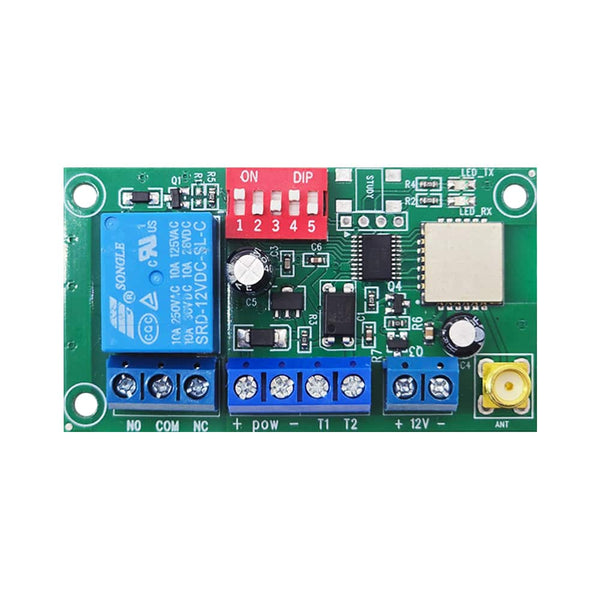

Setting different working modes:
The module will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Set the position 4 on the DIP switch to ON.
Operation:

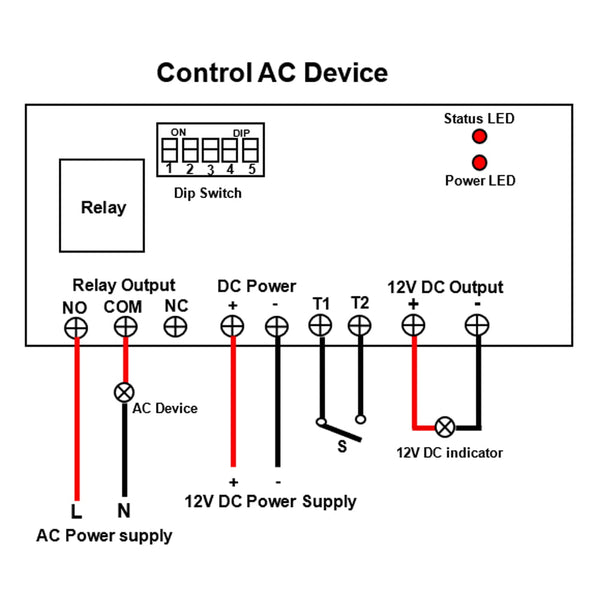

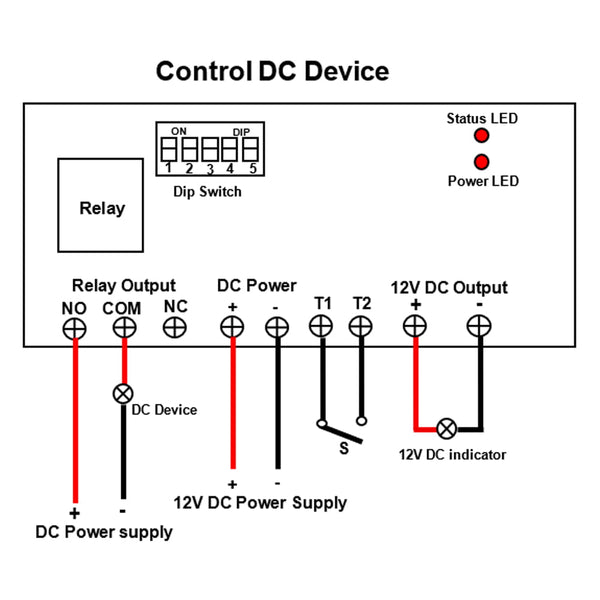

Connect the T1 and T2 terminals → All modules output 12V DC voltage, all relay outputs activate (all devices ON).
Connect the T1 and T2 terminals again → All modules stop outputting, all relay outputs deactivate (all devices OFF).
2) Setting Momentary mode: Set the position 4 on the DIP switch to OFF.
Operation:
Connect the T1 and T2 terminals → All modules output 12V DC voltage, all relay outputs activate (all devices ON).
Disconnect the T1 and T2 terminals → All modules stop outputting, all relay outputs deactivate (all devices OFF).
How to turn on the repeater function:
If you want to turn on the repeater function of the synchronous module, you need to set the position 5 on the DIP switch of this synchronous module to ON.
Work process: When this synchronous module receives a wireless signal from another module, it will be triggered and retransmit this wireless signal at the same time.
Note: When multiple modules are used as repeaters simultaneously, ensure that only one repeater module can receive the signal transmitted by the preceding transmitter.
Note:
If you need a complete wireless synchronized remote control system, one as the transmitter and one as the receiver, then you need to order two products.
If the working distance needs to be increased, one as the transmitter, one as the receiver, and one as the repeater, then you need to order three products.
1 x Bidirectional Synchronous Module: SM001-1D-2000
1 x User manual
Introduction:
This synchronization module is a bi-directional wireless device with integrated transmit and receive functions. It has a 12V DC voltage output, a dry relay output and two trigger terminals.
The module also features a repeater function. When the distance between two synchronous modules is too far and wireless signal cannot be transmitted smoothly, you can install another synchronous module between these two synchronous modules and turn on its repeater function.
It also supports multi-module cascading relay. For example, when using four synchronous modules simultaneously, the first module acts as a transmitter, the second and third modules act as repeaters, and the fourth module acts as a receiver. The first module transmits a signal, the second module receives the signal and is triggered, then passes the signal to the third module. The third module receives the signal from the second module and is triggered, then passes the signal to the fourth module. The fourth module receives the signal from the third module and is triggered.
Application:
Two or more synchronization modules can form a wireless synchronized remote control system. Any module in the system can be used as the transmitter or the receiver. All modules in the system will be automatically synchronized to maintain the same state.
For example, when two trigger terminals of any module are connected, this module will send a wireless signal and output a 12V DC voltage, at the same time its relay output also will be activated. When other modules receive this wireless signal, they will also be triggered synchronously, these modules will also output a 12V DC voltage, and their relay outputs also will be activated. When two triggered terminals of this module are disconnected, this module will again send a wireless signal and stop to output 12V DC voltage, at the same time its relay output also will be disactivated. When other modules receive this wireless signal, they will also be triggered synchronously, these modules will also stop to output 12V DC voltage, and their relay outputs also will be disactivated.
If these modules are connected to different devices, such as LED indicators, alarms, or other DC or AC devices, all these devices will be synchronized to remain in the same state of being turned on or off.
This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC / AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Switch SM001-1D-2000 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V DC |
| Working Frequency | 420MHz |
| Output 1 / Output 2 | 12V DC Voltage / Relay Output (With NO and NC Terminals) |
| Emission Current | 120mA |
| Relay Contact Current | Max 10A |
| 2 Selectable Working Modes | Self-locking, Momentary |
| Suitable Wires for Connecting Terminals | 22-16 AWG |
| Transmission Distance | 2000m / 6000ft (theoretically) |
| Operating Temperature | -20 °C ~ +70 °C |
| IP rating | IP65 |
| PCB size | 69 x 39 x 17 mm (2.7 x 1.5 x 0.7 inches) |
| Case size | 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches) |
Setting different working modes:
The module will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Set the position 4 on the DIP switch to ON.
Operation:
Connect the T1 and T2 terminals → All modules output 12V DC voltage, all relay outputs activate (all devices ON).
Connect the T1 and T2 terminals again → All modules stop outputting, all relay outputs deactivate (all devices OFF).
2) Setting Momentary mode: Set the position 4 on the DIP switch to OFF.
Operation:
Connect the T1 and T2 terminals → All modules output 12V DC voltage, all relay outputs activate (all devices ON).
Disconnect the T1 and T2 terminals → All modules stop outputting, all relay outputs deactivate (all devices OFF).
How to turn on the repeater function:
If you want to turn on the repeater function of the synchronous module, you need to set the position 5 on the DIP switch of this synchronous module to ON.
Work process: When this synchronous module receives a wireless signal from another module, it will be triggered and retransmit this wireless signal at the same time.
Note: When multiple modules are used as repeaters simultaneously, ensure that only one repeater module can receive the signal transmitted by the preceding transmitter.
Note:
If you need a complete wireless synchronized remote control system, one as the transmitter and one as the receiver, then you need to order two products.
If the working distance needs to be increased, one as the transmitter, one as the receiver, and one as the repeater, then you need to order three products.
