Package Include:

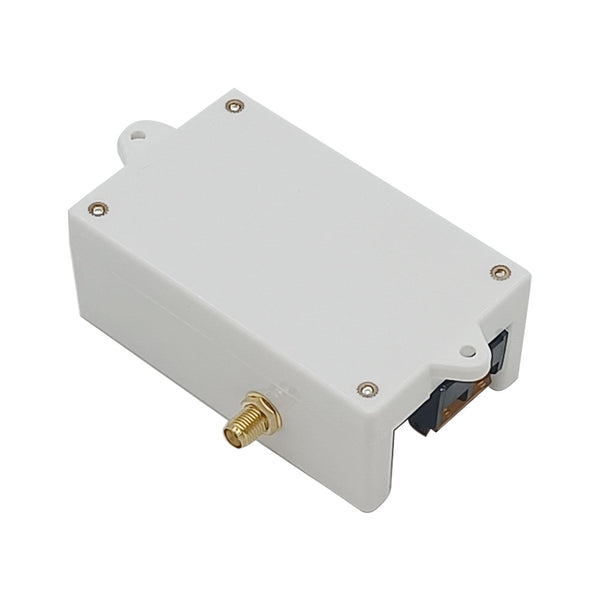

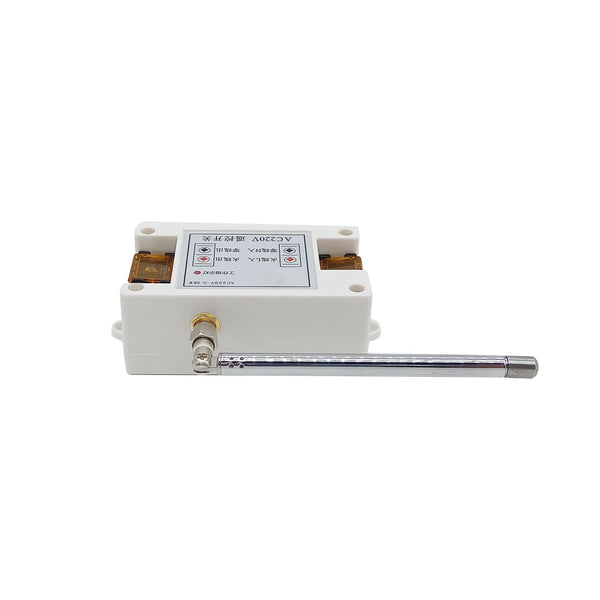

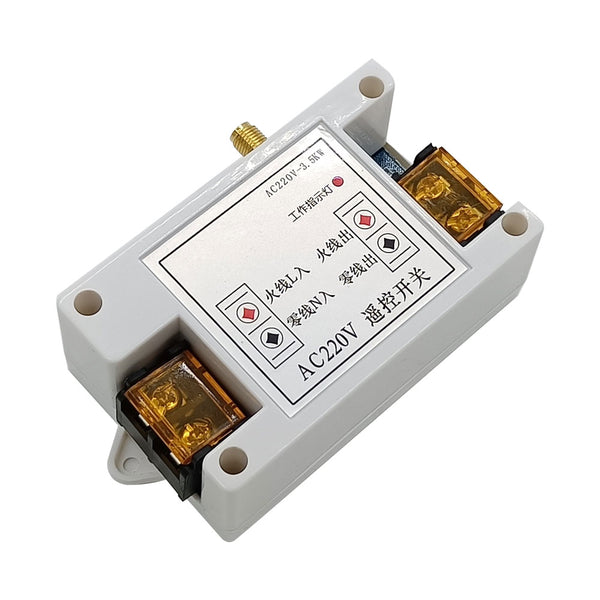

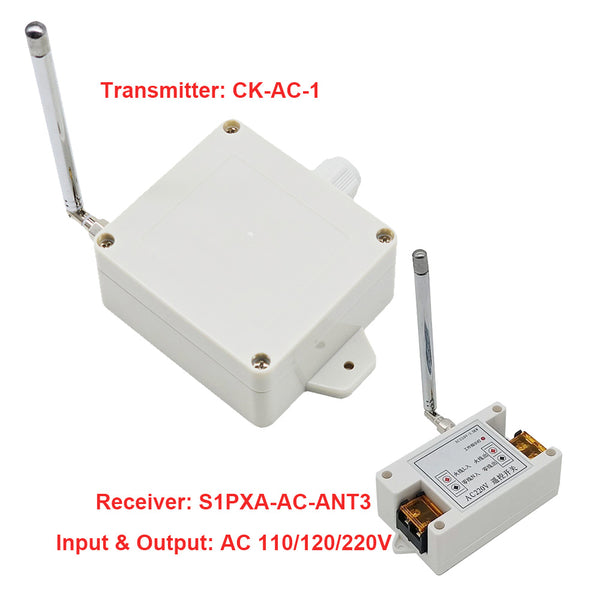

1 x Receiver: S1PXA-AC-ANT3

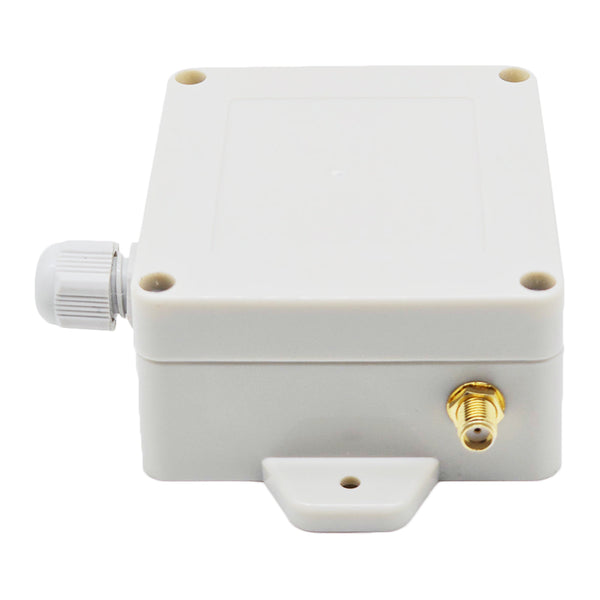

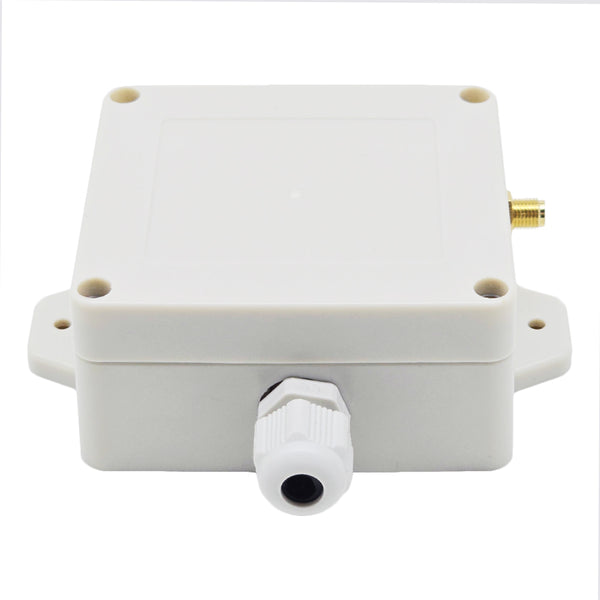

1 x Transmitter: CK-AC-1
1 x User manual
Application:

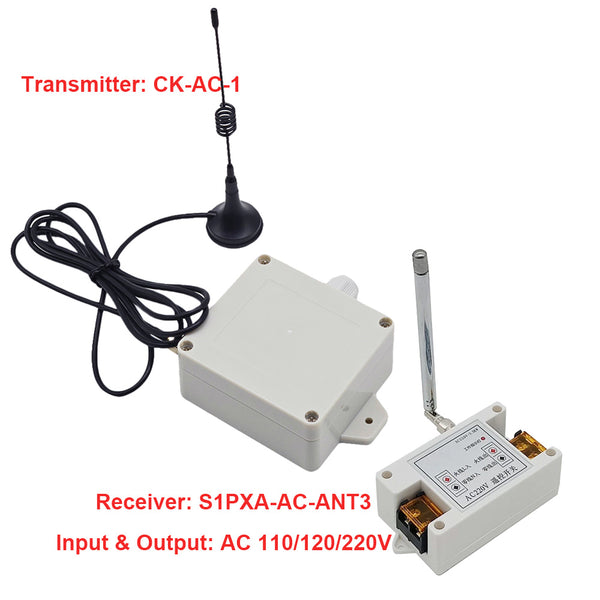

This wireless remote control kit (Model 0023002) consists of a transmitter (CK-AC-1) and a receiver (S1PXA-AC). It is used to wirelessly control another AC device via a AC voltage output signal from one device. And it can be used for synchronous wireless control of various home, industrial or agricultural equipments, such as wireless control of the warning host and the warning horn, wireless control of the lights, wireless synchronization control of the equipments and so on.
Key Features:
Wireless control, easy to install.
Working Range: Up to 200m (600 ft) in open areas.
Universal Power Supply: AC 85V~240V.
AC Power Output: It can control AC equipment with a voltage range of 85~240V AC (Such as AC devices with 110V, 120V, 220V, or 240V).
High Power: It can work at maximum current 15A.
Working Mode: Interlocking

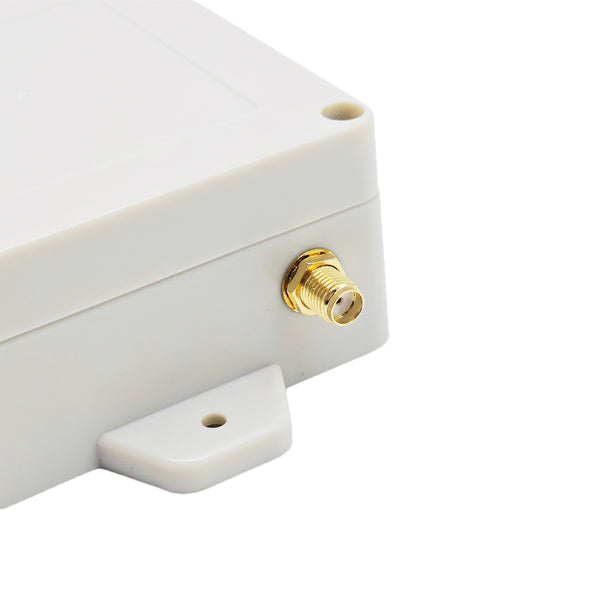

With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

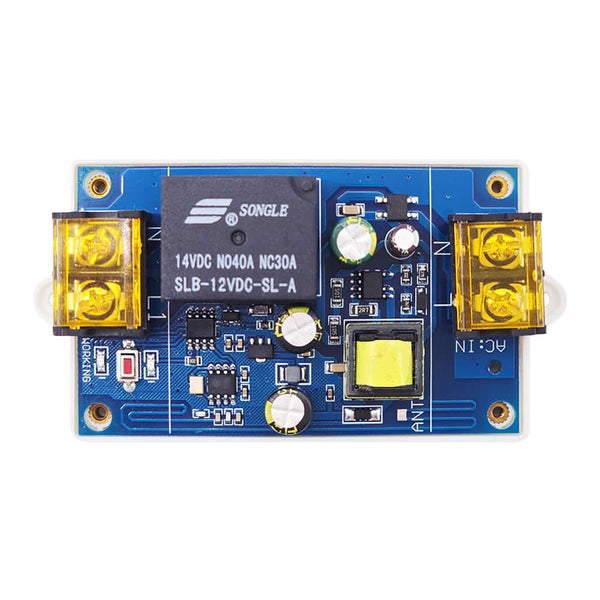

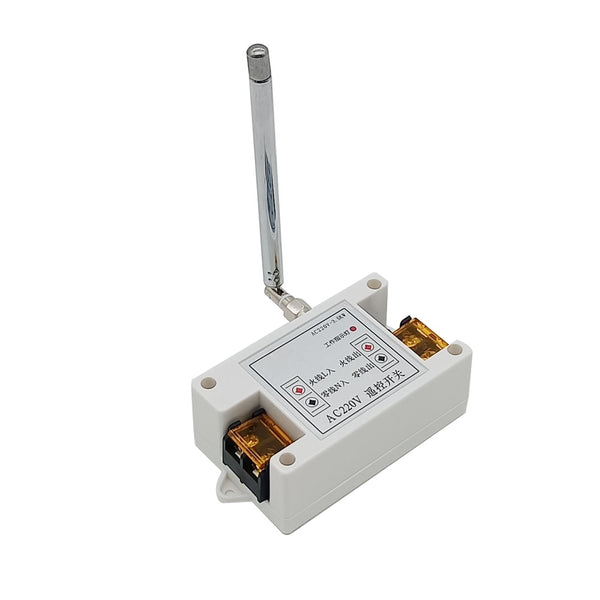

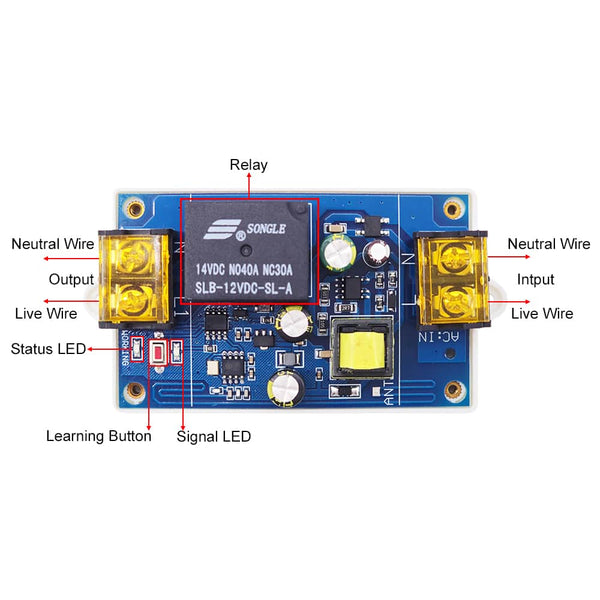

Receiver S1PXA-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | 85V~240V AC |
| Working Frequency | 433.92MHz |
| Output Type | 85~240V AC (110V/120V/220V/240V), same as input voltage |
| Channel | 1 CH |
| Maximum Load Current | 15A |
| Maximum Load Power | 1.5KW at 110V or 3.5KW at 220V |
| Working Mode | Interlocking |

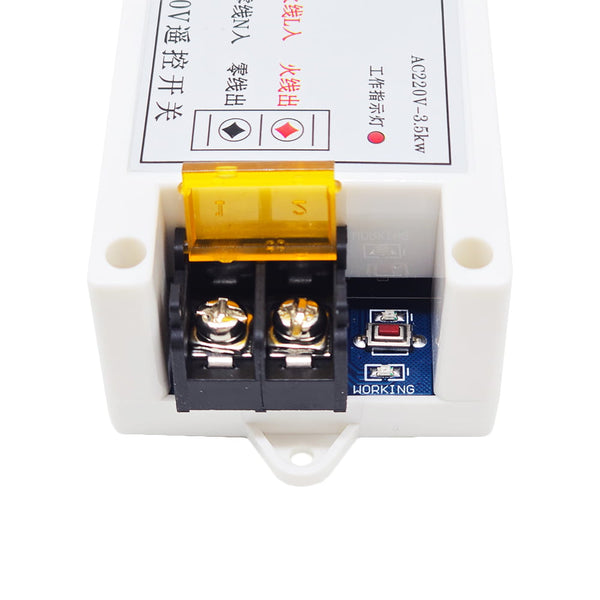

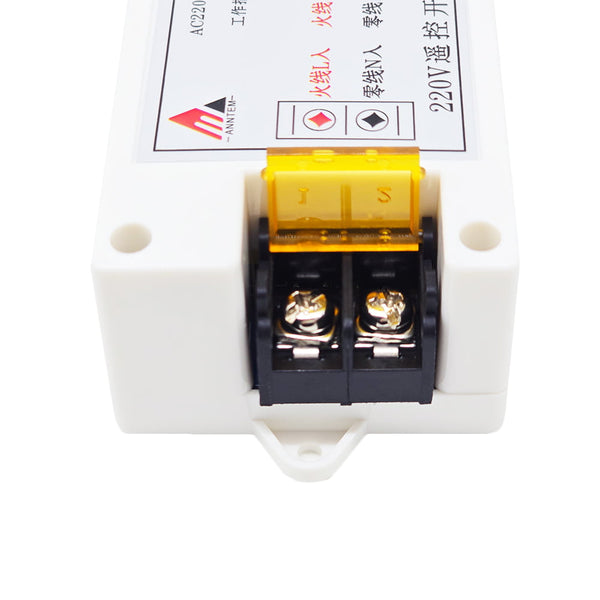

| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 90 x 47 x 23 mm (3.5 x 1.9 x 0.9 inches) |
| Case size | 96 x 50 x 33 mm (3.8 x 2.0 x 1.3 inches) |

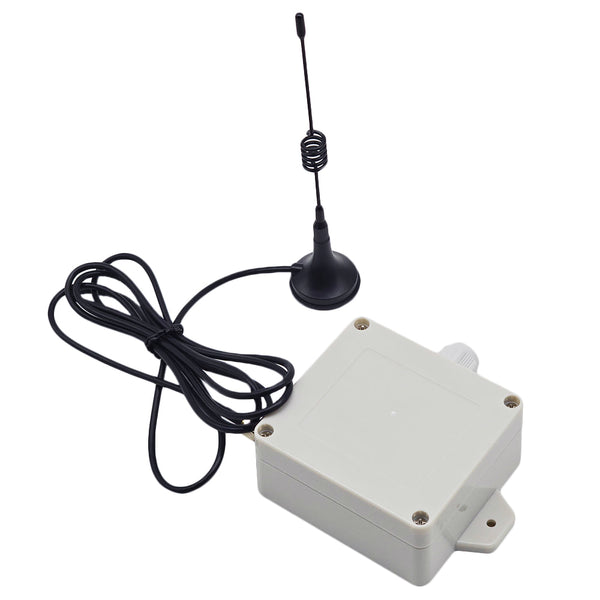

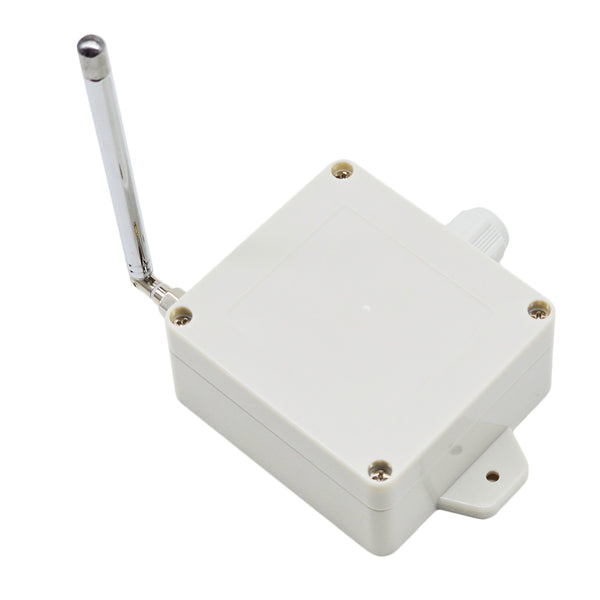

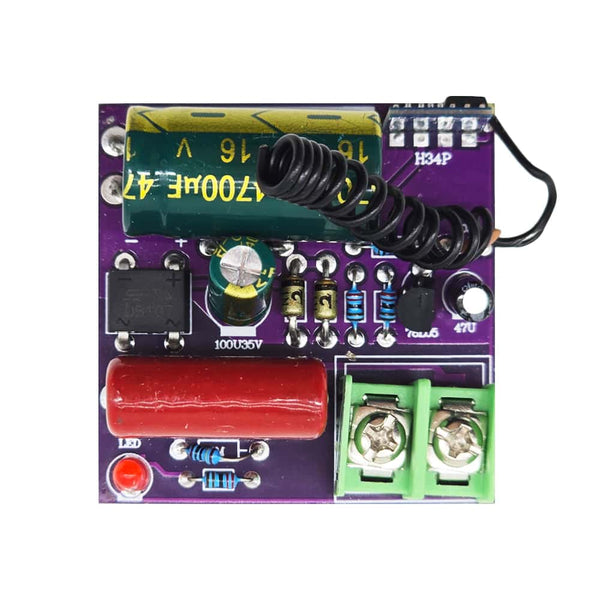

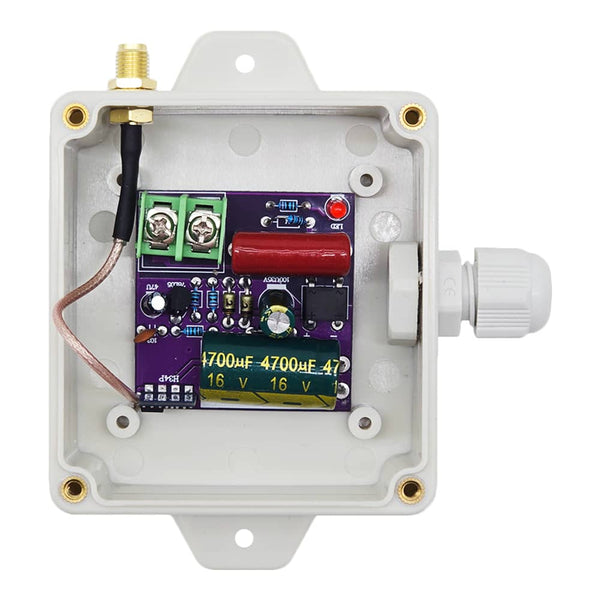

Transmitter CK-AC-1 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 110~220V AC |
| Triggering Method | When the input terminals get the AC voltage signal, the transmitter sends a wireless signal "ON". When the input terminals lose the AC voltage signal, the transmitter sends a wireless signal "OFF". |
| Operating Frequency | 433.92MHz (315MHz can be customized) |
| Transmission Distance | 200m / 600ft (theoretically) |
| PCB size | 41 x 41 x 16 mm (1.6 x 2.9 x 0.6 inches) |
| Case size | 78 x 71 x 37 mm (3.1 x 2.8 x 1.5 inches) |
Working Principle:
Transmitter CK-AC-1 is a special remote control that is triggered by 110V~220V AC power ON and OFF conditions. It has 2 input terminals for connecting an AC voltage signal from an equipment, such as outlet, warning host, detector, sensor, Programmable Logic Controller, AC siren, AC light or other AC equipment.
When an AC voltage is supplied to its input terminals, it will transmit a wireless signal "ON". When the input terminals stop getting AC voltage, it will transmit a wireless signal "OFF".
This transmitter can be combined with different types of receivers to form a wireless control system, and this system is used to wirelessly control another device via an AC voltage signal or an AC output signal from one device.
Usage and operation:
If you want to control the device A by the 110~220V AC output signal of the device B, do as following:
1. Connect the device A to the receiver's output terminal.
2. Connect the AC output terminal of device B to the input terminal of the transmitter.
3. When device B outputs an AC signal to the transmitter, the transmitter will emit a wireless signal "ON". When the receiver receives this wireless signal, it will activate its relay to turn on the device A.
4. When device B stops outputting an AC signal to the transmitter, the transmitter will emit a wireless signal "OFF". When the receiver receives this wireless signal, it will deactivate its relay to turn off the device A.
