Application:
Mainly used for monitor platform, electric equipment, automatic instrument, electric advertising banner, screen machine, pouch laminator, mahjong table, cash register, vending machine, electronic ticket machine and all small power and low constant speed equipment.
Feature:
High torque and low noise
Low power consumption
Small size, light weight
Easy to use
Gearhead motor
High quality
All-metal gear
No speed regulation
Rotate forward & reverse, direction can be changed by changing wiring

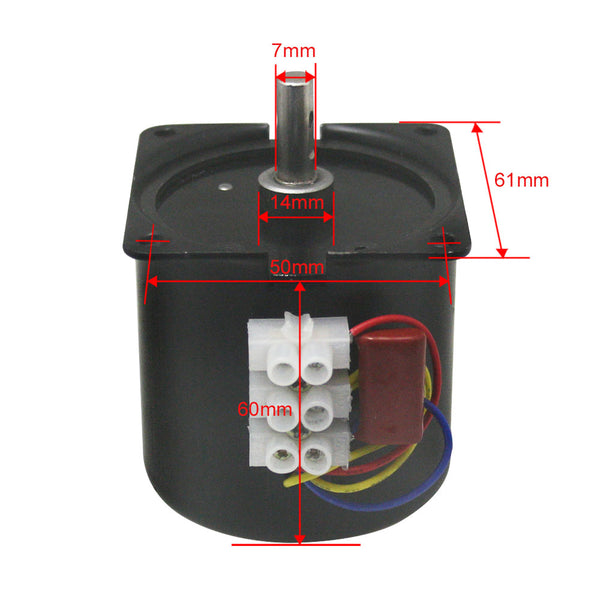

Specifications:
Diameter: 60mm
Length (excluding shaft): 61mm
Total length: 85mm
Shaft length: 22mm
Shaft diameter: 7mm

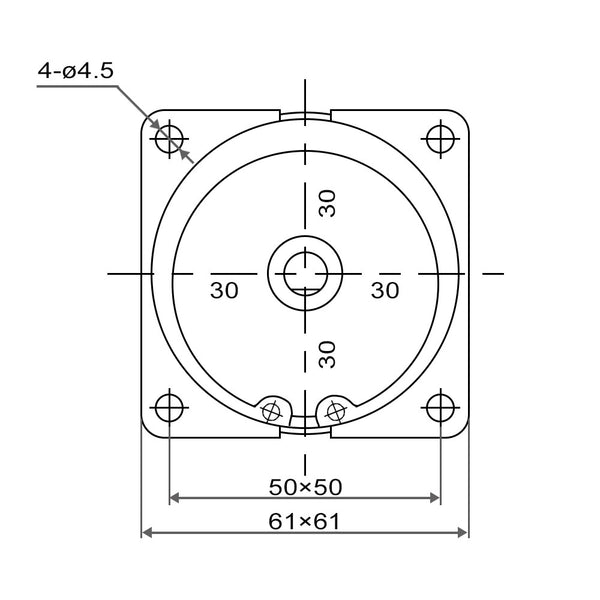

Front panel 4.5mm Screw for fixing this motor
Working voltage range: 220V ~ 240V AC
Working current: 60mA
Working power: 14W
Weight: 550g

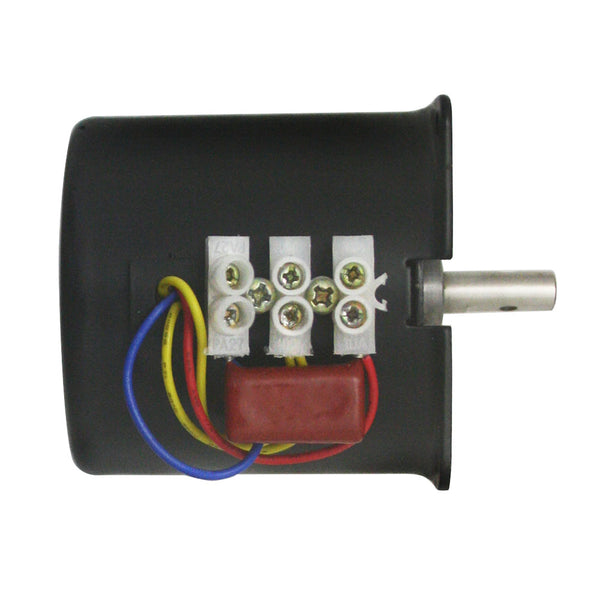

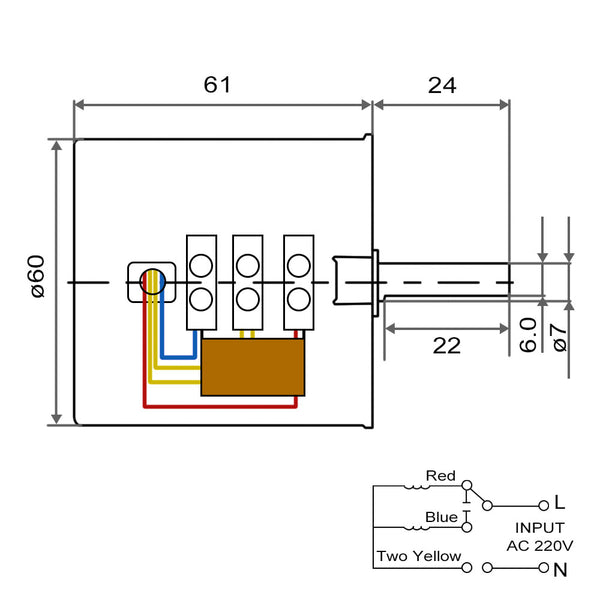

Wiring:
Two yellow wires on the motor are connected to terminal “N”. Red wire or green wire is connected to terminal “L”.
If red wire is connected to terminal “L”, the motor rotates in forward direction.
If green wire is connected to terminal “L”, the motor rotates in reverse direction.
Mainly used for monitor platform, electric equipment, automatic instrument, electric advertising banner, screen machine, pouch laminator, mahjong table, cash register, vending machine, electronic ticket machine and all small power and low constant speed equipment.
Feature:
High torque and low noise
Low power consumption
Small size, light weight
Easy to use
Gearhead motor
High quality
All-metal gear
No speed regulation
Rotate forward & reverse, direction can be changed by changing wiring
Specifications:
Diameter: 60mm
Length (excluding shaft): 61mm
Total length: 85mm
Shaft length: 22mm
Shaft diameter: 7mm
Front panel 4.5mm Screw for fixing this motor
Working voltage range: 220V ~ 240V AC
Working current: 60mA
Working power: 14W
Weight: 550g
| Rated speed (RPM) | 2.5 | 5 | 10 | 15 | 20 | 30 | 40 | 50 | 60 | 80 | 100 |
| Output torque (N.CM) | 350 | 250 | 150 | 100 | 75 | 50 | 37.5 | 30 | 25 | 20 | 15 |
Wiring:
Two yellow wires on the motor are connected to terminal “N”. Red wire or green wire is connected to terminal “L”.
If red wire is connected to terminal “L”, the motor rotates in forward direction.
If green wire is connected to terminal “L”, the motor rotates in reverse direction.
