Introduction:
This receiver has an adjustable time delay function from 0 seconds to 99
hours. For example, you can set the relay to automatically turn off after a
delay time of 10 seconds, 30 minutes, or 1 hour. When you set the delay
time, the devices connected to the receiver will automatically stop after
the delay time.
Application:
This receiver is an electric device with 2 relay outputs, it and the
transmitter form a wireless remote-control system. This system may be used
in all types of industry automation, agriculture, business, home, factory,
house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote
control different DC or AC equipment on land, water, and air, such as
lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters,
motors, fans, winches, curtains, blinds, linear actuators, electric solenoid
valves, and security alarm systems. The applications are endless.
Key Features:
- Wireless control, easy to install
- Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors
- Four operating voltage versions: DC 6V, 9V, 12V, 24V optional
- Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch. That means you should also connect a separate power supply to equipment
- With adjustable time delay function from 0 seconds to 99 hours
- With wired control terminals: You can connect sensors, limit switches, manual switches, or external devices to control the receiver
- Each channel can work at maximum current 10A, such as 120W/12V, 60W/6V, 90W/9V, 240W/24V, 1100W/110V, 2200W/220V
- Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology
- With external antenna, the receiver has a farther working range
- The transmitter / remote can control the receiver from any place within a reliable working distance
- Wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range
- The receiver has reverse voltage protection and overcurrent protection
- The receiver can only be triggered by paired transmitters
- One or more transmitters / remotes can control one or several receivers simultaneously
- Two or more receivers may be used in the same area
Receiver Parameters
| Parameter | Value |
|---|---|
| Model | S2DA-DC-ANT3 |
| Operating Voltage | 6VDC (model S2DA-DC06), or 9±1VDC (model S2DA-DC09), or 12±1VDC (model S2DA-DC12), or 24±2VDC (model S2DA-DC24), the operating voltage must be specified when ordering |
| Working Frequency | 433.92 MHz |
| Quiescent Current | ≤6mA |
| Channel | 2 CH |
| Output Type | Dry Relay Output (With Normally Open and Normally Closed Terminals) |
| Maximum Load Voltage of Relay | 240VAC or 28VDC |
| Maximum Load Current of Relay | 10A / channel |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Working Mode | Time Delay (Press -> ON; Then OFF after the delay time) |
| Adjustable Delay Time | 0 seconds ~ 99 hours |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB Size | 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches) |
| Case size | 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches) |
| Compatible with Transmitters with fixed code or transmitters with learning code | |
Matching Transmitters
Working Range
This receiver and different transmitters form a complete set, which can
achieve different working distances. For example, when it and the
transmitter C-4 form a complete set, the maximum working distance may
reach 300 feet or 100 meters in an open area. When it and the
transmitter CB-4 form a complete set, the maximum working distance may
reach 3000 feet or 1000 meters in an open area.
The maximum working distance is based on theoretical data without
obstacles and any RF interference. In practice, it will be hindered by
trees, walls, or other construction, and will be interfered with by
other wireless signals. Therefore, the actual working distance may not
reach this maximum distance.
If you need a longer working distance, you can replace the antenna on
the receiver, or use an RF signal repeater.
Usage
The receiver can be used to control both 0~28VDC and 110~240VAC devices.
Notice: The receiver is relay output, not DC/AC power output. Initial
state of relay output terminals: Terminals <B> and <C> are Normally
Open; Terminals <A> and <B> are Normally Closed.

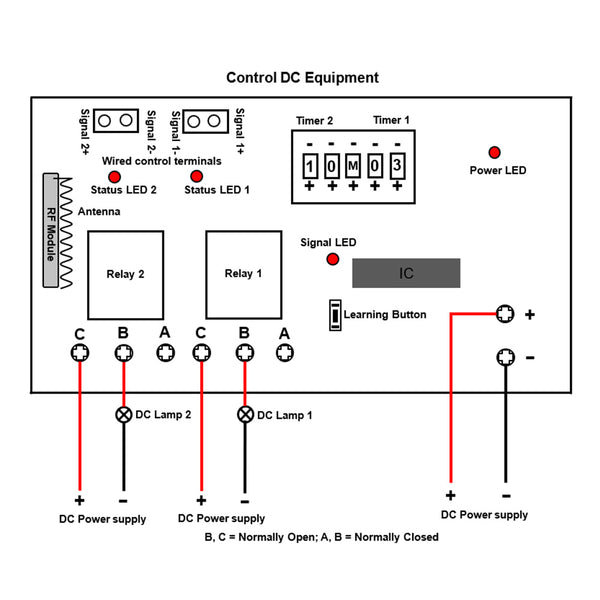

Wiring
1.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
1.2 Connect terminal <C> to the positive pole of DC power supply, connect terminal <B> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

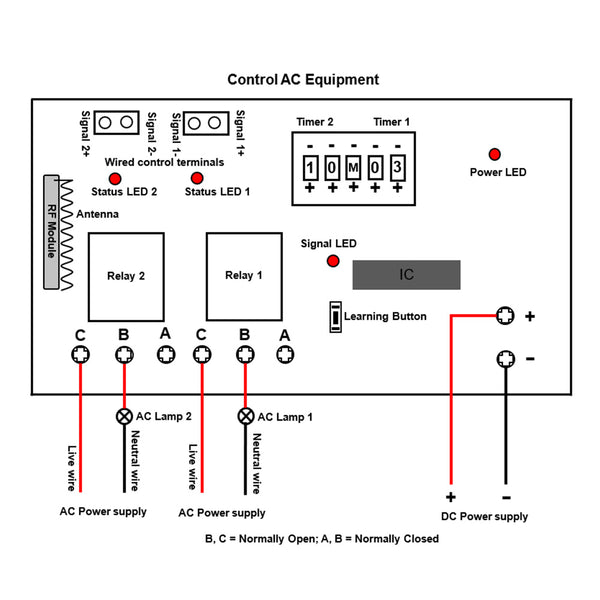

2) If you want to control an AC 120V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
2.2 Connect terminal <C> to the live wire of AC power supply, connect terminal <B> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting the Delay Time
The receiver has two timers. The two buttons on timer 1 allow you to set
the delay time of relay 1. The two buttons on timer 2 allow you to set
the delay time of relay 2.
Press the <+> and <-> buttons on the timer to set the delay time from 0
seconds to 99 hours. H is hour, M is minute, and S is second.
For example, if you set 10 M 03 on the timer, the number 03 on timer 1
means three minutes, and the delay time for relay 1 is three minutes.
The number 10 on timer 2 means ten minutes, and the delay time for relay
2 is ten minutes. The two timers operate independently.
Operation
Press button 1 on the transmitter: Relay 1 in the receiver is activated,
and the connected lamp 1 is turned on.
After the delay time, relay 1 is deactivated automatically, and the
connected lamp 1 is turned off.
Press button 3 on the transmitter: Relay 1 is deactivated immediately;
no need to wait for the delay time.
Press button 2 on the transmitter: Relay 2 in the receiver is activated,
and the connected lamp 2 is turned on.
After the delay time, relay 2 is deactivated automatically, and the
connected lamp 2 is turned off.
Press button 4 on the transmitter: Relay 2 is deactivated immediately;
no need to wait for the delay time.
Wired control terminals
The receiver has wired control terminals, and you can connect external
devices, sensors, or manual switches to these terminals, then use them
to control the receiver.
1) By low level signal:
You can connect the external devices (with low level output signal) to
the terminals <Signal 1+>, <Signal 1->, <Signal 2+> and <Signal 2->,
then use the external devices to control the receiver.
When the external device outputs low level signal to the terminals
<Signal 1+> and <Signal 1->, the relay 1 in the receiver is activated,
and the connected lamp 1 is turned on.
When the external device stops to output signal, the relay 1 is
deactivated, and the connected lamp 1 is turned off.
When the external device outputs low level signal to the terminals
<Signal 2+> and <Signal 2->, the relay 2 in the receiver is activated,
and the connected lamp 2 is turned on.
When the external device stops to output signal, the relay 2 is
deactivated, and the connected lamp 2 is turned off.
2) By NO/NC contact:
You can connect the manual switches (with NO/NC contact) to the
terminals <Signal 1+>, <Signal 1->, <Signal 2+> and <Signal 2->, then
use the manual switches to control the receiver.
When connect the terminals <Signal 1+> and <Signal 1-> by the manual
switch, the relay 1 in the receiver is activated, and the connected lamp
1 is turned on.
When disconnect the terminals <Signal 1+> and <Signal 1-> by the manual
switch, the relay 1 is deactivated, and the connected lamp 1 is turned
off.
When connect the terminals <Signal 2+> and <Signal 2-> by the manual
switch, the relay 2 in the receiver is activated, and the connected lamp
2 is turned on.
When disconnect the terminals <Signal 2+> and <Signal 2-> by the manual
switch, the relay 2 is deactivated, and the connected lamp 2 is turned
off.
How to pair the transmitter to the receiver
1) Press the learning button on the receiver until the signal LED on the receiver turns on. This indicates that the receiver enters the learning status.
2) Press any button on the transmitter. If the signal LED flashes 15 times quickly and then goes off, this indicates that the pairing is successful.
3) Press the learning button on the receiver again, and the signal LED turns off. This indicates that the receiver exits the learning status.
4) The receiver can learn several transmitters with different codes.
How to delete all transmitters codes stored in the receiver
Operation: Press the learning button on the receiver until the signal LED flashes slowly, then release the learning button. The signal LED continues to flash slowly; this indicates that all stored codes have been deleted successfully.
Package include
1 x User manual
