Package Include:
1 x Receiver: S1PXA-DC12 / S1PXA-DC24
1 x User manual

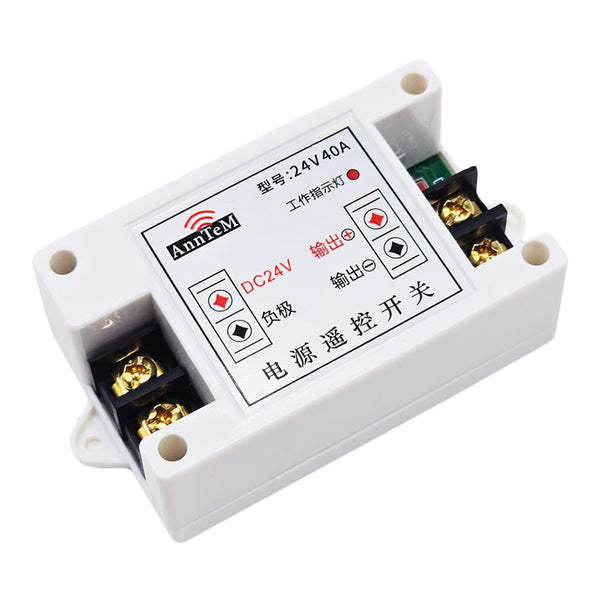

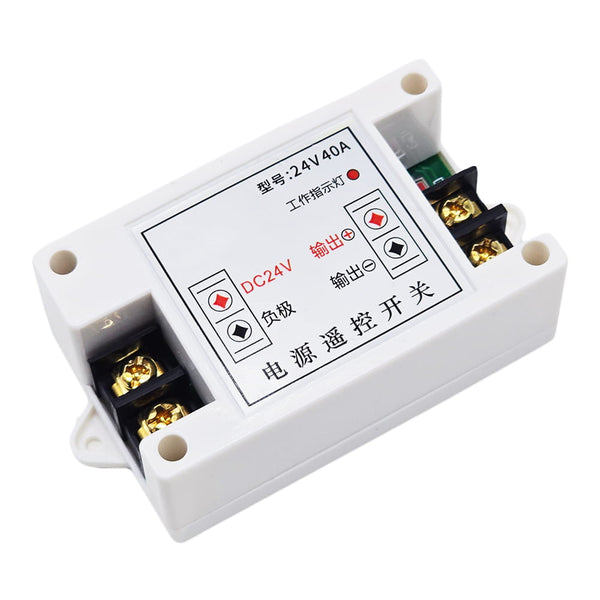

Introduction:

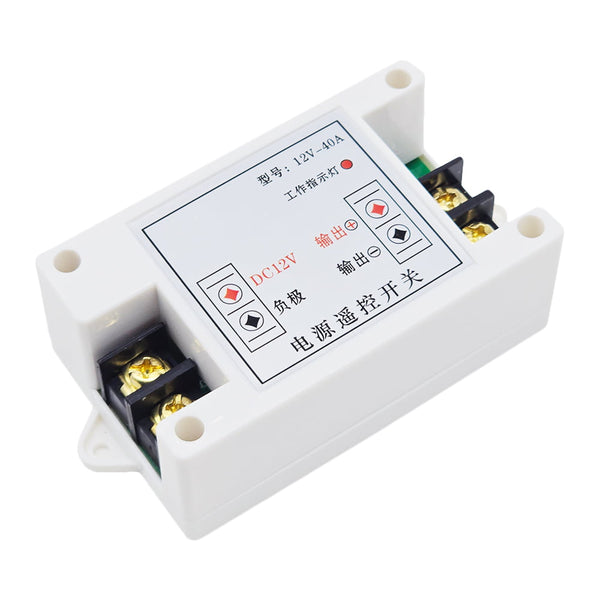

This receiver S1PXA-DC12 / S1PXA-DC24 is an electric device with 1 channel DC power output, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
This receiver has a 10-second delay function. When the device is triggered, it will automatically stop working after a 10 second delay.
Key Features:
Wireless control, easy to install.
Two operating voltage versions: DC 8~15V or 15~26V optional.
DC Power Output: Control DC equipment with a voltage in the range of DC 8~15V or 15~26V.
High Power: It can work at maximum current 30A.
With 10 seconds delay function.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Delay.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

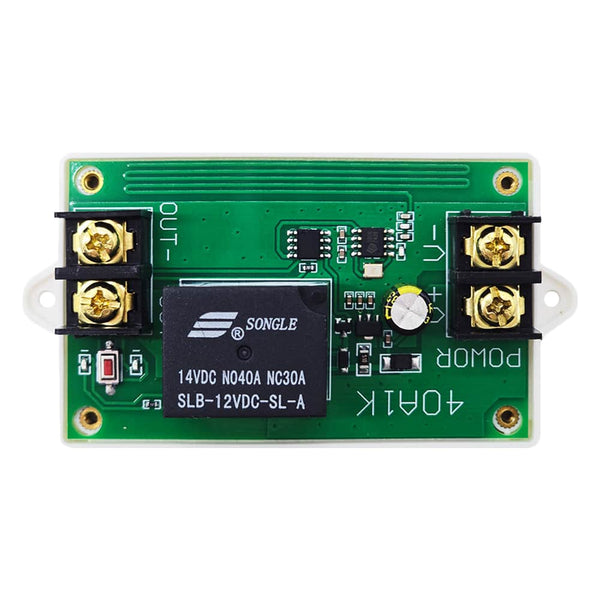

Receiver S1PXA-DC12 / S1PXA-DC24 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | DC 8~15V (model S1PXA-DC12), or DC 15~26V (model S1PXA-DC24) (specify when ordering) |
| Output Type | DC 8~15V (model S1PXA-DC12), or DC 15~26V (model S1PXA-DC24), same as input voltage |
| Channel | 1 CH |
| Maximum Load Current of Relay | 30A / channel |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Delay |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 90 x 47 x 23 mm (3.5 x 1.9 x 0.9 inches) |
| Case size | 96 x 50 x 33 mm (3.8 x 2.0 x 1.3 inches) |
| Matching Transmitters |
C-1 (100M) / CWB-1 (50M, waterproof) / CQ-1 (50M) / CB-1 (1000M) for Self-locking / Momentary / Delay C-2 (100M) / CWB-2 (50M, waterproof) / CQ-2 (50M) / CB-2 (1000M) for Interlocking |
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you want to use another mode, please follow the following steps.

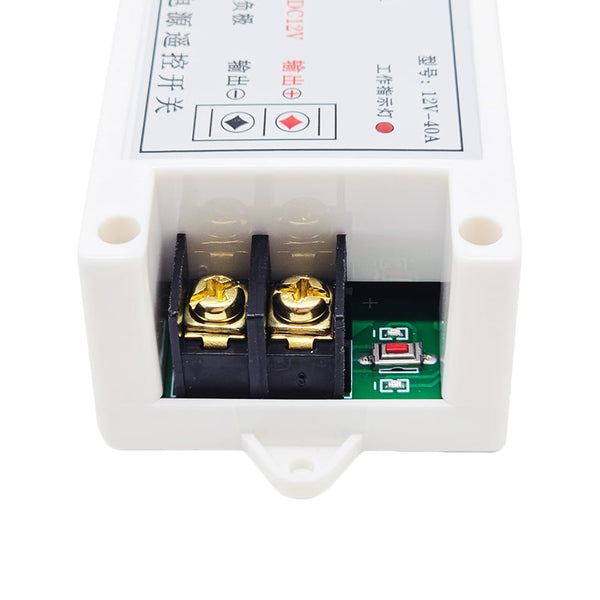

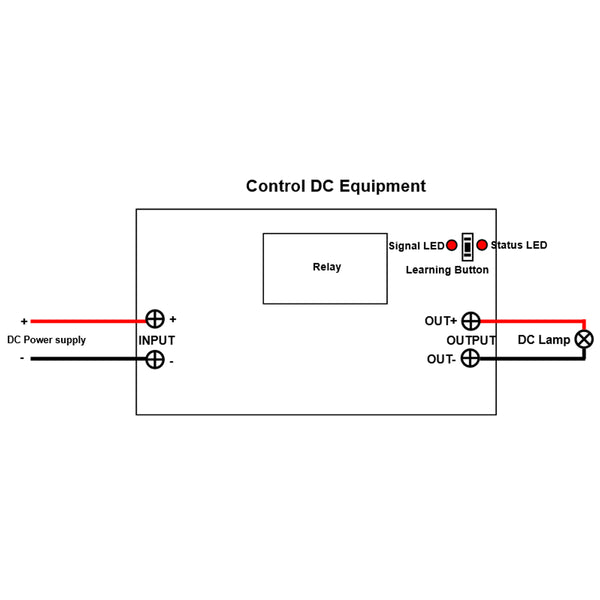

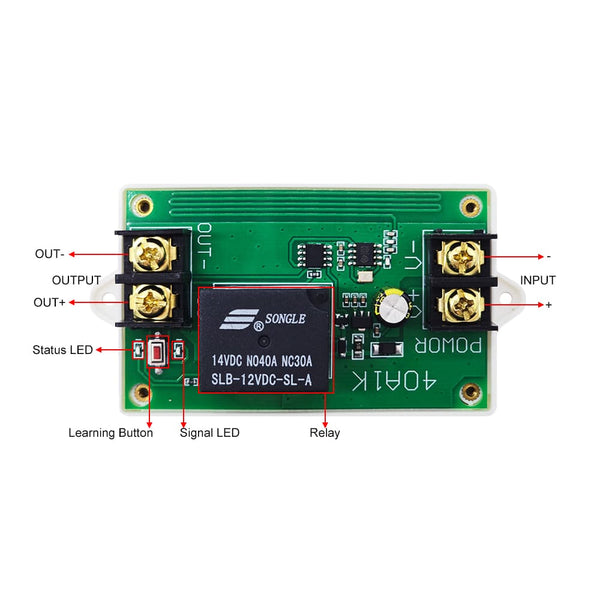

1) Setting Self-locking mode: Press and hold the learning button on the receiver until signal LED flashes 3 times, then release the button.
Operation with CQ-1:
Press once → The output terminals outputs DC power (lamp ON)
Press again → The output terminals stops outputting (lamp OFF)
2) Setting Momentary mode: Press and hold the learning button on the receiver until signal LED flashes 2 times, then release the button.
Operation with CQ-1:
Hold button → The output terminals outputs DC power (lamp ON)
Release → The output terminals stops outputting (lamp OFF)
3) Setting Interlocking mode: Press and hold the learning button on the receiver until signal LED flashes 1 time, then release the button.
Operation with CQ-2:
Press Button ON → The output terminals outputs DC power (lamp ON)
Press Button OFF → The output terminals stops outputting (lamp OFF)
4) Setting 10-seconds Delay mode: Press and hold the learning button on the receiver until signal LED flashes 4 time, then release the button.
Operation with CQ-1:
Press button → The output terminals outputs DC power (lamp ON)
After 10 seconds → The output terminals automatically stops outputting (lamp OFF)
During the 10 seconds, you can also press the learning button for 1-2 seconds to immediately stop outputting DC power and turn off the connected lamp.
Note: If you press the transmitter multiple times during the delay time, the delay time will be counted from the last operation of the transmitter.
