Package Include:
1 X Receiver: S1PX-AC-ANT3
2 x Transmitters: C-1/C-2
1 X Use manual
Introduction:
This is a wireless remote switch kit with 1 channel AC power output. It including a S1PX-AC-ANT3 receiver and two C-1 / C-2 transmitters. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
High Power: Each channel can work at maximum current 30A.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
Receiver S1PX-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | 110~240V AC (110V/120V/220V/240V) |
| Output Type | 110~240V AC (110V/120V/220V/240V) |
| Channel | 1 CH |
| Working Frequency | 433.92MHz |
| Maximum Load Current | 30A |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches) |
| Case size | 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches) |
| Matching Transmitters | Can work with different transmitters, such as model C-1 / C-2 (100M), CWB-1 / CWB-2 (50M, waterproof), CP-1 / CP-2 (500M) and CB-1 / CB-2 (1000M) etc. |
Transmitter C-1 (1 Button) / C-2 (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | No symbol (C-1) / A, B (C-2) |
| Operating Frequency | 433.92Mhz |
| Encoding Chip | PT2262 / PT2264 / SC2262 |
| Transmitting Distance | 100m / 300ft (theoretically) |
| Unit Size | 58 x 39 x 16 mm (2.3 x 1.5 x 0.6 inches) |

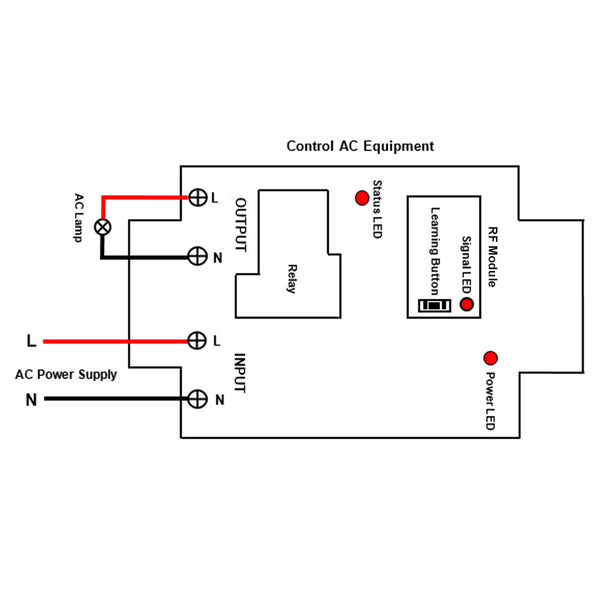

Wiring:
If you want to control an AC 120V lamp, do as following:
1) Connect the live wire of AC power supply to terminal <L> of INPUT, and connect the neutral wire of AC power supply to terminal <N> of INPUT.
2) Connect the live pole of AC lamp to terminal <L> of OUTPUT, and connect the neutral pole of AC lamp to terminal <N> of OUTPUT.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with C-1:
Hold button → The output terminal outputs AC power (lamp ON)
Release button → The output terminal stops outputting (lamp OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with C-1:
Press button → The output terminal outputs AC power (lamp ON)
Press button again → The output terminal stops outputting (lamp OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with C-2:
Press button A → The output terminal outputs AC power (lamp ON)
Press button B → The output terminal stops outputting (lamp OFF)
