Feature:

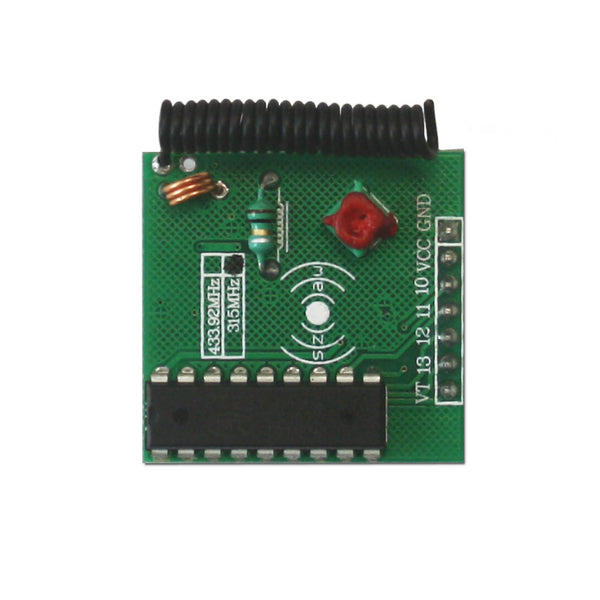

Model No.: 0020243
Type: Receiver module with decode for fixed code
Modulation Method: Amplitude modulation (ASK or OOK)
Working voltage: DC 5V
Working current: 4.5mA
RF Sensitivity: -95dBm

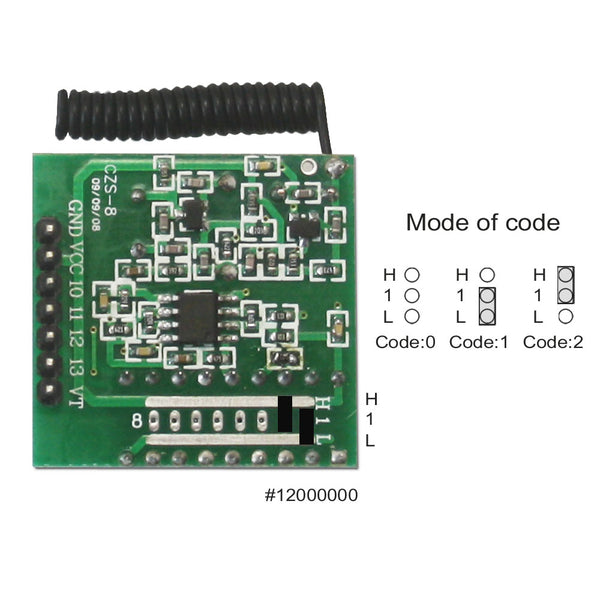

Coding Method: Fixed code by soldering
Decoding Outputs: High level
Working temperature: -20°C ~ +70°C
Size: 30 x 31 x 19mm
With four decoding outputs
Control Modes: Self-locking, Momentary, Interlocking
Frequency: 433.92 MHz
Application:
The RF receiver modules are widely used for remote controls, remote control toys, anti-theft alarms, garage doors, roller shutter, road barrier, retractable doors and so on.
Notes:
It is best to use the antenna of 1/4 wavelength, for antenna has a great impact on receiving effect of the module; normally using 50Ω single core cable. For frequency 433MHz, the length of antenna is about 17cm. The position of antenna also affects the receiving effect of the module. When installing the antenna should be extended as much as possible and be away from the shield and the place in high pressure and interference.
The receiving frequency, decoding mode and timing resister should be compatible with the transmitter.
Introduction of pin (from left to right)
Model No.: 0020243
Type: Receiver module with decode for fixed code
Modulation Method: Amplitude modulation (ASK or OOK)
Working voltage: DC 5V
Working current: 4.5mA
RF Sensitivity: -95dBm
Coding Method: Fixed code by soldering
Decoding Outputs: High level
Working temperature: -20°C ~ +70°C
Size: 30 x 31 x 19mm
With four decoding outputs
Control Modes: Self-locking, Momentary, Interlocking
Frequency: 433.92 MHz
Application:
The RF receiver modules are widely used for remote controls, remote control toys, anti-theft alarms, garage doors, roller shutter, road barrier, retractable doors and so on.
Notes:
It is best to use the antenna of 1/4 wavelength, for antenna has a great impact on receiving effect of the module; normally using 50Ω single core cable. For frequency 433MHz, the length of antenna is about 17cm. The position of antenna also affects the receiving effect of the module. When installing the antenna should be extended as much as possible and be away from the shield and the place in high pressure and interference.
The receiving frequency, decoding mode and timing resister should be compatible with the transmitter.

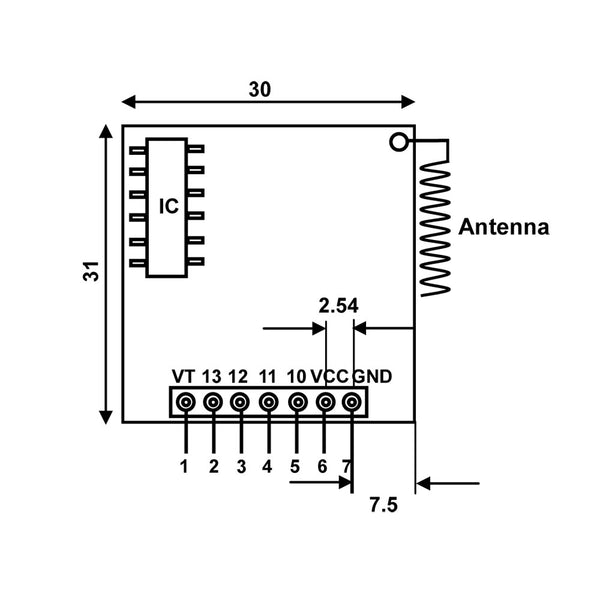

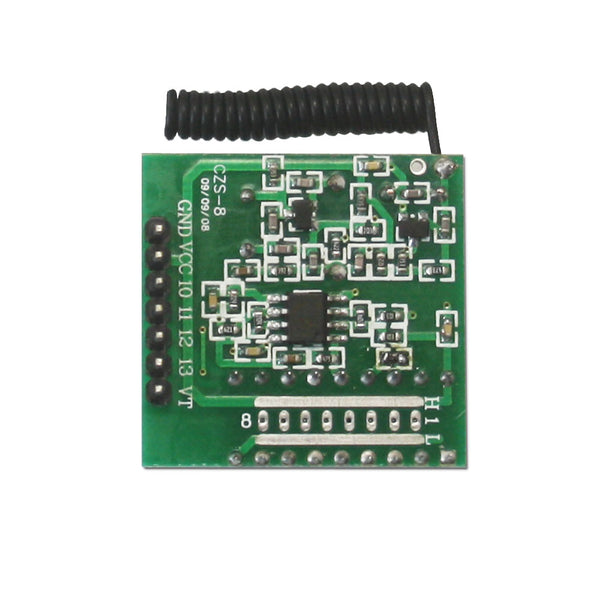

Introduction of pin (from left to right)
Pins | Name | Function |
1 | VT | Effective recognition of decoding output |
2~5 | 13 ~ 10 | Data output |
6 | VCC | Positive power supply |
7 | GND | Negative power supply |
