Package Include:

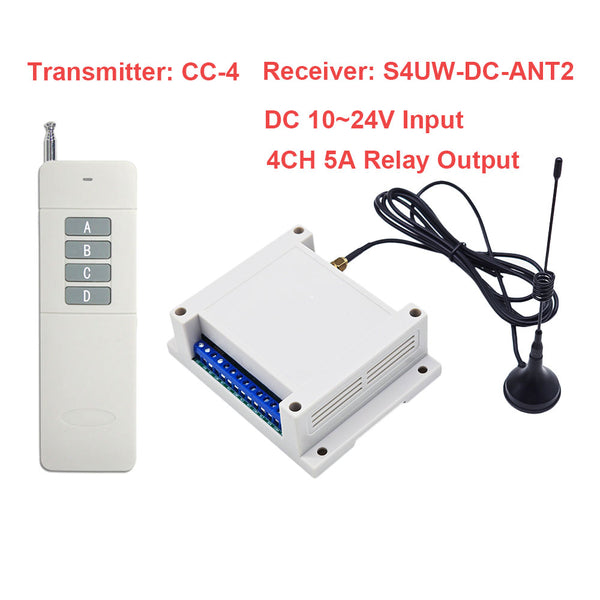

1 X Receiver: S4UW-DC-ANT3
1 X Transmitter: CC-4
1 X Use manual
Introduction:
This is a long range RC transmitter and receiver kit, including a S4UW-DC-ANT3 receiver and a CC-4 transmitter. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It’s ideal for controlling various AC/DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.
DC 10~24V operating voltage range.
Versatile Compatibility: Controls both DC and AC equipment by dry relay output.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S4UW-DC-ANT3 Parameters:
Transmitter CC-4 (4 Buttons) Parameters:
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON)
Press Button A again → Relay 1 deactivates (device 1 OFF)
……
Press Button D → Relay 4 activates (device 4 ON)
Press Button D again → Relay 4 deactivates (device 4 OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-4:
Hold Button A → Relay 1 activates (device 1 ON)
Release Button A→ Relay 1 deactivates (device 1 OFF)
……
Hold Button D → Relay 4 activates (device 4 ON)
Release Button D→ Relay 4 deactivates (device 4 OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON); Other 3 relays deactivate
……
Press Button D → Relay 1 activates (device 1 ON); Other 3 relays deactivate
1 X Receiver: S4UW-DC-ANT3
1 X Transmitter: CC-4
1 X Use manual
Introduction:
This is a long range RC transmitter and receiver kit, including a S4UW-DC-ANT3 receiver and a CC-4 transmitter. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. It’s ideal for controlling various AC/DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.
DC 10~24V operating voltage range.
Versatile Compatibility: Controls both DC and AC equipment by dry relay output.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.

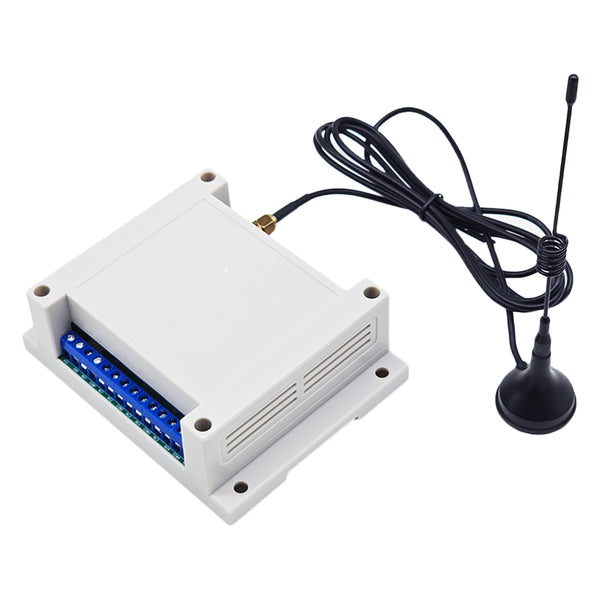

With external antenna, the receiver has a farther working range.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

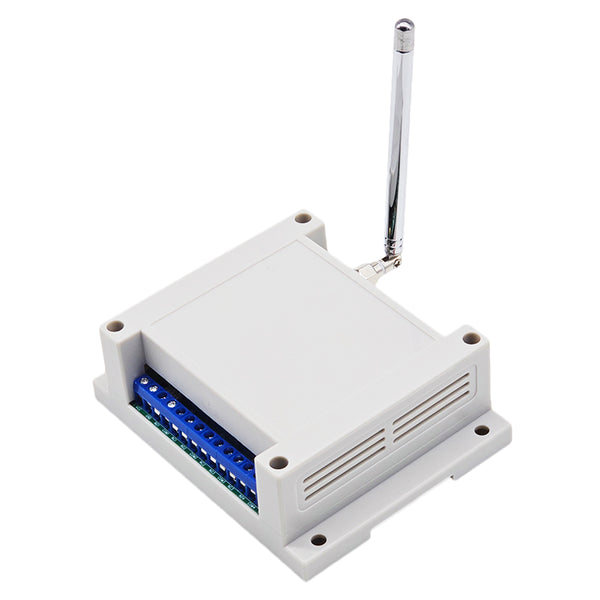

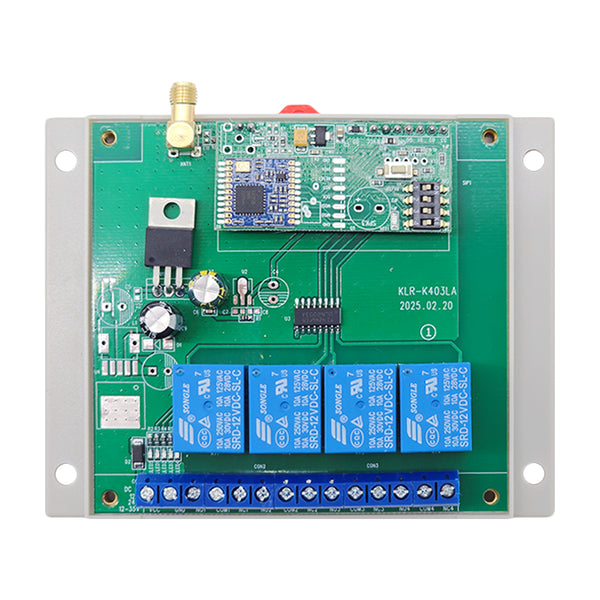

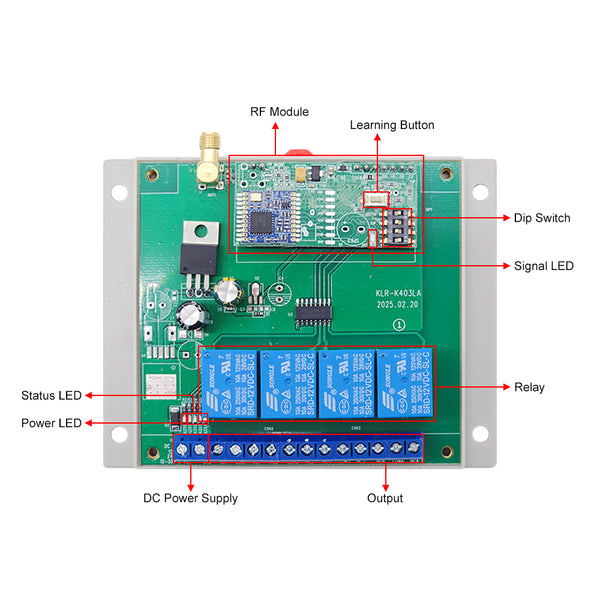

Receiver S4UW-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | 10~24VDC |
| Output Type | Dry Relay Output (With NO and NC Terminals) |
| Channel | 4 CH |
| Working Frequency | 433.92 MHz |
| Load Capacity | 240VAC or 28VDC, Max 5A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-16 AWG |
| Receiving Sensitivity | -130dBm |
| Operating Temperature | -10 °C ~ +85 °C |
| PCB size | 93 x 87 x 17 mm (3.7x 3.4 x 0.7 inches) |
| Case size | 115 x 90 x 40 mm (4.5 x 3.5 x 1.6 inches) |
| Matching Transmitters | CC-4 (5000 Meter / 15000 feet range) / CCW-4 (waterproof, 5000 Meter / 15000 feet range) |

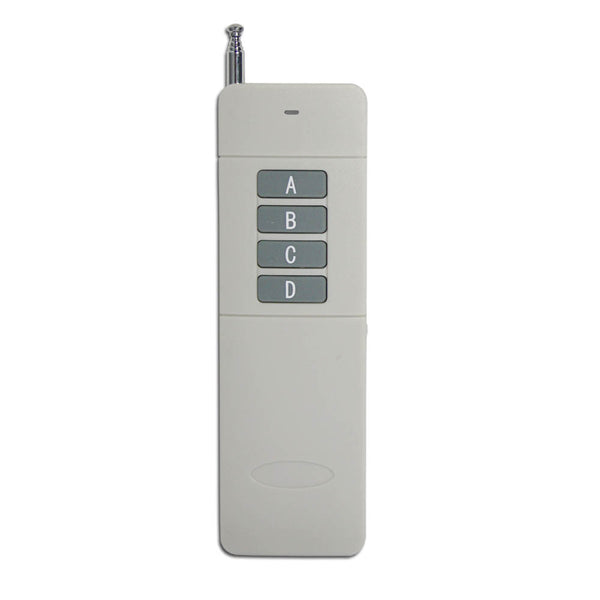

Transmitter CC-4 (4 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 9V (1 x 6F22-9V battery, can be used for 12 months) |
| Operating Frequency | 433.92 Mhz |
| Transmitting Distance | 5000m / 15000ft (theoretically) |
| Unit Size | 135 x 42 x 25 mm (5.3 x 1.7 x 1.0 inches) |

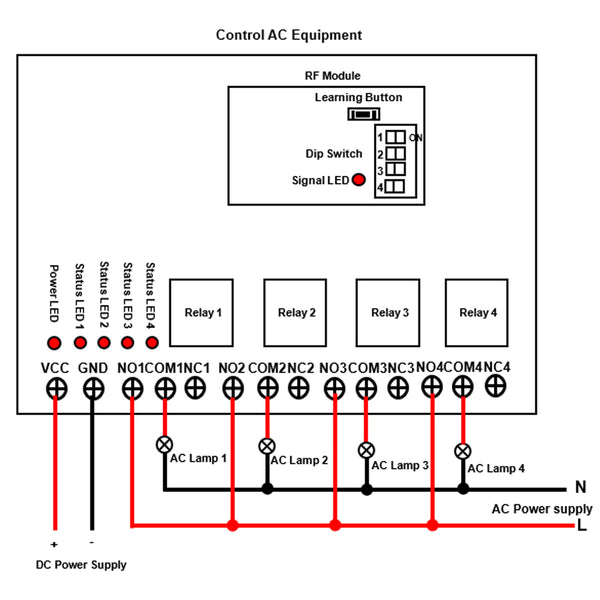

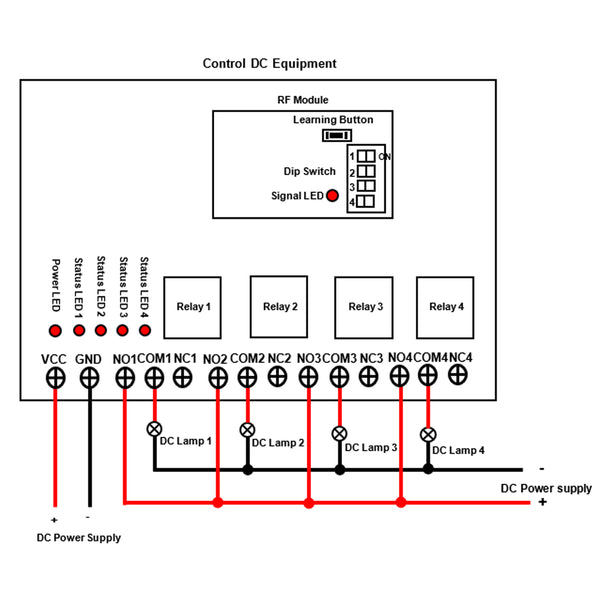

Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON)
Press Button A again → Relay 1 deactivates (device 1 OFF)
……
Press Button D → Relay 4 activates (device 4 ON)
Press Button D again → Relay 4 deactivates (device 4 OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-4:
Hold Button A → Relay 1 activates (device 1 ON)
Release Button A→ Relay 1 deactivates (device 1 OFF)
……
Hold Button D → Relay 4 activates (device 4 ON)
Release Button D→ Relay 4 deactivates (device 4 OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-4:
Press Button A → Relay 1 activates (device 1 ON); Other 3 relays deactivate
……
Press Button D → Relay 1 activates (device 1 ON); Other 3 relays deactivate
