Package Include:
1 X Receiver: S4XW-DC-ANT3
1 X Use manual
Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. The receiver and the transmitter form a wireless remote-control system. This system ideal for controlling various DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.

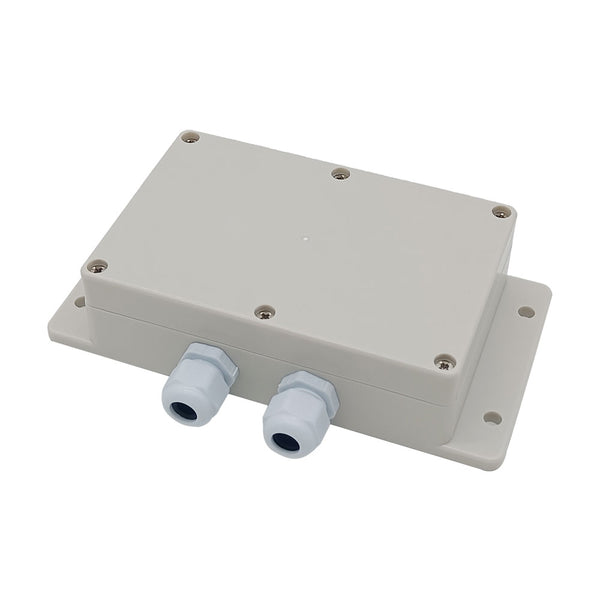

Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
DC Power Output: Controls DC equipment with a voltage in the range of 8~80 VDC.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S4XW-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 8~80V DC |
| Output Type | 8~80V DC same as input voltage |
| Channel | 4 CH |
| Working Frequency | 433.92 MHz |
| Maximum Load Current of Relay | 10A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches) |
| Case size | 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches) |
| Matching Transmitters | CC-4 / CCW-4 (waterproof) |
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-4:
Press Button A → Terminal <OUT1> outputs DC power (device 1 ON)
Press Button A again → Terminal <OUT1> stops outputting (device 1 OFF)
……
Press Button D → Terminal <OUT4> outputs DC power (device 4 ON)
Press Button D again → Terminal <OUT4> stops outputting (device 4 OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-4:
Hold Button A → Terminal <OUT1> outputs DC power (device 1 ON)
Release Button A → Terminal <OUT1> stops outputting (device 1 OFF)
……
Hold Button D →Terminal <OUT4> outputs DC power (device 4 ON)
Release Button D → Terminal <OUT4> stops outputting (device 4 OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-4:
Press Button A → Terminal <OUT1> outputs DC power (device 1 ON); Other 3 terminals stop otuputting (other 3 devices OFF)
……
Press Button D → Terminal <OUT4> outputs DC power (device 4 ON); Other 3 terminals stop otuputting (other 3 devices OFF)
