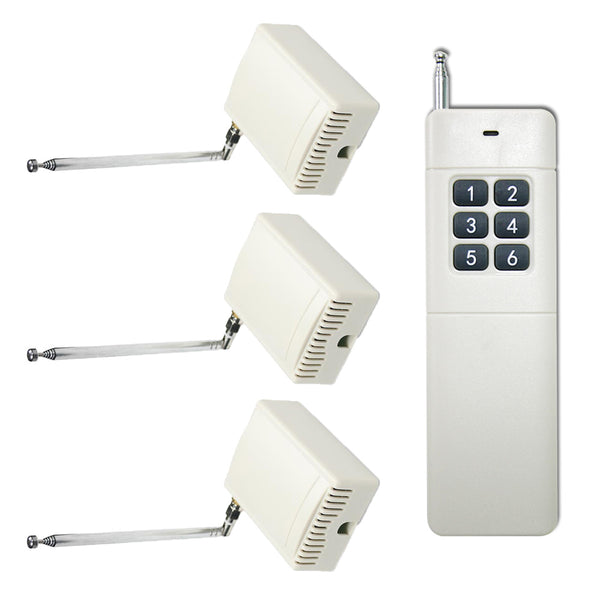

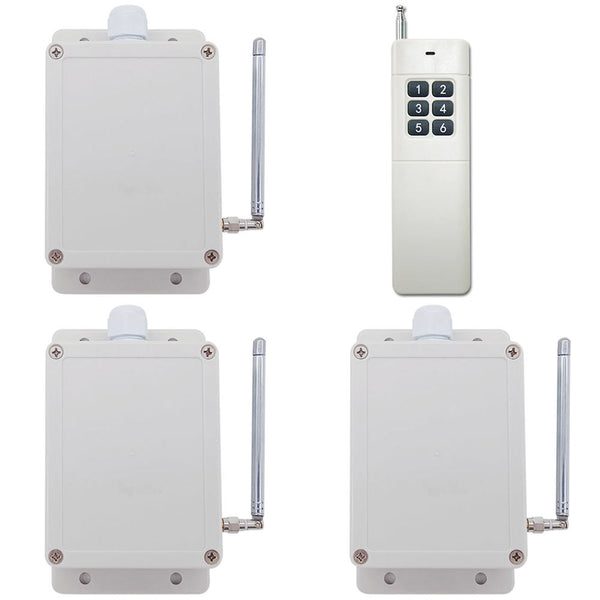

Package Include:

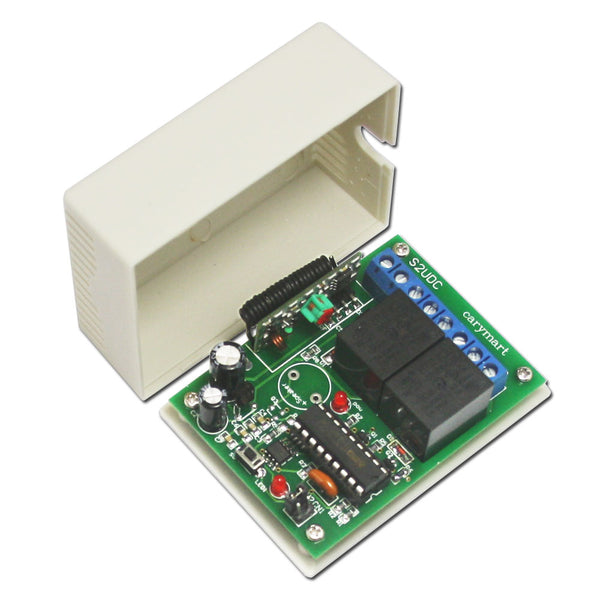

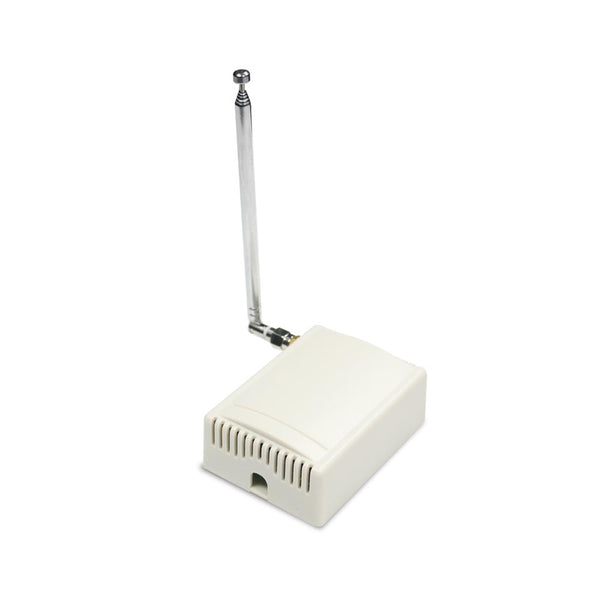

3 x Receiver: S2UA-DC-ANT3
1 x Transmitter: CV-6
1 x User manual
Introduction:
This is one-transmitter-many-receivers system with relay output. It including three S2UA-DC-ANT3 receivers and a CV-6 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC or AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.

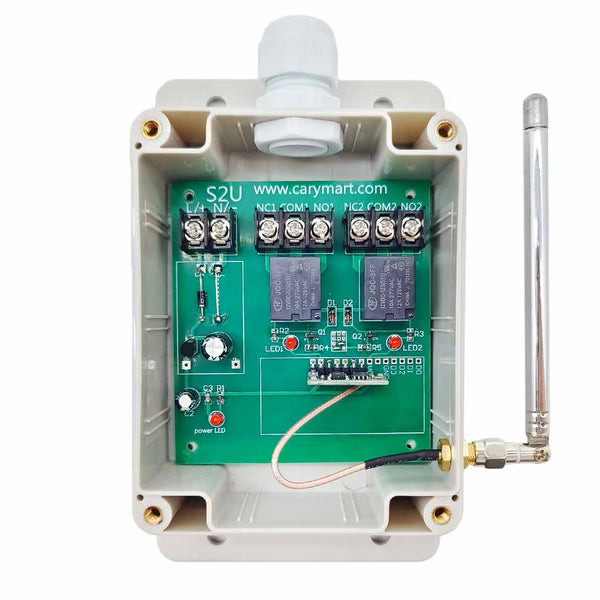

Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking

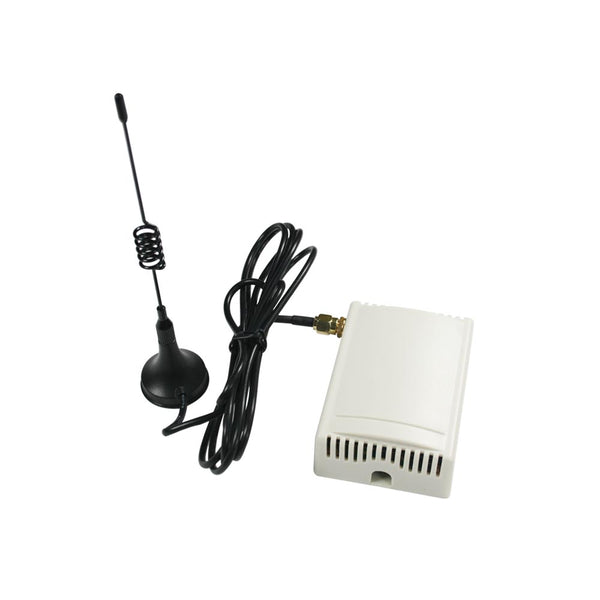

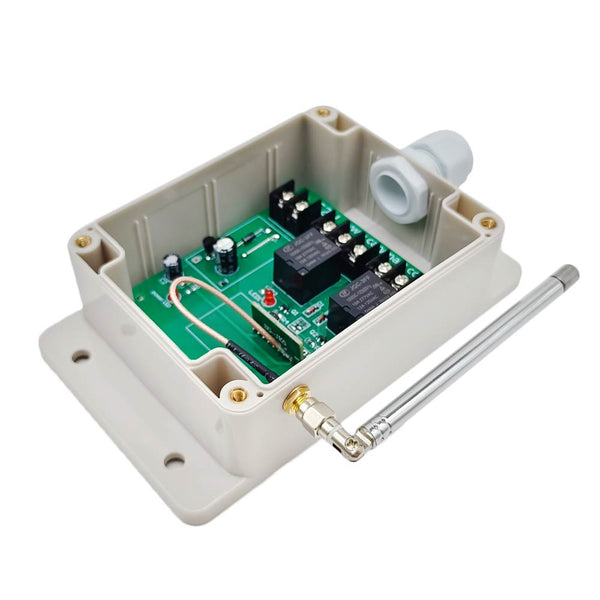

With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
You can use one transmitter to control multiple receivers, and each two buttons on the transmitter controlling one receiver. For example, you can use a 2 button transmitter to control 1 receiver, or use a 4 buttons transmitter to control 2 receivers, or use a 6 buttons transmitter to control 3 receivers, or use a 8 buttons transmitter to control 4 receivers, or use an 12 buttons transmitter to control 6 receivers, etc.
Receiver S2UA-DC-ANT3 Parameters:

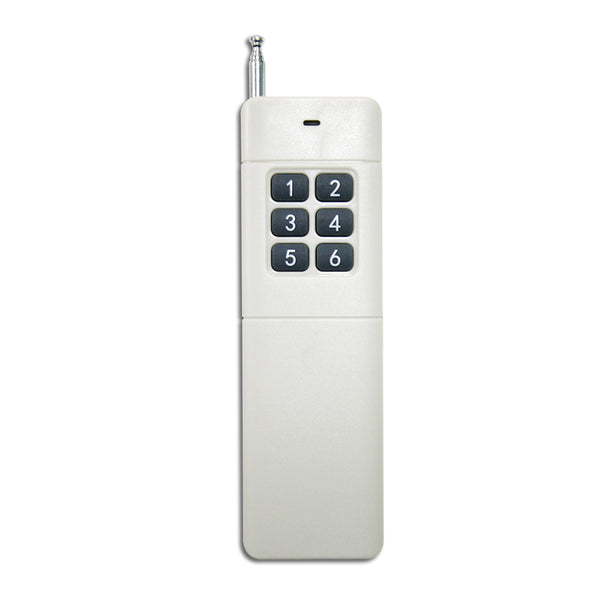

Transmitter CV-6 (6 Buttons) Parameters:

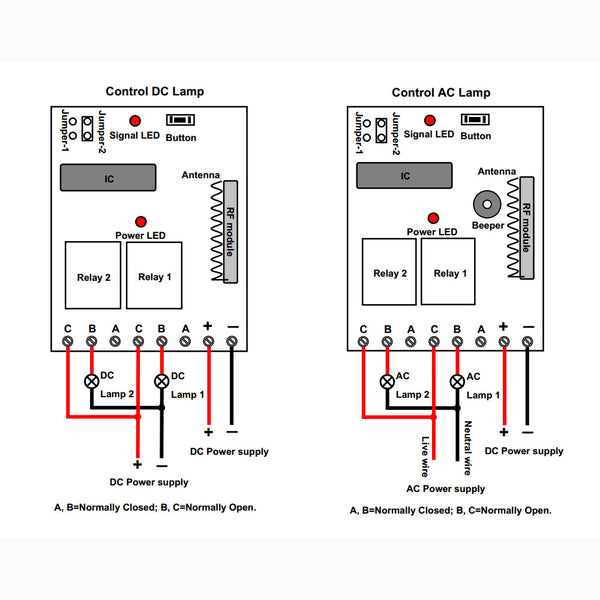

Wiring:
1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.
2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CV-6:
Hold button 1 → Relay 1 of the receiver 1 activated (device 1 ON)
Release button 1 → Relay 1 of the receiver 1 deactivated (device 1 OFF)
Hold button 2 → Relay 2 of the receiver 1 activated (device 2 ON)
Release button 2 → Relay 2 of the receiver 1 deactivated (device 2 OFF)
......
Hold button 5 → Relay 1 of the receiver 3 activated (device 5 ON)
Release button 5 → Relay 1 of the receiver 3 deactivated (device 5 OFF)
Hold button 6 → Relay 2 of the receiver 3 activated (device 6 ON)
Release button 6 → Relay 2 of the receiver 3 deactivated (device 6 OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CV-6:
Press button 1 → Relay 1 of the receiver 1 activated (device 1 ON)
Press button 1 again → Relay 1 of the receiver 1 deactivated (device 1 OFF)
Press button 2 → Relay 2 of the receiver 1 activated (device 2 ON)
Press button 2 again → Relay 2 of the receiver 1 deactivated (device 2 OFF)
......
Press button 5 → Relay 1 of the receiver 3 activated (device 5 ON)
Press button 5 again → Relay 1 of the receiver 3 deactivated (device 5 OFF)
Press button 6 → Relay 2 of the receiver 3 activated (device 6 ON)
Press button 6 again → Relay 2 of the receiver 3 deactivated (device 6 OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CV-6:
Press Button 1 → Relay 1 of the receiver 1 activated (device 1 ON). Relay 2 of the receiver 1 deactivated (device 2 OFF)
Press Button 2 → Relay 2 of the receiver 1 activated (device 2 ON). Relay 1 of the receiver 1 deactivated (device 1 OFF)
......
Press Button 5 → Relay 1 of the receiver 3 activated (device 5 ON). Relay 2 of the receiver 3 deactivated (device 6 OFF)
Press Button 6 → Relay 2 of the receiver 3 activated (device 6 ON). Relay 1 of the receiver 3 deactivated (device 5 OFF)
4) Setting Momentary (Channel 1 of Receiver 1, 2, 3) + Self-locking (Channel 2 of Receiver 1, 2, 3) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
3 x Receiver: S2UA-DC-ANT3
1 x Transmitter: CV-6
1 x User manual
Introduction:
This is one-transmitter-many-receivers system with relay output. It including three S2UA-DC-ANT3 receivers and a CV-6 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC or AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Four operating voltage versions: DC 6V, 9V, 12V, 24V optional.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
You can use one transmitter to control multiple receivers, and each two buttons on the transmitter controlling one receiver. For example, you can use a 2 button transmitter to control 1 receiver, or use a 4 buttons transmitter to control 2 receivers, or use a 6 buttons transmitter to control 3 receivers, or use a 8 buttons transmitter to control 4 receivers, or use an 12 buttons transmitter to control 6 receivers, etc.
Receiver S2UA-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | DC 6V, 9V, 12V, or 24V (specify when ordering) |

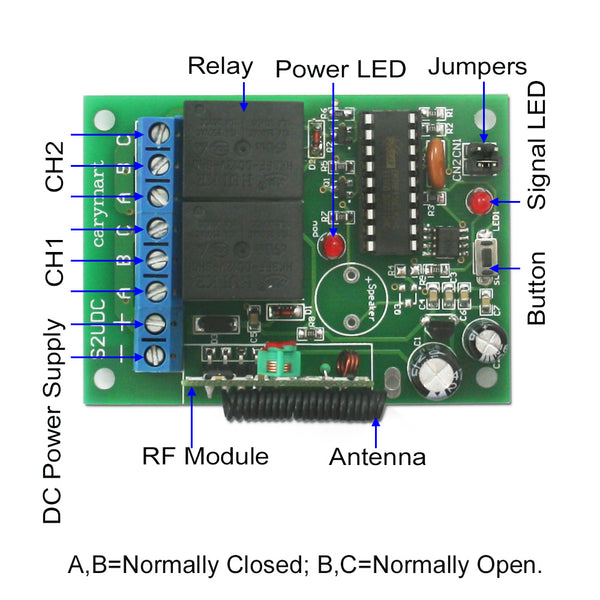

| Output Type | Dry Relay Output (With Normally Open and Normally Closed Terminals) |
| Channel | 2 CH |
| Working Frequency | 433.92MHz |
| Maximum Load Current | 10A |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Momentary + Self-locking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |

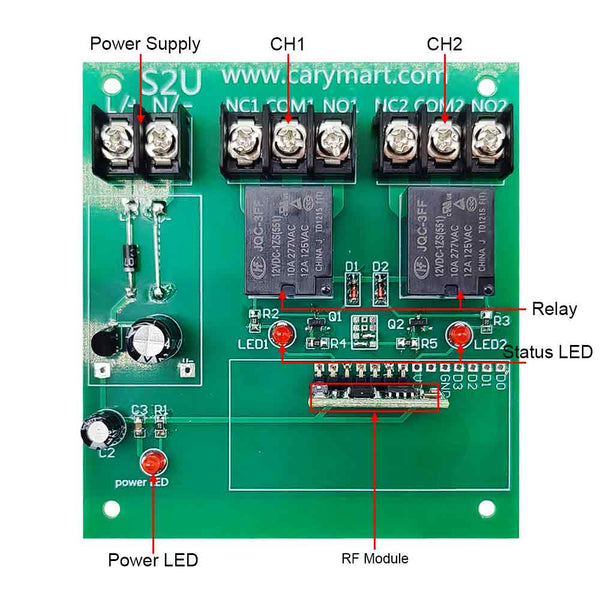

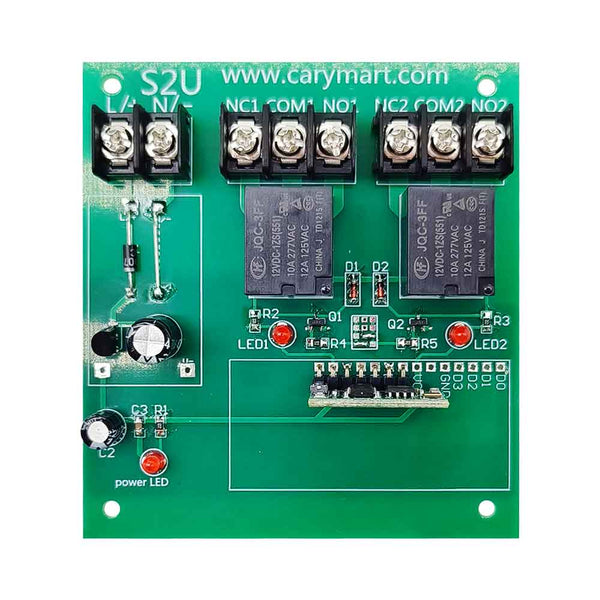

| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |

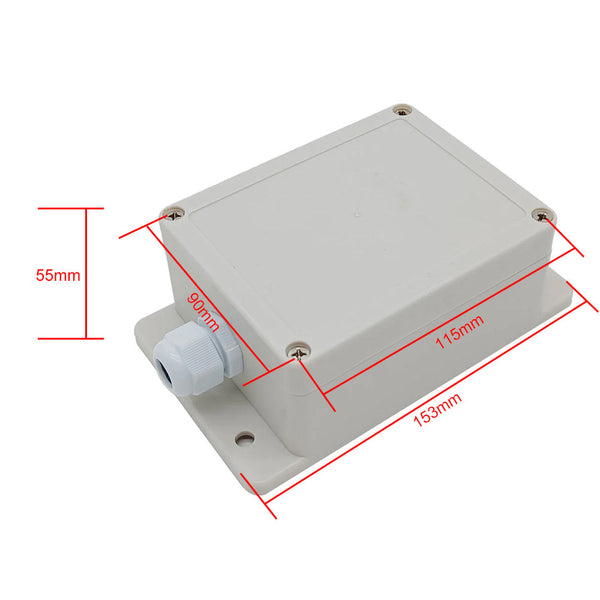

| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |

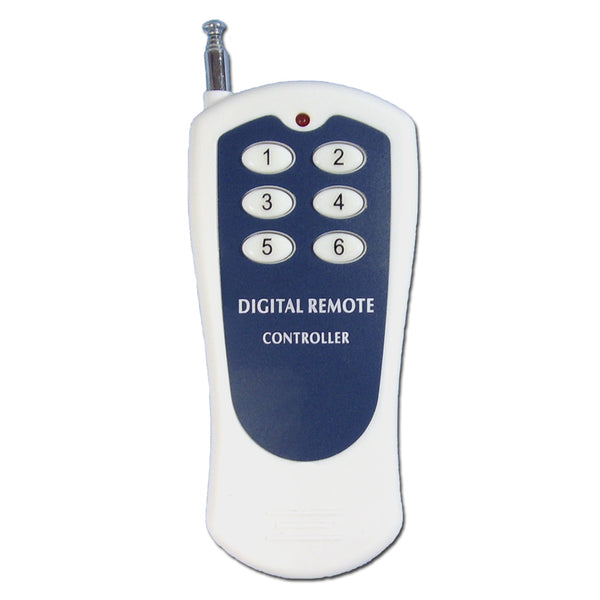

| Matching Transmitters | Can work with different transmitters, such as model CP-6 / CV-6 (500M) and CB-6 (1000M) etc. |
Transmitter CV-6 (6 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | 1, 2, 3, 4, 5, 6 |
| Operating Frequency | 433 Mhz |
| Encoding Chip | PT2262 / PT2264 / SC2262 |
| Transmitting Distance | 500m / 1500ft (theoretically) |
| Unit Size | 110 x 50 x 18 mm (4.3 x 2.0 x 0.7 inches) |
Wiring:

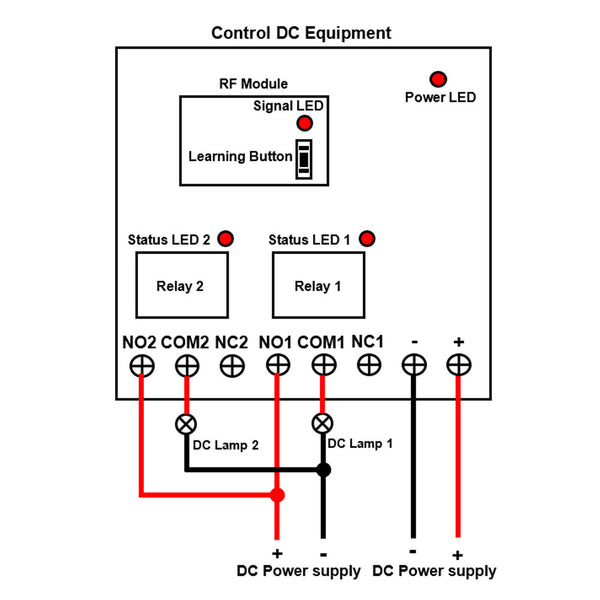

1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

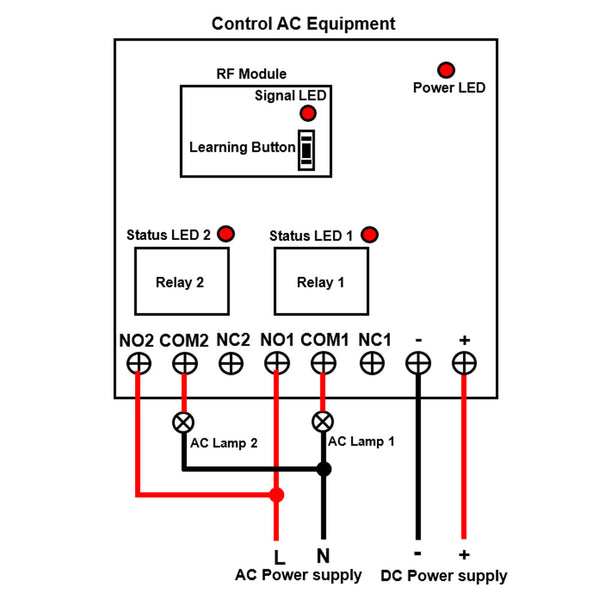

2) If you want to control an AC 220V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CV-6:
Hold button 1 → Relay 1 of the receiver 1 activated (device 1 ON)
Release button 1 → Relay 1 of the receiver 1 deactivated (device 1 OFF)
Hold button 2 → Relay 2 of the receiver 1 activated (device 2 ON)
Release button 2 → Relay 2 of the receiver 1 deactivated (device 2 OFF)
......
Hold button 5 → Relay 1 of the receiver 3 activated (device 5 ON)
Release button 5 → Relay 1 of the receiver 3 deactivated (device 5 OFF)
Hold button 6 → Relay 2 of the receiver 3 activated (device 6 ON)
Release button 6 → Relay 2 of the receiver 3 deactivated (device 6 OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CV-6:
Press button 1 → Relay 1 of the receiver 1 activated (device 1 ON)
Press button 1 again → Relay 1 of the receiver 1 deactivated (device 1 OFF)
Press button 2 → Relay 2 of the receiver 1 activated (device 2 ON)
Press button 2 again → Relay 2 of the receiver 1 deactivated (device 2 OFF)
......
Press button 5 → Relay 1 of the receiver 3 activated (device 5 ON)
Press button 5 again → Relay 1 of the receiver 3 deactivated (device 5 OFF)
Press button 6 → Relay 2 of the receiver 3 activated (device 6 ON)
Press button 6 again → Relay 2 of the receiver 3 deactivated (device 6 OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CV-6:
Press Button 1 → Relay 1 of the receiver 1 activated (device 1 ON). Relay 2 of the receiver 1 deactivated (device 2 OFF)
Press Button 2 → Relay 2 of the receiver 1 activated (device 2 ON). Relay 1 of the receiver 1 deactivated (device 1 OFF)
......
Press Button 5 → Relay 1 of the receiver 3 activated (device 5 ON). Relay 2 of the receiver 3 deactivated (device 6 OFF)
Press Button 6 → Relay 2 of the receiver 3 activated (device 6 ON). Relay 1 of the receiver 3 deactivated (device 5 OFF)
4) Setting Momentary (Channel 1 of Receiver 1, 2, 3) + Self-locking (Channel 2 of Receiver 1, 2, 3) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
