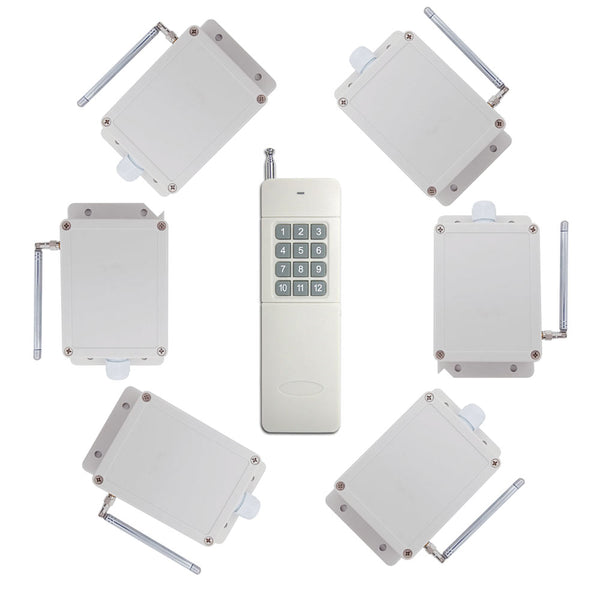

Package Include:

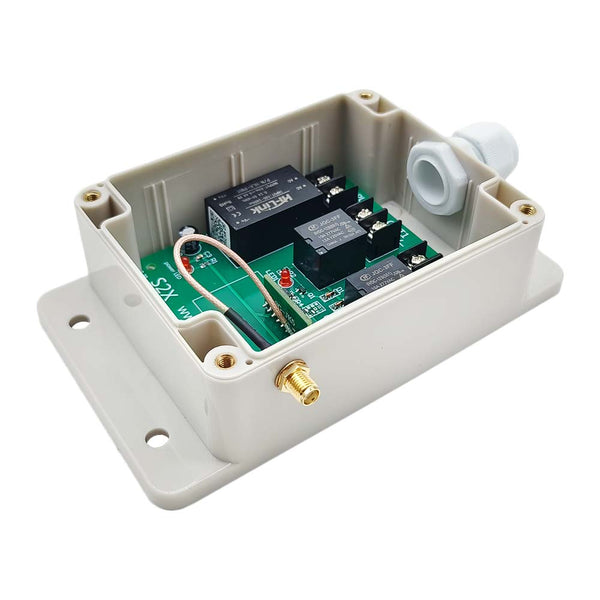

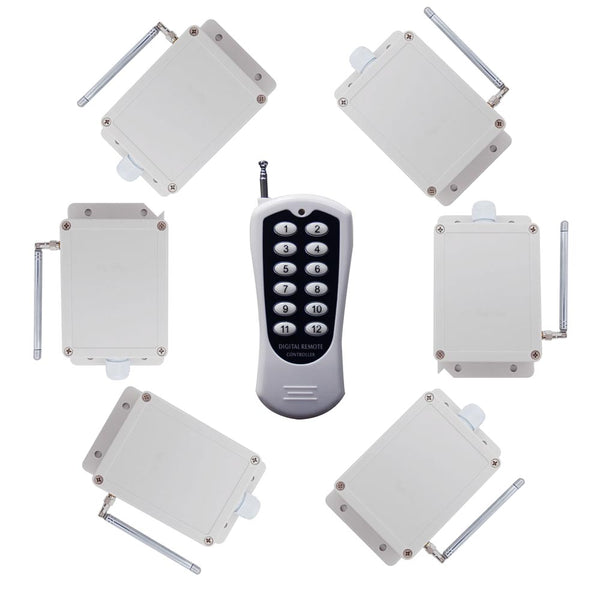

6 x Receiver: S2X-AC-ANT3

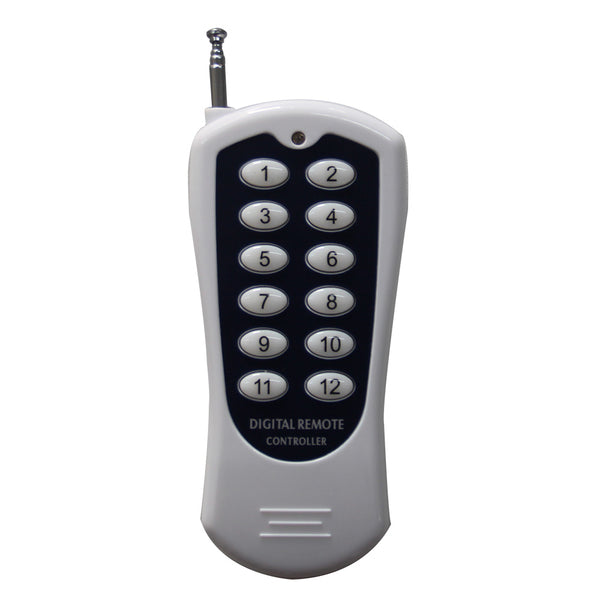

1 x Transmitter: CV-12
1 x User manual
Introduction:
This is one-transmitter-many-receivers system with AC power output. It including six S2X-AC-ANT3 receivers and a CV-12 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
You can use one transmitter to control multiple receivers, and each two buttons on the transmitter controlling one receiver. For example, you can use a 2 button transmitter to control 1 receiver, or use a 4 buttons transmitter to control 2 receivers, or use a 6 buttons transmitter to control 3 receivers, or use a 8 buttons transmitter to control 4 receivers, or use an 12 buttons transmitter to control 6 receivers, etc.

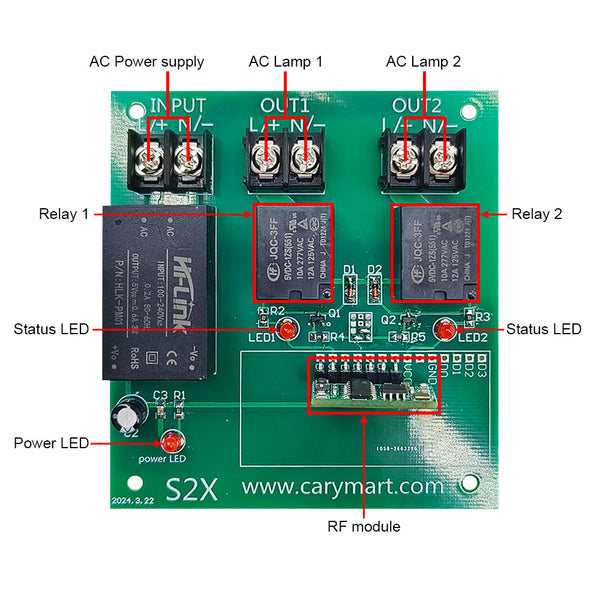

Receiver S2X-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 110~240V AC (110V/120V/220V/240V) |
| Output Type | 110~240V AC (110V/120V/220V/240V) |
| Channel | 2 CH |
| Working Frequency | 433.92MHz |
| Maximum Load Current | 10A |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Momentary + Self-locking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |

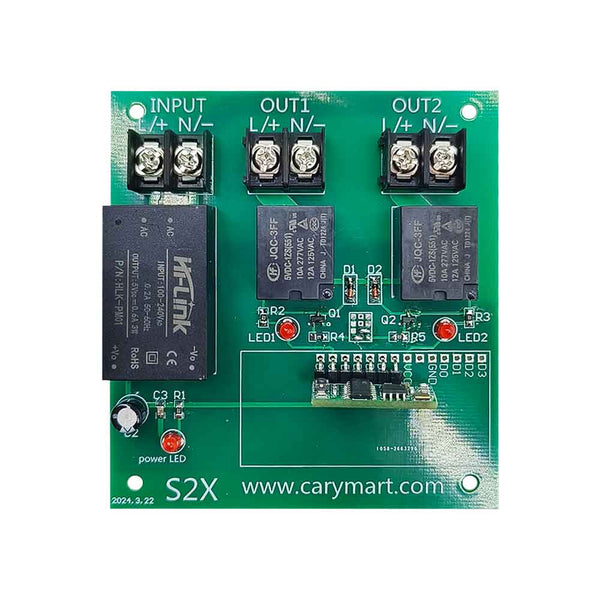

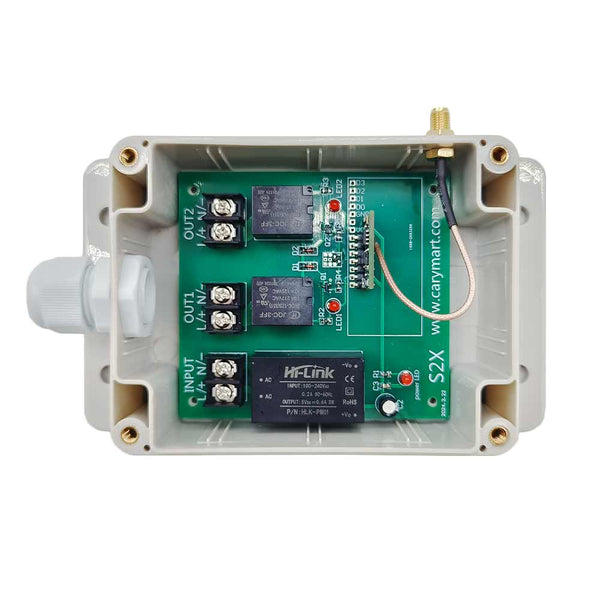

| PCB size | 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches) |

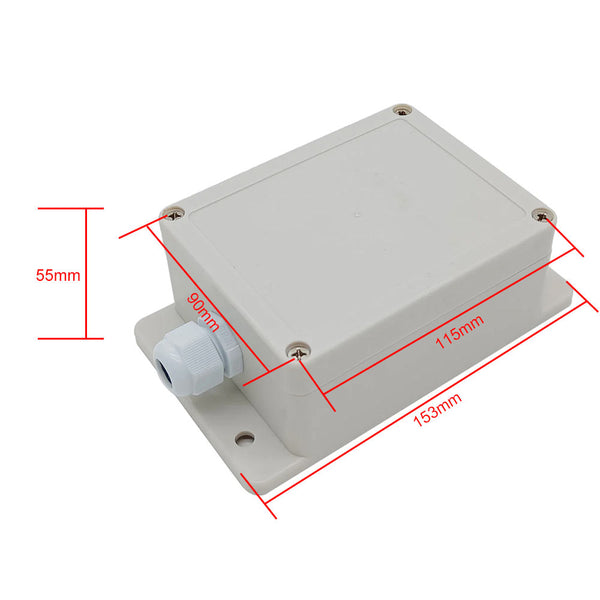

| Case size | 153 x 90 x 55 mm (6.0 x 3.6 x 2.2 inches) |

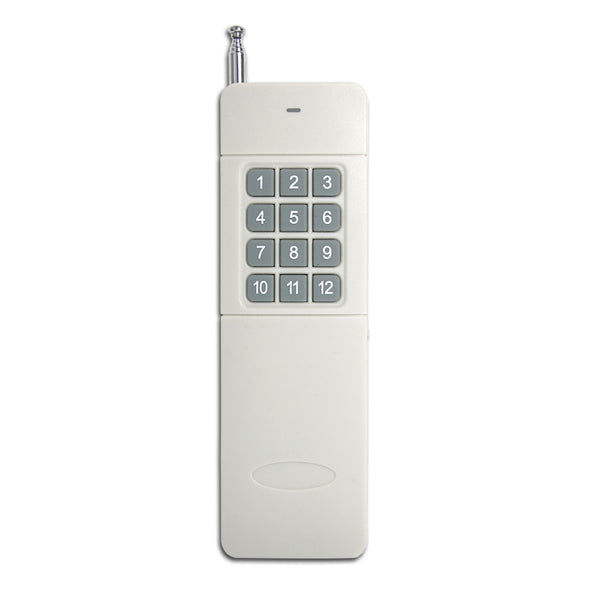

| Matching Transmitters | Can work with different transmitters, such as model CV-12 (500M) and CB-12 (1000M) etc. |
Transmitter CV-12 (12 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Operating Frequency | 433 Mhz |
| Encoding Chip | PT2262 / PT2264 / SC2262 |
| Transmitting Distance | 500m / 1500ft (theoretically) |
| Unit Size | 110 x 50 x 18 mm (4.3 x 2.0 x 0.7 inches) |
Wiring:
If you want to control an AC 120V or AC 220V lamp, do as following:

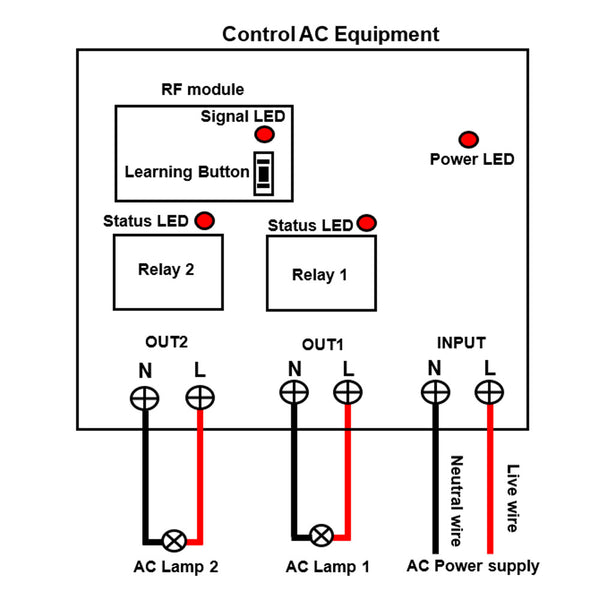

1) Connect the live wire of AC power supply to terminal <L> of INPUT, and connect the neutral wire of AC power supply to terminal <N> of INPUT.
2) Connect the live pole of AC lamp to terminal <L> of OUT, and connect the neutral pole of AC lamp to terminal <N> of OUT.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CV-12:
Hold button 1 → The terminal OUT1 of receiver 1 outputs AC power (lamp 1 ON)
Release button 1 → The terminal OUT1 of receiver 1 stops outputting (lamp 1 OFF)
Hold button 2 → The terminal OUT2 of receiver 1 outputs AC power (lamp 2 ON)
Release button 2 → The terminal OUT2 of receiver 1 stops outputting (lamp 2 OFF)
......
Hold button 11 → The terminal OUT1 of receiver 6 outputs AC power (lamp 11 ON)
Release button 11 → The terminal OUT1 of receiver 6 stops outputting (lamp 11 OFF)
Hold button 12 → The terminal OUT2 of receiver 6 outputs AC power (lamp 12 ON)
Release button 12 → The terminal OUT2 of receiver 6 stops outputting (lamp 12 OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CV-12:
Press button 1 → The terminal OUT1 of receiver 1 outputs AC power (lamp 1 ON)
Press button 1 again → The terminal OUT1 of receiver 1 stops outputting (lamp 1 OFF)
Press button 2 → The terminal OUT2 of receiver 1 outputs AC power (lamp 2 ON)
Press button 2 again → The terminal OUT2 of receiver 1 stops outputting (lamp 2 OFF)
......
Press button 11 → The terminal OUT1 of receiver 6 outputs AC power (lamp 11 ON)
Press button 11 again → The terminal OUT1 of receiver 6 stops outputting (lamp 11 OFF)
Press button 12 → The terminal OUT2 of receiver 6 outputs AC power (lamp 12 ON)
Press button 12 again → The terminal OUT2 of receiver 6 stops outputting (lamp 12 OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CV-12:
Press Button 1 → The terminal OUT1 of receiver 1 outputs AC power (lamp 1 ON). The terminals OUT2 of receiver 1 stops outputting (lamp 2 OFF)
Press Button 2 → The terminal OUT2 of receiver 1 outputs AC power (lamp 2 ON). The terminals OUT1 of receiver 1 stops outputting (lamp 1 OFF)
......
Press Button 11 → The terminal OUT1 of receiver 6 outputs AC power (lamp 11 ON). The terminals OUT2 of receiver 6 stops outputting (lamp 12 OFF)
Press Button 12 → The terminal OUT2 of receiver 6 outputs AC power (lamp 12 ON). The terminals OUT1 of receiver 6 stops outputting (lamp 11 OFF)
4) Setting Momentary (Channel 1) + Self-locking (Channel 2) mode: Press the learning button in the receiver 5 times, signal LED continuously flashes 5 times and then goes off.
