50M AC 110V 220V Power Output High Power Radio Remote Control Kit With Waterproof Case (Model 0020477)

Regular price $112.00

Shipping calculated at checkout.
Receiver Feature:
Wireless control, easy to install

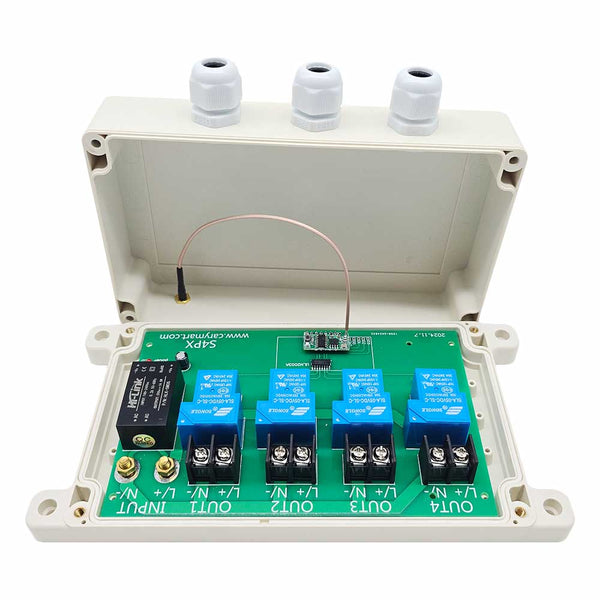

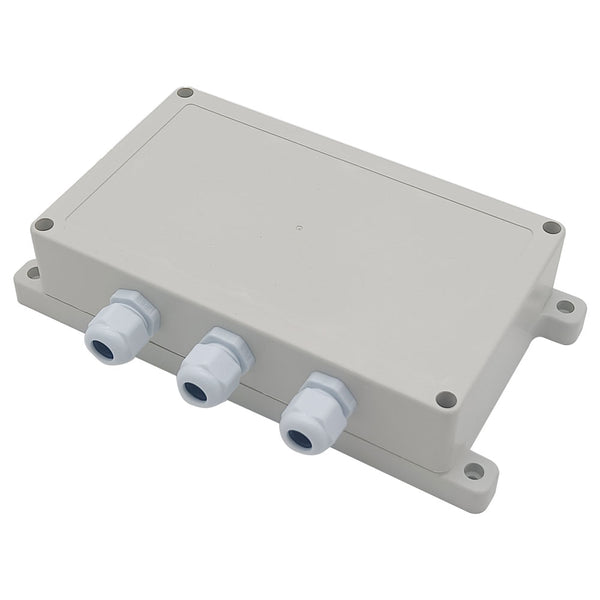

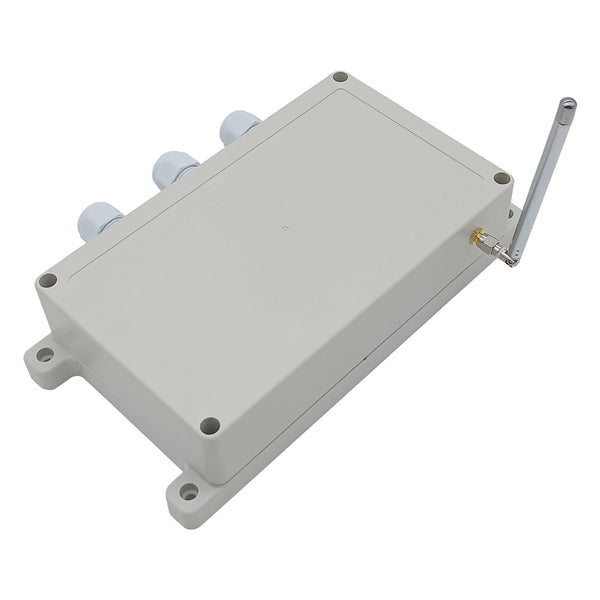

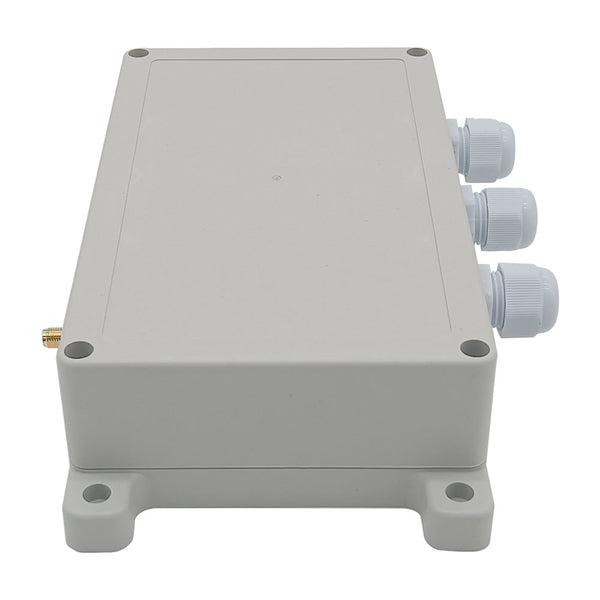

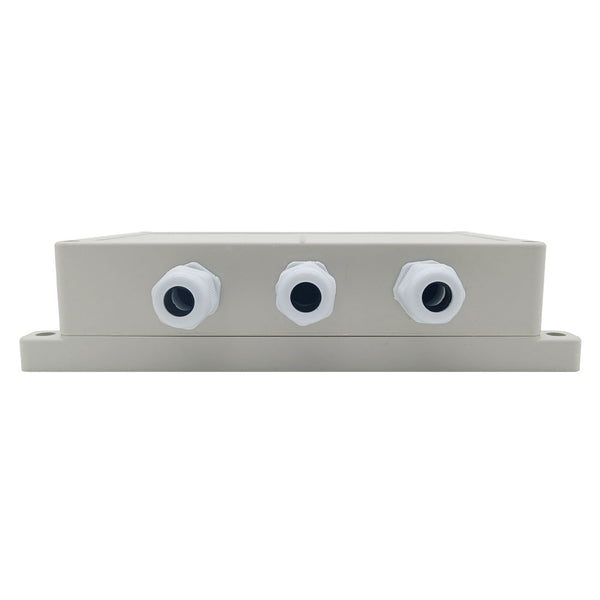

Waterproof case with waterproof connectors.
High power, each output can work at maximum 30A current.
AC power output, can be used in home automation, such as security system, remote control lights, motors, doors / locks / windows / blinds / cars, and various equipment.
The receiver has four input control terminals, you can connect external devices, sensors, or manual switches to these terminals to control the outputs of receiver.
It also can be used in agriculture and industry automation, such as long range and high power remote control devices.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/several transmitters can control one/several receivers simultaneously.
If you use two or more units in the same place, you can set them with different codes.

Receiver parameters:
Model No: S4PX-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Output: AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 4 CH
Control Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking
Maximum Working Current: 30A / each channel
Static Current: ≤6mA
PCB size: 170mm x 109mm x 18mm

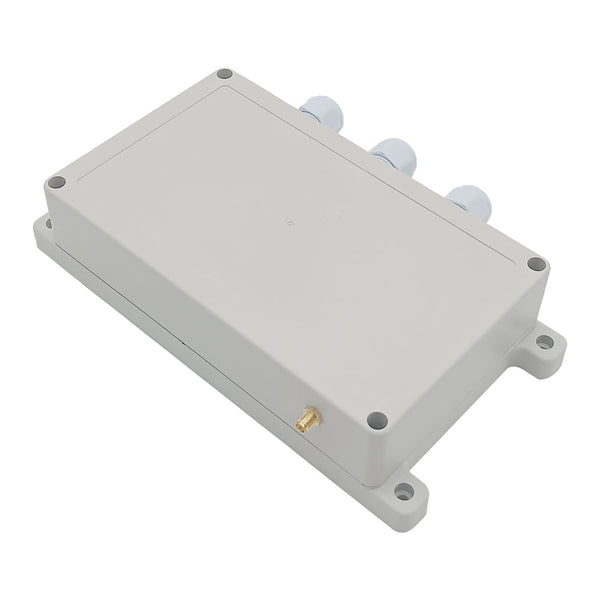

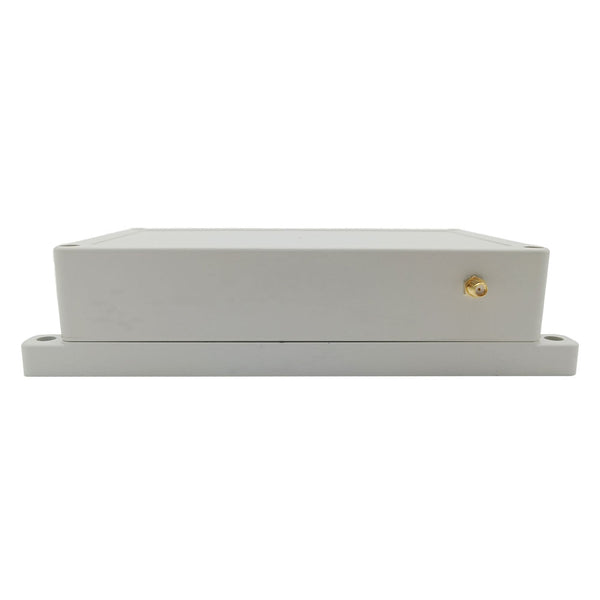

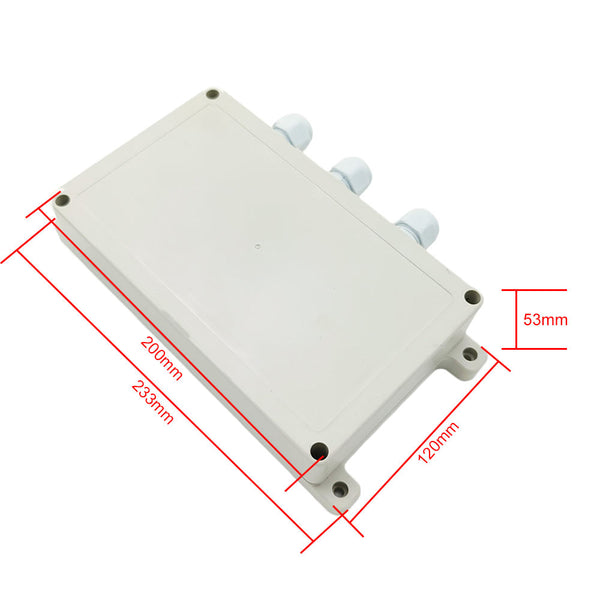

Case size:200mm x 120mm x 53mm
Work with Fixed code transmitters or Learning code transmitters.

Transmitters:

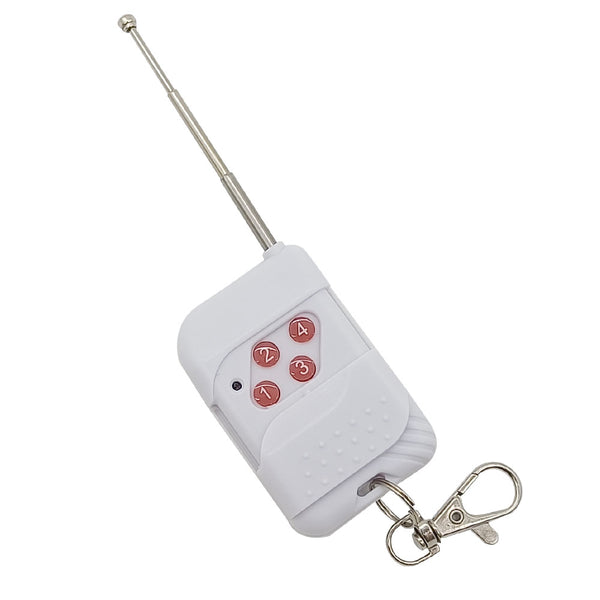

The receiver can pair different model transmitters, includes model C-4 (100M), CWB-4 (50M, waterproof), CP-4 (500M) and CB-4 (1000M) etc...
You also can use four transmitters with one button to work with this receiver, and each transmitter will control receiver’s a channel. Such as model C-1 (100m), CWB-1 (50m, waterproof), CP-1 (500M) and CB-1 (1000M) etc

The working range:
With a transmitter (such as CWB-4) to form a complete set, the distance can reach 50m. The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m.

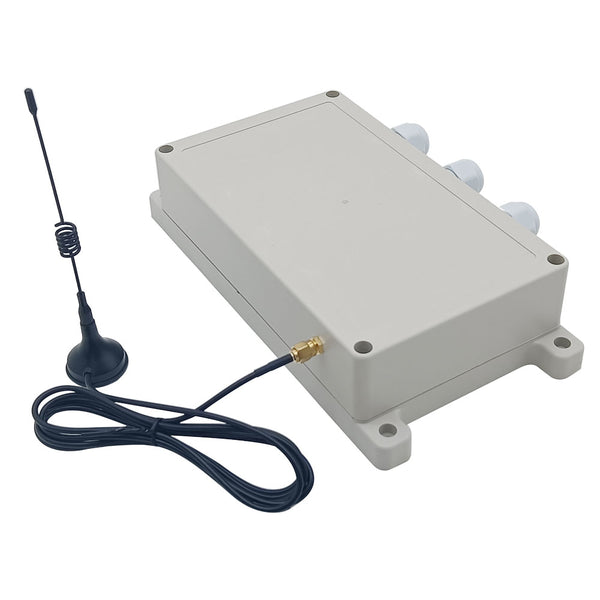

If you want to have a further working range, you can install an external antenna to the receiver, such as magnetic sucker antenna (model 0020910), which working range is three times as much as it used to be. Or telescopic antenna (model 0020918), which working range is twice as much as it used to be.

Usage (with the transmitter like CWB-4):
You can use this 4 channel receiver to control 4 AC equipments.

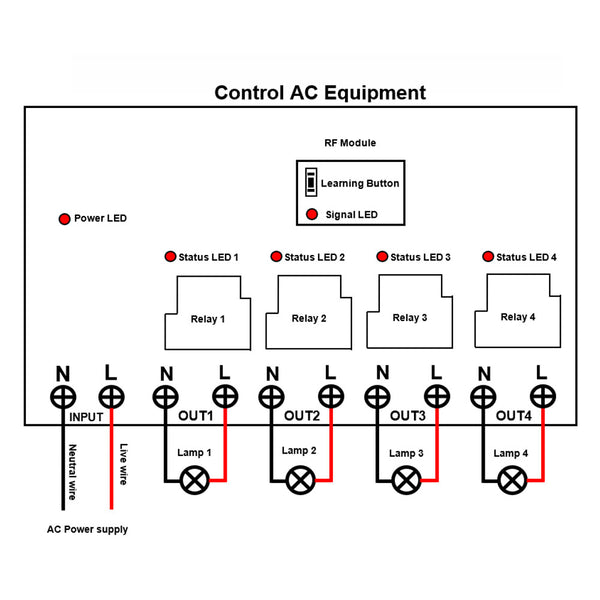

If you want to control four AC 220V lamps, do as following:

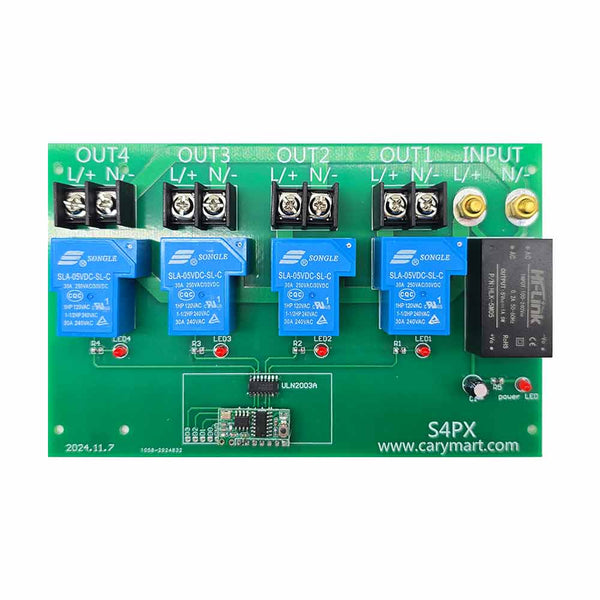

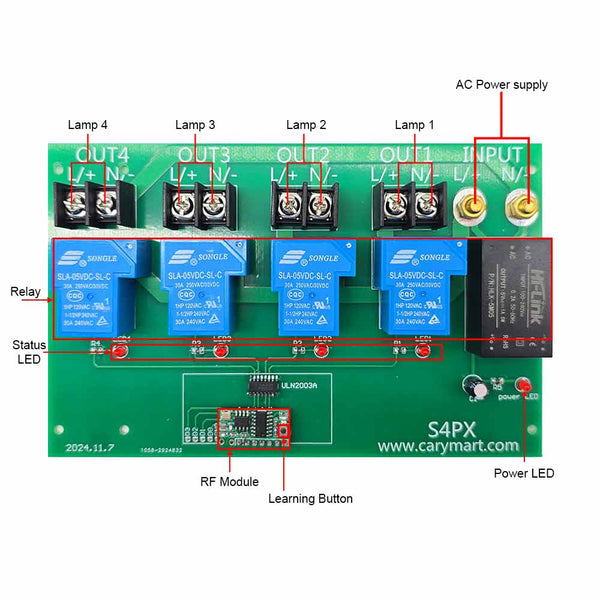

Connect AC 220V power to terminals “L” and “N“, and connect lamp 1 to terminals “L” and “N” of OUT1, connect lamp 2 to terminals “L” and “N” of OUT2, connect lamp 3 to terminals “L” and “N” of OUT3, connect lamp 4 to terminals “L” and “N” of OUT4 .

Transmitters Description:

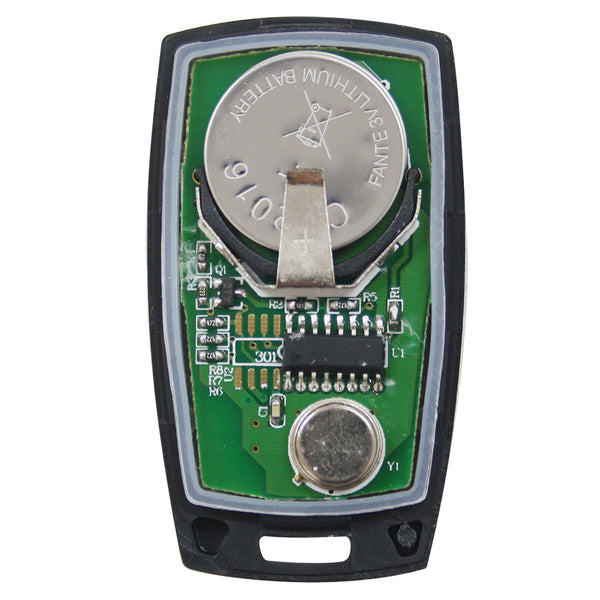

Model No.: 0021095 (CWB-4)
Waterproof
Shell Color: Black
Channel/Button: 4
Button Symbol: A, B, C, D
Operating Voltage: 6V (2 x CR2016 -3V button cell batteries,, can be used for 12 months)
Operating Current: 5mA
Operating Frequency: 433Mhz
Encoding Chip: PT2260/ PT2262 / PT2264
Encoding Type: Fixed code by soldering, up to 6561 codes
Transmitting Distance: 50m / 150ft (theoretically)
The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 56mm x 32mm x 12mm
Weight: 20g
Uses: garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.

Four remote control modes:
Self-locking Mode (with CWB-4): Press -> On, press again -> Off.
Momentary Mode (with CWB-4) Press and hold -> On; Release -> Off.
Interlocking Mode (with CWB-4): Press one button-> On; Press another button -> Off.
Momentary + Self-locking with CWB-4): Control mode Momentary (Channel A, B): Press and hold -> On; Release -> Off.
Control mode Self-locking (Channel C, D): Press -> On; Press again -> Off.


Download the User Manual: Wireless Receiver, Remote Controller
