Package Include:
1 X Receiver: S1PUW-DC-ANT3
1 X Use manual
Introduction:
This receiver is a super long range remote switch. It is developed by LORA (Long Range) wireless communication technology, so it has ultra-long working distance, ultra-high receiving sensitivity, superior anti-interference ability, and smaller power consumption. The receiver and the transmitter form a wireless remote-control system. This system ideal for controlling various AC/DC devices in industrial, agricultural, and home applications, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems.
Key Features:
Super Long Working Range: Up to 5000m (15,000 ft) in open areas.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
Versatile Compatibility: Controls both DC and AC equipment by dry relay output.
High Power: Each channel can work at maximum load current 30A.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With Feedback Function: Two-way communication lets the transmitter confirm receiver activation with a buzz.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S1PUW-DC-ANT3 Parameters:

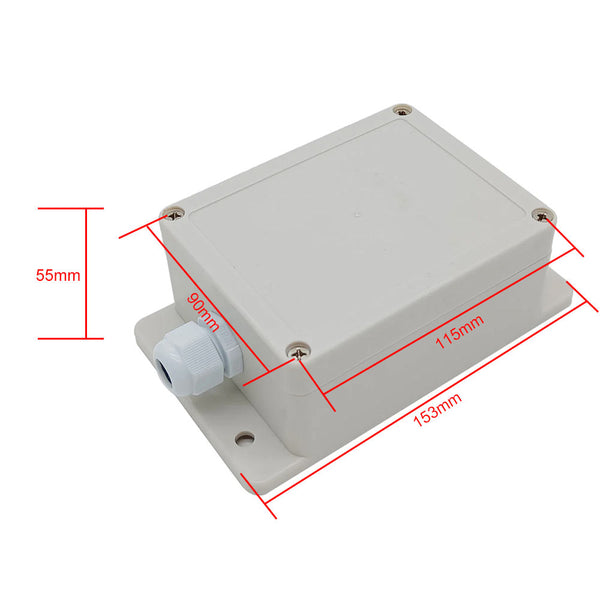

| Parameters | Detail |
|---|---|
| Operating Voltage | 8~80V DC |
| Output Type | Dry Relay Output (With NO and NC Terminals) |
| Channel | 1 CH |
| Working Frequency | 433.92 MHz |
| Load Capacity | 240VAC or 28VDC, Max 30A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 140 x 73 x 18 mm (5.5 x 2.9 x 0.7 inches) |
| Case size | 192 x 100 x 45 mm (7.6 x 4.0 x 1.8 inches) |
| Matching Transmitters |
CC-1 / CCW-1(waterproof) for Self-locking mode or Momentary mode, CC-2 / CCW-2(waterproof) for Interlocking mode. |
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Turn on the third bit of the dip switch.
Operation with CC-1:
Press once → Relay activates (device ON)
Press again → Relay deactivates (device OFF)
2) Setting Momentary mode: Turn off the second bit and the third bit of the dip switch.
Operation with CC-1:
Hold button → Relay activates (device ON)
Release button → Relay deactivates (device OFF)
3) Setting Interlocking mode: Turn on the second bit of the dip switch.
Operation with CC-2:
Press Button A → Relay activates (device ON)
Press Button B → Relay deactivates (device OFF)
