Package Include:

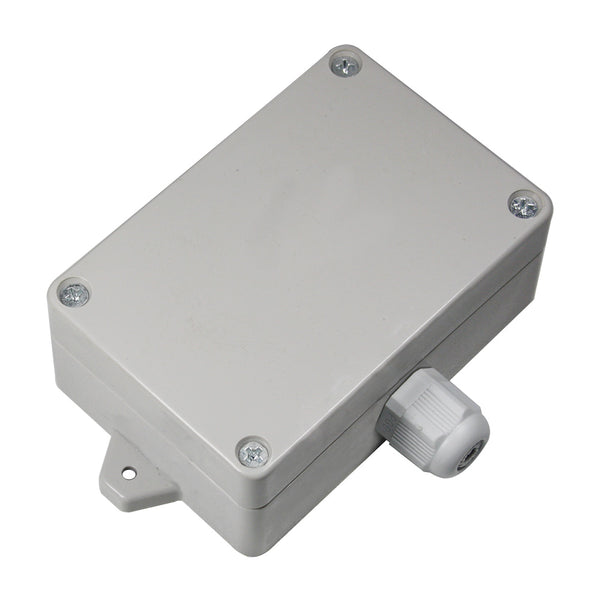

1 x Receiver: S6XW-DC

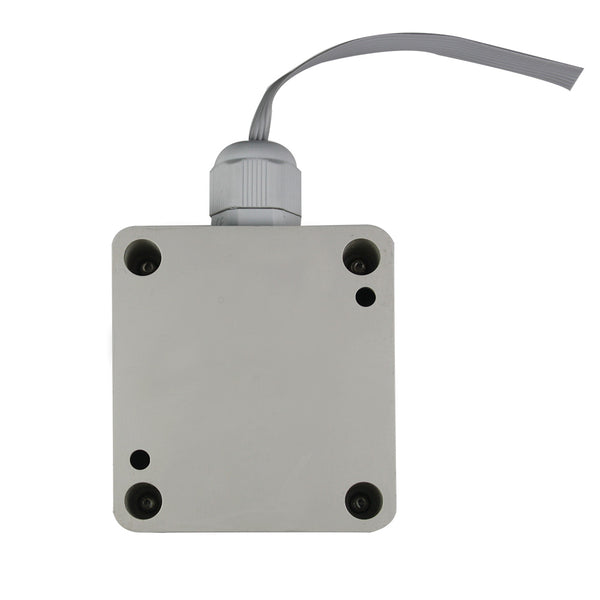

1 x Transmitter: TB-01
1 x User manual
Feature:
Widely used for various types of equipment synchronization, such as light synchronization, signal synchronization, voice synchronization, movement synchronization, state synchronization and so on.
Can synchronously control trailer taillights system, alarm system, traffic light system, motor synchronization system and other home, industrial and agricultural equipments.
Wireless synchronization control, easy to install. After connecting the transmitter and receiver with the synchronous equipment, there is no wire in need between the different equipments.
With waterproof case and waterproof connectors. They can be installed outdoors.
One transmitter can work with several receivers at the same time, achieving the synchronization of two or more equipments.
6 channels of input/output, can synchronize with 6 receivers at the same time.
The transmitter can control the receiver from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
Transmitting Frequency: 433.92MHz
Note:
The receiver 0020075 (S6XW-DC12) only work with the transmitter 0021034 (TB-01).
Receiver Parameters:
Model No: 0020075 (S6XW-DC12)
6 channel outputs
Operating Voltage / Output Signal: DC12~24V
Static Current: ≤6mA
Maximum Output Current: 10A / each channel
PCB Size: 92mm x 60mm x18mm
Case Size: 100mm x 68mm x 40mm
Transmitter Parameters:
Model No: 0021034 (TB-01)
6 channel inputs
Operating Voltage / Input Signal: DC12~24V
Static Current: ≤6mA
Transmitting Distance: 50m /150ft (in open field)
PCB Size: 49mm x 50mm x 35mm
Case Size: 62mm x 58mm x 35mm
Working Range:
This receiver and transmitter TB-01 form a complete set, the maximum working distance may reach 150 feet or 50 meters in an open area.
The maximum working distance is based on theoretical data without obstacles and any RF interference. In practice, it will be hindered by trees, walls, or other construction, and will be interfered with by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
Usage:
Connect DC power to transmitter’s wires “+” and “-“, power LED is on.
Connect DC power to receiver’s terminal “+” and “-“, power LED is on.
When inputs power "+" to transmitter’s wire A, receiver’s terminal A simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire A, receiver’s terminal A also stops to output DC power "+".
When inputs power "+" to transmitter’s wire B, receiver’s terminal B simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire B, receiver’s terminal B also stops to output DC power "+".
When inputs power "+" to transmitter’s wire C, receiver’s terminal C simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire C, receiver’s terminal C also stops to output DC power "+".
When inputs power "+" to transmitter’s wire D, receiver’s terminal D simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire D, receiver’s terminal D also stops to output DC power "+".
When inputs power "+" to transmitter’s wire E, receiver’s terminal E simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire E, receiver’s terminal E also tops to output DC power "+".
When inputs power "+" to transmitter’s wire F, receiver’s terminal F simultaneously outputs DC power "+".
When stops power "+" to transmitter’s wire F, receiver’s terminal F also stops to output DC power "+".
When inputs power "+" to transmitter’s several wires, receiver’s corresponding terminals simultaneously output DC power "+" at the same time.
