6A Speed Governor Controls The Direction And Speed Of DC Motor Or Linear Actuator Movement (Model 0044008)

Regular price $15.00

Shipping calculated at checkout.
Video:

The working condition of linear actuator A at different speeds

Feature:
Control the forward rotation, stop, reverse rotation and speed regulation of DC brush motor.
Control the extension, stop, retraction and speed regulation of DC linear actuator.

Specification:
Model: 0044008
Operating voltage range: DC 10V~60V
Rated current: 6A
Maximum operating current: 10A

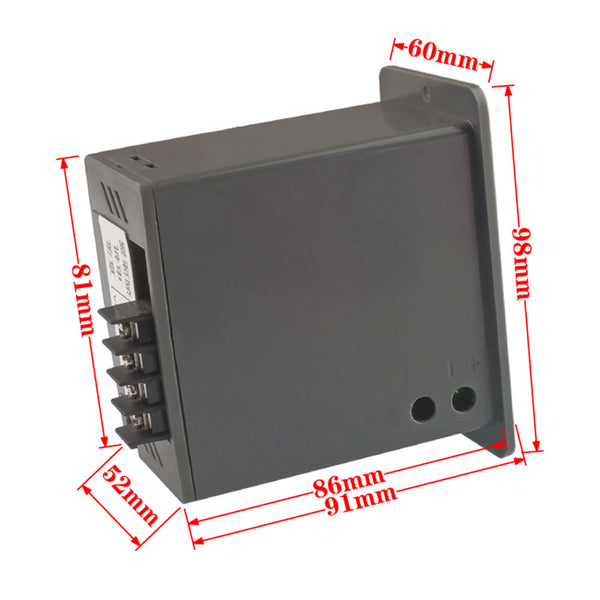

Size: 91 x 98 x 60 mm (3.6 x 3.9 x 2.4 inches)
Speed Adjustment Range: 5%~100%.

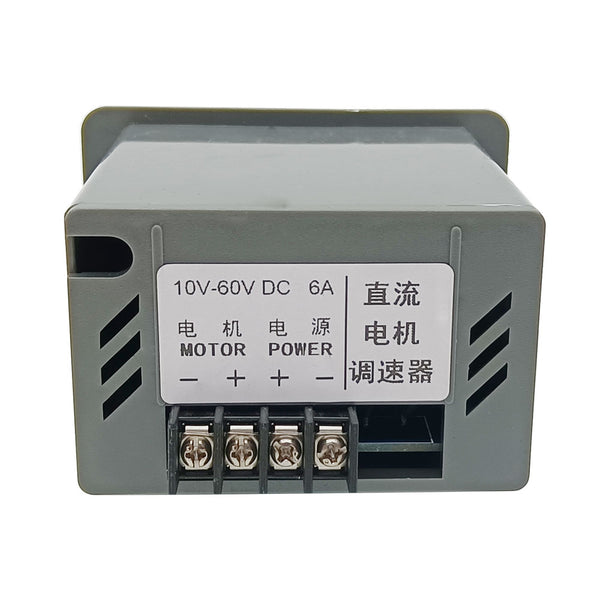

Wiring:
1) Connect the positive pole of DC power supply to the power terminal <+>, and connect the negative pole of DC power supply to the power terminal <->. The positive and negative poles cannot be reversed, otherwise the controller will be damaged.
2) Connect linear actuator or DC motor to the motor terminals. You can exchange these two wires to change the direction of movement.

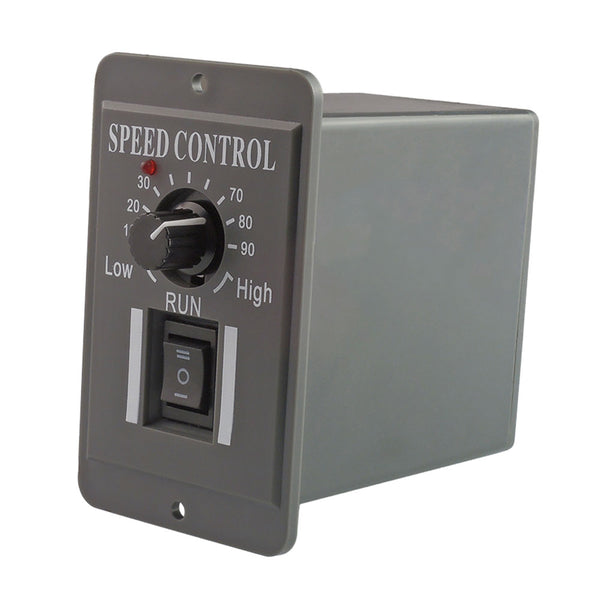

Operation for linear actuator:
Toggle the switch to the top position, linear actuator extends outward.
Toggle the switch to the middle position, linear actuator stops.
Toggle the switch to the bottom position, linear actuator retracts inward.

Twist the knob to adjust the movement speed of linear actuator.
Twist clockwise, the moving speed of linear actuator will speed up.
Twist anti-clockwise, the moving speed of linear actuator will slow down.

Operation for DC motor:
Toggle the switch to the top position, motor rotates in positive direction.
Toggle the switch to the middle position, motor stops.
Toggle the switch to the bottom position, motor rotates in reversal direction.

Twist the knob to adjust the rotation speed of DC motor.
Twist clockwise, the rotation speed of motor will speed up.
Twist anti-clockwise, the rotation speed of motor will slow down.
