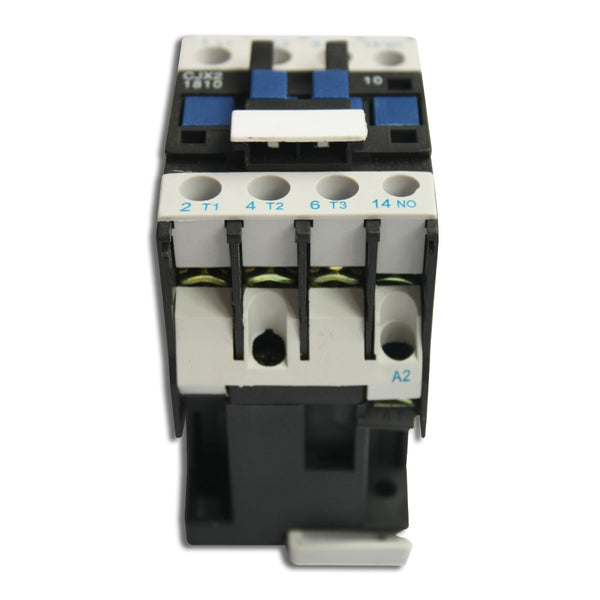

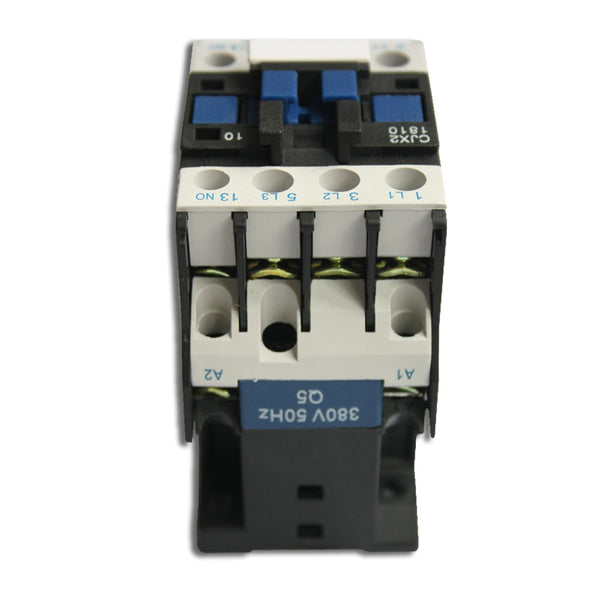

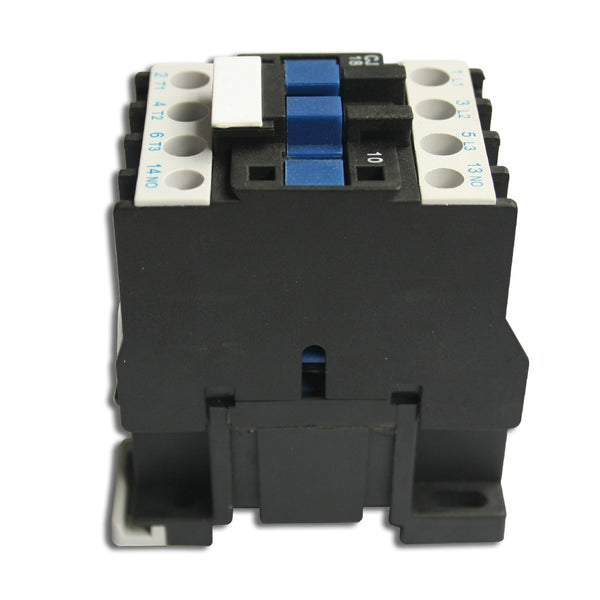

AC 110V or 220V or 380V Contactor Motor Starter Relay 3-Phase Pole 18A (Model 0040010)

Regular price $20.00

Shipping calculated at checkout.
Feature:
ABS flame retardant plastics
AC contactor (aka motor starter) is a high capacity relay. It is often used to control a motor or as a main power switch.
It’s used for long range connection and circuit disconnection, frequent activation and controlling AC motor.

Specification:
Model No.: 0040010
Three main contact: All Normally Open
One auxiliary contact: Normally Open
Contact: Silver
Max. Current: 18A
Contact Rating: 220V/18A/4KW, 380V/18A/7.5KW, 690/18A/10KW
Control (Coil) Voltage: 110V/AC, or 220V/AC, or 380V/AC (You must specify the coil voltage. Otherwise, 220V coil will be sent out as default choice)
Weight: 370g
Dimensions: 47mm x 76mm x 87mm
Mounting Method: 35mm DIN Rail or Screw On.
