Package Include:
1 x Receiver: S1PXA-AC-ANT3
1 x User manual
Introduction:

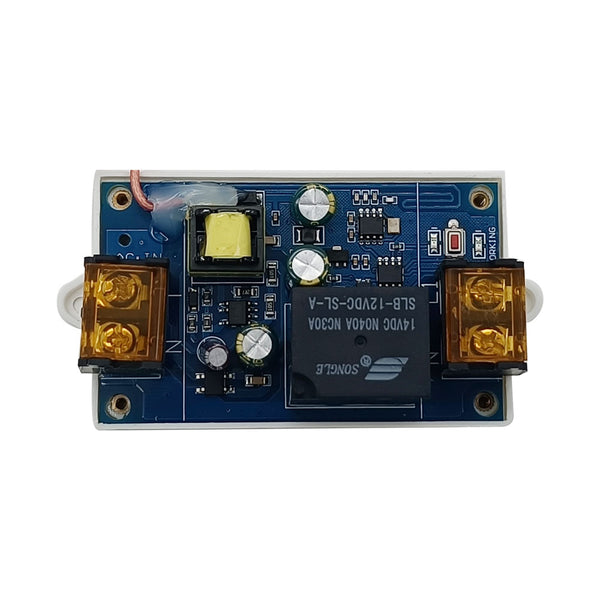

This receiver S1PXA-AC-ANT3 is an electric device with 1 channel AC power output, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
This receiver has a 10-second delay function. When the device is triggered, it will automatically stop working after a 10 second delay.
Key Features:
Wireless control, easy to install.
Universal Power Supply: AC 85V~240V.
AC Power Output: It can control AC equipment with a voltage range of 85~240V AC (Such as AC devices with 110V, 120V, 220V, or 240V).
High Power: It can work at maximum current 15A.
With 10 seconds delay function.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Delay.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
Receiver S1PXA-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 85V~240V AC |
| Output Type | 85~240V AC (110V/120V/220V/240V), same as input voltage |
| Channel | 1 CH |
| Maximum Load Current | 15A |
| Maximum Load Power | 1.5KW at 110V or 3.5KW at 220V |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Delay |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 90 x 47 x 23 mm (3.5 x 1.9 x 0.9 inches) |
| Case size | 96 x 50 x 33 mm (3.8 x 2.0 x 1.3 inches) |
| Matching Transmitters |
C-1 (100M) / CWB-1 (50M, waterproof) / CQ-1 (50M) / CB-1 (1000M) for Self-locking / Momentary / Delay C-2 (100M) / CWB-2 (50M, waterproof) / CQ-2 (50M) / CB-2 (1000M) for Interlocking |
Setting different working modes:
The receiver will be set in Interlocking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Self-locking mode: Press and hold the learning button on the receiver until signal LED flashes 3 times, then release the button.
Operation with CQ-1:
Press once → The output terminals outputs AC power (lamp ON)
Press again → The output terminals stops outputting (lamp OFF)
2) Setting Momentary mode: Press and hold the learning button on the receiver until signal LED flashes 2 times, then release the button.
Operation with CQ-1:
Hold button → The output terminals outputs AC power (lamp ON)
Release → The output terminals stops outputting (lamp OFF)
3) Setting Interlocking mode: Press and hold the learning button on the receiver until signal LED flashes 1 time, then release the button.
Operation with CQ-2:
Press Button ON → The output terminals outputs AC power (lamp ON)
Press Button OFF → The output terminals stops outputting (lamp OFF)
4) Setting 10-seconds Delay mode: Press and hold the learning button on the receiver until signal LED flashes 4 time, then release the button.
Operation with CQ-1:
Press button → The output terminals outputs AC power (lamp ON)
After 10 seconds → The output terminals automatically stops outputting (lamp OFF)
During the 10 seconds, you can also press the learning button for 1-2 seconds to immediately stop outputting AC power and turn off the connected lamp.
Note: If you press the transmitter multiple times during the delay time, the delay time will be counted from the last operation of the transmitter.
