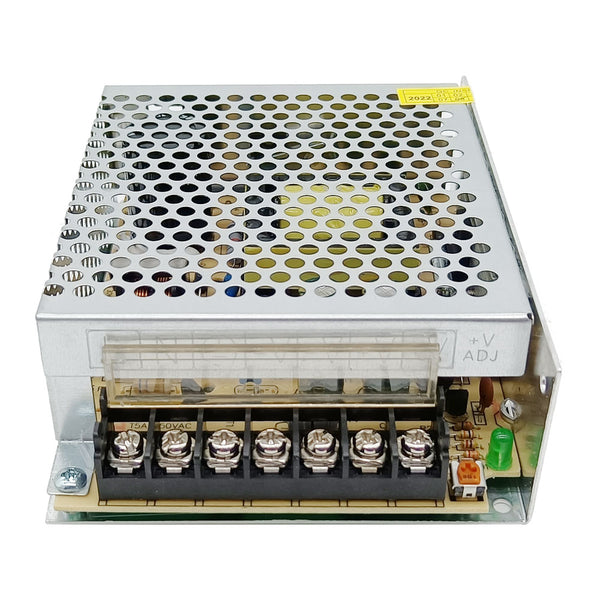

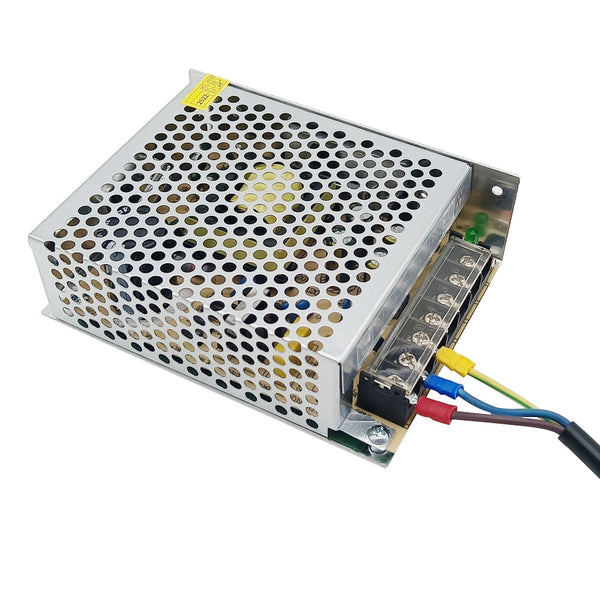

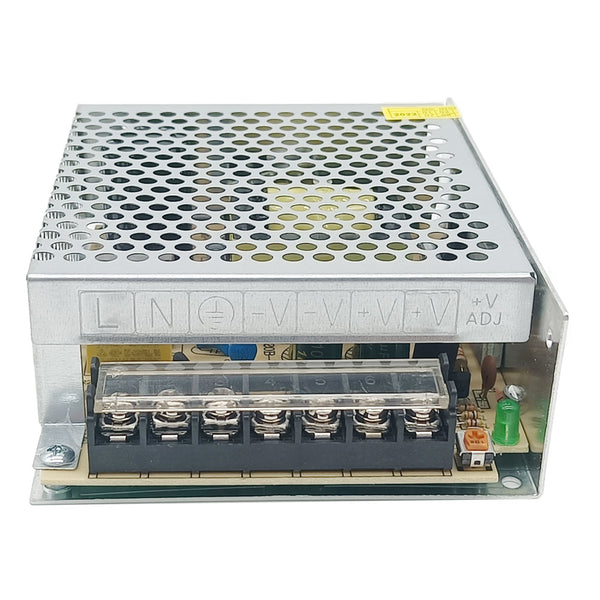

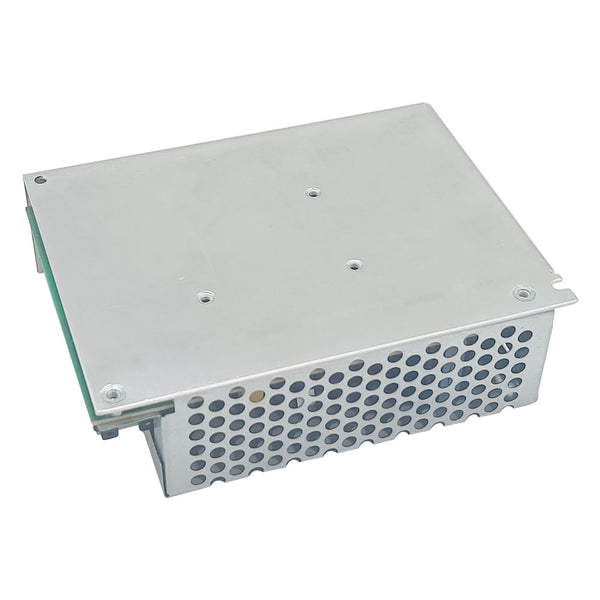

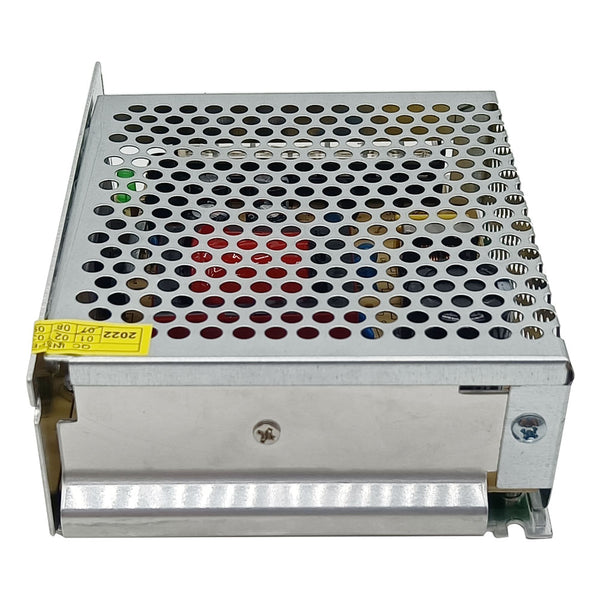

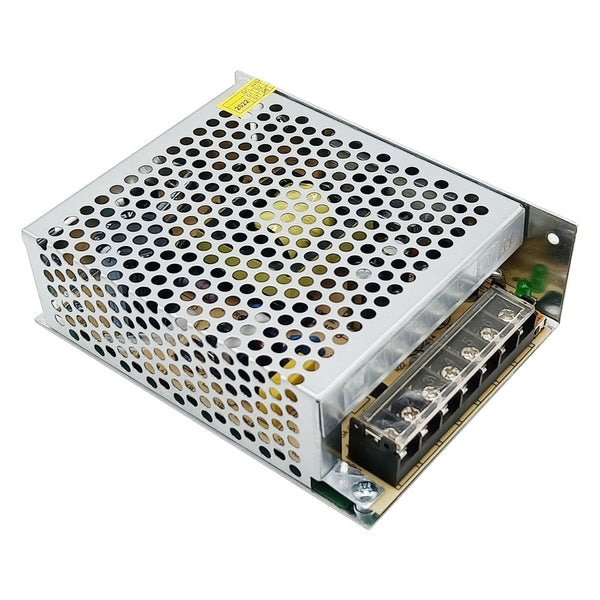

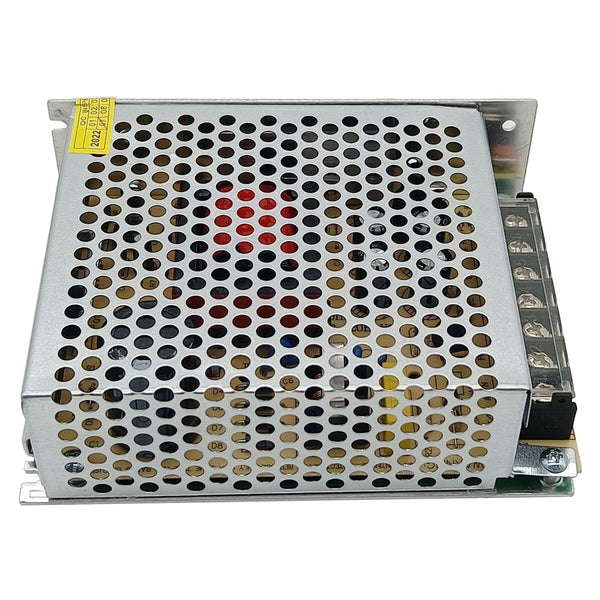

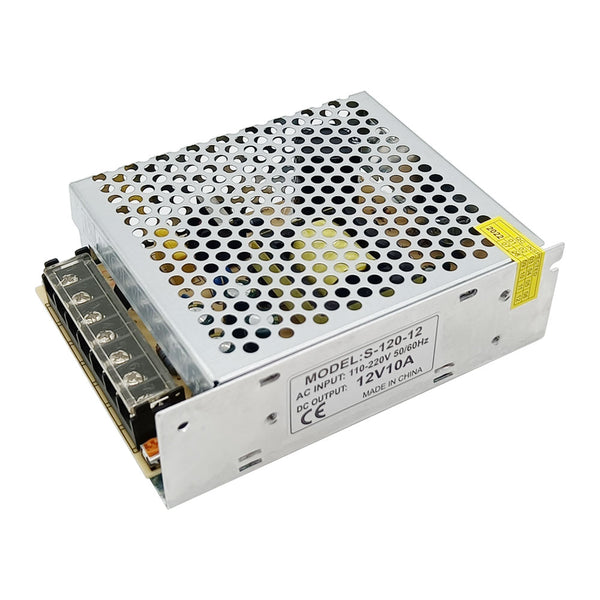

DC 12V 10A 120W Universal Regulated Switching Power Supply For Electric Linear Actuators (Model 0010131)

Regular price $30.00

Shipping calculated at checkout.
Feature:
110~240VAC universal input
Protection types: Short circuit / Overload / Over voltage
Auto-recovery after protection
PWM control and regulation
100% full load burn-in test
Design with Built-in EMI Filter
LED indication for power on
Lower Power consumption, Lower Temperature, High efficiency, High reliability

Specification:

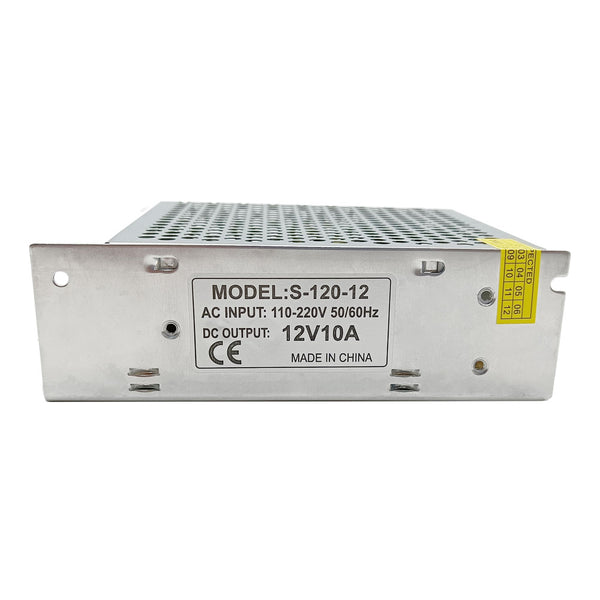

Model: 0010131
Size: 130 x 98 x 40 mm (5.1 x 3.9 x 1.6 inches)
Input: 110~240VAC
Frequency range: 50/60Hz
Output: DC 12V
Voltage adjustment range: ±10%
Rated current: 10A
Rated power: 120W
Overload: 110~150% rated output power
Over voltage: 13.8~16.2V
Working temperature: -10°C ~ +60°C
