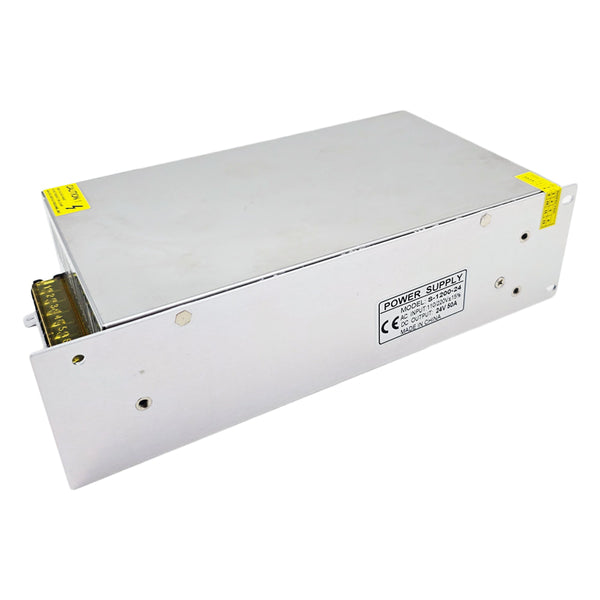

DC 24V 50A 1200W Universal Regulated Switching Power Supply For Electric Linear Actuators (Model 0010148)

Regular price $140.00

Shipping calculated at checkout.

Feature:
Universal AC input, 110V/220V is selectable by switch
Protection types: Short circuit / Overload / Over voltage
Auto-recovery after protection

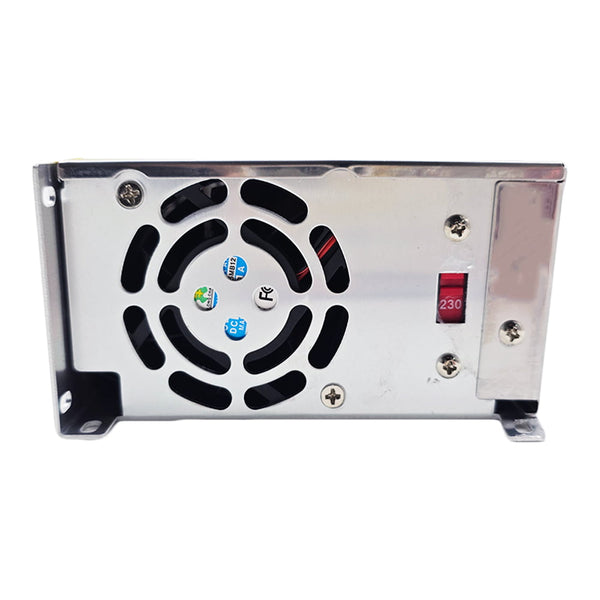

Forced air cooling by built-in DC fan
PWM control and regulation
100% full load burn-in test
Design with Built-in EMI Filter
LED indication for power on
Lower Power consumption, Lower Temperature, High efficiency, High reliability.

Specification:
Model: 0010148
Size: 240 x 125 x 65 mm (9.5 x 4.9 x 2.6 inches)
Input: 100~120VAC or 200~240VAC
Frequency range: 47~63Hz
Output: DC 24V
Voltage adjustment range: ±10%
Rated current: 50A
Rated power: 1200W
Overload: 105~150% rated output power
Over voltage: 27.6~32.4V
Working temperature: -10°C ~ +60°C
