Package Include:
1 x Receiver: S1UC-DC
1 x User manual
Feature:
Wireless control, easy to install.
Super mini size.
5A relay output.
Control lights, motors, electric doors or locks, or other appliances with voltage AC110~240V or DC0~28V.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection.
Reliable control: The receiver can be only triggered by the transmitters which have learned.
One/ several transmitters can control one/ several receivers simultaneously.
Transmitting Frequency: 433MHz

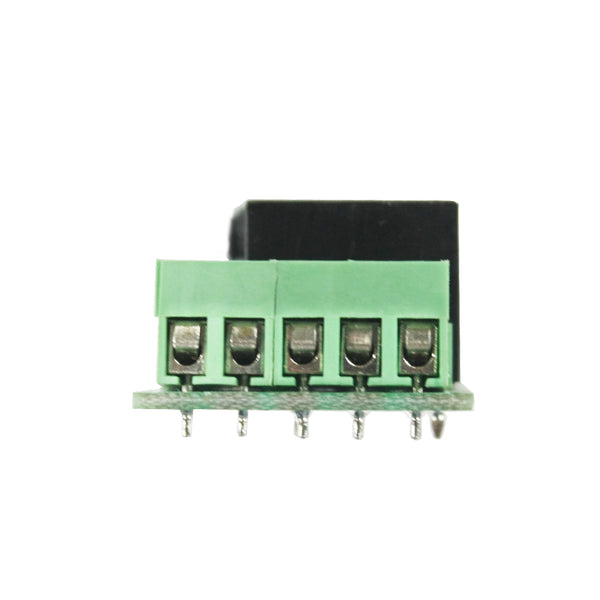

Receiver:
Model No.: S1UC-DC
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Coding Type: Fixed code or Learning code
Coding Setting: By learning
Power Supply (Operating Voltage): DC 4~12V
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
PCB Size: 34mm x 23mm x 17mm
Static Current: ≤7mA
Maximum Working Current of Relay: 5A
Receiver Working Current: 30mA
Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 / C-2 (100M), CWB-1 / CWB-2 (50M, waterproof), CP-1 / CP-2 (500M), or CB-1 / CB-2 (1000M) etc.
When you set the receiver in Self-Locking or Momentary mode, it should work with single button transmitter, such as model C-1 (100M), CWB-1 (50M, waterproof), CP-1 (500M), or CB-1 (1000M) etc. When you set the receiver in Interlocking mode, it should work with two buttons transmitter, such as model C-2 (100M), CWB-2 (50M, waterproof), CP-2 (500M), or CB-2 (1000M) etc.
Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach 100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
Usage (with the transmitter C-2):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.
Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals NO and COM are Normally Open; Terminals NC and COM are Normally Closed.

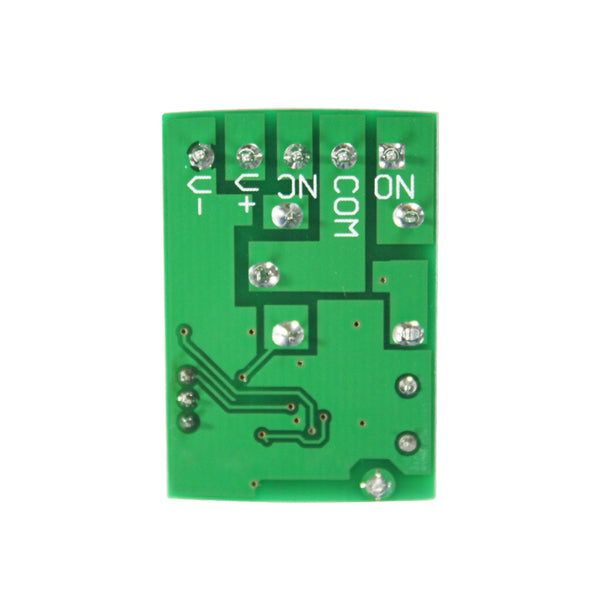

1. Wiring:

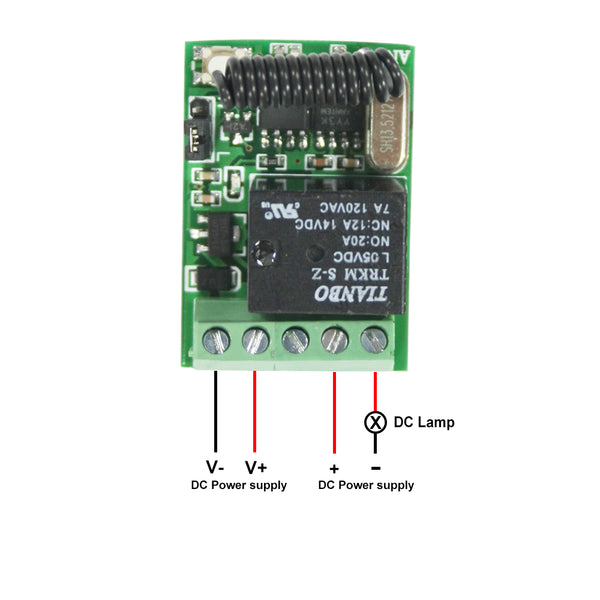

If you want to control a DC 12V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “V+”, and connect the negative pole of DC power supply to terminal “V-”.
2) Connect terminal NO to the positive pole of DC power supply, connect terminal COM to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

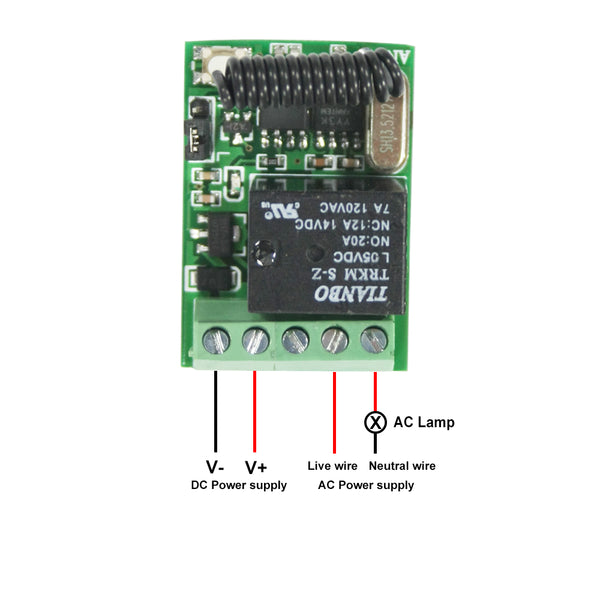

If you want to control an AC 220V lamp, do as following:
1) Connect the positive pole of DC power supply to terminal “V+”, and connect the negative pole of DC power supply to terminal “V-”.
2) Connect terminal NO to the live wire of AC power supply, connect terminal COM to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.

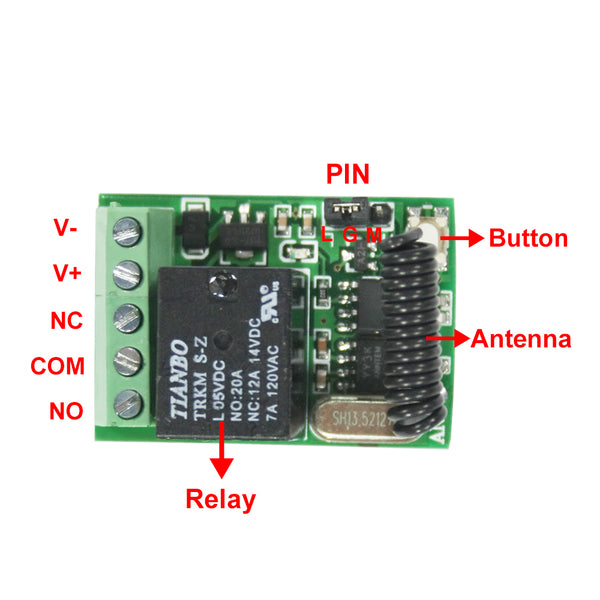

2. Setting different control modes:
We have set the receiver as Interlocking control mode before delivery. If you want to use other control modes, do as following operation:
Setting Interlocking mode: Connect a pins between terminals L and G.
Interlocking mode: Press button 1 -> On; Press button 2 -> Off.
Press button 1: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Press button 2: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
Setting Self-Locking mode: Do not connect the pin.
Self-Locking mode: Press button -> On; Press button again -> Off.
Press button 1: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Press button 1 again: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
Setting Momentary mode: Connect a pins between terminals M and G.
Momentary mode: Press and hold button -> On; Release button -> Off.
Press and hold button 1: The relay is activated (connect terminals NO and COM, disconnect terminals NC and COM), and the connected lamp is turned on.
Release button 1: The relay is deactivated (connect terminals NC and COM, disconnect terminals NO and COM), and the connected lamp is turned off.
