Package Include:
1 x Receiver: S1UC-DC(5~12V)
1 x Transmitter: C-2
1 x User manual
Application:
This is a wireless remote switch kit with 1 channel relay output. It including a S1UC-DC receiver and a C-2 transmitter. It may be used for remote control of various DC or AC equipment on land and in the air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, electric solenoid valves, and security alarm systems. The applications are endless.
This receiver has a 5-second delay function. When the device is triggered, it will automatically stop working after a 5 second delay.
Key Features:
Wireless control, easy to install.
Super mini size.
DC 5~12V operating voltage range.
5A Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment.
With 5 seconds delay function.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Delay
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.

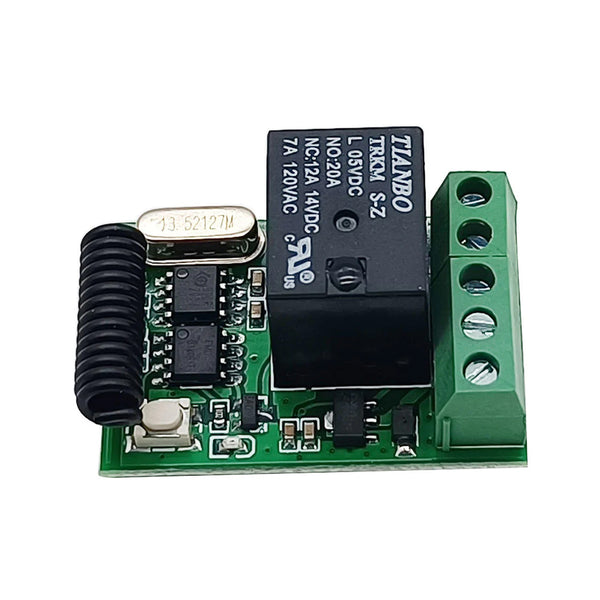

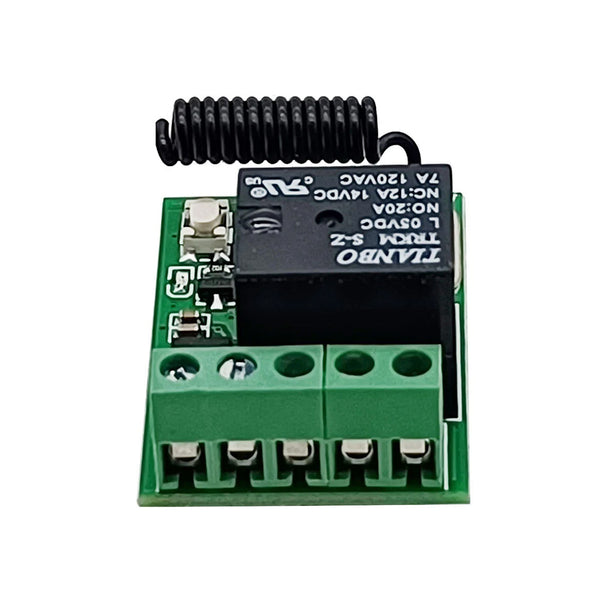

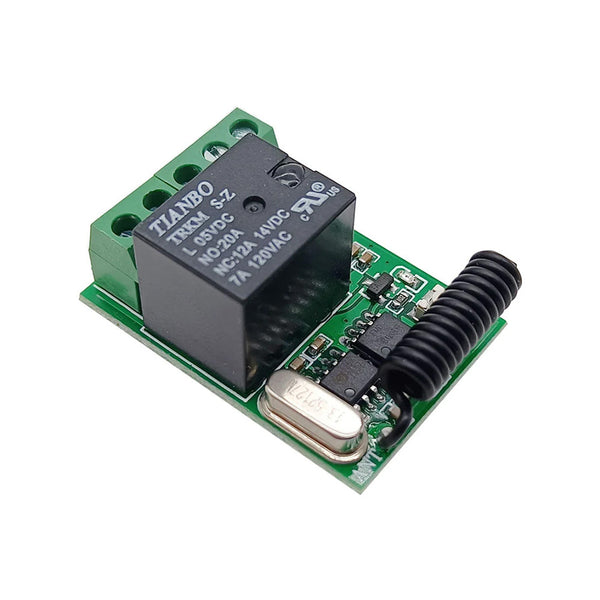

Receiver S1UC-DC Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | DC 5~12V |
| Output Type | Relay Output (With Normally Open and Normally Closed Terminals) |
| Channel | 1 CH |
| Working Frequency | 433.92MHz |
| Load Capacity | 240VAC or 28VDC, Max 5A |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Delay |
| Suitable Wires for Connecting Terminals | 22-16 AWG |
| PCB size | 34 x 23 x 17 mm (1.3 x 0.9 x 0.7 inches) |
| Matching Transmitters |
C-1 (100M) / CWB-1 (50M, waterproof) / CQ-1 (50M) / CB-1 (1000M) for Self-locking / Momentary / Delay C-2 (100M) / CWB-2 (50M, waterproof) / CQ-2 (50M) / CB-2 (1000M) for Interlocking |
Transmitter C-2 (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | A, B |
| Operating Frequency | 433Mhz |
| Encoding Chip | PT2262/ PT2264/ SC2262 |
| Transmitting Distance | 100m / 300ft (theoretically) |
| Unit Size | 58 x 39 x 16 mm |

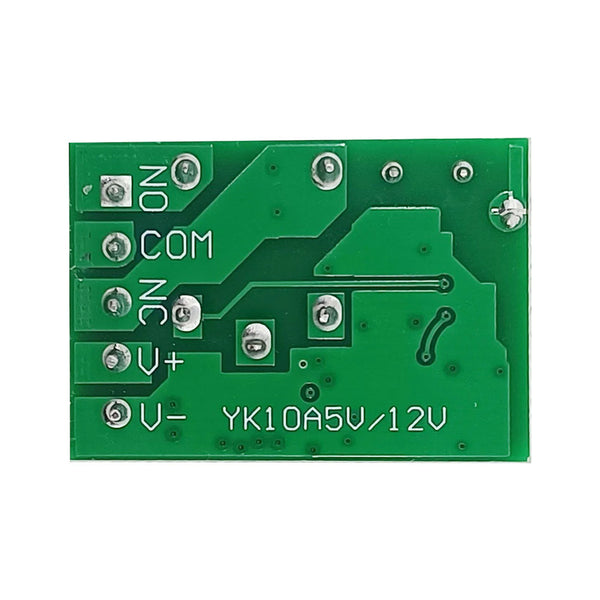

Wiring:

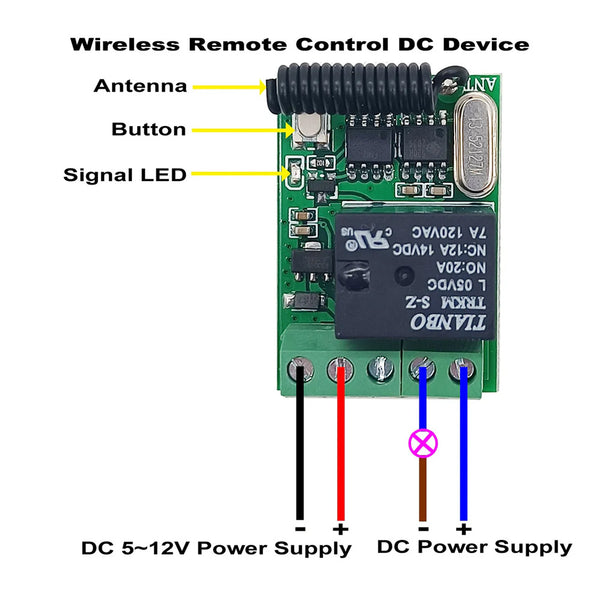

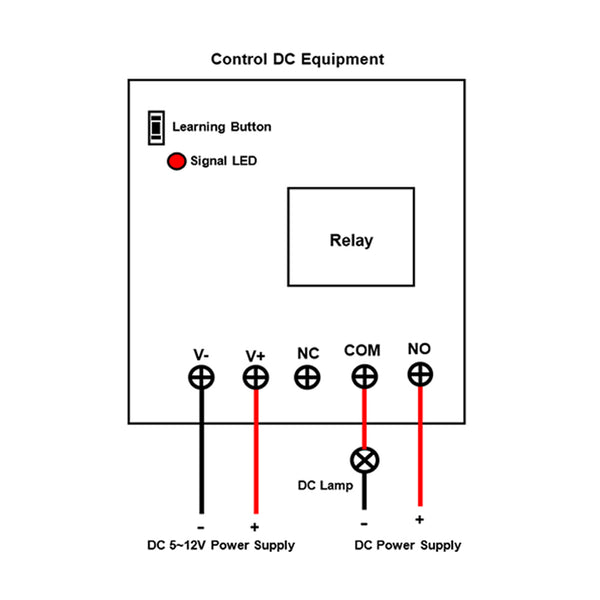

1) If you want to control a DC 12V lamp, do as follows:
1.1 Connect the positive pole of 5~12V DC power supply to terminal <V+>, and connect the negative pole of 5~12V DC power supply to terminal <V->.
1.2 Connect terminal <NO> to the positive pole of 12V DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of 12V DC power supply.

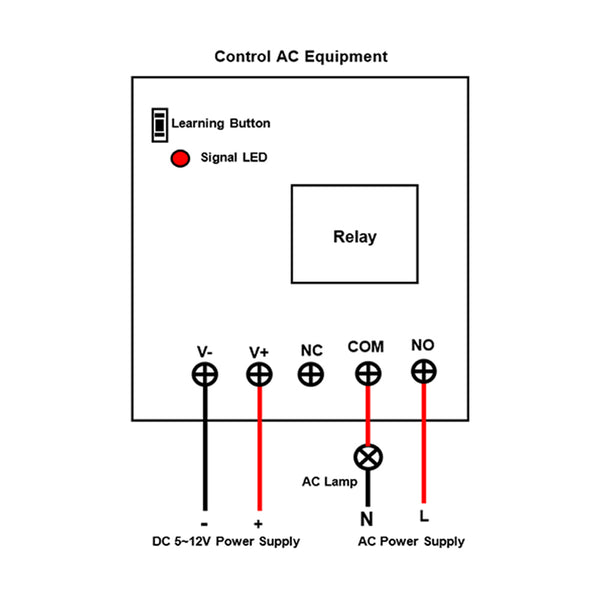

2) If you want to control an AC 120V lamp, do as follows:
2.1 Connect the positive pole of 5~12V DC power supply to terminal <V+>, and connect the negative pole of 5~12V DC power supply to terminal <V->.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different control modes:
The receiver will be set in Interlocking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Interlocking mode: Press and hold the learning button on the receiver until signal LED flashes 1 time, then release the button.
Operation with C-2:
Press Button A → Relay activated (device ON)
Press Button B → Relay deactivated (device OFF)
2) Setting Momentary mode: Press and hold the learning button on the receiver until signal LED flashes 2 times, then release the button.
Operation with C-1:
Hold button → Relay activated (device ON)
Release → Relay deactivated (device OFF)
3) Setting Self-locking mode: Press and hold the learning button on the receiver until signal LED flashes 3 times, then release the button.
Operation with C-1:
Press button → Relay activated (device ON)
Press again → Relay deactivated (device OFF)
4) Setting 5-seconds Delay mode: Press and hold the learning button on the receiver until signal LED flashes 4 time, then release the button.
Operation with C-1:
Press button once → Relay activated (device ON)
After 5 seconds → Relay deactivated automatically (device OFF)
Note: If you press the transmitter multiple times during the delay time, the delay time will be counted from the last operation of the transmitter.
