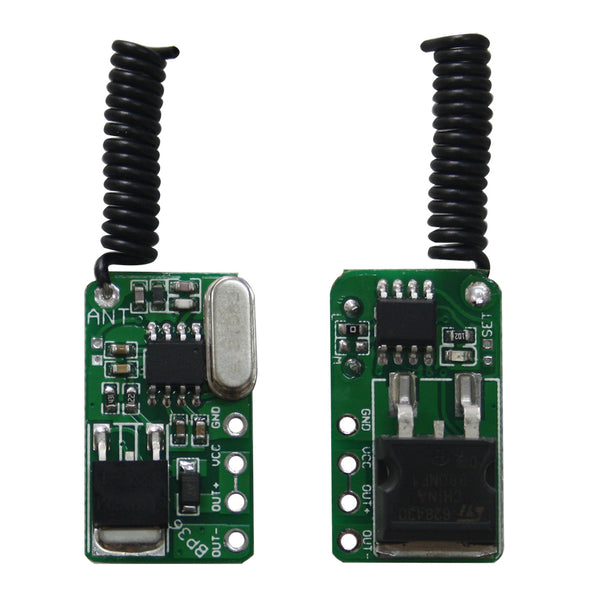

DC 6~36V Power Output 27×16mm Wireless Remote Receiver With 4 Control Modes (Model 0020639)

Regular price $18.00

Shipping calculated at checkout.
Video: Single channel DC 6-36V mini wireless equipment remote control DC lamp

Wireless control, easy to install
Direct power output; control Lights, Motors, Fans, electrically operated Doors/Locks/Windows/Blinds/Cars or Other Appliances.
You can turn on/off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection
Audible / visual indication
Use an 8-bit microcontroller with low-power and high-speed CMOS technology.
Reliable control: The transmitter (Encoding) and the receiver (Decoding) use an 8-bit code.
One/ several transmitters can control one/ several receivers simultaneously.
If you use two or more receivers in the same place, you can set them with different codes.
It is recommended to use the load within 3A or 50W

Model No.: S1X2-DC
Channel: 1 CH
Power Supply (Operating Voltage): DC 6~36V
Output: DC 6~36V
Working Frequency: 433MHz
Control Modes: Momentary, Interlocking, Self-locking, 10 seconds delay
Coding Type: Fixed code or learning code
Coding Setting: By learning
PCB Size: 27mm x 16mm x 7mm
Static Current: ≤6mA
Maximum Working Current: 3A or 50W
Work with Fixed code transmitters or Learning code transmitters.

Matching Transmitters:
The receiver can work with different transmitters, such as model C-1 / C-2 (100M), CWB-1 / CWB-2 (50M, waterproof), CP-1 / CP-2 (500M), or CB-1 / CB-2 (1000M) etc.
When you set the receiver in toggle or momentary mode, it should work with single button transmitter, such as model C-1 (100M), CWB-1 (50M, waterproof), CP-1 (500M), or CB-1 (1000M) etc.
When you set the receiver in latched mode, it should work with two buttons transmitter, such as model C-2 (100M), CWB-2 (50M, waterproof), CP-2 (500M), CV-2 (500M), or CB-2 (1000M) etc.

Working Range:
With a transmitter (such as C-2) to form a complete set, the maximum working distance can reach100M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other
constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

Usage (with the transmitter C-2):
The receiver can be used to control DC 6V~36V equipments.

If you want to control a DC lamp, do as following:

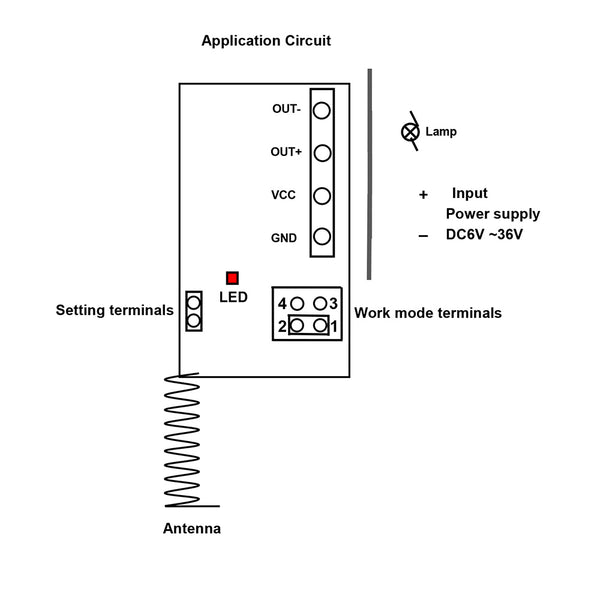

1) Connect the positive pole of DC power supply to terminal “VCC” of INPUT, and connect the negative pole of DC power supply to terminal “GND” of INPUT.
2) Connect the positive pole of lamp to terminal "OUT +" of OUTPUT, and connect the negative pole of lamp to terminal "OUT -" of OUTPUT.

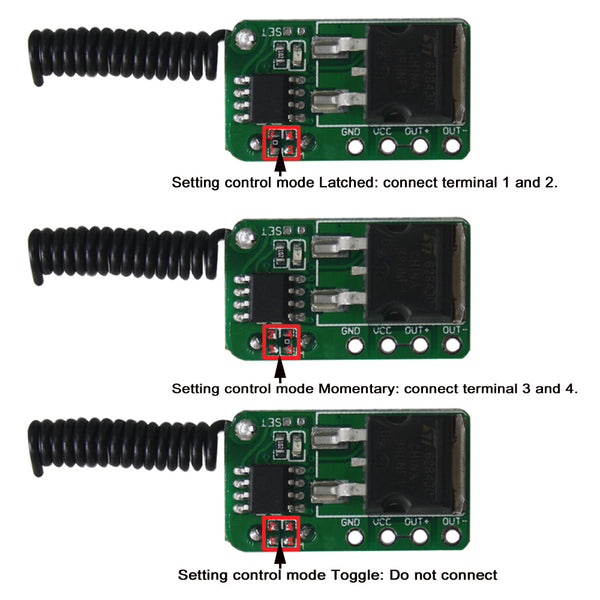

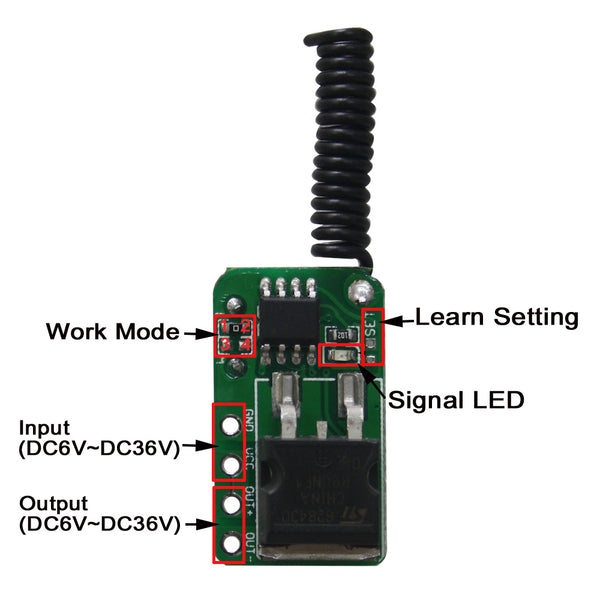

Setting different control modes:
We have set the receiver as Interlocking mode before delivery. If you want to use other modes, do as following.

1) Setting control mode Momentary: connect terminal 3 and 4.
Press and hold button A: output DC power.
Release button A: stop to output.

2) Setting control mode Interlocking: connect terminal 1 and 2.
Press button A: output DC power.
Press button B: stop to output.

3) Setting control mode Self-locking: Do not connect
Press button A: output DC power.
Press button A again: stop to output.

4) Setting control mode of 10 seconds delay: connect terminal 1 and 2, and connect terminal 3 and 4.
Press button A: output DC power.
After 10 seconds delay, stop to output.
