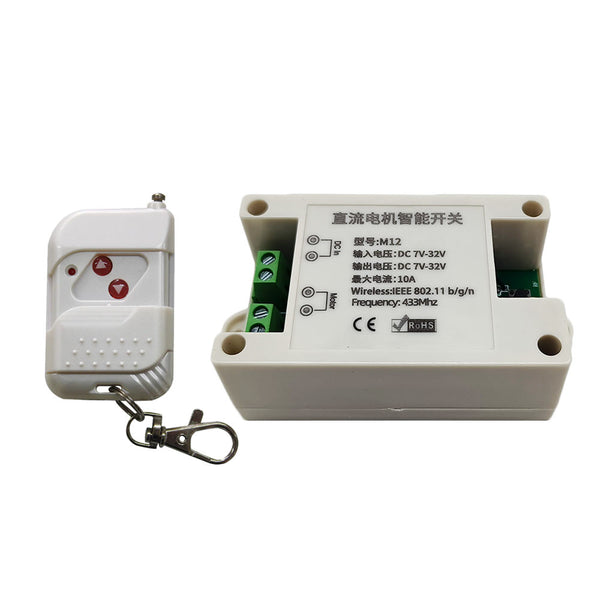

Package Include:
1 x DC Motor WIFI Smart Switch
1 x Transmitter: C-2-2
1 x User manual
Application:
It is suitable for a variety of automation occasions, such as industrial, agricultural, commercial, and home intelligence. Through smartphones and the Internet, we use this WiFi switch to achieve remote control of various devices such as electric curtains, small bi-directional DC motors (two control lines), linear actuators, etc.
Key Features:
Connect to the Internet via the WIFI signal of the wireless router.
Via smartphone app to control, no distance limit.
With two learning buttons.
With remote control function, you can use the remote to achieve control.
It can be operated by mobile phone and the remote at the same time.
It offers APP for Android or iOS, and APP is free to use.
The Android version of the app supports a variety of Android phones or tablets.
The iOS version of the app supports a variety of iPhone, iPad and iPod Touch.
The APP supports English, French, German, Spanish, Russian and other languages.
Timing function: You can set the device to run automatically at different times of the day.
Support for custom scene settings, can get out of the phone to achieve automatic control.
With the sharing function, you can share this device with other mobile phones for common operation.

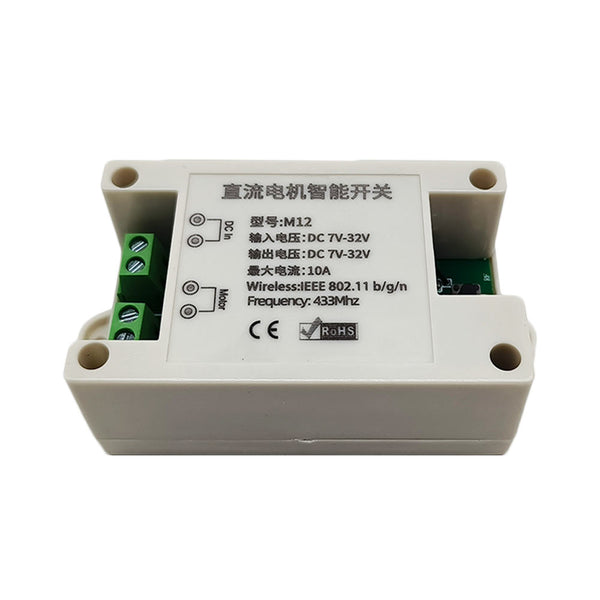

WIFI Switch Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | DC 7~32V |
| Output Voltage | DC 7~32V (The output voltage is the same as the input voltage) |
| Working Frequency | 433.92MHz |
| Wireless Standard | IEEE 802.11 b/g/n |
| Maximum Working Current | 10A |
| 2 Working Mode | Normal Working Mode, Delay Working Mode |
| Suitable Wires for Connecting Terminals | 22-16 AWG |
| Material | flame retardant ABS |
| Case size | 96 x 50 x 31 mm (3.8 x 2.0 x 1.2 inches) |
| Matching Transmitters | Can work with different transmitters, such as model CQ-2-2 (50M), C-2-2 / C-2L-2 (100M), CP-2L / CV-2-2 (500M), or CB-2L (1000M) etc. |

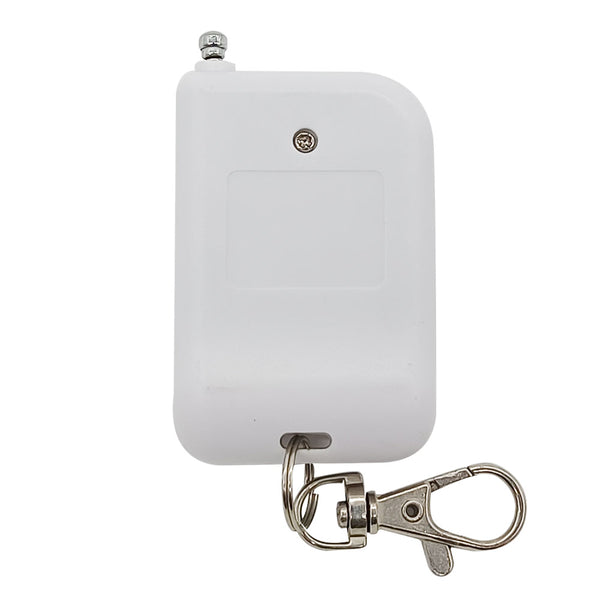

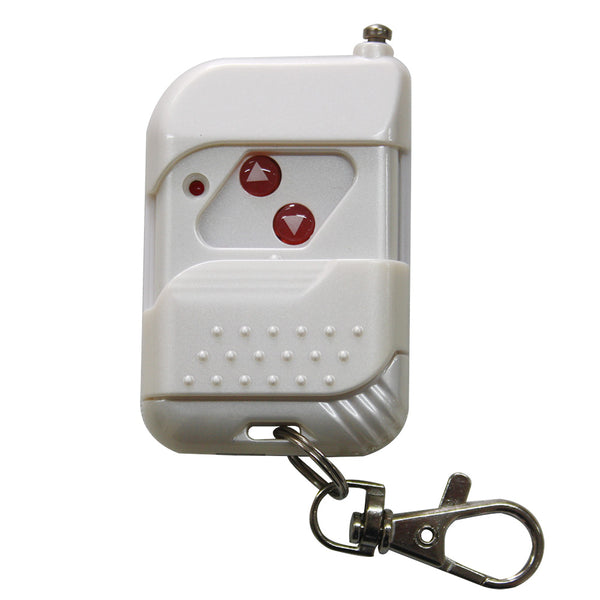

Transmitter C-2-2 (2 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | ▲, ▼ |
| Operating Frequency | 433Mhz |
| Encoding Chip | PT2262/ PT2264/ SC2262 |
| Transmitting Distance | 100m / 300ft (theoretically) |
| Unit Size | 58 x 39 x 16 mm |

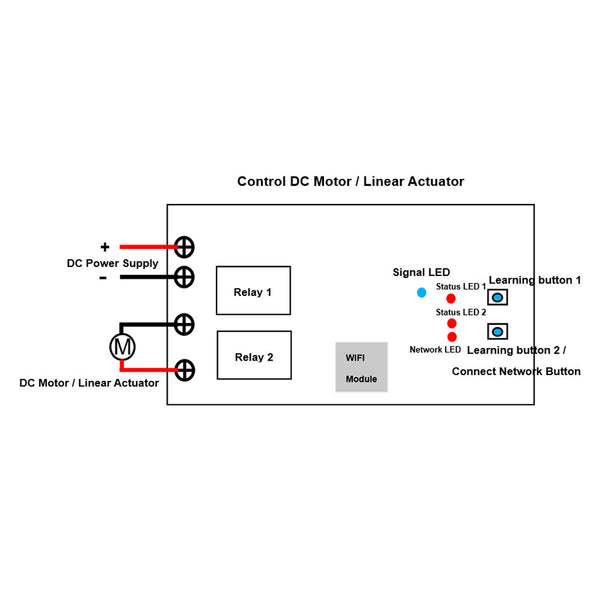

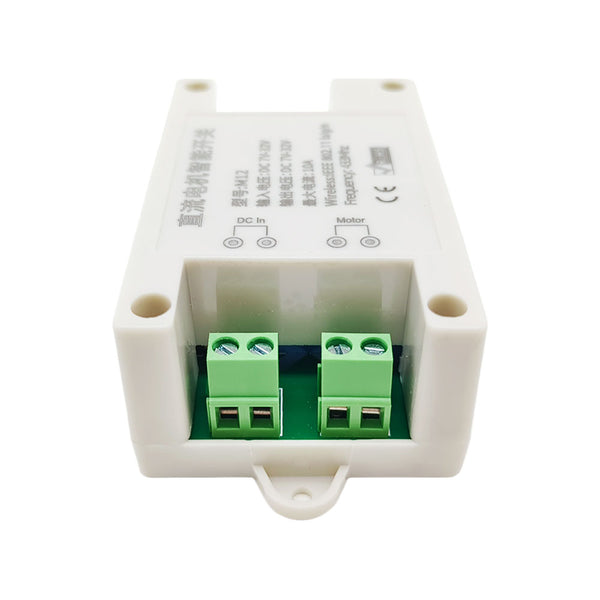

Wiring:
If you want to control a DC 12V / 24V motor or linear actuator, do as following:
1. Connect the positive pole of DC power supply to terminal <+> of the WiFi switch, and connect the negative pole of DC power supply to terminal <-> of the WiFi switch.
2. Connect two wires of motor or linear actuator to terminals <Motor>, and you can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.
Operation in different working modes:
Note: For APP’s installation, registration, and use, please refer to the manual of the APP.
1. Normal working mode:
1) The operation via the APP:
Press the button of Channel 1 on the APP: DC motor rotates in positive direction, or linear actuator extends outward.
Press the button of Channel 1 again: DC motor or linear actuator stops.
Press the button of Channel 2 on the APP: DC motor rotates in reversal direction, or linear actuator inward retracts.
Press the button of Channel 2 again: DC motor or linear actuator stops.
2) The operation via the transmitter C-2-2:
Press the button ▲ on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward.
Press the button ▲ again: DC motor or linear actuator stops.
Press the button ▼ on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts.
Press the button ▼ again: DC motor or linear actuator stops.
2. Delay working mode:
The working time of the channels can be set on the mobile phone APP. When the WIFI switch works to the set time, the WIFI switch stops output, and the DC motor or linear actuator automatically stops.
1) The operation via the APP:
Press the button of Channel 1 on the APP: DC motor rotates in positive direction, or linear actuator extends outward; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button Channel 1 to stop DC motor or linear actuator.
Press the button of Channel 2 on the APP: DC motor rotates in reversal direction, or linear actuator inward retracts; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button Channel 2 to stop DC motor or linear actuator.
2) The operation via the transmitter:
Press the button ▲ on the transmitter: DC motor rotates in positive direction, or linear actuator extends outward; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button ▲ to stop DC motor or linear actuator.
Press the button ▼ on the transmitter: DC motor rotates in reversal direction, or linear actuator inward retracts; After the set delay time, the WIFI switch stops outputting, DC motor or linear actuator automatically stops. During the operation within the set time, you can also press the button ▼ to stop DC motor or linear actuator.
How to pair the transmitter to the WIFI switch:
Notice: We have paired the transmitter to the WIFI switch before leaving the factory.
1) Press the learning button 1 in the WIFI switch for 3- 4 seconds; The blue signal LED on the WIFI switch turns on, this indicates that the Channel 1 of the WIFI switch enters the learning status. Press button ▲ on transmitter, if the signal LED goes out, this indicates that the the button ▲ is successfully paired with channel 1.
2) Press the learning button 2 in the WIFI switch for 3- 4 seconds; The blue signal LED on the WIFI switch turns on, this indicates that the Channel 2 of the WIFI switch enters the learning status. Press button ▼ on transmitter, if the signal LED goes out, this indicates that the the button ▼ is successfully paired with channel 2.
3) The WIFI switch can learn several transmitters with different codes.
How to delete all transmitters codes stored in the WIFI switch:
We have paired the transmitter to the WIFI switch, if you don’t want the WIFI switch to work with the transmitter, you can delete all transmitters codes stored in the WIFI switch.
Operation:
1) Press and hold the learning button 1 in the WIFI switch for 12-13 seconds then release the button, the blue signal LED lights up, then flashes rapidly and then goes off, this indicates that the code for button ▲ has been deleted successfully.
2) Press and hold the learning button 2 in the WIFI switch for 12-13 seconds then release the button, the blue signal LED lights up, then flashes rapidly and then goes off, this indicates that the code for button ▼ has been deleted successfully.
