Package Include:
12 X Receivers: S1PU-DC-ANT3
1 X Transmitter: CV-12/CB-12
1 X Use manual
Introduction:
This is a wireless remote switch kit with 1 channel relay output. It including twelve S1PU-DC-ANT3 receivers and a CV-12 / CB-12 transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC or AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Waterproof Design: Receiver has waterproof case and waterproof connector for outdoor use.
DC 10~80V operating voltage range.
Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment.
High Power: Each channel can work at maximum current 30A.
3 Selectable Working Modes: Self-locking, Momentary, Interlocking.
With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
You can use one transmitter to control multiple receivers, and each transmitter button controlling one receiver. For example, you can use a 1 button transmitter to control 1 receiver, or use a 2 buttons transmitter to control 2 receivers, or use a 4 buttons transmitter to control 4 receivers, or use a 6 buttons transmitter to control 6 receivers, or use an 8 buttons transmitter to control 8 receivers, or use a 12 buttons transmitter to control 12 receivers, etc.

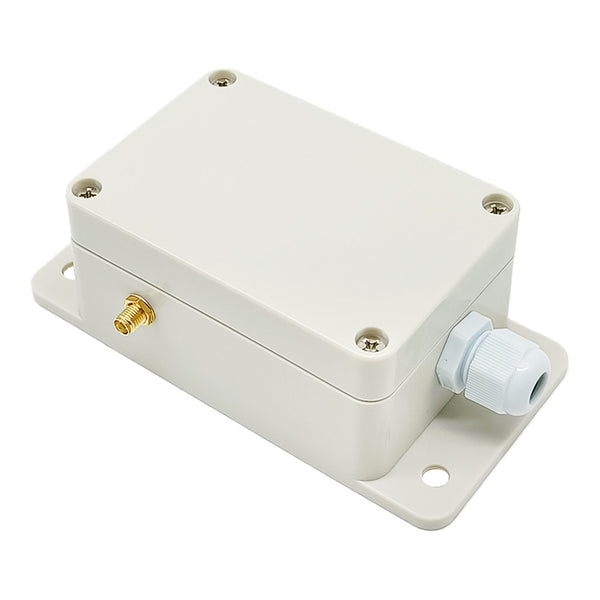

Receiver S1PU-DC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | 10~80V DC |
| Output Type | Relay Output (With NO and NC Terminals) |
| Channel | 1 CH |
| Working Frequency | 433.92MHz |
| Load Capacity | 240VAC or 28VDC, Max 30A/channel |
| 3 Selectable Working Modes | Self-locking, Momentary, Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |
| PCB size | 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches) |
| Case size | 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches) |
| Matching Transmitters | Can work with different transmitters, such as model CV-12 (500M) and CB-12 (1000M) etc. |
Transmitter CV-12 (12 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Operating Frequency | 433.92Mhz |
| Encoding Chip | PT2262 / PT2264 / SC2262 |
| Transmitting Distance | 500m / 1500ft (theoretically) |
| Unit Size | 110 x 50 x 18 mm (4.3 x 2.0 x 0.7 inches) |
Wiring:
1) If you want to control a DC 12V lamp, do as following:
1.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
1.2 Connect terminal <B> to the positive pole of DC power supply, connect terminal <C> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

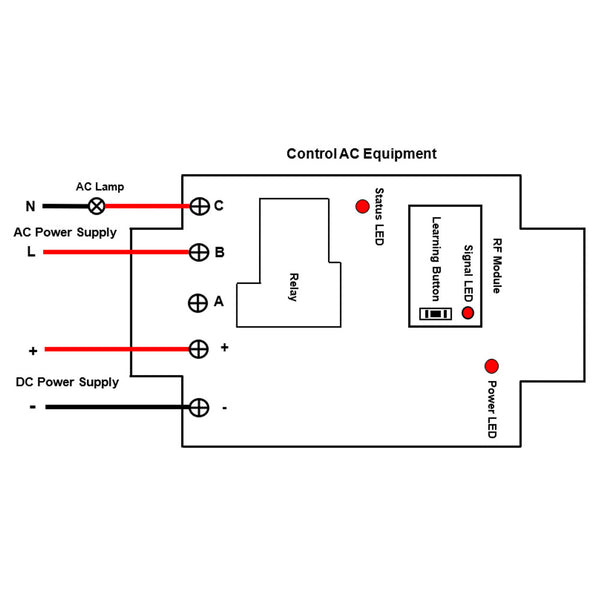

2) If you want to control an AC 120V lamp, do as following:
2.1 Connect the positive pole of DC power supply to terminal <+>, and connect the negative pole of DC power supply to terminal <->.
2.2 Connect terminal <B> to the live wire of AC power supply, connect terminal <C> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.
1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
Operation with CV-12:
Hold button 1 → Relay in Receiver 1 activated (device 1 ON)
Release button 1 → Relay in Receiver 1 deactivated (device 1 OFF)
……
Hold button 12 → Relay in Receiver 12 activated (device 12 ON)
Release button 12 → Relay in Receiver 12 deactivated (device 12 OFF)
2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
Operation with CV-12:
Press button 1 → Relay in Receiver 1 activated (device 1 ON)
Press button 1 again → Relay in Receiver 1 deactivated (device 1 OFF)
……
Press button 12 → Relay in Receiver 12 activated (device 12 ON)
Press button 12 again → Relay in Receiver 12 deactivated (device 12 OFF)
3) Setting Interlocking mode: Press the learning button in the receiver 4 times, signal LED continuously flashes 4 times and then goes off.
Operation with CV-12:
Press button 1 → Relay in Receiver 1 activated (device 1 ON); Relay in other 11 Receivers deactivated (other 11 devices OFF)
……
Press button 12 → Relay in Receiver 12 activated (device 12 ON); Relay in other 11 Receivers deactivated (other 11 devices OFF)
