DC motor speed controlller
Feature:
Model: 0044001
Voltage: DC6V~30V
Rated current: 6A
The maximum operating current: 8A
Unit Size: 80mm x 43mm x 26mm
Speed Adjustment Range: 0%~100%.

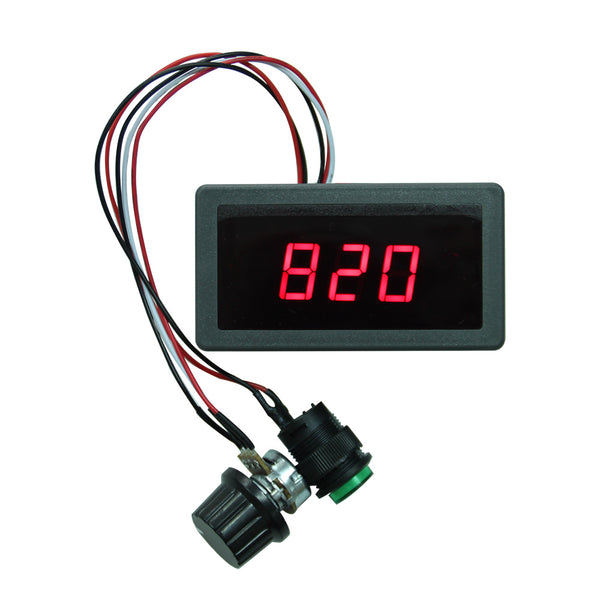

The speed of motor rotation can be adjusted according to 0~100% through twisting the “Adjustable potentiometer”, and the screen will display digital 0~100. That means when the screen display digital “0”, the motor stop rotating; when the screen display digital “1 ~100”, the motor rotating. The higher the number, the faster rotation. When the screen display digital “100”, that means the speed of motor rotation is fastest.
Usage:

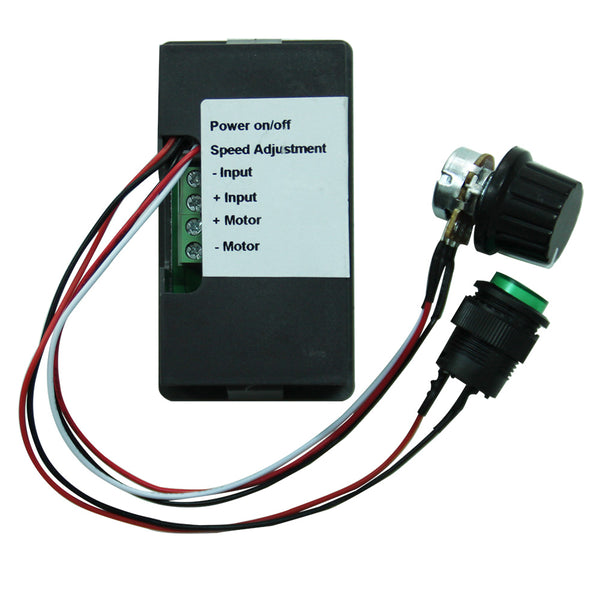

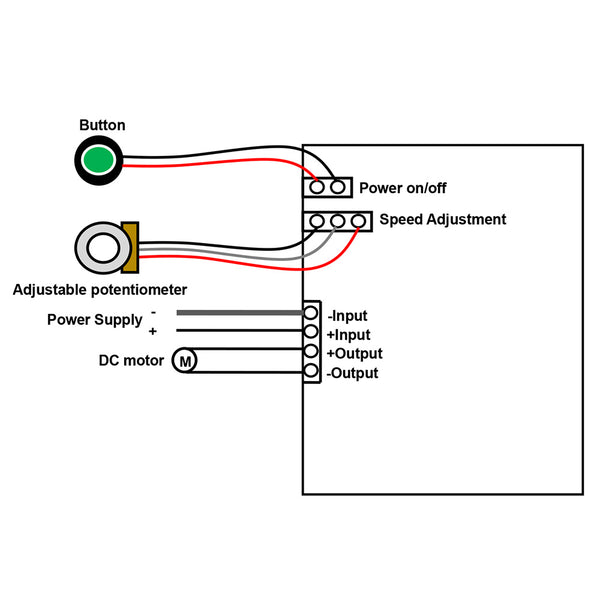

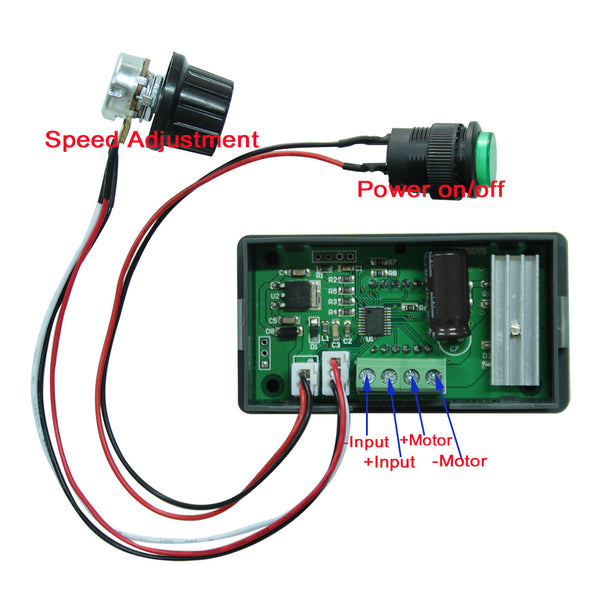

Connect power wire to the terminal “Input”. Connect the DC motor to the terminal “Output”.
Press the button: motor rotating
Twist the “Adjustable potentiometer” to adjust the speed of motor rotation. Twist clockwise, motor rotation will speed up; Twist anti-clockwise, motor rotation will slow down.
Press the button again: motor stop rotating.
