Package Include:
1 x Receiver: S1PU-AC-ANT3
1 x Transmitter: CK-DR
1 x User manual
Application:
This wireless remote control kit (Model 00230011) consists of a transmitter (CK-DR) and a receiver (S1PU-AC). It is used to wirelessly control another AC or DC device via a dry contact output signal from one device. And it can be used for synchronous wireless control of various home, industrial or agricultural equipments, such as wireless control of the warning host and the warning horn, wireless control of the lights, wireless synchronization control of the equipments and so on.
Key Features:
Wireless control, easy to install.
Working Range: Up to 500m (15,00 ft) in open areas.

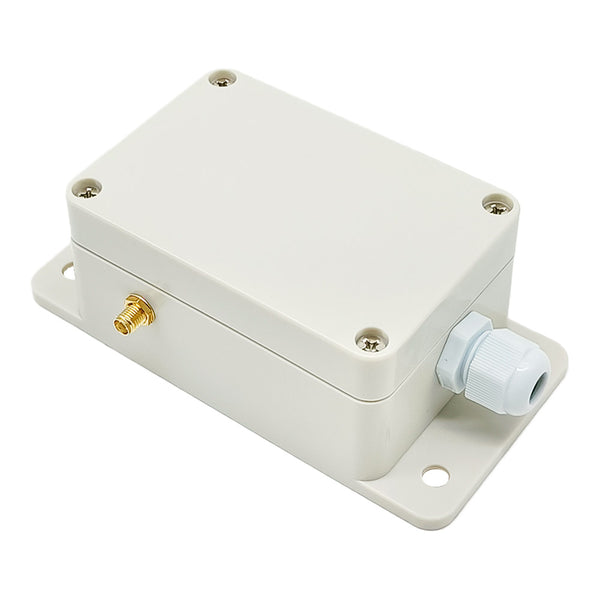

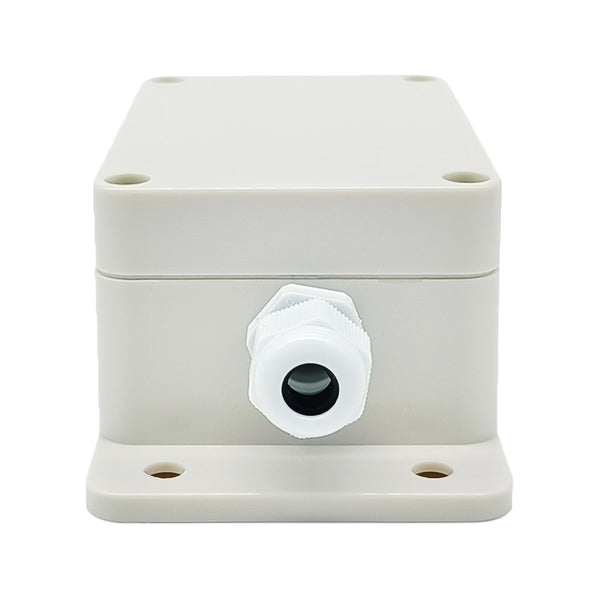

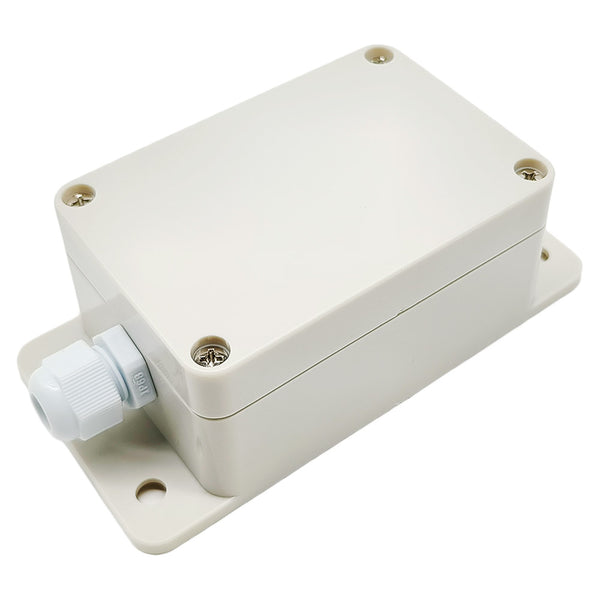

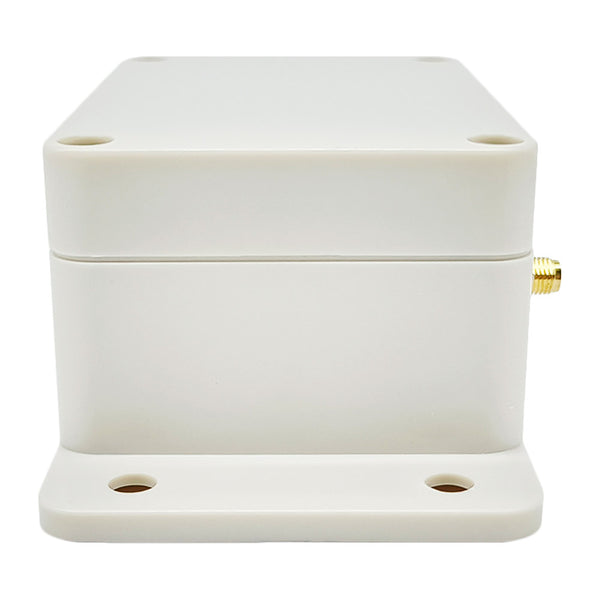

Waterproof: The receiver has waterproof case and waterproof connector, it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.

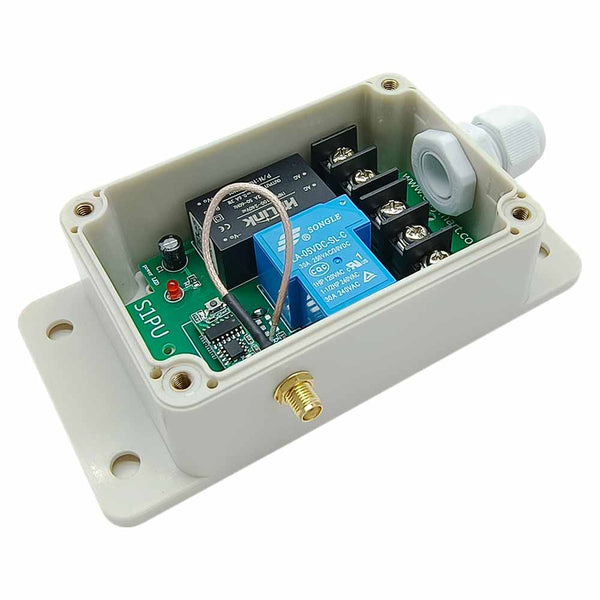

Relay Output: This receiver is dry relay output; it can be used to operate both DC and AC equipment. The output terminals are NO / NC (normally open / normally closed), serving as a switch. That means you should also connect a separate power supply to equipment.
High Power: Each channel can work at maximum current 30A.
Working Mode: Interlocking

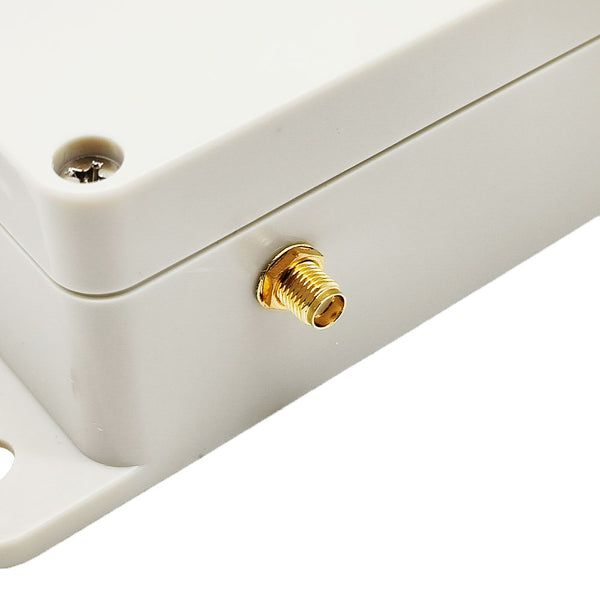

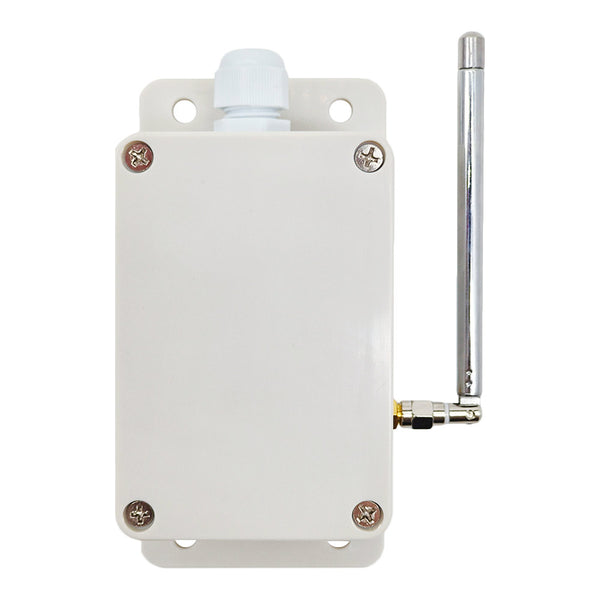

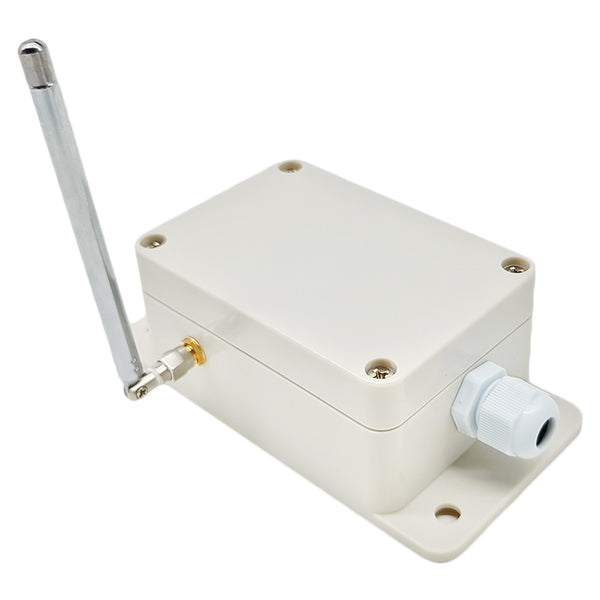

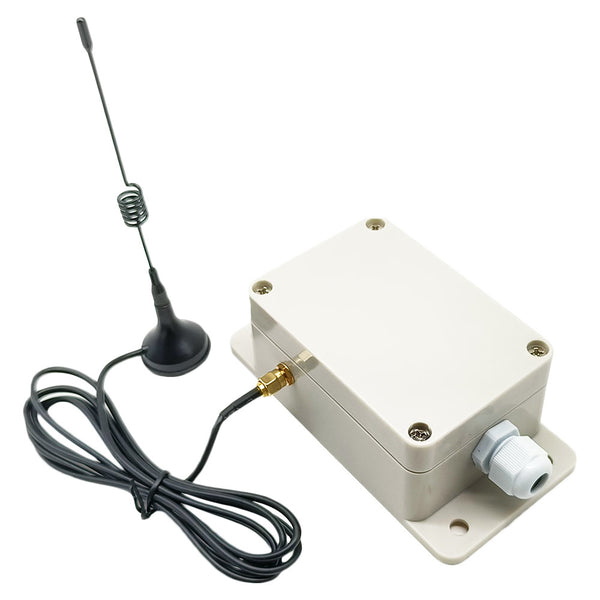

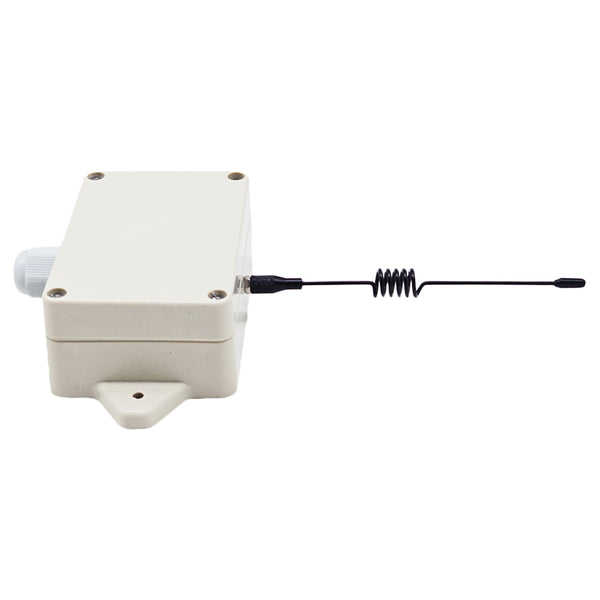

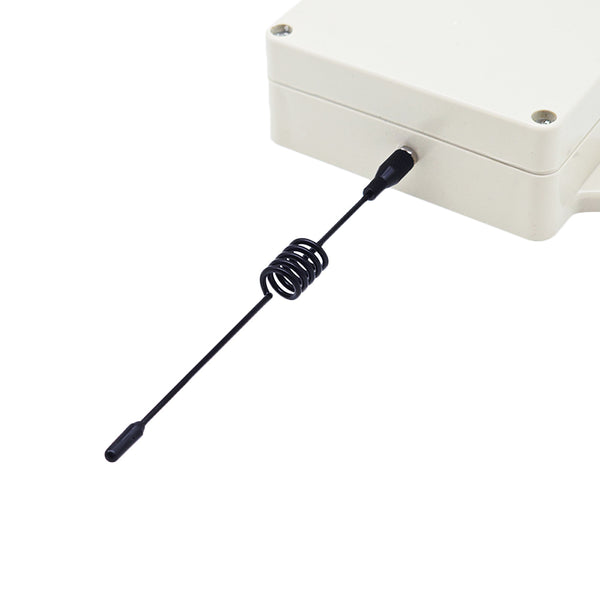

With external antenna, the receiver has a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.

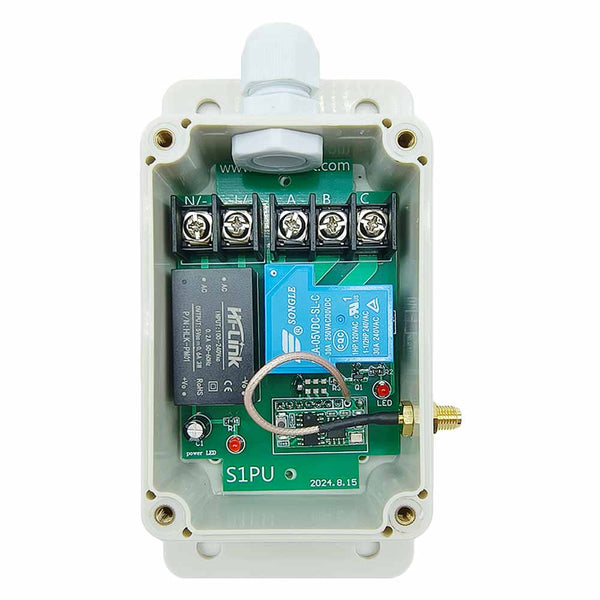

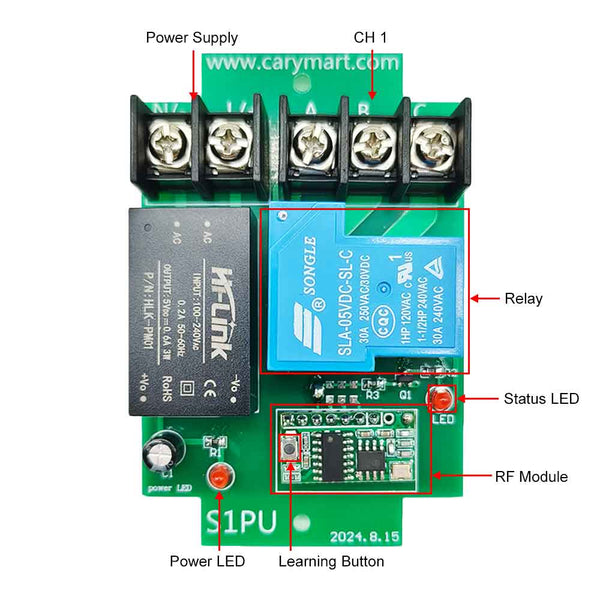

Receiver S1PU-AC-ANT3 Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage Options | 110~240V AC (110V/120V/220V/240V) |
| Working Frequency | 433.92MHz |
| Output Type | Relay Output (With Normally Open and Normally Closed Terminals) |
| Channel | 1 CH |
| Load Capacity | 240VAC or 28VDC, Max 30A/channel |
| Working Mode | Interlocking |
| Suitable Wires for Connecting Terminals | 22-12 AWG |
| Operating Temperature | -20 °C ~ +70 °C |

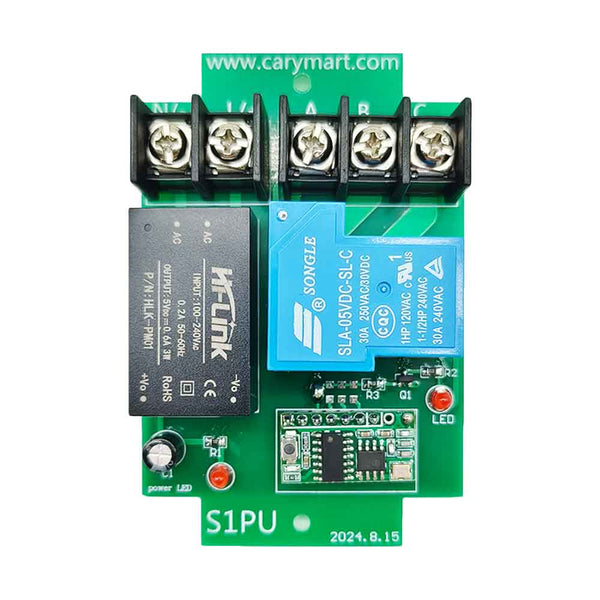

| PCB size | 90 x 59 x 18 mm (3.5 x 2.3 x 0.7 inches) |

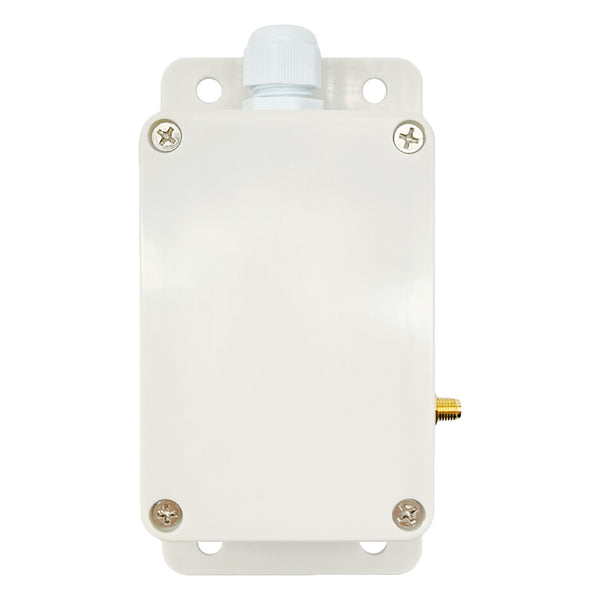

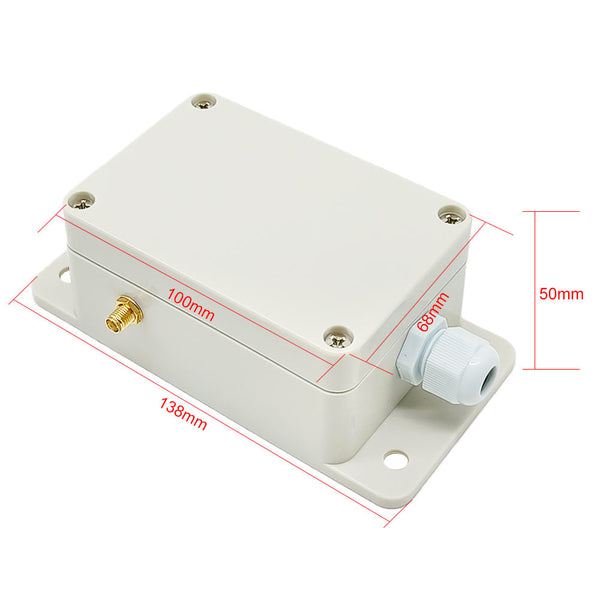

| Case size | 138 x 68 x 50 mm (5.4 x 2.7 x 2.0 inches) |

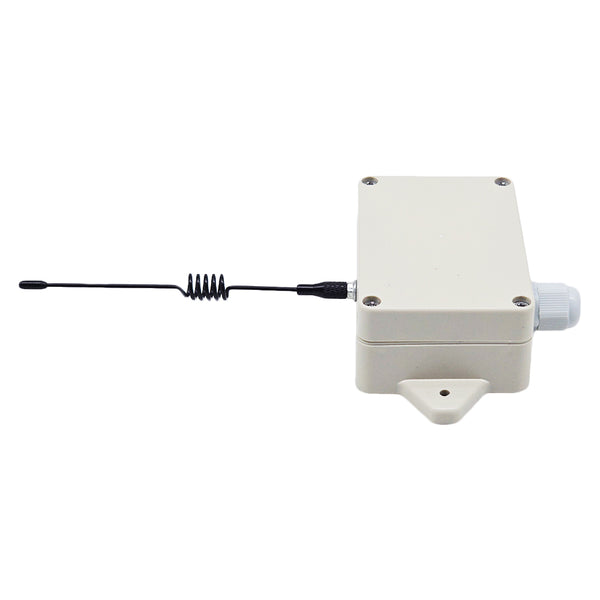

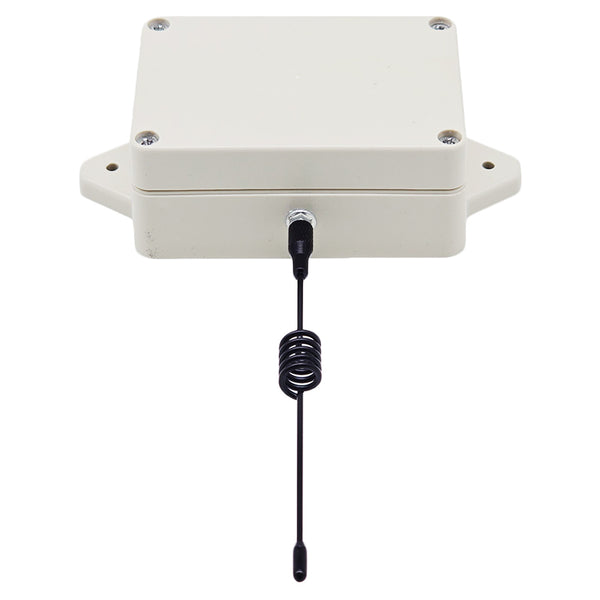

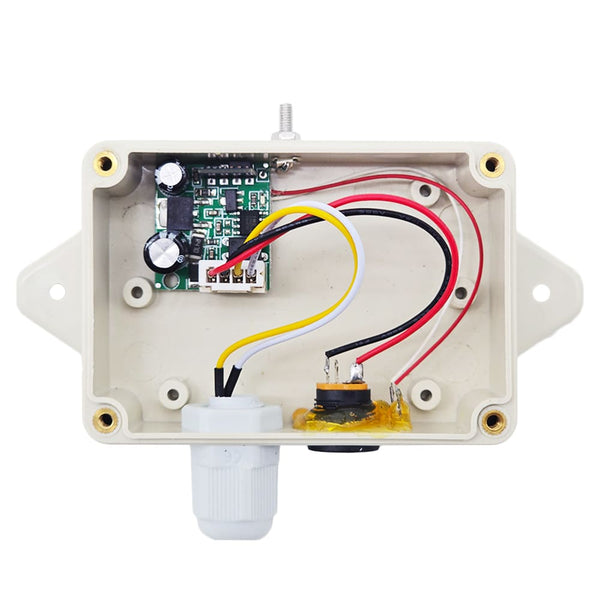

Transmitter CK-DR Parameters:
| Parameters | Detail |
|---|---|

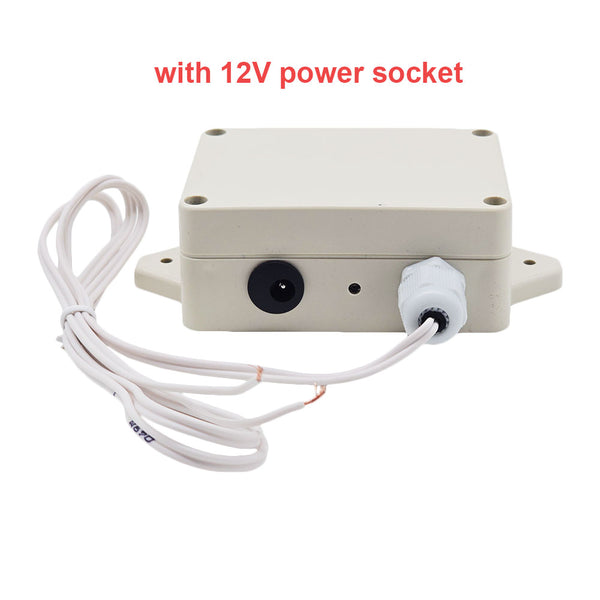

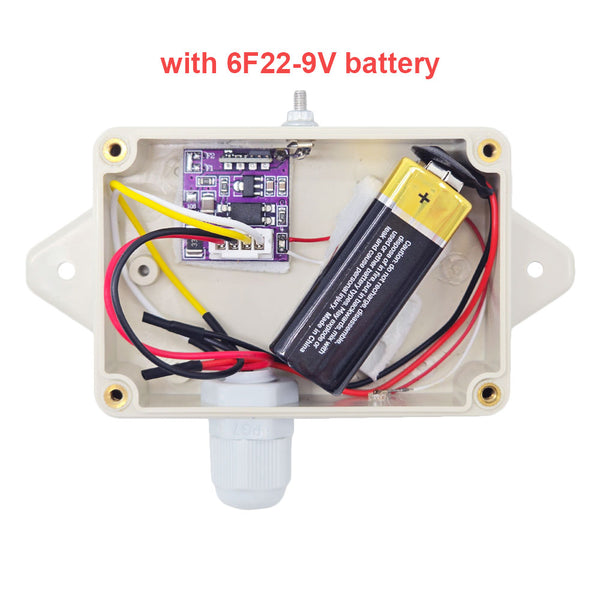

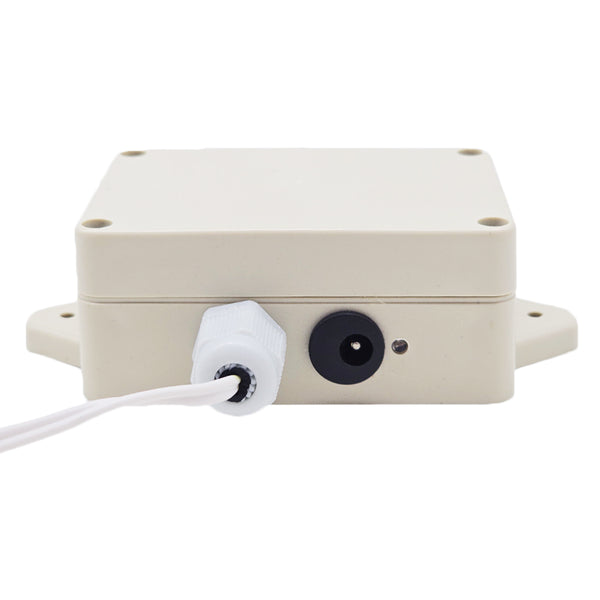

| Operating Voltage | DC 9-12V (Built-in 6F22-9V battery or 12V power socket optional) |
| Triggering Method | When two trigger wires are connected, the transmitter sends a wireless signal "ON". When two trigger wires are disconnected, the transmitter sends a wireless signal "OFF". |
| Operating Frequency | 433.92MHz (315MHz can be customized) |
| Transmission Distance | 500m / 1500ft (theoretically) |
| Case size | 83 x 58 x 34 mm (3.3 x 2.3 x 1.3 inches) |
Working Principle:

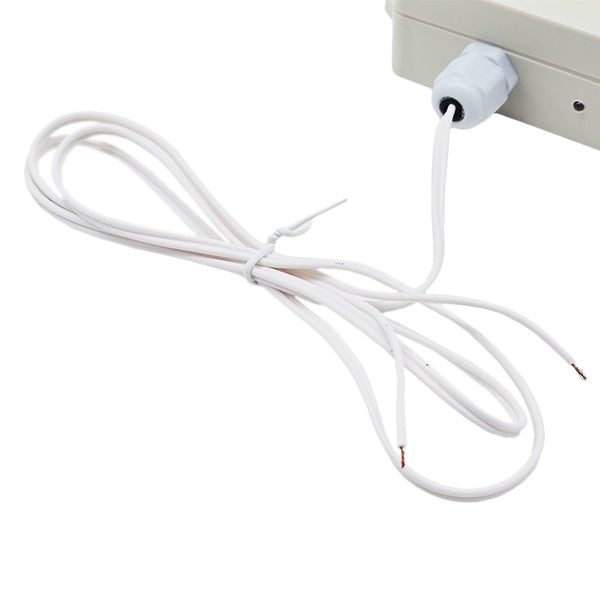

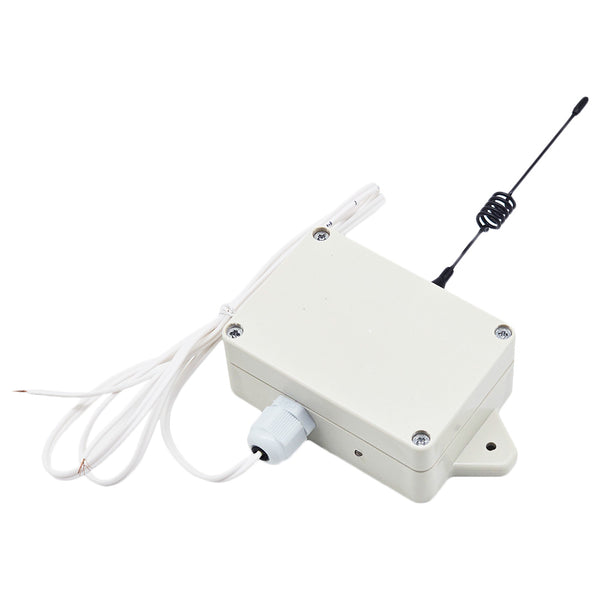

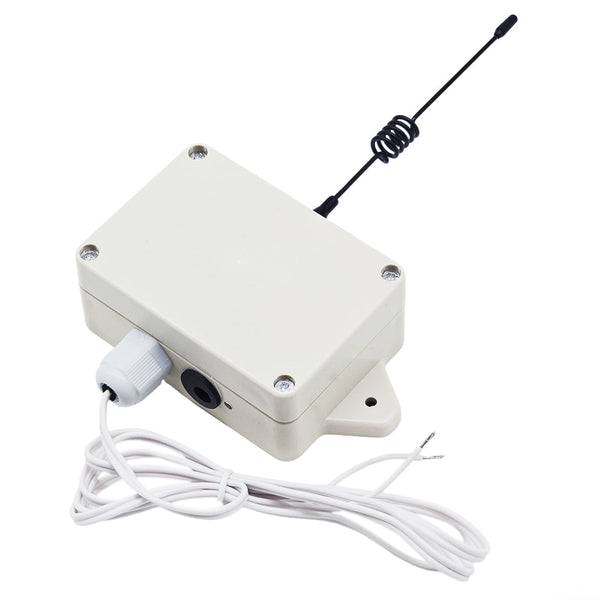

Transmitter CK-DR is a special remote control that is triggered by a dry contact signal. It has two trigger lines for connecting a dry contact output signal from an equipment, such as warning host, detector, sensor, limit switch, Programmable Logic Controllers and so on.
When two trigger lines are connected, it will transmit a wireless signal "ON". When two trigger lines are disconnected, it will transmit a wireless signal "OFF".
This transmitter can be combined with different types of receivers to form a wireless control system, and this system is used to wirelessly control another device via a dry contact output signal from one device.
Usage and operation:
If you want to control the second device by the first device with the dry contact, do as following:

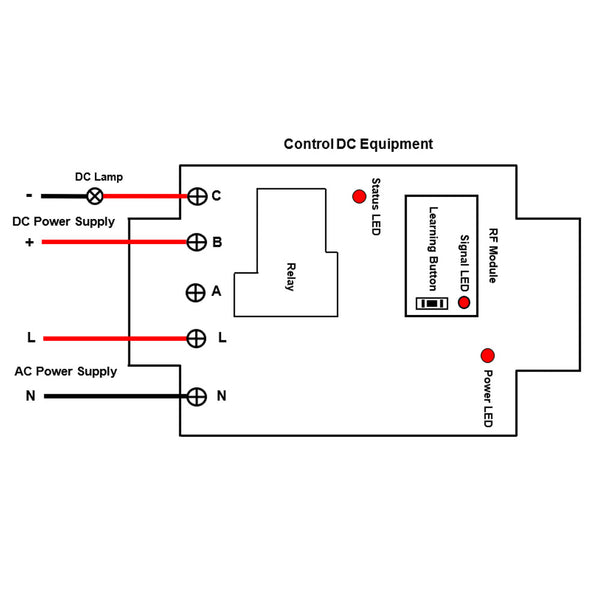

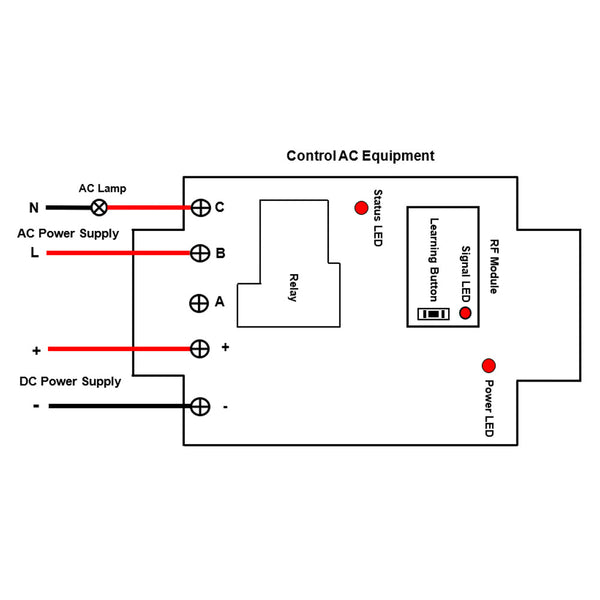

1. Connect the second device to the receiver's output terminal.
2. Connect the dry contact of the first device to the transmitter’s two trigger wires.
3. When the first device is activated, and the dry contact is connected, the transmitter will emit a wireless signal "ON". When the receiver receives this wireless signal, it will activate its relay to turn on the second device.
4. When the first device is disactivated, and the dry contact is disconnected, the transmitter will emit a wireless signal "OFF". When the receiver receives this wireless signal, it will deactivate its relay to turn off the second device.
