Package Include:
1 x Foot Switch
1 x User Manual
Introduction:

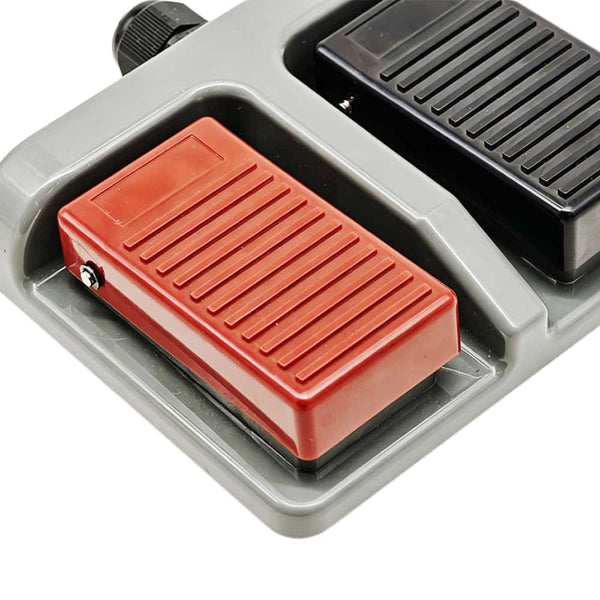

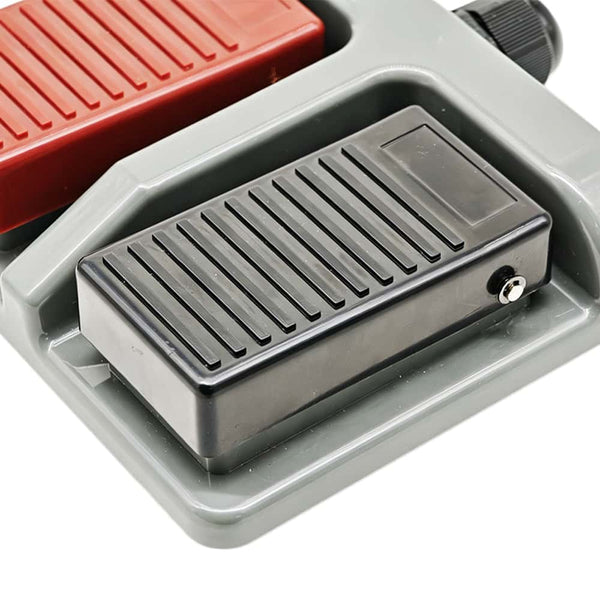

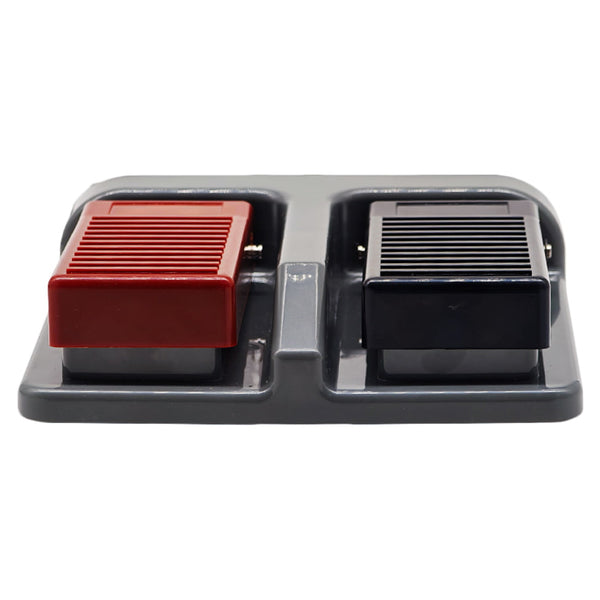

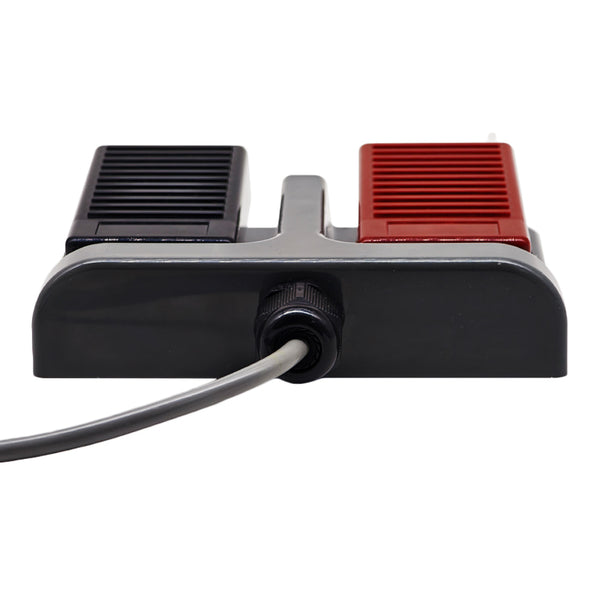

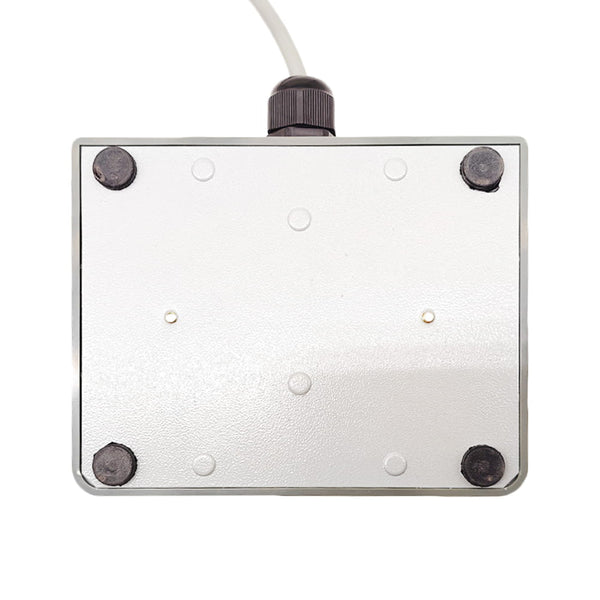

This foot switch features red and black buttons, corresponding to the “Forward” and “Reverse” functions respectively. If you connect a DC motor to this foot switch, you can operate the motor to rotate in positive or reversal direction by the foot pedal. If you connect a DC linear actuator to this foot switch, you can operate the linear actuator to extend or retract by the foot pedal.
Product Description:
| Parameters | Detail |
|---|---|
| Operating Voltage | DC 12V ~ 24V |
| Maximum Load Current | 6A |
| Two Buttons | Red button, Black button |
| Work Mode | Momentary |
| Power Cable | 300CM Four-core Wire (20AWG fine four-core cable and 0.75 square millimeter four-core cable optional) |

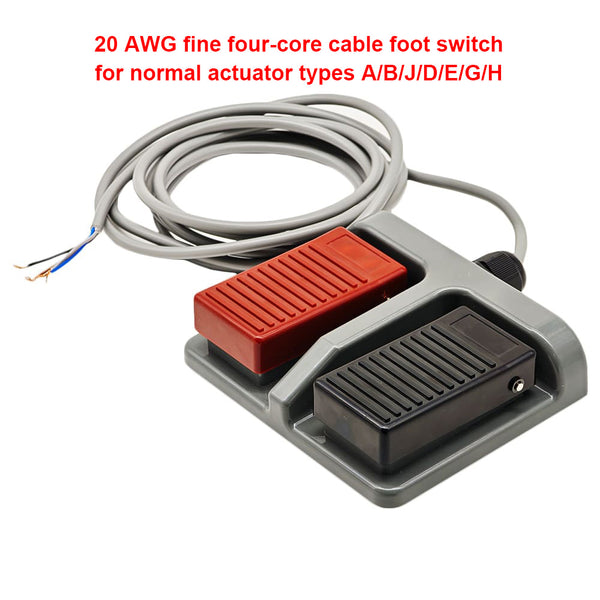

| 20AWG fine four-core cable suitable for the following normal linear actuators | Type A / B / J / D / E / G / G2 / H |

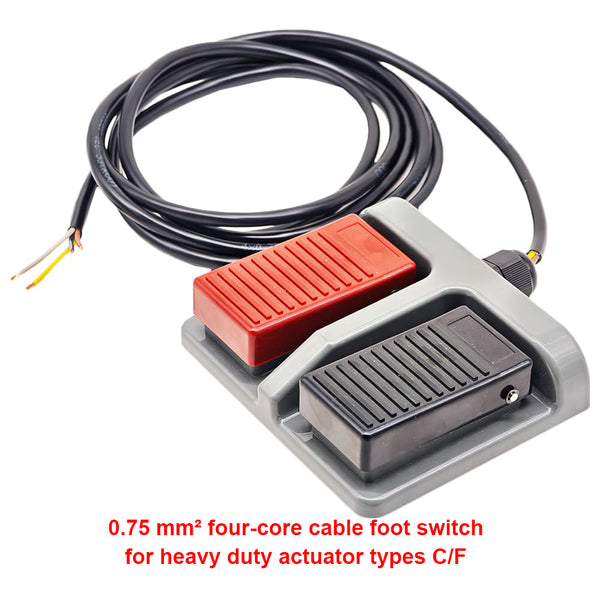

| 0.75 square millimeter four-core cable suitable for the following heavy duty linear actuators | Type C / F |
| Contact Material | Silver Contacts |
| Operating Temperature | -20°C to +70°C |
| Size | 142 x 150 x 34 mm (5.6 x 5.9 x inches) |

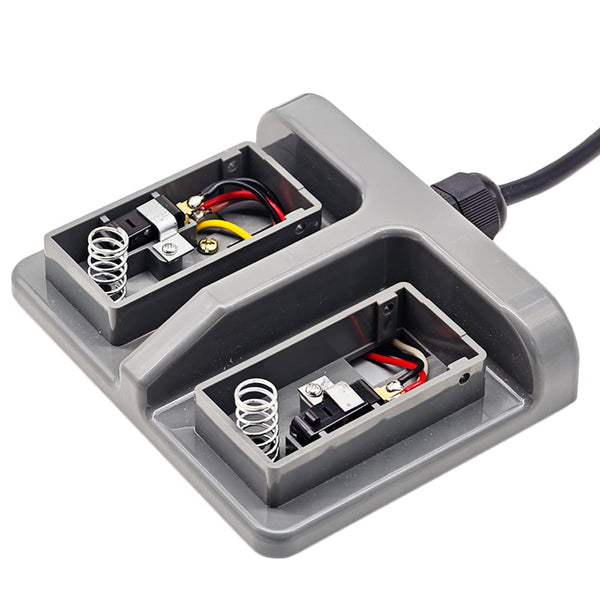

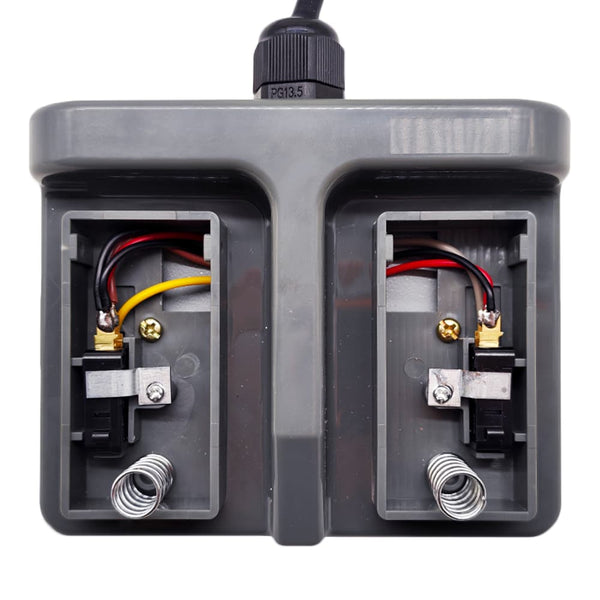

| Internal cables are pre-wired | |

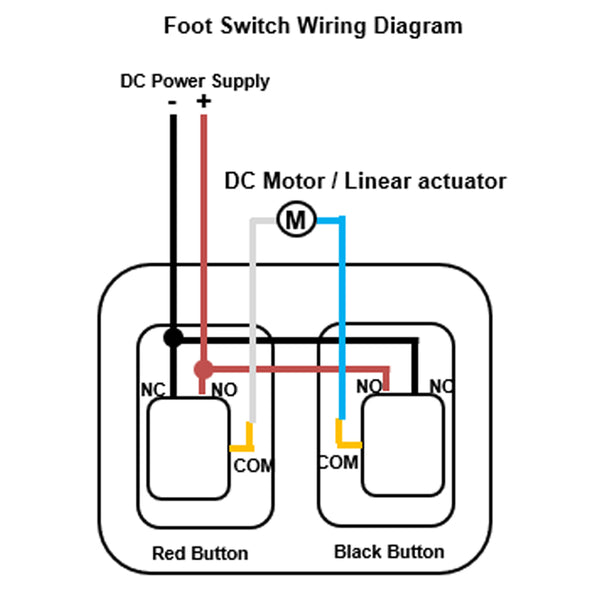

Wiring:

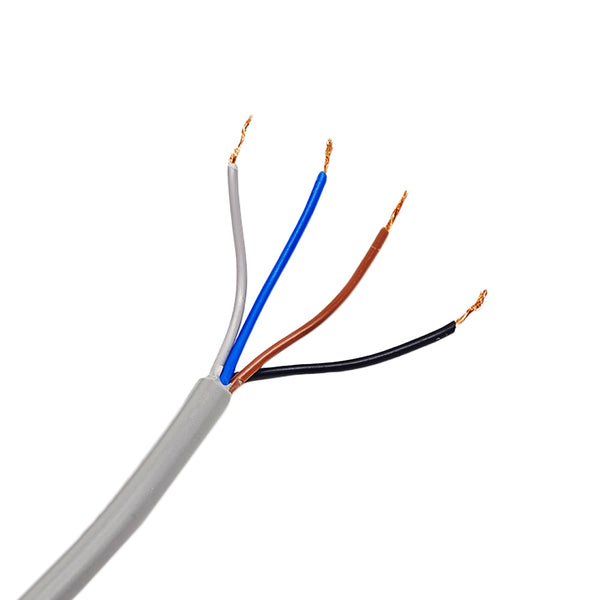

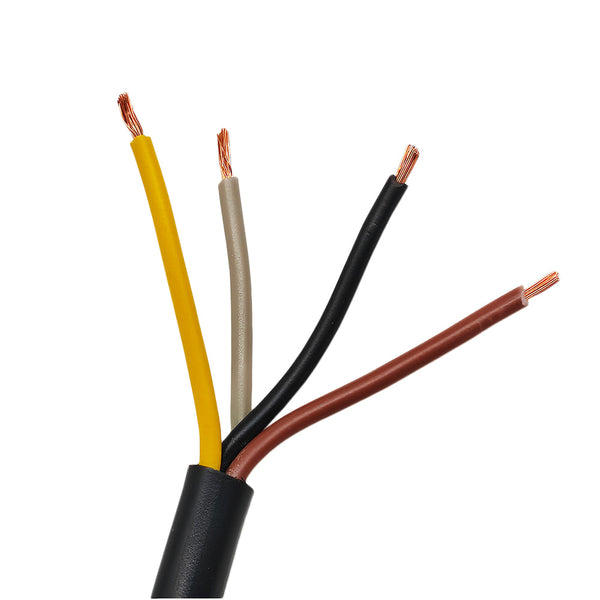

1) Connect the positive pole of the DC power supply to the brown wire of the foot switch, and connect the negative pole of the DC power supply to the black wire of the foot switch.
2) Connect two wires of the motor or linear actuator to the remaining two wires of the foot switch. (You can exchange these two wires to change the rotating direction of motor or the moving direction of linear actuator.)
Operation:
1) Press and hold the red button, motor rotates in positive direction, or linear actuator extends outward; Release the button, motor or linear actuator stops.
2) Press and hold the black button, motor rotates in reversal direction, or linear actuator inward retracts; Release the button, motor or linear actuator stops.
