Fixed mounting bracket for electric linear actuator.
Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator.
This mounting bracket can be installed on linear actuator B .
Iron material.

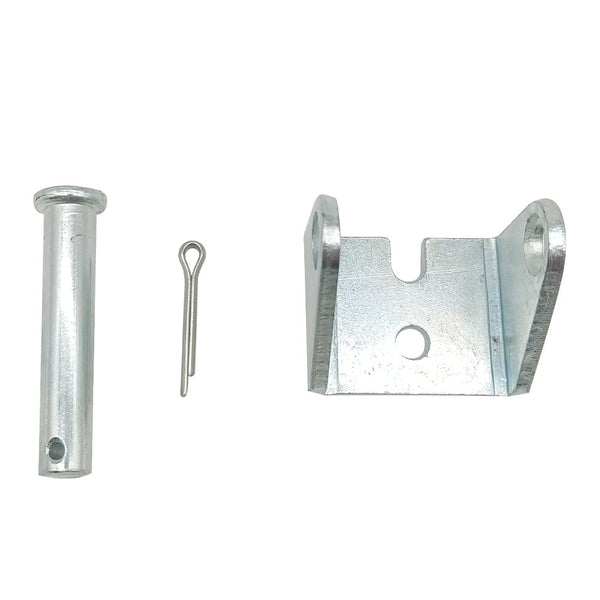

Includes a bracket, a wedge, a needle.

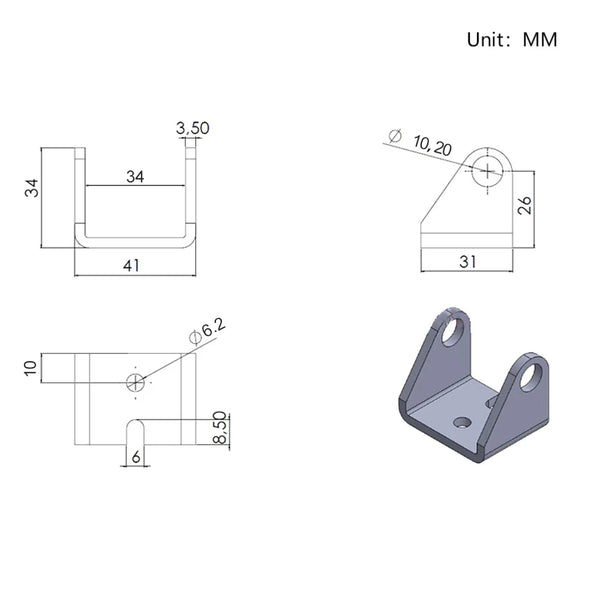

Thickness: 3.5mm [0.138 in]
Diameter of the wedge hole: 10.2mm [0.402 in]
Diameter of the wedge: 9.8mm [0.386 in]
Diameter of the mounting hole: 6.2mm [0.244 in]
Spacing: 34mm [1.339 in]
