Video : Operation Video of Manual Control Switch
Description:
Reverse polarity DPDT switch for motor CW-CCW rotation.
Suitable for controlling the forward and reverse rotation of DC motors.
Suitable for controlling the extension and retraction of DC linear actuators.
Operating voltage range: DC 3V ~ 48V
Maximum Load current: 30A at 12V / 24V
Main Function: ON (Forward) – OFF (Stop) – ON (Reverse)

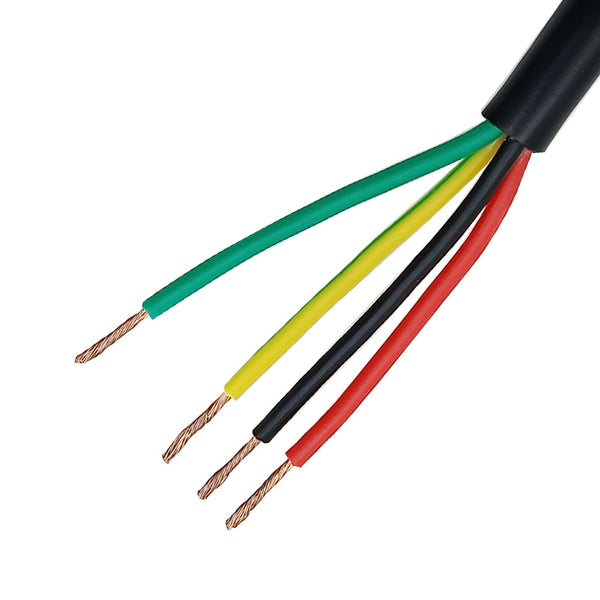

With a 50CM four-core cable

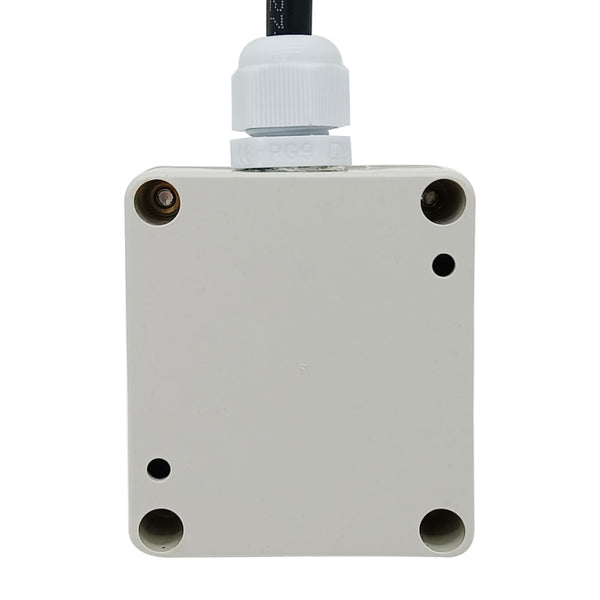

Waterproof case with waterproof connector
Case size: 65 x 58 x 35 mm (2.6 x 2.3 x 1.4 inches)
Wiring:
1) Connect DC power supply to red and black wires of toggle switch.
2) Connect linear actuator or DC motor to green and yellow wires of toggle switch.
Operation for linear actuator:
1) Push the handle to the position <ON>, linear actuator extends outward.
2) Push the handle to the position <OFF>, linear actuator stops.
3) Push the handle to another position <ON>, linear actuator retracts inward.
Operation for DC motor:
1) Push the handle to the position <ON>, motor rotates in positive direction.
2) Push the handle to the position <OFF>, motor stops.
3) Push the handle to another position <ON>, motor rotates in reversal direction.
