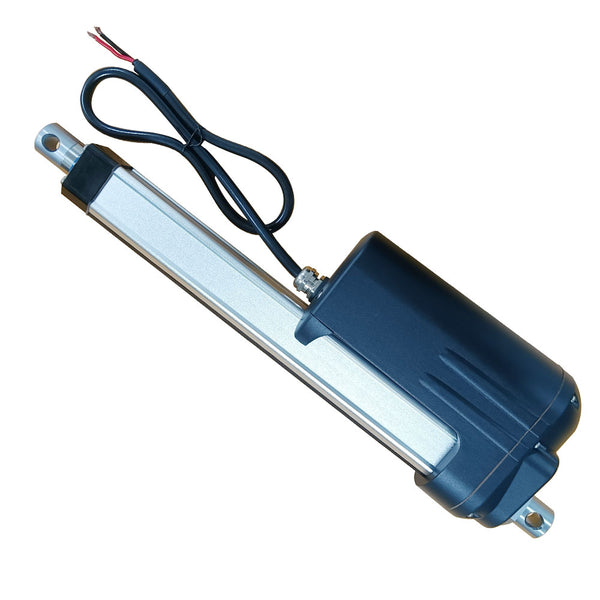

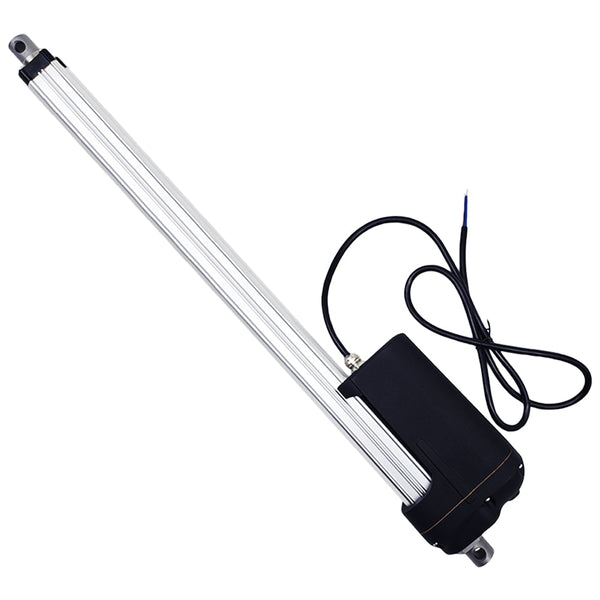

Application:
Mainly used for doors, windows, cellars, trapdoors, hatchways, solar
tracking system, medical devices, agricultural machinery, vehicles, ships,
elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage
sofas, electric beds, medical chairs, and other electrical equipment. It can
open, close, push, pull, lift, and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.
Feature:
High-quality products and high-quality services
Metal housing, able to work in very harsh environments
Metal gearbox, high strength wear-resistant gear
Stainless steel telescopic tube and aluminum alloy outer tube, good
corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Multiple speed options, from 6 mm/second to 60 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm,
1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption
Built-in motor overload and overheat protection
Built-in two limit switches, linear actuator will automatically stop when
stroke rod reaches the limit position.
Built-in limit switch signal output is optional.
Built-in potentiometer is optional.
Built-in Hall sensor is optional, so you can use the synchronous controller
to operate 2, 4 or more linear actuators fully synchronously.
Equipped with manual override, allowing you to extend or retract the
telescopic rod of the linear actuator with hand tools.
With auto-locking capability to hold load position after stopping, and no
power supply is required.
Maintenance-free

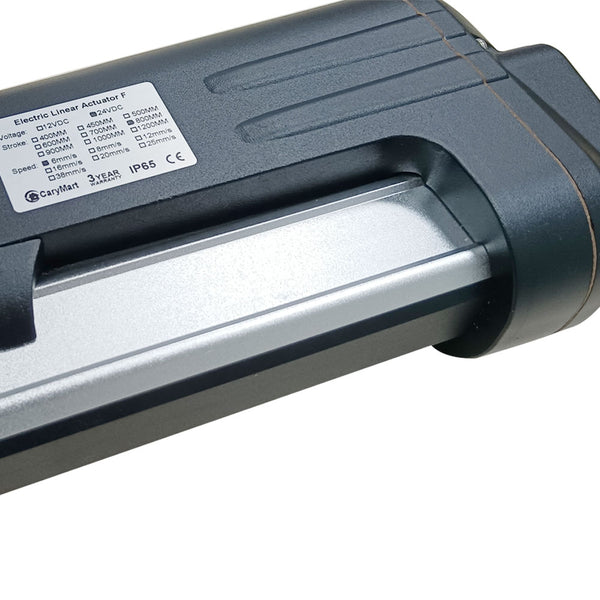

Specifications:
Optional working voltage: DC 12V or DC 24V, and 24V is the most commonly
used working voltage.
Stroke range: 24 inches or 600 mm
Optional speed: 6±1mm/s, 8±2mm/s, 12±2mm/s, 16±3mm/s, 20±4mm/s, 25±5mm/s,
38±6mm/s, 60±12mm/s
The above is the speed at no load, and the actual working speed will
gradually slow down as the load increases.
Max load capacity: 12000N / 1200 Kgs / 2700 lbs at 6mm/s
Linear actuator can get maximum load capacity when it operates in the
vertical direction, and the pulling force is less than pushing force.
No-load current: 3~4A at 12V or 1.5~2A at 24V
Full load current: 15~22A at 12V or 8~12A Hat 24V
Please use a 12V/30A or 24V/15A power supply to power a linear actuator, or
use a 12V/50A or 24V/25A power supply to power two linear actuators, or use
a 12V/100A or 24V/50A power supply to power three or four linear actuators.
Shaft diameter: 30mm
The diameter of the mounting holes for the front and rear connectors: 13mm
[0.512 in]
Housing material: Cast aluminum alloy
Stroke rod material: Stainless steel
Gear material: Steel alloy
Motor type: Brushed DC Motor

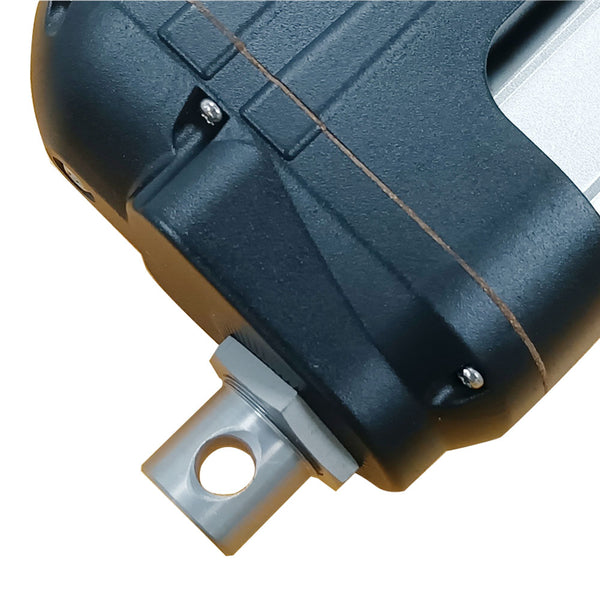

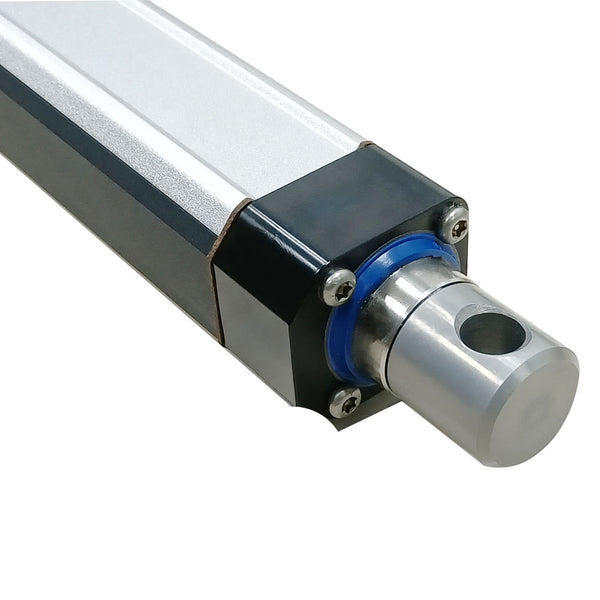

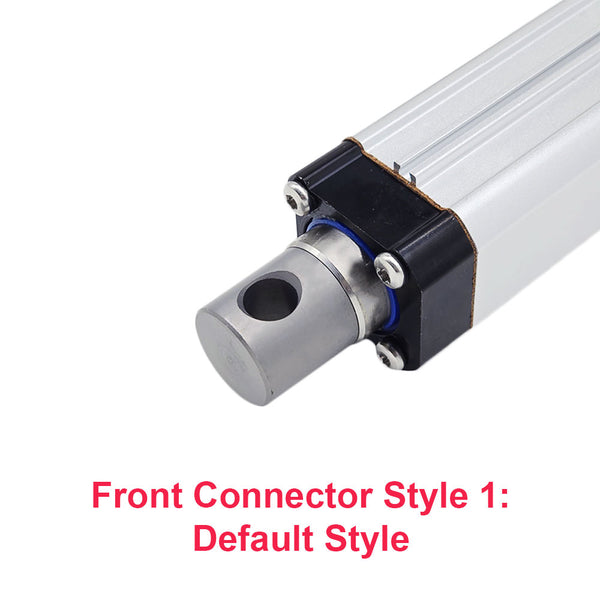

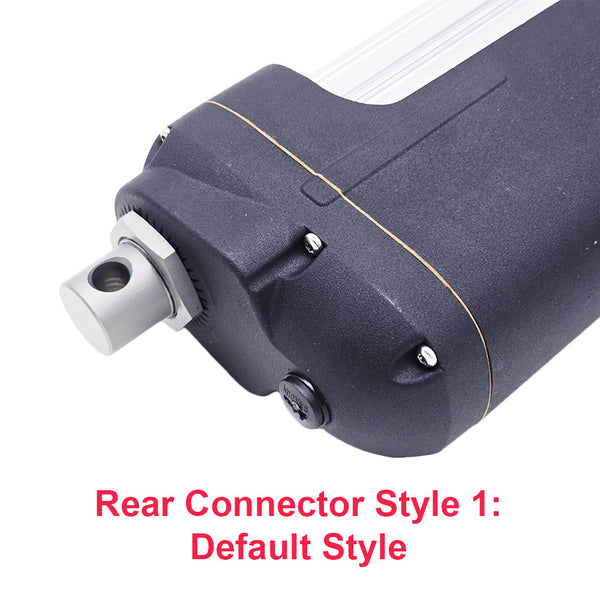

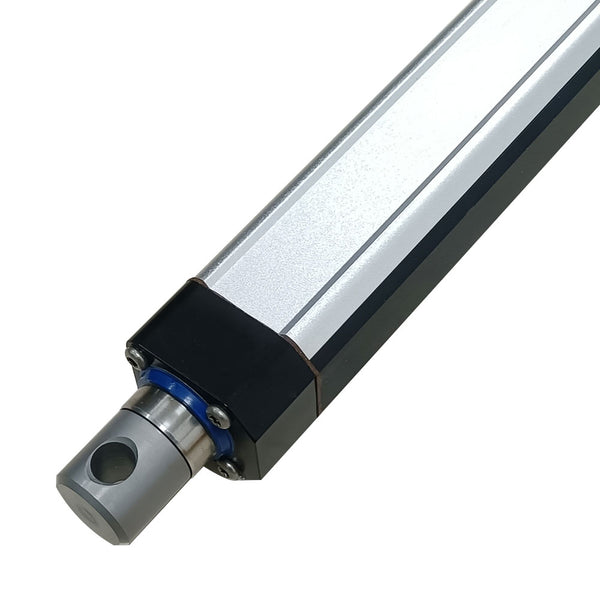

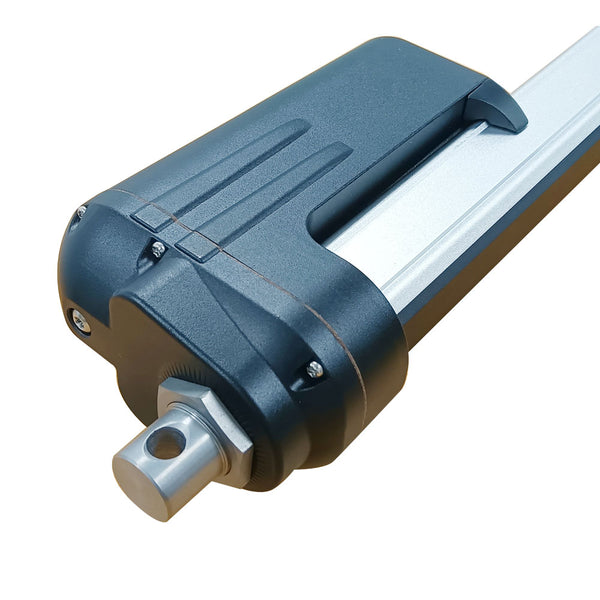

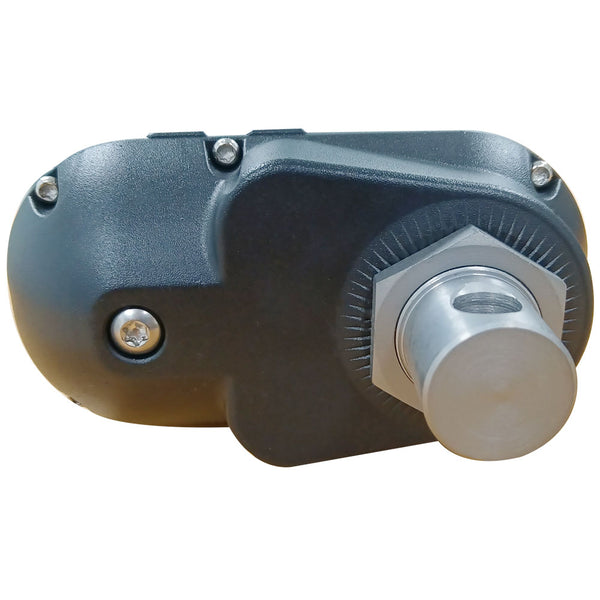

The front and rear connector style can be customized: the default is an open
hole connector, which can be customized with slotted connector, internal
thread connector, etc. And you can provide drawings for customization.
The orientation of the front and rear connectors is default; we can rotate
them 90 degrees during the production according to the customer's needs.
Duty cycle: 10%, max 2mins continuous use
Service life: approx. 25, 000 cycles

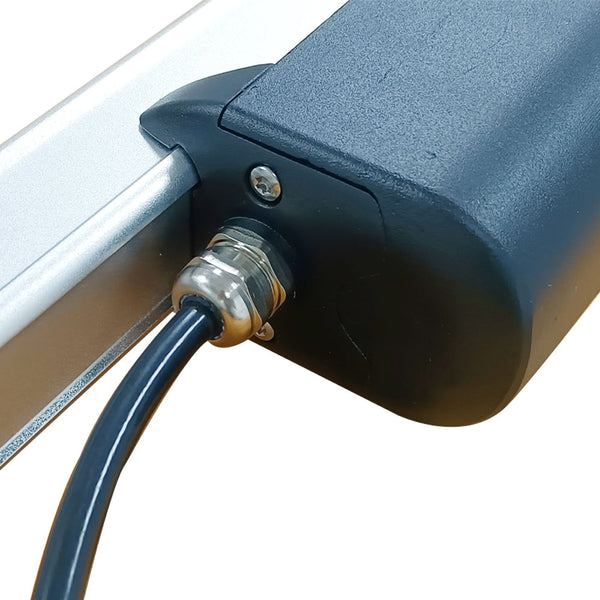

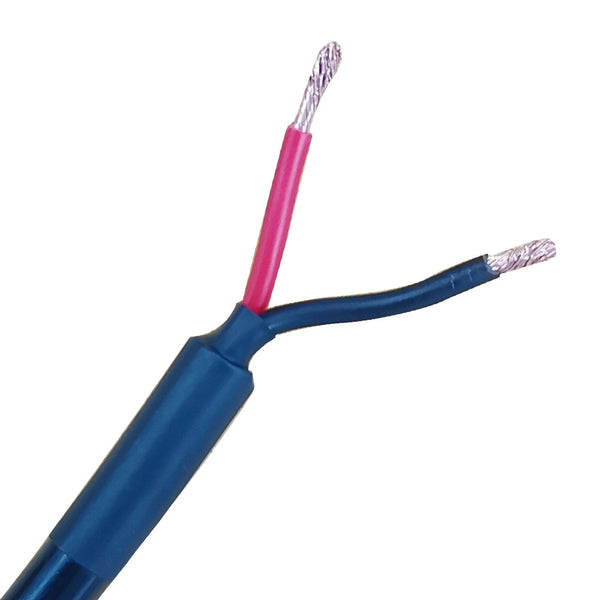

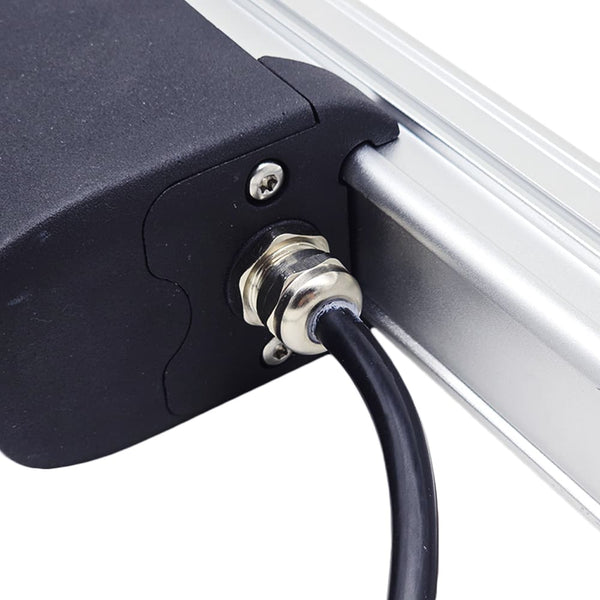

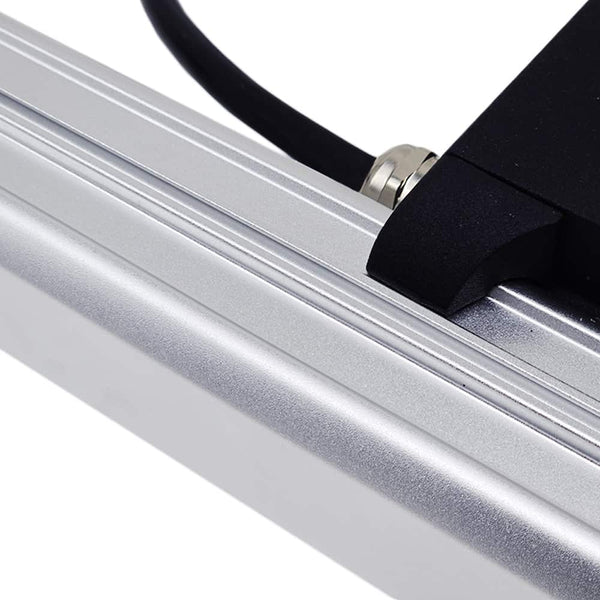

Power cable: two-core wire for normal linear actuators; five-core wire for
linear actuators with built-in potentiometers; six-core wire for linear
actuators with built-in Hall sensors; four-core, five-core or six-core wire
for linear actuators with built-in limit switch signal outputs.
Cable length of the normal linear actuator: 1500±10%mm [60 in], the length
can also be customized according to your specific needs.
Certifications: CE
Environment temperature: -20℃ to 60℃
Operating noise: about 65dB~80dB (Linear actuators with different parameters
will have different noise levels.)
IP rating: IP66

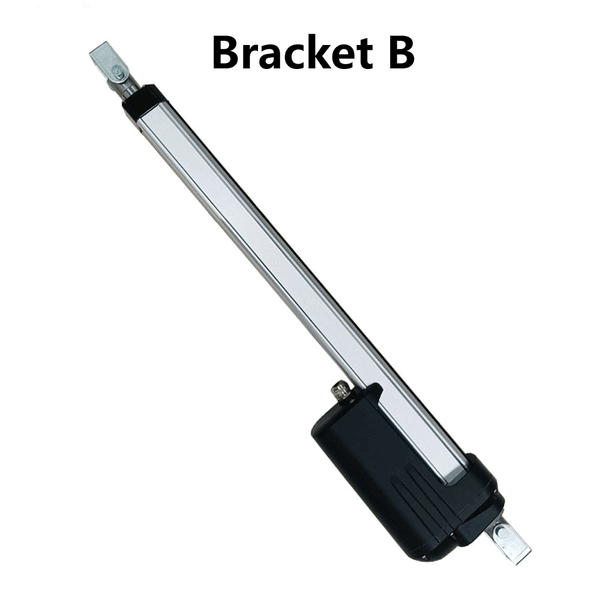

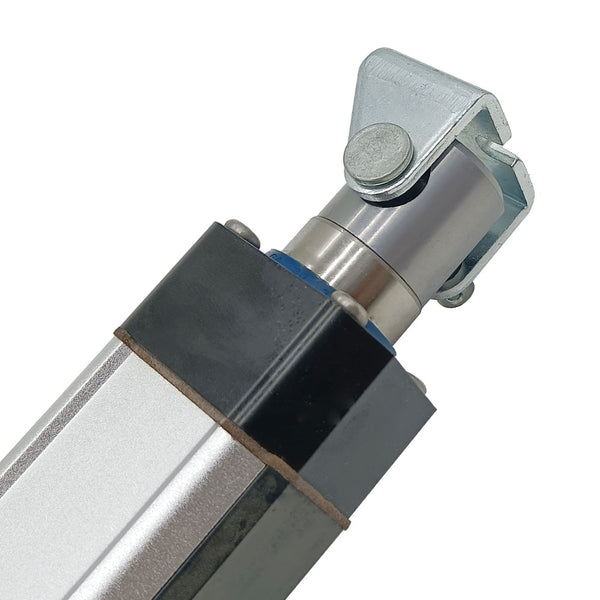

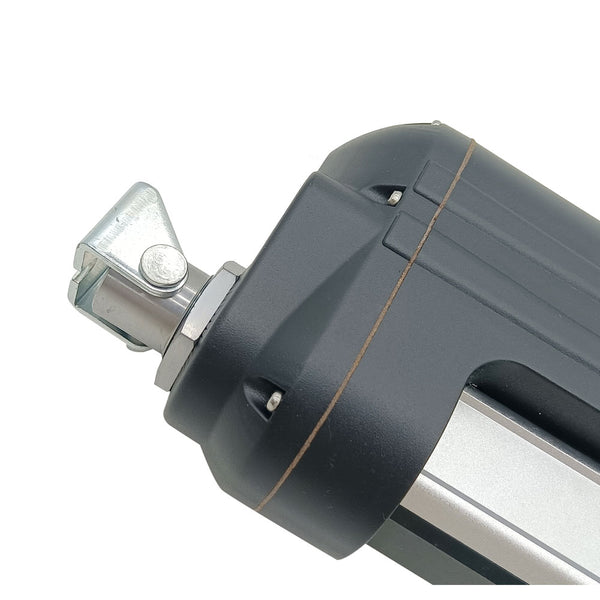

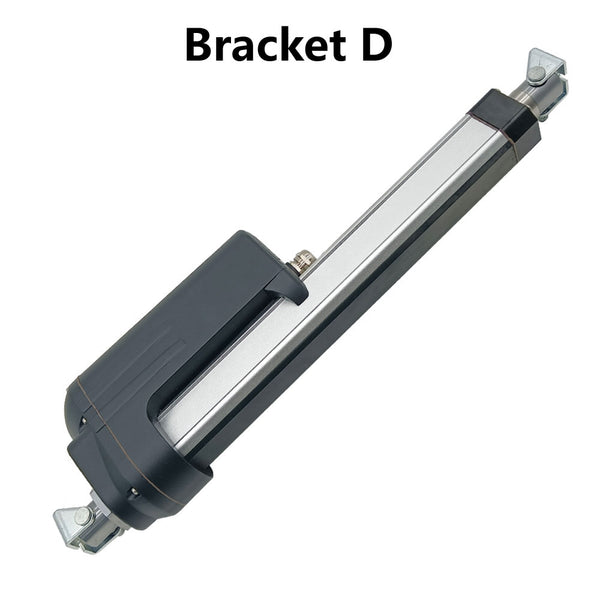

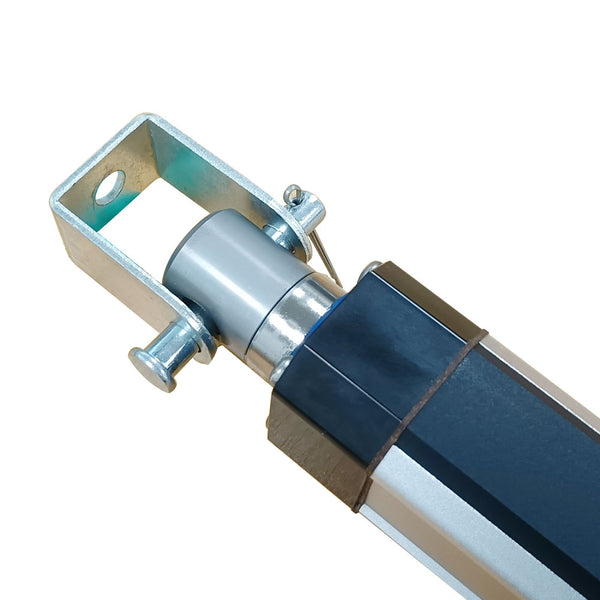

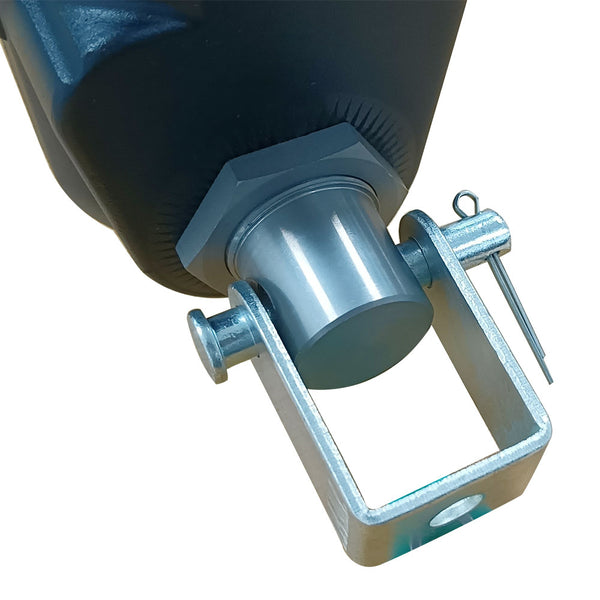

Fixed Bracket:
1. This linear actuator does not contain fixed mounting brackets, please
click
here
to purchase.
2. Each linear actuator would require two mounting brackets, one to fix the
head of linear actuator and another to fix the bottom of linear actuator.

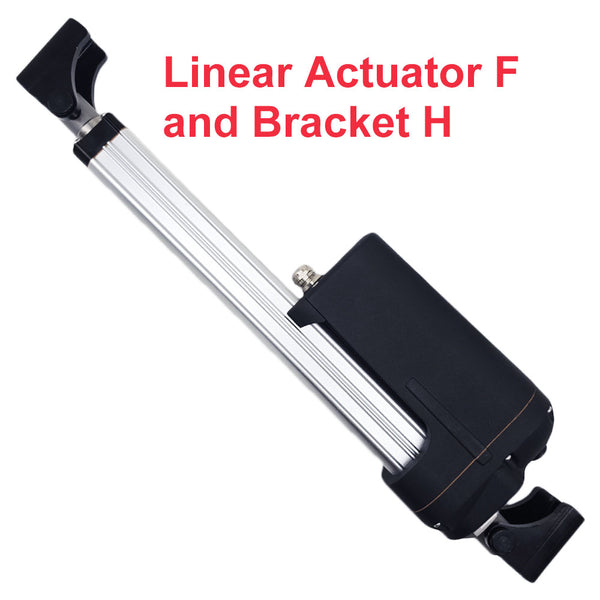

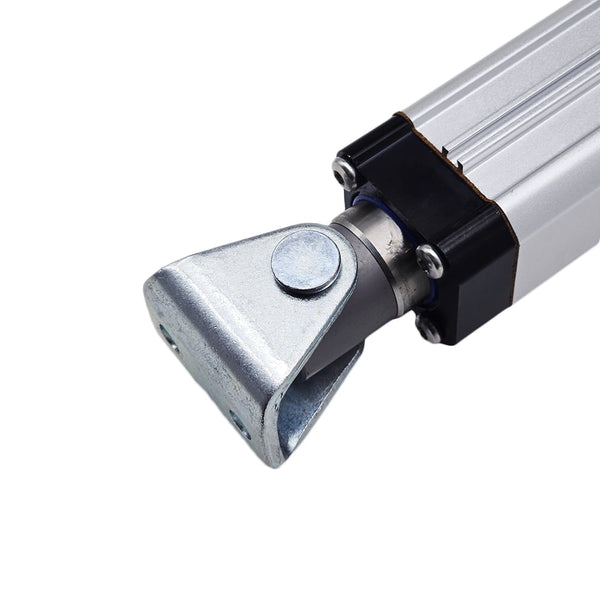

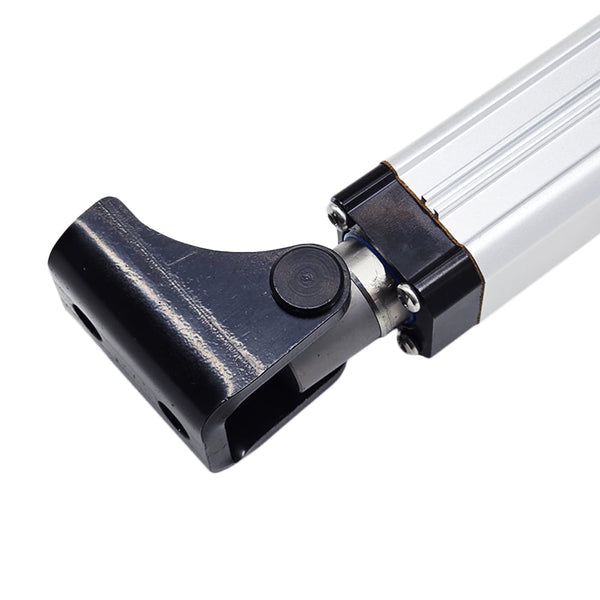

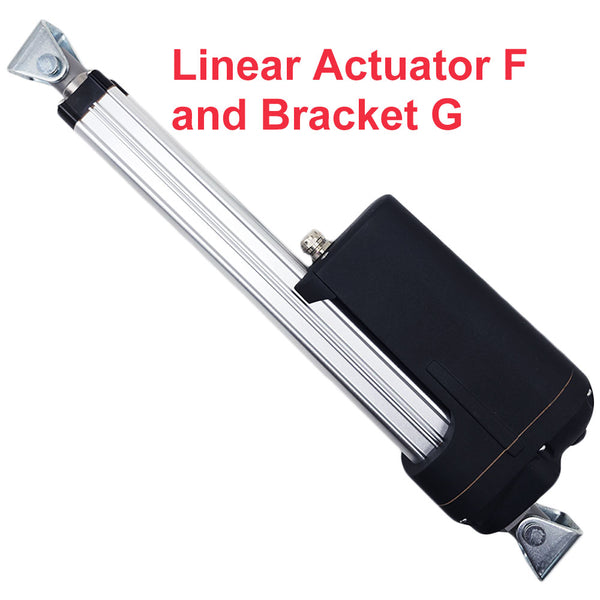

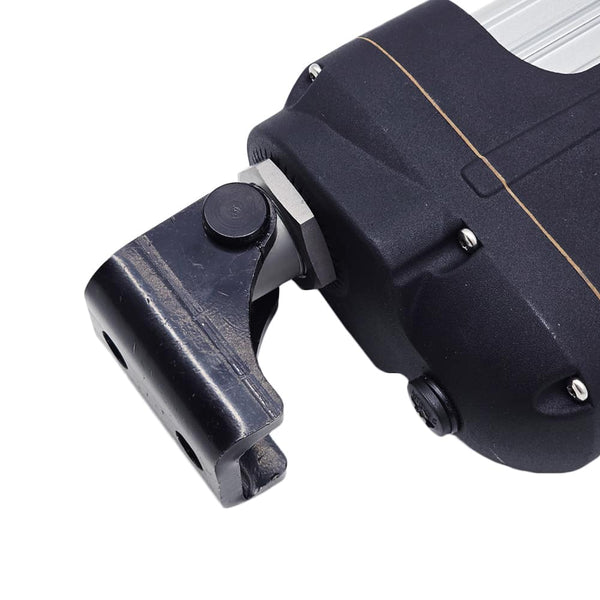

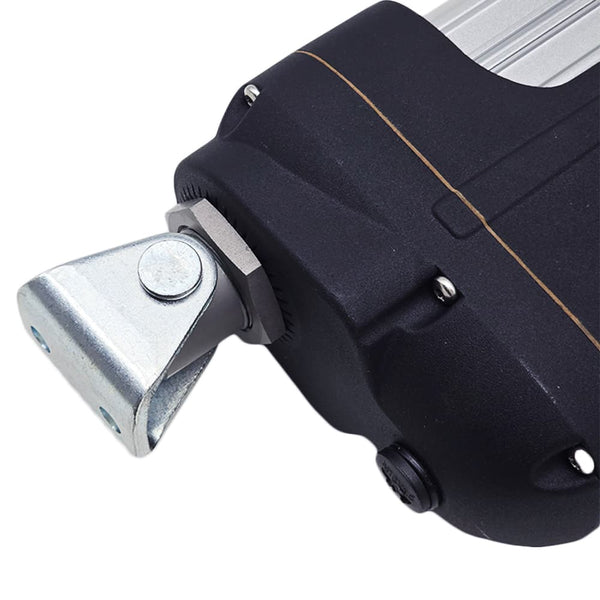

3. Compatible Mounting Brackets:
Bracket G.
4. This linear actuator is also compatible with two flat mounting
brackets:
Head Fixed Mount Circular Disk Bracket (Model 0043075)
and
Bottom Fixed Mount Flat Bracket (Model 0043110).
Operation:

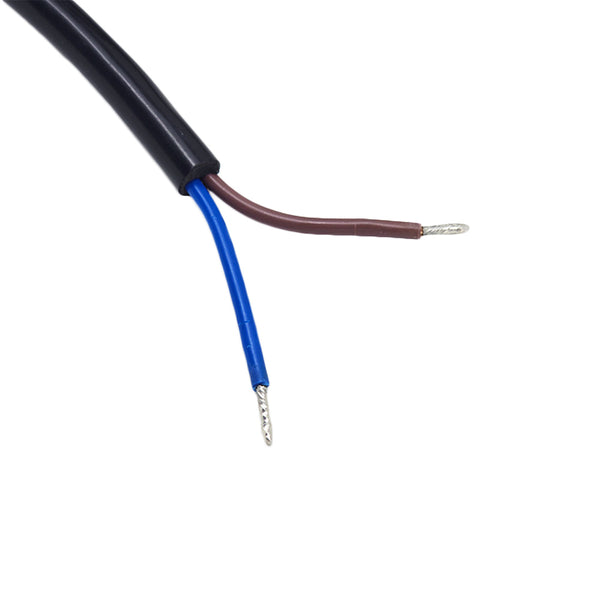

When the brown power wire is connected to the positive pole of the DC power
supply and the blue power wire is connected to the negative pole of the DC
power supply, the stroke rod will extend outward; after switching the power
in the reverse direction, the stroke rod will retract inward.
Note:
1. If you need a power supply to power linear actuator, please click
here
to purchase.
2. If you want to use external limit switches to stop linear actuator at any
position, please click
here
to purchase.
3. If you want to use a remote control switch to operate linear actuator
wirelessly, please click
here
to purchase.
4. If you want to control 2, 4 or more linear actuators fully synchronously,
you need to purchase built-in Hall effect sensors for each linear actuator, and buy a
synchronization controller, please click
here
to purchase.

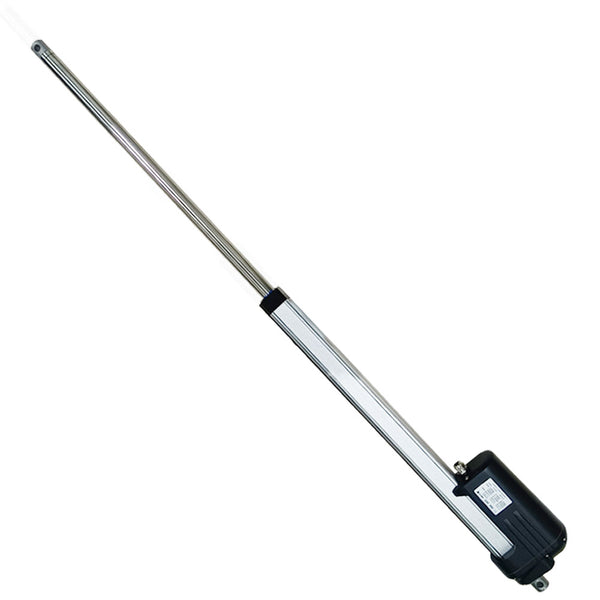

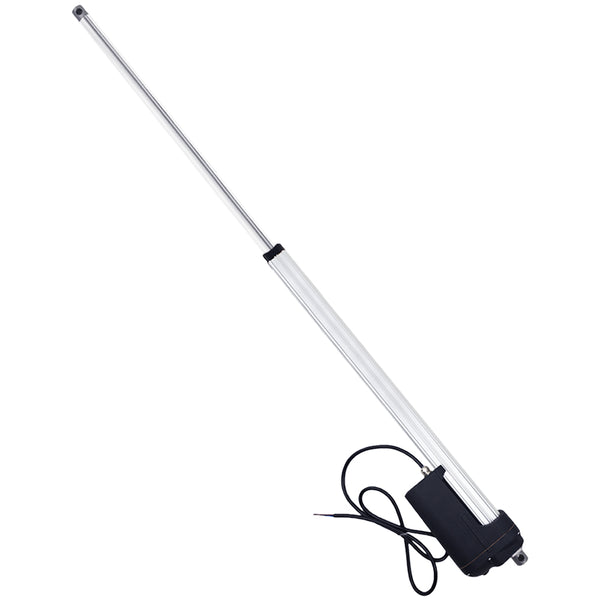

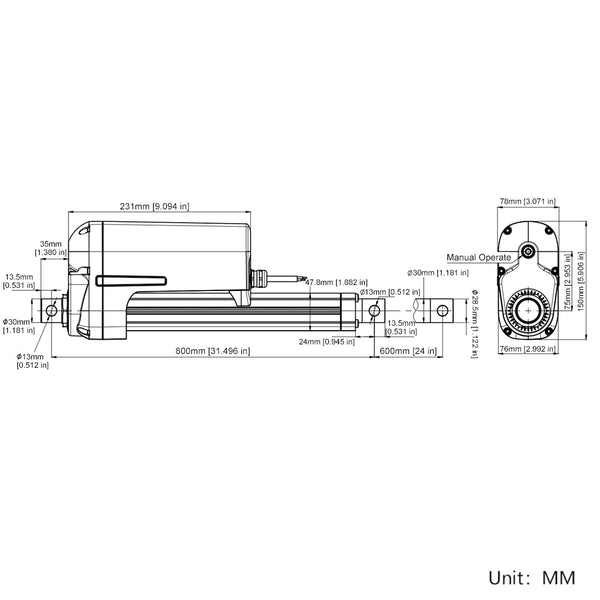

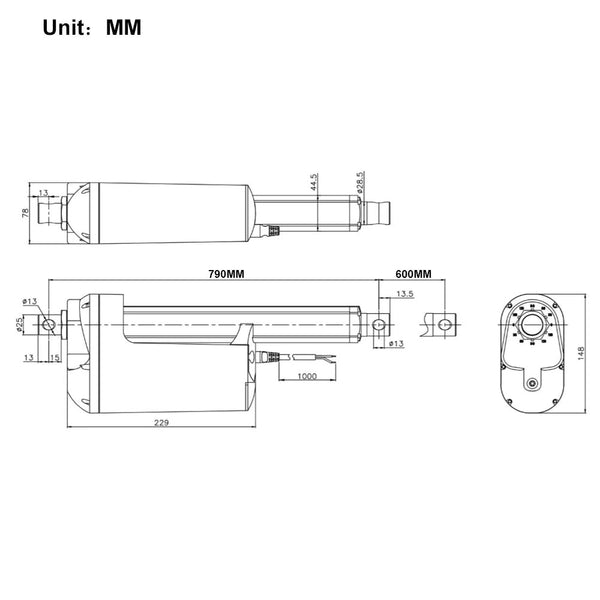

Stroke and Length (Model 0041611)
| Parameter | Value |
|---|---|
| Stroke | 600mm |
| Retraction Length | 800mm (center distance between two mounting holes when the linear actuator is fully retracted) |
| Extension Length | 1400mm (center distance between two mounting holes when the linear actuator is fully extended) |
The linear actuator has two built-in limit switches, When the linear
actuator is fully retracted or fully extended, it will stop
automatically.
We can adjust the position of the built-in limit switches during
production to meet customer-specified stroke and retraction lengths.
Note 1: The specified stroke must be less than the standard stroke of the ordered actuator. For example, a specified stroke of 580 mm is less than the standard stroke of the ordered actuator (600 mm). In this case, the retraction length will be reduced by an equivalent value, resulting in a retraction length of 780 mm. Of course, you can also choose to retain the original standard retraction length of 800 mm.
Note 2: The specified retraction length must be less than the standard retraction length of the ordered actuator. For example, a specified retraction length of 775 mm is less than the standard retraction length of the ordered actuator (800 mm). In this case, the stroke must also be reduced by an equivalent value, resulting in an effective stroke of 575 mm.
Different Speeds and Corresponding Maximum Thrust
| No-load Speed | Full load Speed | Maximum Thrust | Self-locking Force |
|---|---|---|---|
| 6±1mm/s | 5±1mm/s | 12000 N / 1200 kg / 2700 lbs | 15000 N / 1500 kg / 3300 lbs |
| 8±2mm/s | 6±1mm/s | 11000 N / 1100 kg / 2400 lbs | 12000 N / 1200 kg / 2700 lbs |
| 12±2mm/s | 9±2mm/s | 10000 N / 1000 kg / 2200 lbs | 12000 N / 1200 kg / 2700 lbs |
| 16±3mm/s | 10±2mm/s | 7000 N / 700 kg / 1500 lbs | 8000 N / 800 kg / 1800 lbs |
| 20±4mm/s | 11±2mm/s | 6500 N / 650 kg / 1400 lbs | 8000 N / 800 kg / 1800 lbs |
| 25±5mm/s | 14±3mm/s | 5000 N / 500 kg / 1100 lbs | 6000 N / 600 kg / 1300 lbs |
| 38±6mm/s | 24±5mm/s | 3200 N / 320 kg / 700 lbs | 4000 N / 400 kg / 900 lbs |
| 60±12mm/s | 30±6mm/s | 2000 N / 200 kg / 440 lbs | 3000 N / 300 kg / 660 lbs |
Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.
How to Operate the Linear Actuator using Hand Tools
The linear actuator is equipped with manual override, allowing you to
extend or retract its telescopic rod with hand tools.
You can control linear actuators with our hand tools. For example,
during a power outage, you can use our hand tools to operate the linear
actuator to extend or retract to turn equipment on or off.
Operation:
1. Use a flat-blade screwdriver to remove the plastic waterproof cover.
2. Use a 5MM T-handle Allen wrench to remove the screws.
3. Use a 6MM T-handle Allen wrench to turn the linear actuator
counterclockwise to extend it, and clockwise to retract it.
If you need hand tools, please click
here
to purchase them.
