Package Include:
1 × Receiver: Z-02 (Vibrator)
1 × User manual
Application:
This vibrator is a very small electric device that can produce multiple vibrations, it and the transmitter form a remote control vibration kit. When you press different buttons on the transmitter, the vibrator will vibrate different times. They can be use for any kind Silent Reminders occasion, such as magic, reminder, negotiation, nursing, deaf-mute, old man, patient, pet etc.
Feature:
Wireless control.
Small size for easy carrying.
You can control the vibrator by the transmitter (remote control) from any place within a reliable distance.
Wireless RF signal can pass through walls, floors, doors or windows.
Reliable control: The code has thousands of different combinations, and the vibrator only works with the transmitter which use the same code.
One/several transmitters can control one/several vibrators simultaneously.
You can use two or more units in the same place.

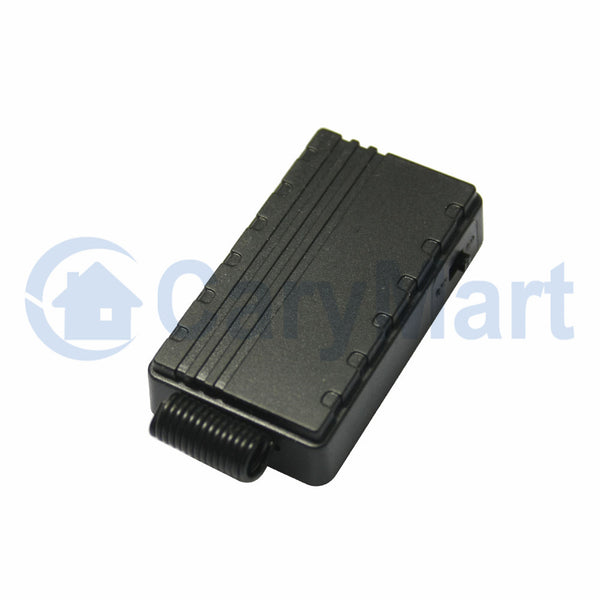

Vibrator Parameters:
Model: 0020116 (Z-02)
Working Mode: Multiple Vibrations
Working Frequency: 433.92MHz
Power Supply: 1 x AAA 1.5V Battery (included)

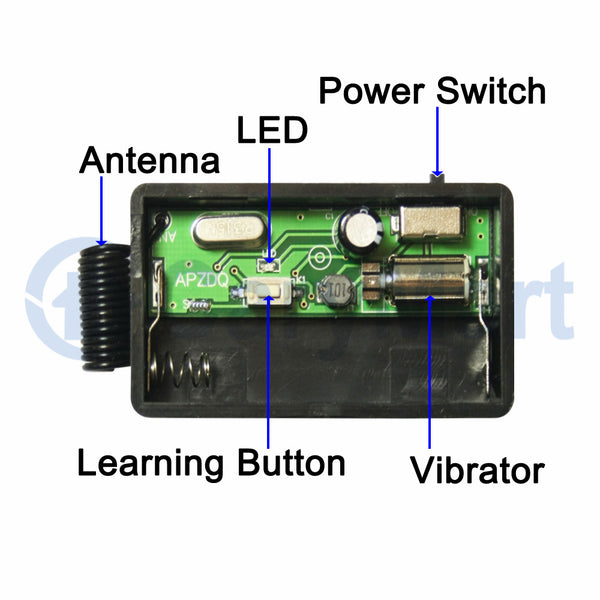

With power switch on the side.
Operating Temperature: -20°C to +70°C
Size: 51mm x 30mm x 14mm
Matching Transmitters:
The vibrator can work with different transmitters, such as model C-4 (100M), CWB-4 (50M, waterproof), CP-4 / CP-8 (500M), CB-4 / CB-6 / CB-8 / CB-12 (1000M) etc. You can set any button of the transmitter to trigger the vibrator to vibrate any number of times.
Working Range:
With a transmitter (such as model C-4) to form a complete set, the maximum working distance can reach 50M in an open ground.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless signals. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can use a powerful transmitter, such as CP-4 or CB-4 transmitter.
Usage:
Press a button of the transmitter, the vibrator will vibrate the corresponding times.
Such as,
Press the button 1 of the transmitter, the vibrator vibrates once.
Press the button 2 of the transmitter, the vibrator vibrates twice.
Press the button 3 of the transmitter, the vibrator vibrates three times.
Press the button 11 of the transmitter, the vibrator vibrates eleven times.
Press the button 12 of the transmitter, the vibrator vibrates twelve times.
And so on.
Note: You can set any button of the transmitter to trigger the vibrator to vibrate any number of times.
