One-Control-Twelve AC RF Wireless Relay Switch With 1 12 Channel Transmitter And 12 Single-Channel Receivers (Model 0020362)

Regular price $374.00

Shipping calculated at checkout.

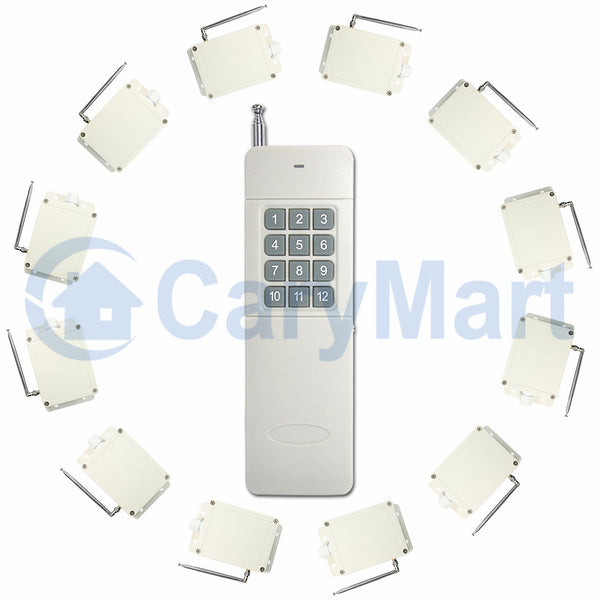

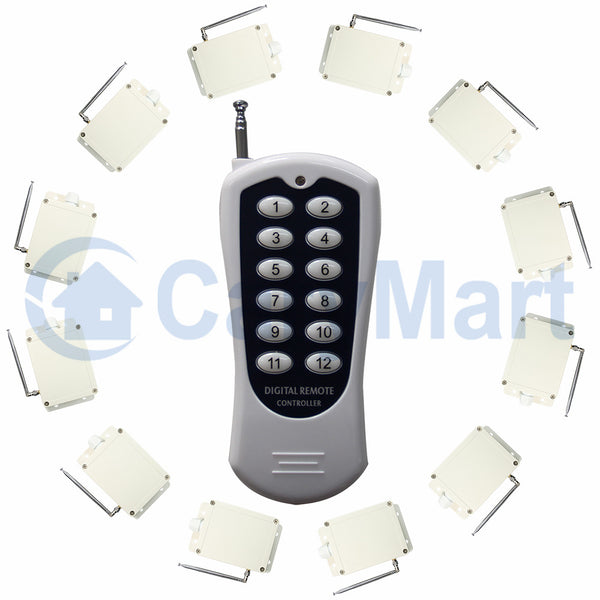

The receiver is designed for one-transmitter-many-receivers system. You can use a 12 buttons transmitter to control 12 receivers.

Package Include:
12 x Receiver: S1UB-AC-ANT3(1 Channel / Three Control Modes)
1 x Transmitter: CV-12/CB-12
1 x User manual

Feature:
Application: It can be used in industry automation, agriculture automation and home automation, such as factory, house, farm, pasture, vehicle, ship, offshore operation, aerial vehicle, field call, etc. It can remote control equipments on land, water and air, such as remote control lights, sirens, locks, motors, fans, winches, blinds, linear actuators, doors, windows, electric solenoid valves, security alarm, business signs and various devices.
Wireless control, easy to install

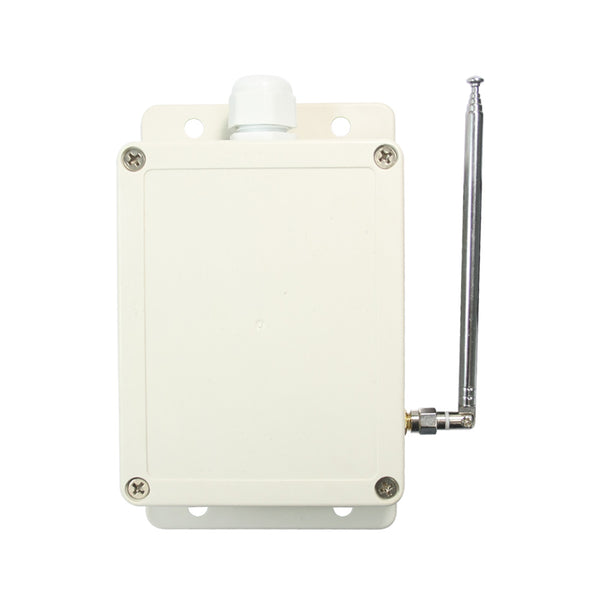

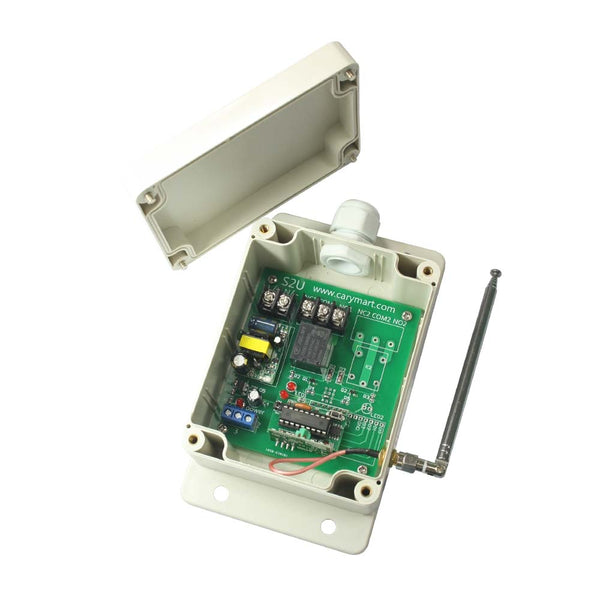

Waterproof case with waterproof connector.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipments. The terminal is NO / NC (normally open / normally closed), which serves as a switch. That means you should also connect a separate power supply to it.
High Power: Each relay output can work at maximum current 30A. The maximum power of the device is 360W/12V, 180W/6V, 270W/9V, 720W/24V, 3000W/110V, 6000W/220V.
With manual terminals: The receiver allows you to connect external devices, sensors, or manual switches to control the receiver.

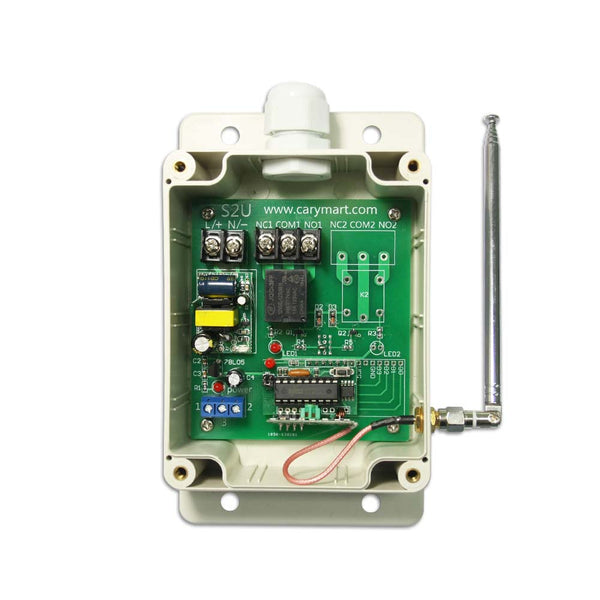

With the external antenna, it can have a further working range.
Use an 8-bit microprocessor designed and developed with low-power and high-speed CMOS technology.
You can turn on/ off the receiver with transmitter (remote control) from any place within a reliable distance; the wireless RF signal can pass through walls, floors and doors.
With characteristics of reverse power protection and over current protection.
Reliable control: The receiver only works with the transmitter which use same code.
One/several transmitters can control one/several receivers simultaneously.
You can use two or more units in the same place.
You can use one transmitter to control several receivers, such as each two buttons on transmitter controls one receiver. They can pair different model transmitters, includes model CV-4 (500M), CV-6 (500M), CV-8 (500M), CV-12 (500M) and CB-4 (1000M), CB-6 (1000M), CB-8 (1000M), CB-12 (1000M), etc... For example, you can use one 4 buttons transmitter CV-4 or CB-4 to control two receivers, use one 6 buttons transmitter CV-6 or CB-6 to control three receivers, use one 8 buttons transmitter CV-8 or CB-8 to control four receivers, use one 12 buttons transmitter CV-12 or CB-12 to control six receivers, etc…

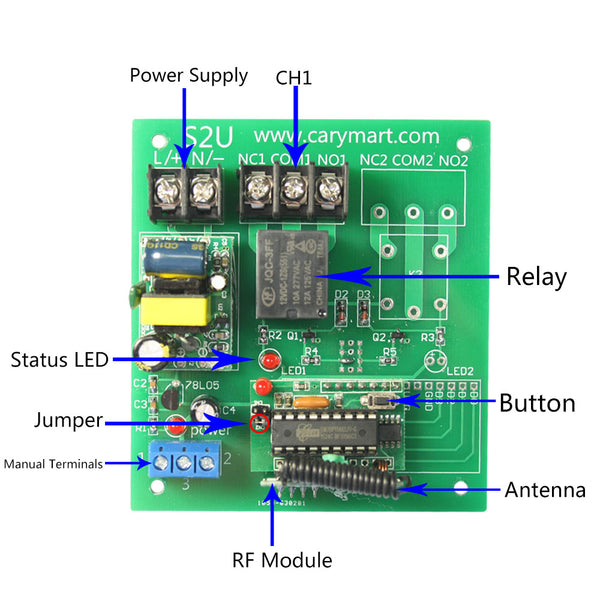

Receiver Parameters:
Model No.: S1UB-AC220
Power Supply (Operating Voltage): AC100~240V (110V/120V/220V/240V)
Working Frequency: 433MHz
Channel: 1 CH
Control Modes: Self-locking, Momentary, Interlocking
Output: Relay output (Normally open and normally closed)
Working Voltage Range of Relay: AC110~240V or DC0~28V
Maximum Working Current of Relay: 10A
Static Current: ≤6mA
PCB size: 88mm x 80mm x 18mm
Case size: 115mm x 90mm x 55mm
Wire range for the terminals: 22-11 AWG
Work with Fixed code transmitters.

Working Range:
With a transmitter (such as CV-12) to form a complete set, the maximum working distance can reach 500M in an open ground.
The maximum working distance is an ideal range , it shall be operated with no barriers and interference in an open ground. But in the practice, it will be hindered by trees, walls or other constructions, and will be interfered by other wireless sign. Therefore, the actual distance may not reach this maximum working distance.
If you want to have a further working range, you can install an external antenna to the receiver, and you also can use a powerful transmitter, such as CB series transmitters.

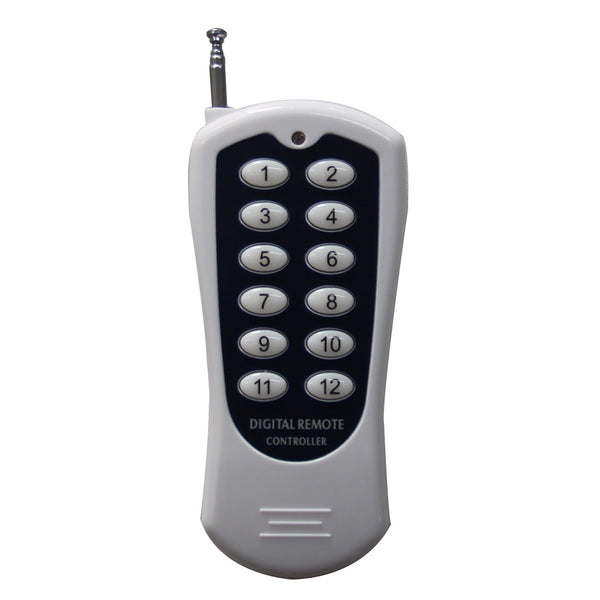

Transmitter Parameters:

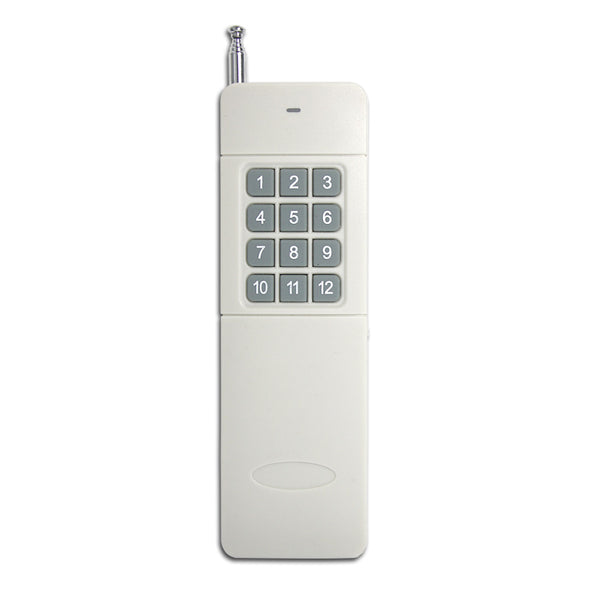

Model No.: CV-12
Channel: 12 CH
Remote Control Distance: 500m / 1500ft (theoretically)
Encode: Fixed code by soldering
Unit size: 110mm x 50mm x 18mm
Power Supply: 1 x 23A -12V battery (included, can be used for 12 months)

Usage (with the transmitter):
The receiver can be used to control both DC 0~28V and AC 110~240V equipments.

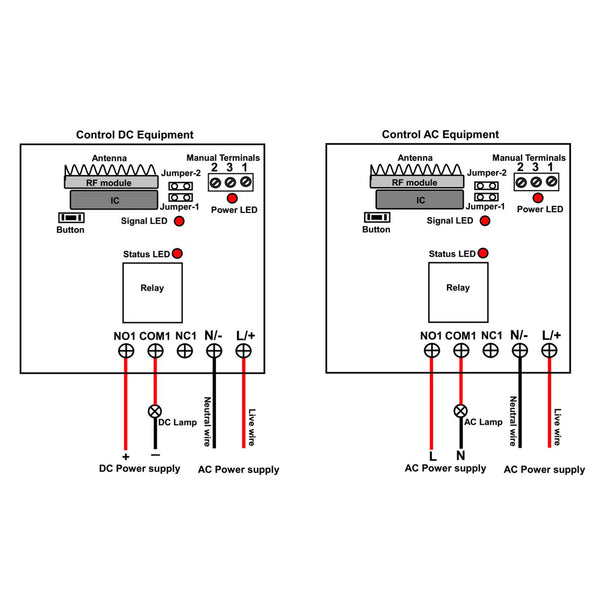

Notice: The receiver is relay output, not DC/AC power output. Initial state of relay output terminals: Terminals B and C are Normally Open; Terminals A and B are Normally Closed.

If you want to control DC 12V lamp, do as following:
1) Connect the live wire of the AC power supply to terminal “L / +” of receiver, and the neutral wire of the AC power supply to terminal “N / -“of receiver.
2) Connect terminal C of receiver to the positive pole of the DC power supply , connect terminal B of receiver to the positive pole of the DC lamp, and connect the negative pole of the DC lamp to the negative pole of the DC power supply.

If you want to control AC 220V lamp, do as following:
1) Connect the live wire of the AC power supply to terminal “L / +” of receiver, and the neutral wire of the AC power supply to terminal “N / -“of receiver.
2) Connect terminal C of receiver to the live wire of the AC power supply, connect terminal B of receiver to one side of the AC lamp, and connect another side of the AC lamp to the neutral wire of the AC power supply.

Setting different control modes (We have set the receiver as Self-locking control mode before delivery. If you want to use other control modes, do as following operation):
1) Setting control mode Self-locking: Connect Jumper-2.
Control mode Self-locking (with transmitter CV-12): Press -> On; Press again -> Off.
Press button 1 on the transmitter: Turn on the relay of receiver 1 (connect terminals B and C, disconnect terminals A and B of receiver 1), the lamp 1 is on.
Press button 1 again: Turn off the relay of receiver 1 (disconnect terminals B and C, connect terminals A and B of receiver 1), the lamp 1 is off
Press button 2 on the transmitter: Turn on the relay of receiver 2 (connect terminals B and C, disconnect terminals A and B of receiver 2), the lamp 2 is on.
Press button 2 again: Turn off the relay of receiver 2 (disconnect terminals B and C, connect terminals A and B of receiver 2), the lamp 2 is off.

Press button 12 on the transmitter: Turn on the relay of receiver 12 (connect terminals B and C, disconnect terminals A and B of receiver 12), the lamp 12 is on.
Press button 12 again: Turn off the relay of receiver 12 (disconnect terminals B and C, connect terminals A and B of receiver 12), the lamp 12 is off.

2) Setting control mode Momentary: Connect Jumper-1.
Control mode Momentary (with transmitter CV-12): Press and hold -> On; Release -> Off.
Press and hold button 1: Turn on the relay of receiver 1 (connect terminals B and C, disconnect terminals A and B of receiver 1), the lamp 1 is on.
Release button 1: Turn off the relay of receiver 1 (disconnect terminals B and C, connect terminals A and B of receiver 1), the lamp 1 is off.
Press and hold button 2: Turn on the relay of receiver 2 (connect terminals B and C, disconnect terminals A and B of receiver 2), the lamp 2 is off.
Release button 2: Turn off the relay of receiver 2 (disconnect terminals B and C, connect terminals A and B of receiver 2), the lamp 2 is off.

Press and hold button 12: Turn on the relay of receiver 12 (connect terminals B and C, disconnect terminals A and B of receiver 12), the lamp 12 is on.
Release button 12: Turn off the relay of receiver 12 (disconnect terminals B and C, connect terminals A and B of receiver 12), the lamp 12 is off.

3) Setting control mode Interlocking: Disconnect Jumper-1 and Jumper-2.
Control mode Interlocking (with transmitter CV-12): Press a button -> On; Press another button -> Off.
Press button 1: Turn on the relay of receiver 1 (connect terminals B and C, disconnect terminals A and B of receiver 1), the lamp 1 is on.
Press button 2: Turn on the relay of receiver 2 turn off the relay 1 (connect terminals B and C, disconnect terminals A and B of receiver 2), the lamp 2 is on and the other lamps are off.

Press button 12: Turn on the relay of receiver 12(connect terminals B and C, disconnect terminals A and B of receiver 1 of receiver 12), the lamp 12 is on and the other lamps are off.

Manual control terminals:
The receiver has manual control terminals, you can connect external devices, sensors, or manual switches to control the receiver.
1) Signal input:
You can connect external devices (with low level output signal) to terminals “1”, “3”, the external device’s output signal can control the receiver.
When the external device outputs low level signal to terminal “1” and “3“, turn on the relay (connect terminals B and C, disconnect terminals A and B).
When the external device does not output signal to terminal “1” and “3“, turn off the relay (disconnect terminals B and C, connect terminals A and B).

2) The manual switches:
You can connect one manual switch to terminals “1”, “3”, and then you can use this manual switch to control the receiver.
When connect terminals “1” and “3”, turn on the relay (connect terminals B and C, disconnect terminals A and B).
And when disconnect terminals “1” and “3”, turn off the relay (disconnect terminals B and C, connect terminals A and B).
