Two DC 12V 24V 1300 lbs 6000N Industrial Electric Linear Actuators B Synchronous Control Set (Model 0043051)

Regular price $305.00

Shipping calculated at checkout.



Package Include:

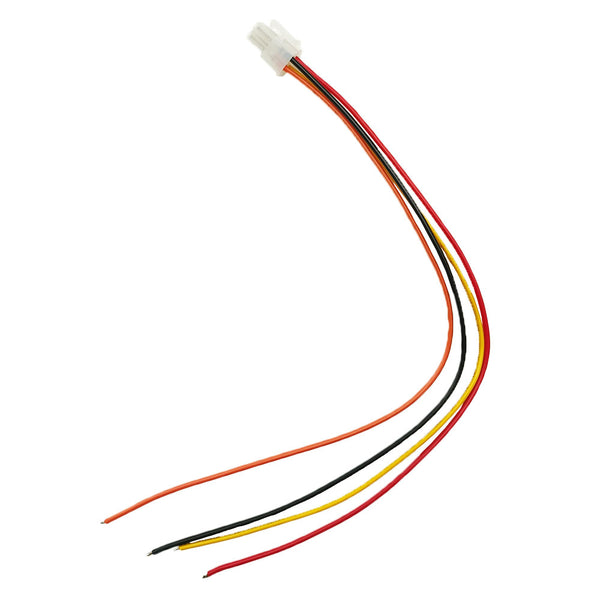

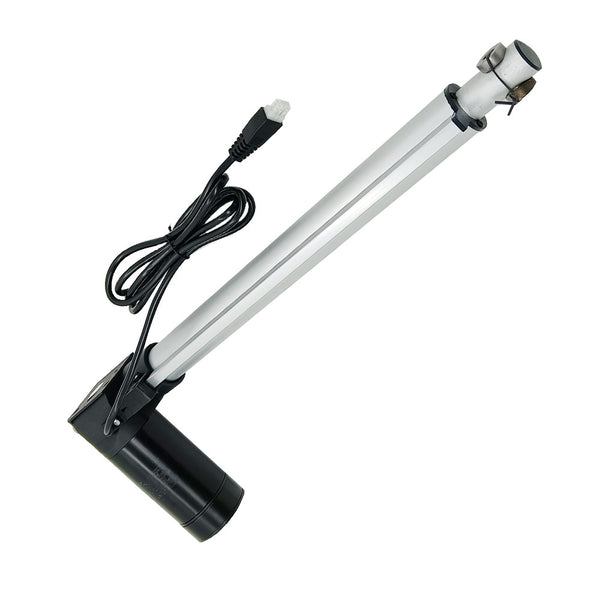

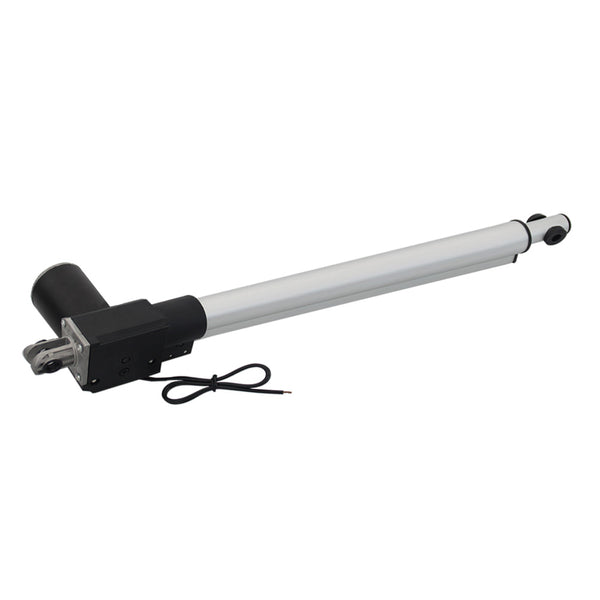

2 x Electric Linear Actuator B With Hall Effect Sensor

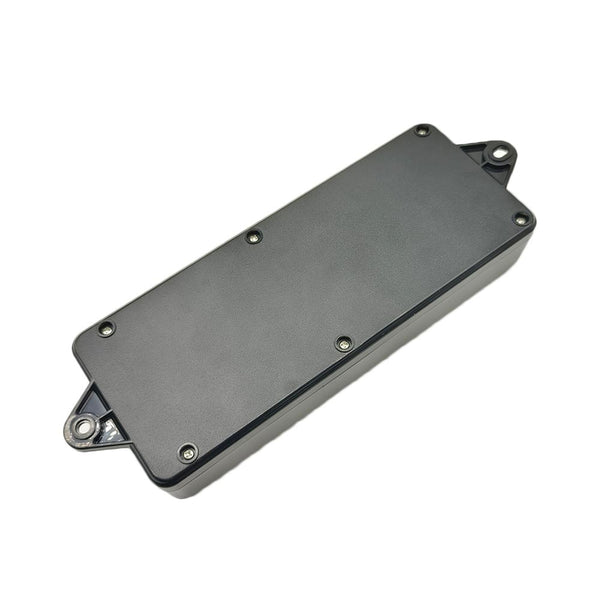

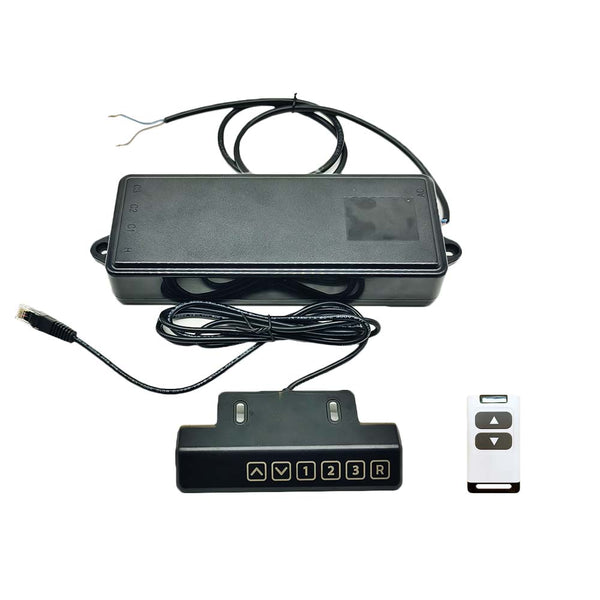

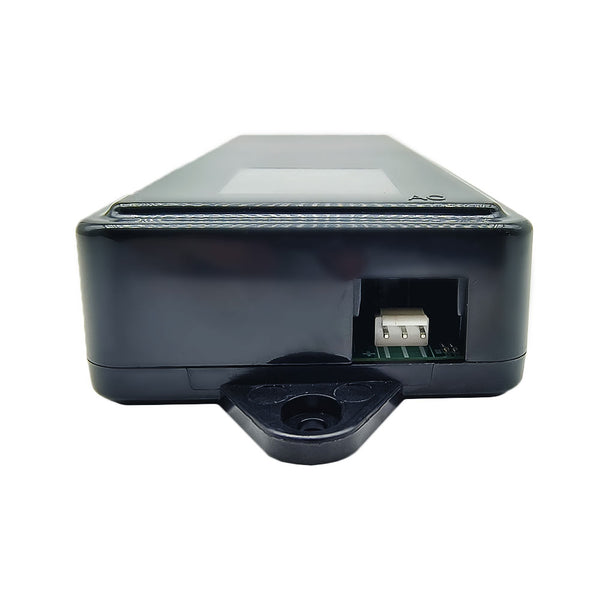

1 x Synchronous Controller (One-Control-Two, For 2 Linear Actuator B)

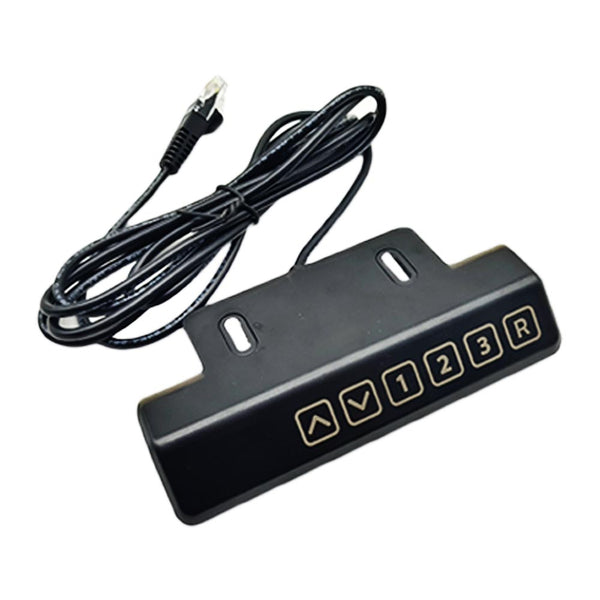

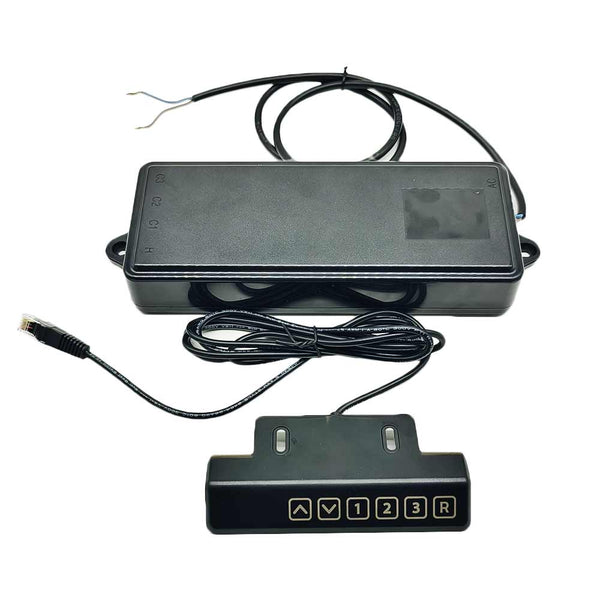

1 x Control Handle

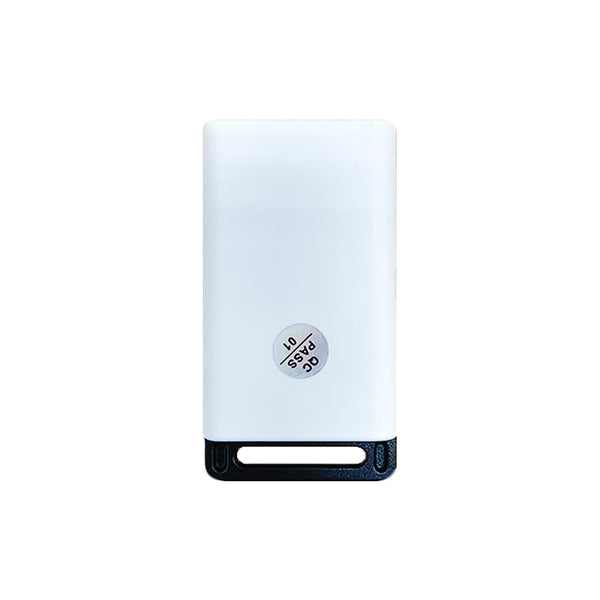

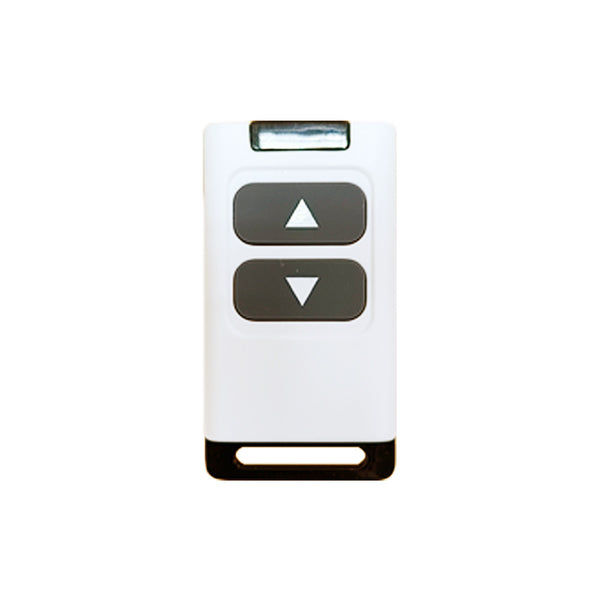

1 x Remote Control (CP-2)
1 x Power Cord
1 x User manual


The information for electric linear actuator:

Application:
Mainly used for doors, windows, cellars, trapdoors, solar tracking system, medical devices, agricultural machinery, vehicles, ships, elevator platforms, lifting tables, TV lifts, robots, cabinetries, massage sofas, electric beds, medical chairs and other electrical equipment. It can open, close, push, pull, lift and descend these devices.
It can replace hydraulic and pneumatic products to save power consumption.

Feature:
High-quality products and high-quality services
High strength wear-resistant gear
Aluminum alloy telescopic tube and outer tube, good corrosion resistant
Heavy duty design, high-power DC motor
Strong thrust, up to 6000N / 600 Kgs / 1300 lbs
Multiple speed options, from 5 mm/second to 100 mm/second
Multiple stroke options, from 10 mm to 2000 mm
We can customize any stroke length from 10mm to 2000mm, such as 770mm, 1250mm, 1850mm and so on.
Advanced waterproof and dustproof technology
Low power consumption and low noise
Built-in two limit switches, linear actuator will automatically stop when stroke rod reaches the limit position.
Built-in Hall sensor is optional, so you can use the synchronous controller to operate 2 or 4 linear actuators fully synchronously.
Automatically lock after stopping, and no power supply is required.
Maintenance-free

Specifications:
Optional working voltage: DC 12V or DC 24V. Unless you only have 12V power supply available, we recommend you choose the linear actuator with 24V working voltage.
Stroke range: 0.4 ~ 79 inches or 10 ~ 2000 mm
Optional speed: 5±1mm/s, 9±2mm/s, 18±4mm/s, 25±5mm/s, 32±6mm/s, 50±10mm/s, 100±15mm/s
The above is the speed at no load, and the actual working speed will gradually slow down as the load increases.
Max Load capacity: 6000N / 600 Kgs / 1300 lbs at 5mm/s
Linear actuator can get maximum load capacity when it operates in the vertical direction, and the pulling force is less than pushing force.
No-load current: 1~2A at 12V or 0.5~1A at 24V
Full load current: 6~12A at 12V or 3~6A at 24V
Please use a 12V/10A or 24V/5A power supply to power a linear actuator, or use a 12V/20A or 24V/10A power supply to power two linear actuators, or use a 12V/50A or 24V/25A power supply to power four linear actuators.

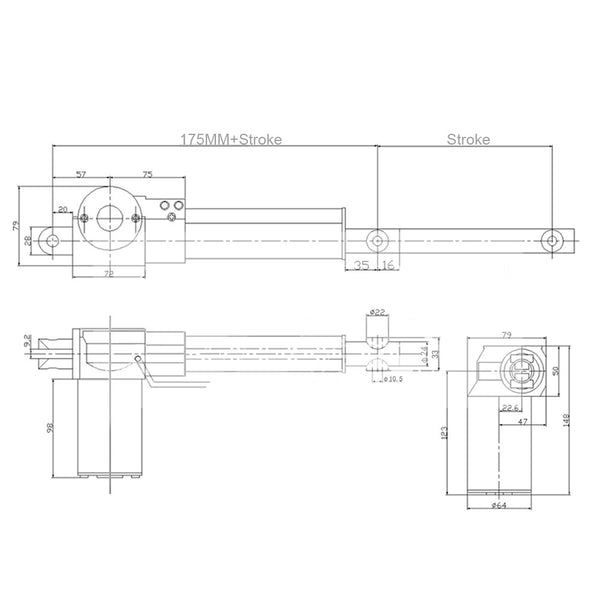

Shaft diameter: 24mm
Mounting holes diameter: 10mm
Housing Material: Aluminum Alloy
Stroke Rod Material: Aluminum Alloy
Gear Material: Polymer Plastic
Motor Type: Brushed DC Motor
Duty Cycle: 10%, max 3mins continuous use

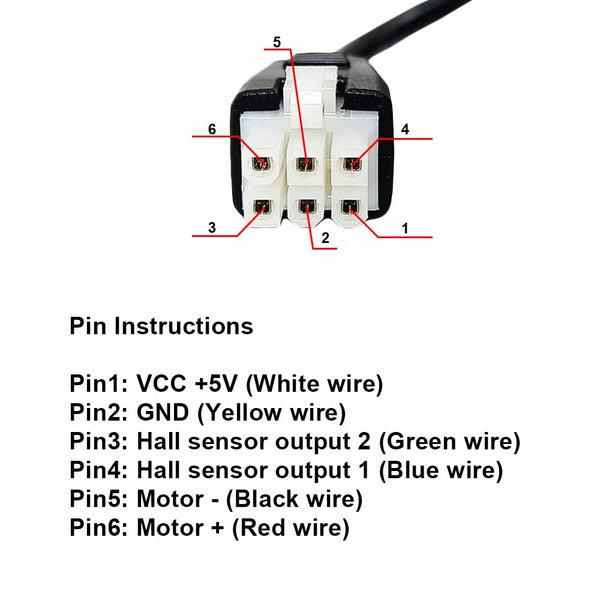

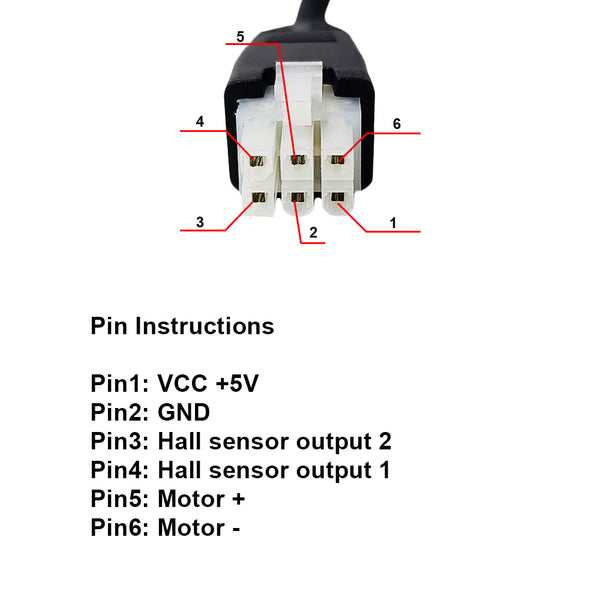

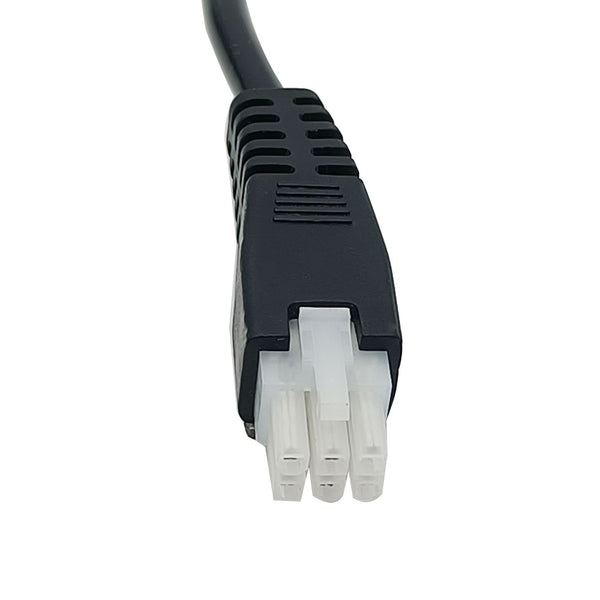

Plug Standard: Ordinary Two-core Wire (Standard Four-pin Plug is optional), or Six-pin Plug (with Hall effect sensor)
Certifications: CE
Environment temperature: -26℃ to 85℃
Operating Noise: about 42dB~46dB (Linear actuators with different parameters will have different noise levels.)
IP rating: IP54, not suitable for outdoor use.

Different speeds and corresponding maximum thrust:


No-load Speed Maximum Thrust
5mm/s 6000N / 600 kg / 1300 lbs
9mm/s 3000N / 300 kg / 660 lbs
18mm/s 2000N / 200 kg / 440 lbs
25mm/s 1000N / 100 kg / 220 lbs
32mm/s 800N / 80 kg / 180 lbs
50mm/s 600N / 60 kg / 130 lbs
100mm/s 300N / 30 kg / 60 lbs


Note:
1. The above data is the maximum load capacity that can be obtained when the linear actuator runs in the vertical direction. If the weight of your equipment (such as a cellar door) is 100kg, and you want to use a linear actuator to open this door, you need to calculate the actual force acting on the linear actuator according to your installation method. This force is usually 2-5 times the weight of the cellar door. If you don't know how to calculate it, please contact us for help.
2. The above is the speed at no load, and the actual working speed will gradually slow down as the load increases. Full load speed is approximately 60-70% of No-load speed.
3. Different speeds correspond to different maximum loads. Please select the right speed according to the speed and maximum load you need.
4. Linear actuators are not recommended for continuous operation under maximum load, we recommend letting it work at about half of the maximum load to get a longer working life.
5. For linear actuators with a stroke greater than 500MM, you should not normally allow them to operate at their maximum stroke under heavy loads. If the actual stroke you want is 600MM, we recommend that you choose a linear actuator with a stroke of 700-800MM.
6. The maximum pull force of the linear actuator is slightly less than its maximum thrust force.

The information for synchronous controller:

Introduction:
If you want to use multiple linear actuators to raise and lower an equipment, for example two or four electric actuators. Since the high speed DC motors in electric actuators cannot run at exactly the same speed, so the movement speed of the electric actuator will also be different. When multiple electric actuators work at the same time, their actual speeds cannot be exactly the same. In this case, we can use a synchronous controller to operate multiple linear actuators to rise or fall synchronously. They work completely in sync without any difference.

Working principle:
If you want to use a synchronous controller to operate 2 or 4 linear actuators fully synchronously, you will need to add built-in Hall effect sensors to each linear actuator. And when you purchased Hall effect sensor along with linear actuator, we will install Hall effect sensor to linear actuator for you.
When 2 or 4 linear actuators are running together, Hall sensor will send Hall signals to the synchronization controller, and the controller will adjust the running speed of each linear actuator, so that all linear actuators run at the exact same speed.

Feature:
It can operate two electric linear actuators B to run completely synchronously.
Wired control via a control handle.
Wireless control via a remote.
Two selectable control modes: Interlocking mode or Momentary Mode.
Two function buttons: Up Down.
With overcurrent protection switch, this switch should be set in the 1 position.
With limit control terminals: You can connect an external limit switch to stop the linear actuators.
With reset button.

Parameters:
Working Voltage: 10~30 VDC, suitable for 12V or 24V linear actuator
Working Frequency: 315 MHz
Working Distance: 100m / 300ft (theoretically)
Rated current: 20A at 12V or 10A at 24V
Two selectable control modes: Interlocking mode or Momentary mode.
Operating Temperature: -20°C ~ +70°C
Case size: 145 x 90 x 40 mm (5.7 x 3.6 x 1.6 inches)

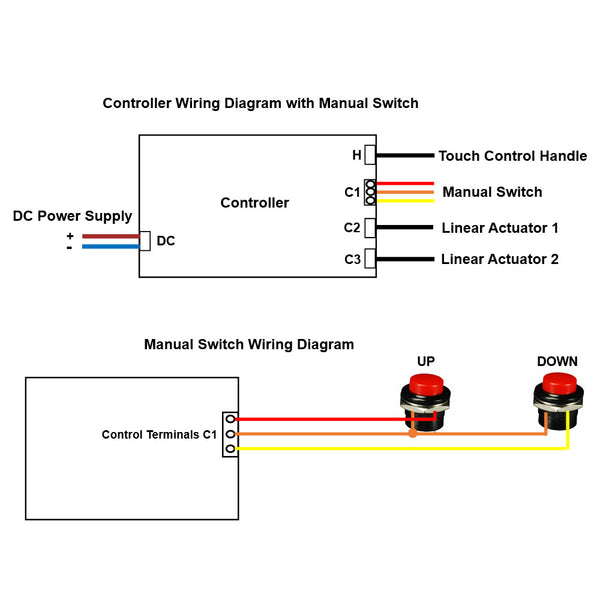

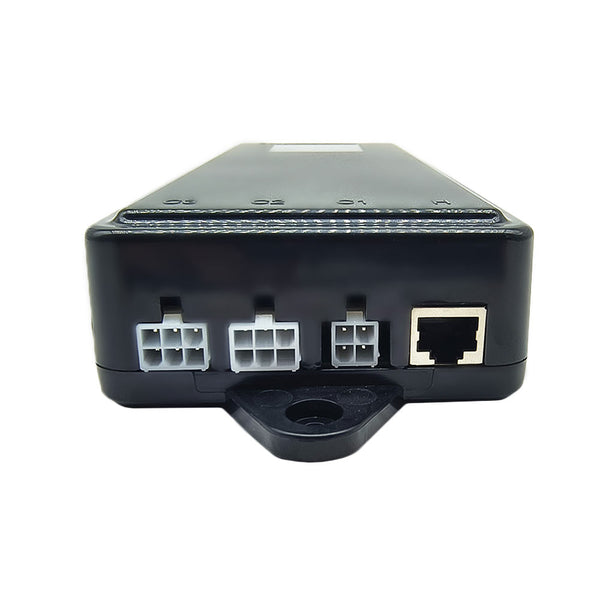

Connection:
1) Connect the positive pole of DC power supply to terminal <+> of the controller, and connect the negative pole of DC power supply to terminal <–> of the controller.

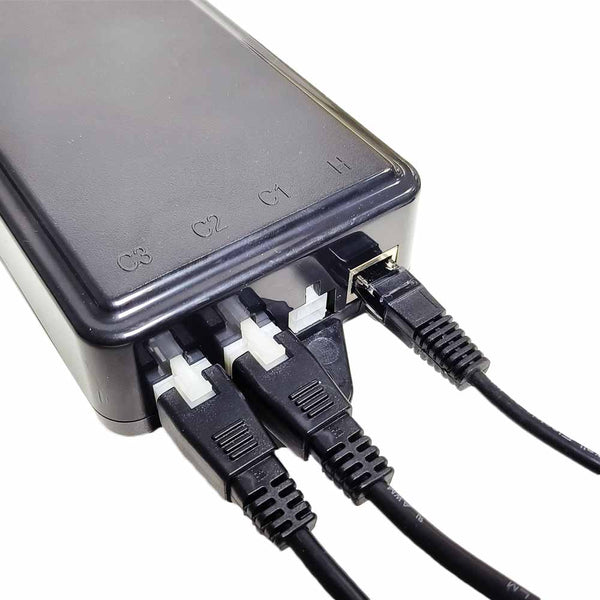

2) Plug two linear actuators to the controller.
3) Plug the control handle to the controller.

How to set the control mode:
The controller has two selectable control modes, interlocking mode and momentary mode. You can switch the control modes as follows:
Simultaneously press and hold the reset button on the controller and the button UP on the control handle or remote control for 8-9 seconds.

Operation in different control modes:

1. Interlocking control Mode:
1.1 Operation via the control handle:

1) Press the UP button of the control handle, two linear actuators extend outward at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two linear actuators at the same time.
2) Press the DOWN button of the control handle, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two linear actuators at the same time.

1.2 Operation via the remote control:
1) Press the button ▲ of the remote control, two linear actuators extend out at the same time, they will reach the maximum stroke at the same time and stop automatically. During operation, you can also press any button to stop two linear actuators at the same time.
2) Press the button ▼ of the remote control, two linear actuators retract inward at the same time, they will fully retract at the same time and stop automatically. During operation, you can also press any button to stop two linear actuators at the same time.

2. Momentary Control Mode:
2.1 Operation via the control handle:

1) Press and hold the UP button of the control handle, two linear actuators extend outward at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the DOWN button of the control handle, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.

2.2 Operation via the remote control:
1) Press and hold the button ▲ of the remote control, two linear actuators extend out at the same time; Release the button, two linear actuators stop at the same time.
2) Press and hold the button ▼ of the remote control, two linear actuators retract inward at the same time; Release the button, two linear actuators stop at the same time.

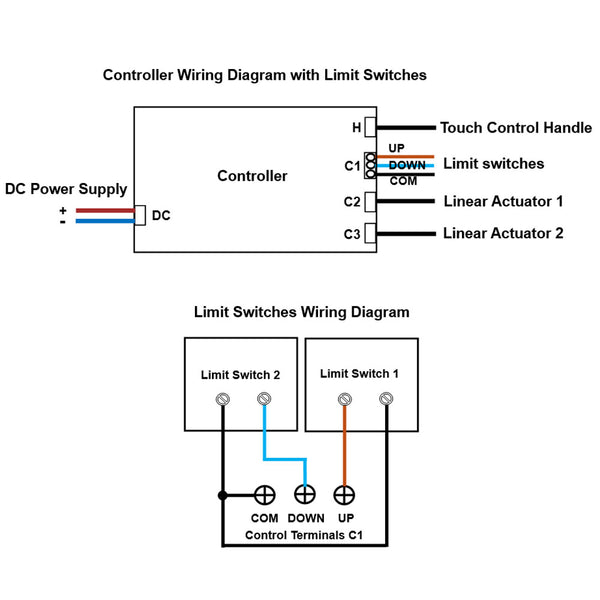

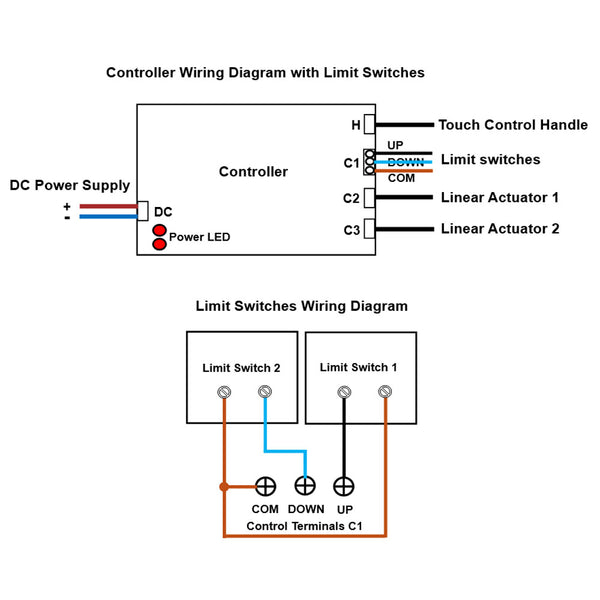

Limit control terminals:
The controller has limit control terminals, and you can connect an external limit switch (with normally open contact) to limit terminals, then use it to stop two linear actuators.
For example, you can connect a normally open limit switch to terminals <UP> and <GND>, and connect another normally open limit switch to terminals <DOWN> and <GND>.
When two linear actuators extend outward, if the limit switch is triggered, it will connect two terminals <UP> and <GND>, then two linear actuators will stop automatically.
When two linear actuators inward retract, if the limit switch is triggered, it will connect two terminals <DOWN> and <GND>, then two linear actuators will stop automatically.

Reset Function:
When this system has been running for a long time, or after frequenting momentary operation of two linear actuators, they may no longer be fully synchronized. At this time, the green LED of the controller will flash, and the controller will stop working, then you need to use the reset button to reset the controller.
The operations are as follows:
Press and hold the buttons UP and DOWN on the control handle at the same time for 7-8 seconds, then release the buttons and the system will start to reset: two linear actuators will be fully retracted from their current position, then stretch outward a little, and finally fully retracted again.

How to pair the transmitter to the controller:
Notice: We have paired the transmitter to the controller before leaving the factory.
1) Press the learning button on the controller once, signal LED on the receiver board turns on, this indicates that the controller enters the learning status.
2) Press any one button on the transmitter, if signal LED on the receiver board goes off, this indicates that the pairing is successful.
3) The controller can learn several transmitters with different codes.

How to delete all transmitters codes stored in the controller:
We have paired the transmitter to the controller, if you don’t want the controller to work with the transmitter, you can delete all transmitters codes stored in the controller.
Operation: Press and hold the learning button in the controller for 8-9 seconds, signal LED on the receiver board first comes on, and then goes off, then release the learning button, this indicates that all stored codes have been deleted successfully.

Note:
1. Each linear actuator would require two mounting brackets, one to fix the head of linear actuator and another to fix the bottom of linear actuator. This kit does not contain fixed mounting brackets, please buy them from the drop down menu.
2. You need to use a DC12V/20A or DC24V/10A switching power supply to power this kit. This kit does not contain this power supply, please buy it from the drop down menu.

Production time:
The linear actuators are the customized products, and these products are not in stock, we need to spend 3~7 working days to produce them according to the specified parameters in your order.

Return or Exchange:
The Linear Actuators are the customized products, we need to produce them according to the specified parameters in your order, so that we do not accept returns or cancel orders. If customers order unsuitable linear actuators themselves, we also do not accept exchanges, please understand.

We can provide 3D CAD model files in STEP format for linear actuators. Please contact us by e-mail if you need them.
