Package Include:
1 x Manual Switch
1 x User Manual
Introduction:

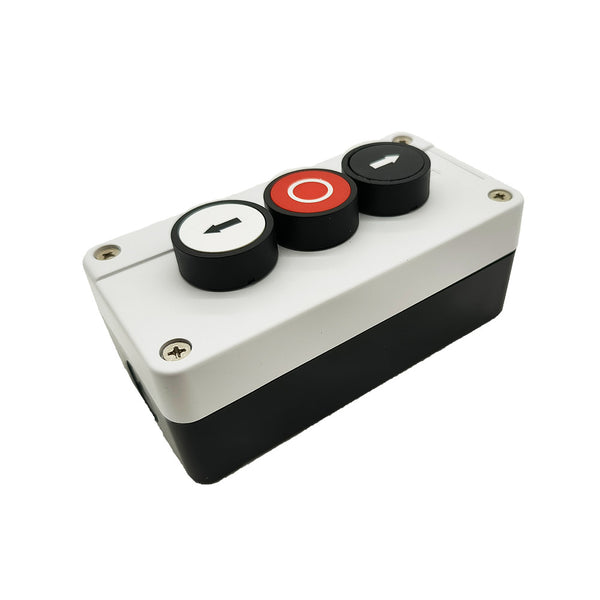

This manual switch has three pushbuttons UP-STOP-DOWN. Each button has a set of normally open contacts. You can connect this manual switch to wired control terminals of the receiver, and then use it to control the DC motor or the linear actuator.
Product Description:
| Parameters | Detail |
|---|---|
| Three buttons | UP, STOP, DOWN |
| Work Mode | Momentary |
| Button diameter | 30 MM |
| Hole diameter | 22 MM |
| Contact Material | Silver Contacts |
| Contact rated current | 10A |
| Operating Temperature | -20°C to +70°C |
| IP rating | IP65 |
| Case size | 134 x 68 x 50 mm (5.3 x 2.7 x 2.0 inches) |

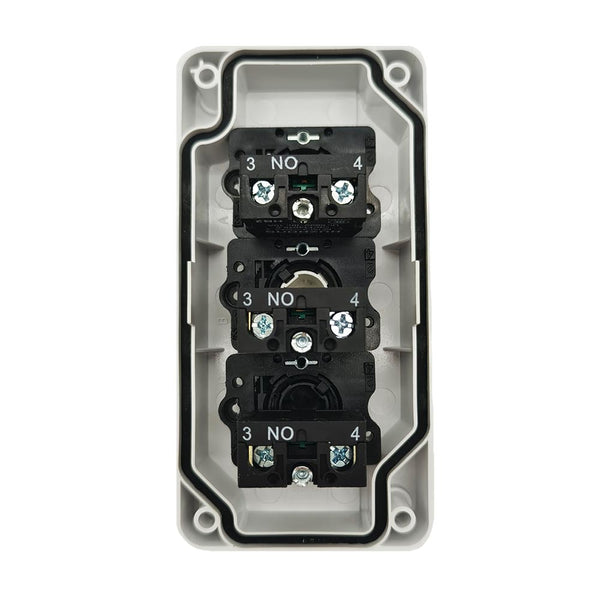

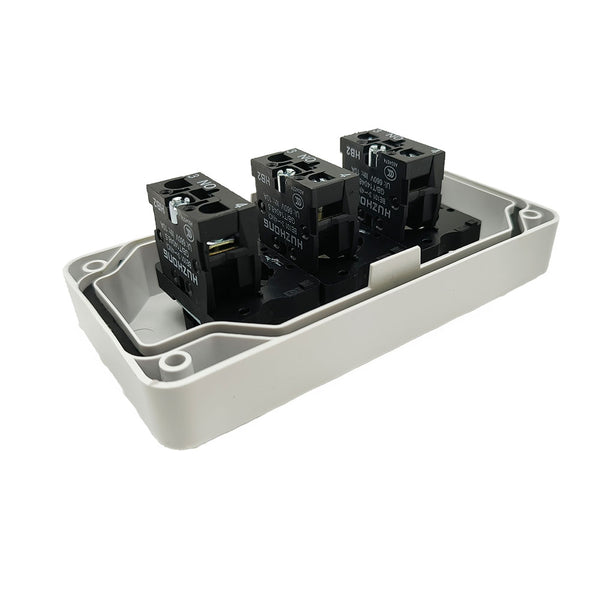

| Each button is equipped with a set NO contacts | |

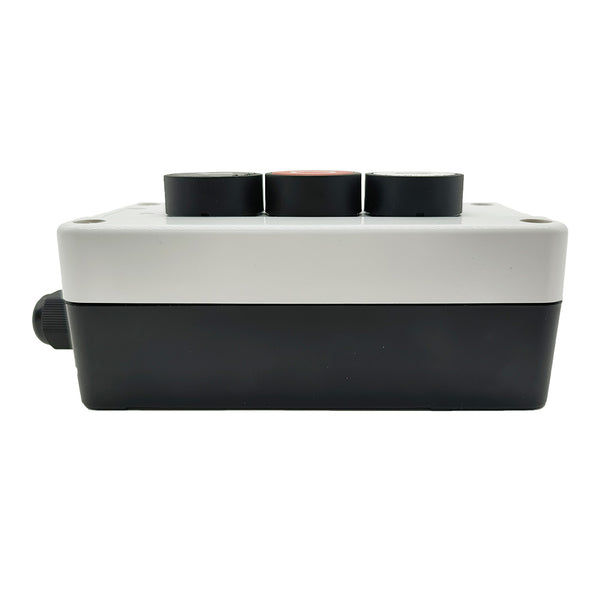

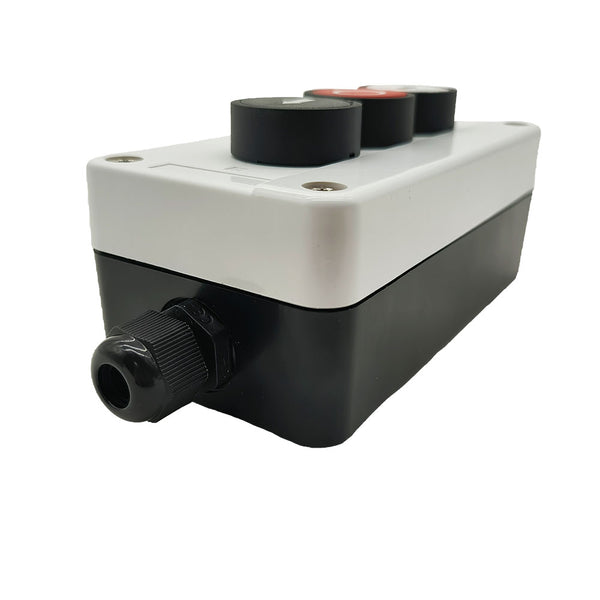

| Waterproof case and waterproof connector | |

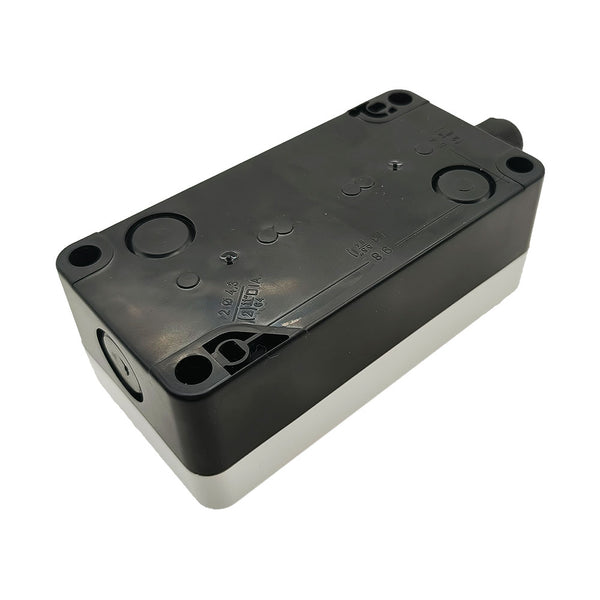

| Impact-resistant plastic case | |
| Suitable for our receivers with wired control terminals, such as model S1FC-DC, S1PF-DC, S1PF3-DC, S1F2-DC, S1FC-AC, and S1F2-AC | |
Wiring:
Connect to the receiver S1FC-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the manual switch to the receiver's wired control terminals as follows:
1) Terminal 3 of UP button to <UP> terminal
2) Terminal 3 of DOWN button to <DOWN> terminal
3) Terminal 3 of STOP button to <STOP> terminal
4) Terminal 4 of the UP, DOWN, and STOP buttons to <COM> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.
Connect to the receiver S1PF-DC:
1. Connect the positive pole of DC power supply to terminal <+> of the receiver's input, and connect the negative pole of DC power supply to terminal <-> of the receiver's input.
2. Connect the manual switch to the receiver's wired control terminals as follows:
1) Terminal 3 of UP button to <S1> terminal
2) Terminal 3 of DOWN button to <S2> terminal
3) Terminal 3 of STOP button to <STOP> terminal
4) Terminal 4 of the UP, DOWN, and STOP buttons to <GND> terminal
3. Connect two wires of the motor or the linear actuator to terminals <Motor> of the receiver, and you can exchange these two wires to change the rotating direction of the motor or the moving direction of the linear actuator.
Operation:
1) Press the UP button, motor rotates in positive direction, or linear actuator extends outward.
2) Press the DOWN button, motor rotates in reversal direction, or linear actuator inward retracts.
3) Press the STOP button, motor or linear actuator stops.
