Wall Mounted Switch Wireless Remote Control of AC 110~240V Light Bulbs (Model 0020545)

Regular price $40.00

Shipping calculated at checkout.

Package Include:
1 x Receiver: S1X-AC-ANT3
1 x Transmitter: HR-1
1 x User manual

Application:
This receiver is an electric device with AC power output, it and the transmitter form a wireless remote-control system. This system may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.

Feature:
Wireless remote control, easy to install.

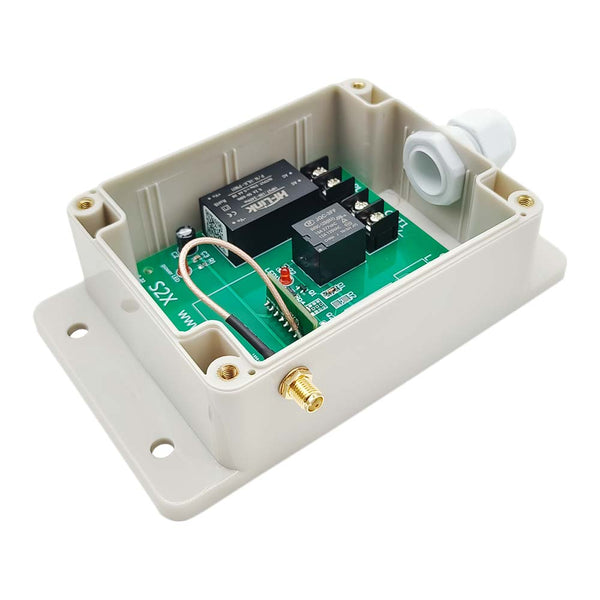

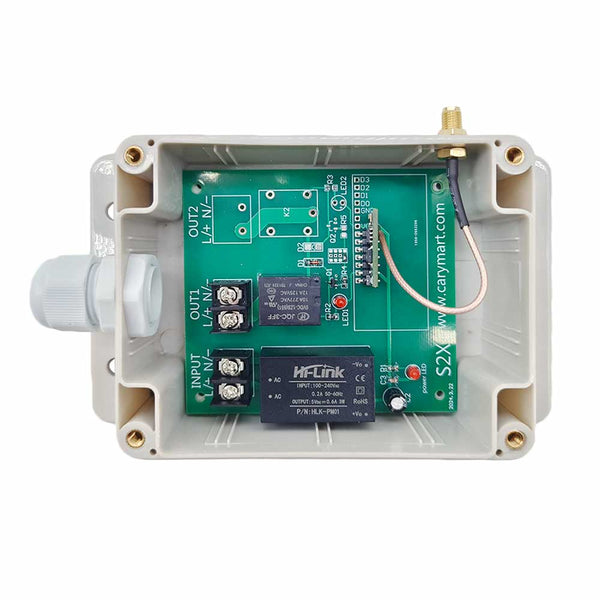

Waterproof: The receiver has waterproof case and waterproof connector; it can be installed outdoors.
Universal input: Support 110V AC (110V~120V) used in US, Canada, etc, and 220V AC (220V~240V) used in Germany, UK, France, etc.
AC Power Output: It can control AC equipment with voltage AC 110V, 120V, 220V or 240V.
With external antenna, the receiver has a farther working range.
The transmitter / remote can control the receiver from any place within a reliable working distance.
The wireless RF signal from the transmitter can pass through walls, floors, doors, or windows, but it will lose some operating range.
The receiver has reverse voltage protection and overcurrent protection.
The receiver can only be triggered by paired transmitters.
One or more transmitters / remotes can control one or several receivers simultaneously.
Two or more receivers may be used in the same area.

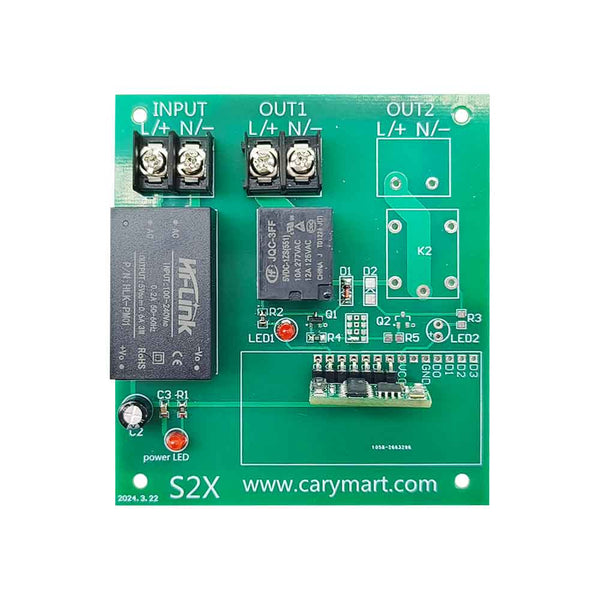

Receiver Parameters:
Model: S1X-AC-ANT3
Operating Voltage: 110~240V AC (110V/120V/220V/240V)
Working Frequency: 433.92 MHz
Quiescent Current: ≤6mA
Channel: 1 CH
Output Type: 110~240V AC (110V/120V/220V/240V)
Maximum Load Current of Relay: 10A / channel
Suitable Wires for Connecting Terminals: 22-12 AWG
Working Modes: Self-locking, Momentary
Operating Temperature: -20°C ~ +70°C
PCB size: 88 x 80 x 18 mm (3.5 x 3.1 x 0.7 inches)
Case size: 115 x 90 x 55 mm (4.5 x 3.6 x 2.2 inches)

Transmitter Parameters:
Model: 0021080 (HR-1)
Wall Mounted Switch
Channel/Button: 1
Button Symbol: no symbol
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 4mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Transmitting Distance: 50m / 150ft (theoretically)
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 86 x 86 x 16 mm

Matching Transmitters:
The receiver can work with different transmitters.
When you set the receiver in Self-locking or Momentary mode, it should work with single button transmitter, such as model C-1 (100M), CWB-1 (50M, waterproof), CP-1 (500M), or CB-1 (1000M) etc.

Working Range:
With a transmitter (such as HR-1) to form a complete set, the maximum working distance can reach 150 feet or 50 meters in an open area.
The maximum working distance is a theoretical data, it shall be operated in an open ground, no barriers, no interference. But in the practice, it will be hindered by trees, walls, or other construction, and will be interfered by other wireless signals. Therefore, the actual working distance may not reach this maximum distance.
If you need a longer working distance, you can replace the antenna on the receiver, or use an RF signal repeater, or use a powerful transmitter, such as a CB-1 transmitter.

Usage:
The receiver can be used to control 110~240VAC devices.

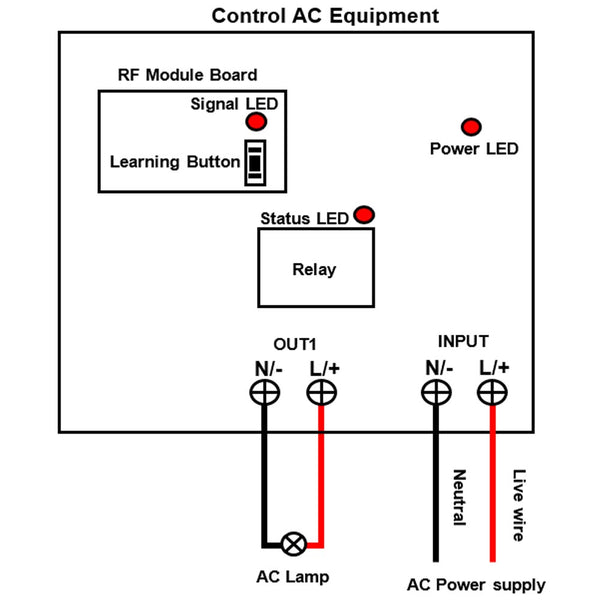

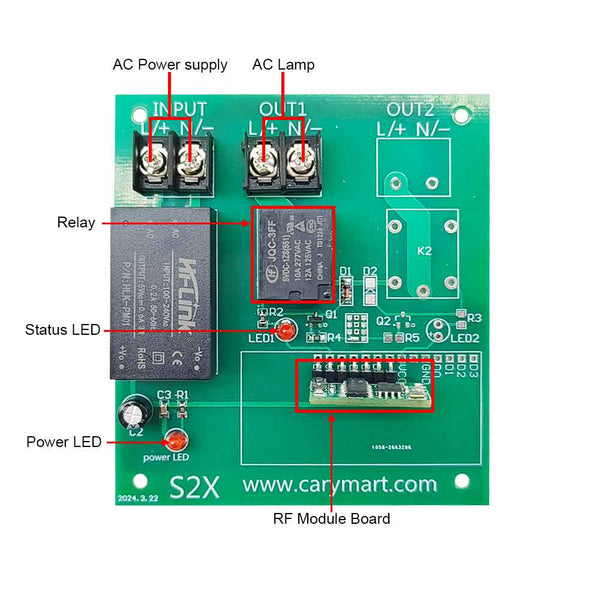

Wiring:
If you want to control an AC 120V or AC 220V lamp, do as following:
1) Connect the live wire of AC power supply to terminal <L/+> of INPUT, and connect the neutral wire of AC power supply to terminal <N/-> of INPUT.
2) Connect the live pole of AC lamp to terminal <L/+> of OUT1, and connect the neutral pole of AC lamp to terminal <N/-> of OUT1.

Setting different working modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps.

1) Setting Momentary mode: Press the learning button in the receiver 2 times, signal LED continuously flashes 2 times and then goes off.
The operation of Momentary mode with the transmitter HR-1:
Press and hold the button on the transmitter: The terminal <OUT1> of the receiver outputs AC power, and the connected lamp is turned on.
Release the button: The terminal <OUT1> of the receiver stops outputting, and the connected lamp is turned off.

2) Setting Self-locking mode: Press the learning button in the receiver 3 times, signal LED continuously flashes 3 times and then goes off.
The operation of Self-locking mode with the transmitter HR-1:
Press the button on the transmitter: The terminal <OUT1> of the receiver outputs AC power, and the connected lamp is turned on.
Press the button again: The terminal <OUT1> of the receiver stops outputting, and the connected lamp is turned off.
