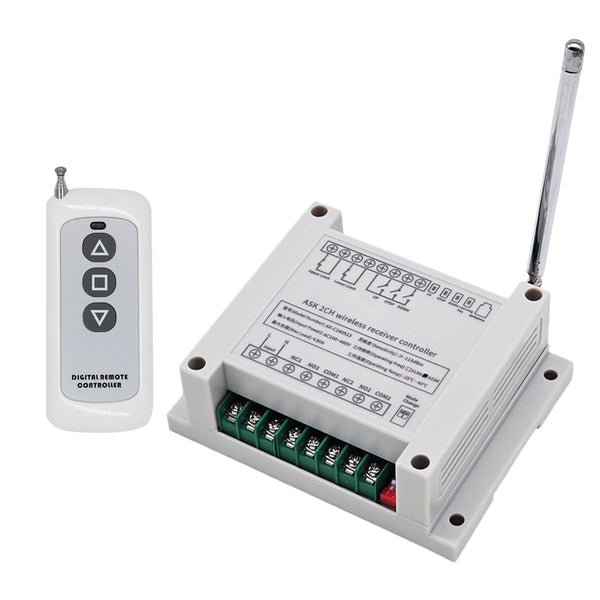

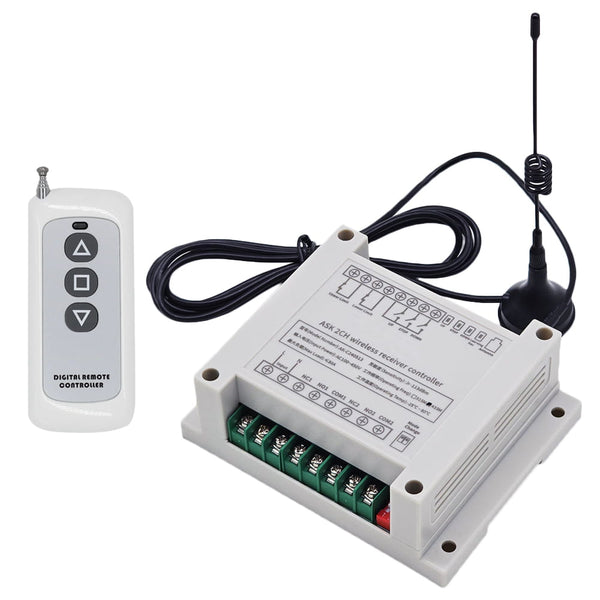

Package Include:

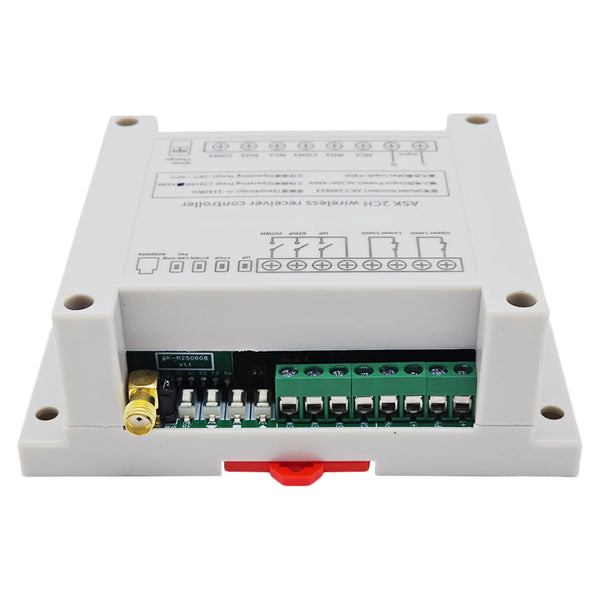

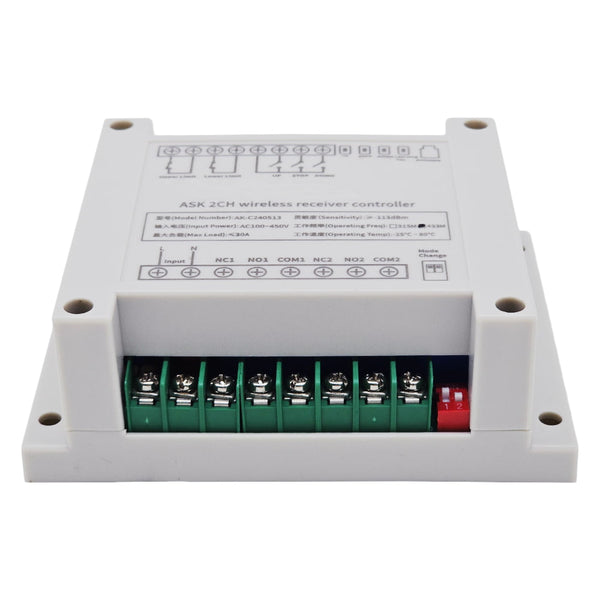

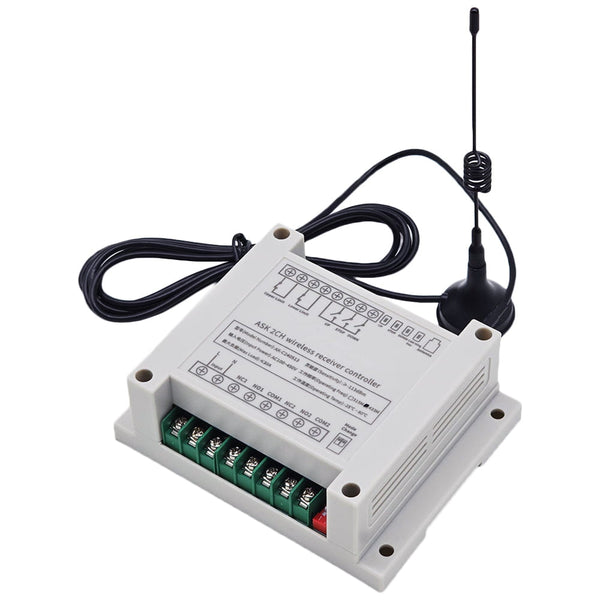

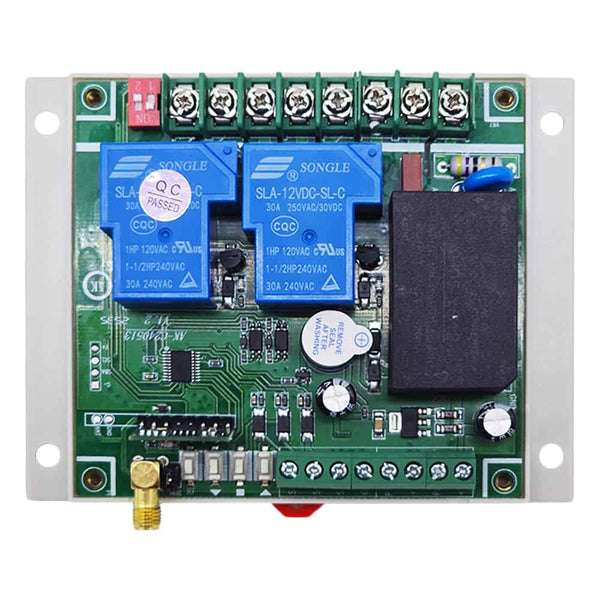

1 x Receiver: S2PU-AC380-ANT3

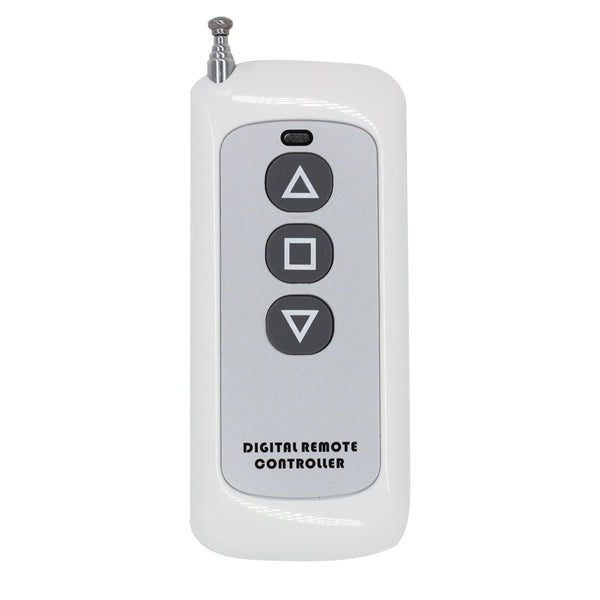

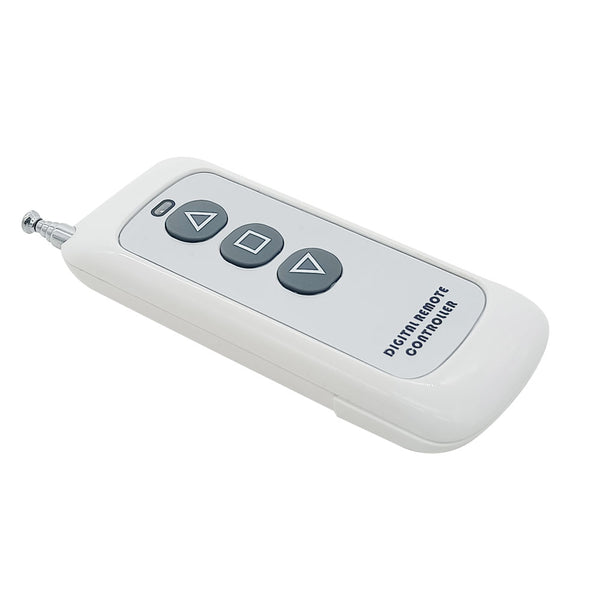

1 x Transmitter: CP-3L
1 x User manual
Application:

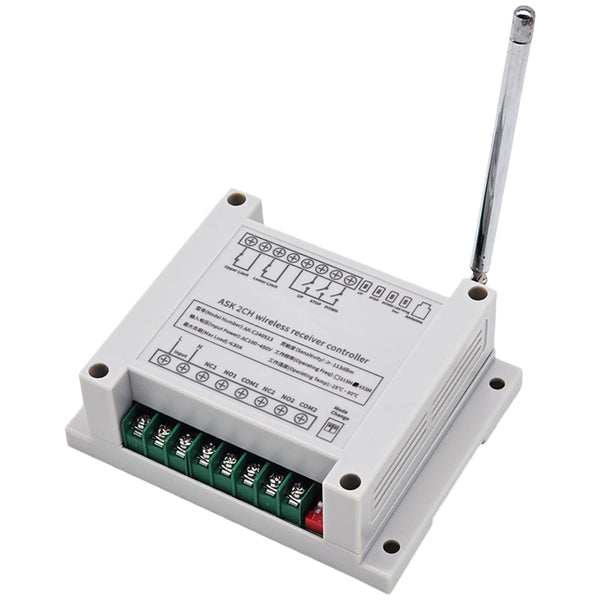

This is a wireless remote switch kit with 2 channels relay outputs. It including a S2PU-AC380-ANT3 receiver and a CP-3L transmitter. It may be used in all types of industry automation, agriculture, business, home, factory, house, farm, garage, vehicle, ship, aerial vehicle, etc. It can remote control different DC or AC equipment on land, water, and air, such as lights, doors, windows, lamps, sockets, locks, sirens, outlets, heaters, motors, fans, winches, curtains, blinds, linear actuators, electric solenoid valves, and security alarm systems. The applications are endless.
Key Features:
Wireless control, easy to install.
Universal Power Supply: AC 100~450V, support AC 110V, AC 120V, AC220V, AC 240V, AC 380V.
Relay Output: This receiver is relay output, it can be used to operate both DC and AC equipment.
High Power: Each channel can work at maximum current 30A.
4 Selectable Working Modes: Self-locking, Momentary, Interlocking, Momentary + Self-locking

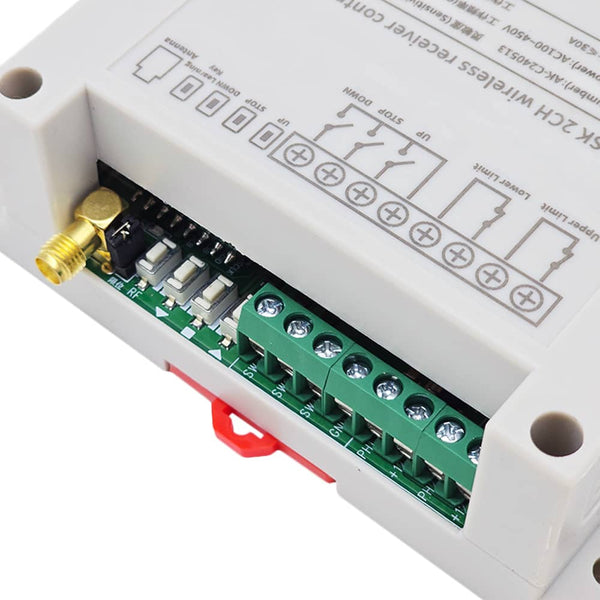

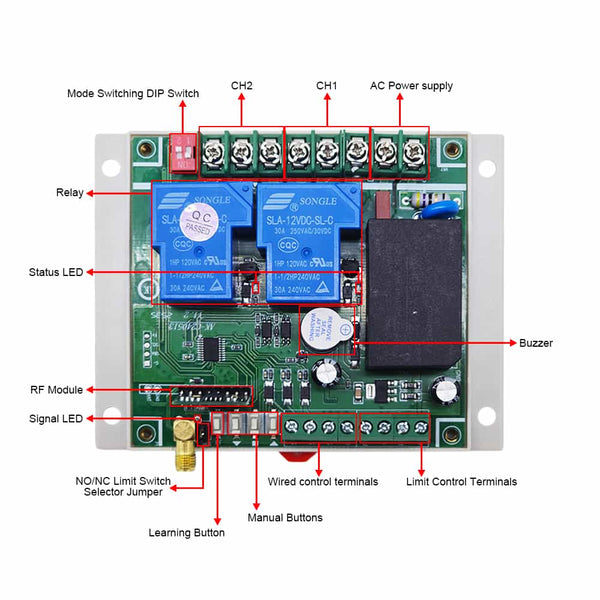

With three manual buttons: You can control the equipment by manual buttons.
With wired control terminals: You can connect manual switches to control the equipment.
With limit control terminals: You can connect sensors, limit switches or external devices to stop the equipment.
With 2 pins for switching the type of normally open or normally closed limit switch.
With a DIP switch for switching working modes, offering four operating modes.

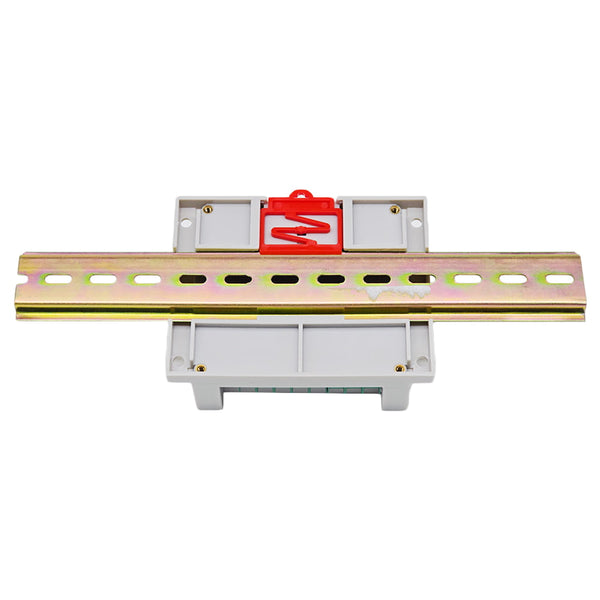

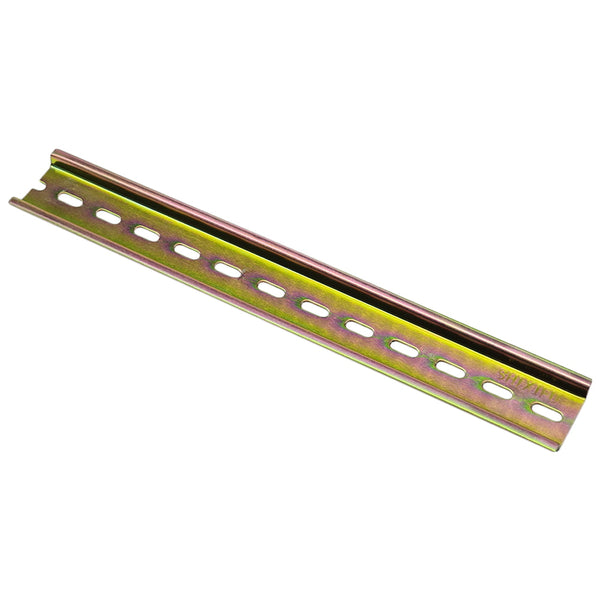

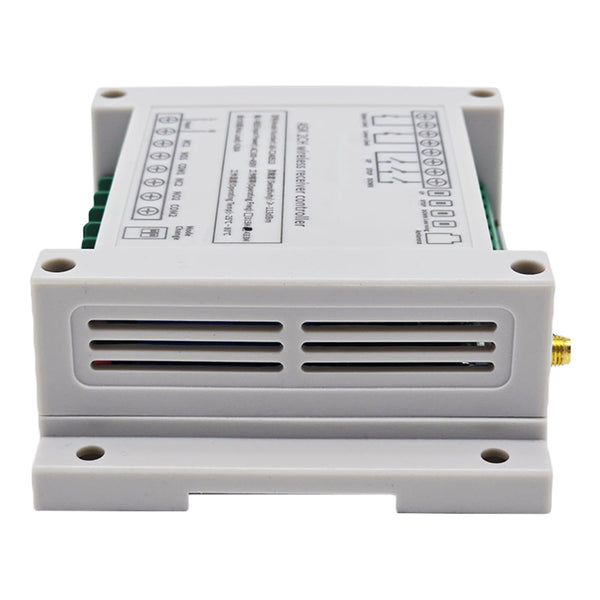

With guide rail buckle and screw holes: The back of the receiver is equipped with a guide rail buckle and screw holes, which can be mounted on a 35mm guide rail or directly fixed with screws.
With external antenna, the receiver have a farther working range.
Reliable Signal: RF signal can pass through walls, floors, doors, or windows, but it will lose some operating range.
Safety Features: Reverse voltage and overcurrent protection.
Interference: Two or more receivers may be used in the same area without interference.
One or more transmitters / remotes can control one or several receivers simultaneously.
Receiver S2PU-AC380-ANT3 Parameters:

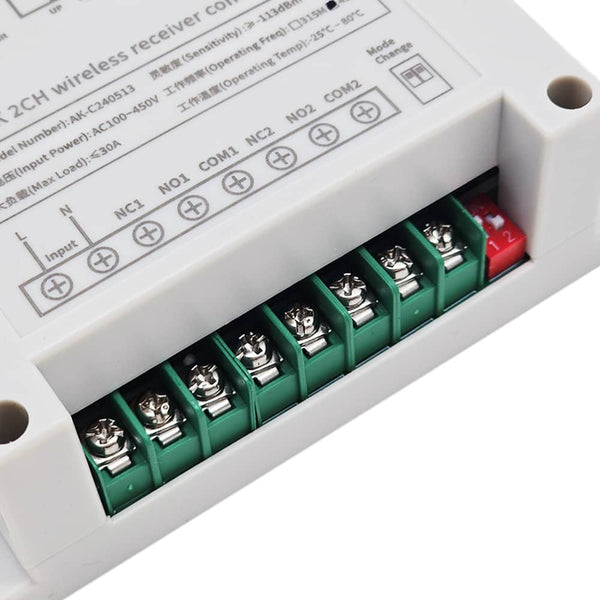

| Parameters | Detail |
|---|---|
| Operating Voltage | AC 100V~450V (110V/120V/220V/240V/380V) |
| Output Type | Relay output (With NO and NC Terminals) |
| Channel | 2 CH |
| Working Frequency | 433MHz |
| Maximum Load Current | 30A |
| 4 Selectable Working Modes | Self-locking, Momentary, Interlocking, Momentary + Self-locking |
| Suitable Wires for Connecting Terminals | 22-14 AWG |
| Receiver Sensitivity | ≥-113dBm |
| PCB size | 92 x 86 x 23 mm (3.6 x 3.4 x 0.9 inches) |
| Case size | 115 x 90 x 40 mm (4.5 x 3.5 x 1.6 inches) |
| Matching Transmitters | Can work with different transmitters, such as model C-2L / C-3-2L (100M), CP-2L / CP-3L (500M), or CB-2L (1000M) |
Transmitter CP-3L (3 Buttons) Parameters:
| Parameters | Detail |
|---|---|
| Operating Voltage | 12V (1 x 23A -12V battery, can be used for 12 months) |
| Button Symbol | ▲, ■, ▼ |
| Operating Frequency | 433Mhz |
| Encoding Chip | EV1527 |
| Transmitting Distance | 500m / 1500ft (theoretically) |
| Unit Size | 92 x 40 x 15 mm |
Wiring:
1) Wiring for DC lamp:
If you want to control DC lamp, do as follows. Please refer to the connection diagram.
1.1 Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
1.2 Connect terminal <NO> to the positive pole of DC power supply, connect terminal <COM> to the positive pole of DC lamp, and connect the negative pole of DC lamp to the negative pole of DC power supply.

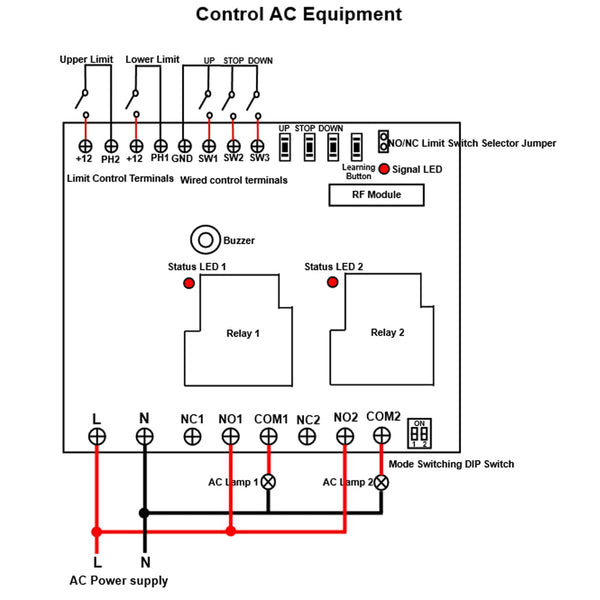

2) Wiring for AC lamp:
If you want to control the AC lamp, do as follows. Please refer to the connection diagram.
2.1 Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
2.2 Connect terminal <NO> to the live wire of AC power supply, connect terminal <COM> to one side of AC lamp, and connect another side of AC lamp to the neutral wire of AC power supply.
3) Wiring for AC motor:
If you want to control small bi-directional AC motor (three control lines), do as follows. Please refer to the connection diagram.
3.1 Connect the live wire of AC power supply to terminal <L>, and connect the neutral wire of AC power supply to terminal <N>.
3.2 Connect the live wire of the AC power supply to the terminal <NO> of the two relays, connect the neutral wire of the AC power supply to the common wire of the AC motor.
3.3 Connect the forward and reverse wires of the AC motor to the terminal <COM> of the two relays, and you can exchange these two wires to change the rotating direction of motor.
4) Wiring for AC 380V motor:

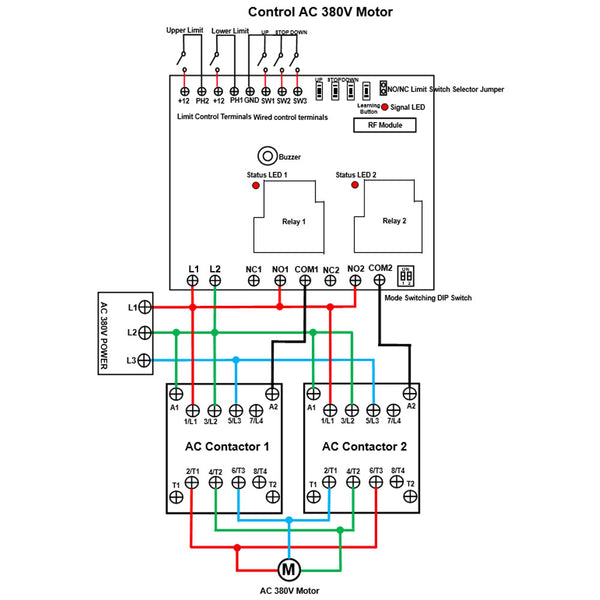

If you want to control AC 380V motor, please refer to the connection diagram.
Setting different control modes:
The receiver will be set in Self-locking mode before leaving the factory, if you want to use another mode, please follow the following steps:
1) Setting Momentary mode: Turn off the first bit and the second bit of the dip switch, the signal LED flashes 1 time and the buzzer sounds 1 time.
Operation with the transmitter CP-2L:
Hold Button ▲ → The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Release Button ▲ → The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Hold Button ▼ → The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Release Button ▼ → The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
Operation with the manual buttons on the receiver:
Hold Button UP → The relay 1 is activated.
Release Button UP → The relay 1 is deactivated.
Hold Button DOWN → The relay 2 is activated.
Release Button DOWN → The relay 2 is deactivated.
2) Setting Self-locking mode: Turn on the first bit and turn off the second bit of the dip switch, the signal LED flashes 2 times and the buzzer sounds 2 times.
Operation with the transmitter CP-2L:
Press Button ▲ → The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Press Button ▲ again → The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Press Button ▼ → The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Press Button ▼ again → The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
Operation with the manual buttons on the receiver:
Press Button UP → The relay 1 is activated.
Press Button UP again → The relay 1 is deactivated.
Press Button DOWN → The relay 2 is activated.
Press Button DOWN again → The relay 2 is deactivated.
3) Setting Interlocking mode: Turn off the first bit and turn on the second bit of the dip switch, the signal LED flashes 3 times and the buzzer sounds 3 times.
Operation with the transmitter CP-3L:
Press Button ▲ → The relay 1 is activated, two terminals <NO1> and <COM1> of <Relay 1> are connected, two terminals <NC1> and <COM1> are disconnected.
Press Button ■ → The relay 1 is deactivated, two terminals <NO1> and <COM1> of <Relay 1> are disconnected, two terminals <NC1> and <COM1> are connected.
Press Button ▼ → The relay 2 is activated, two terminals <NO2> and <COM2> of <Relay 2> are connected, two terminals <NC2> and <COM2> are disconnected.
Press Button ■ → The relay 2 is deactivated, two terminals <NO2> and <COM2> of <Relay 2> are disconnected, two terminals <NC2> and <COM2> are connected.
Operation with the manual buttons on the receiver:
Press Button UP → The relay 1 is activated.
Press Button STOP → The relay 1 is deactivated.
Press Button DOWN → The relay 2 is activated.
Press Button STOP → The relay 2 is deactivated.
4) Setting Momentary (Channel 1) + Self-locking (Channel 2) mode: Turn on the first bit and the second bit of the dip switch, the signal LED flashes 4 times and the buzzer sounds 4 times.
Wired control terminals:
The receiver has wired control terminals, and you can connect external devices (with normally open contact), such as manual switches to wired control terminals, then use them to control the equipment.

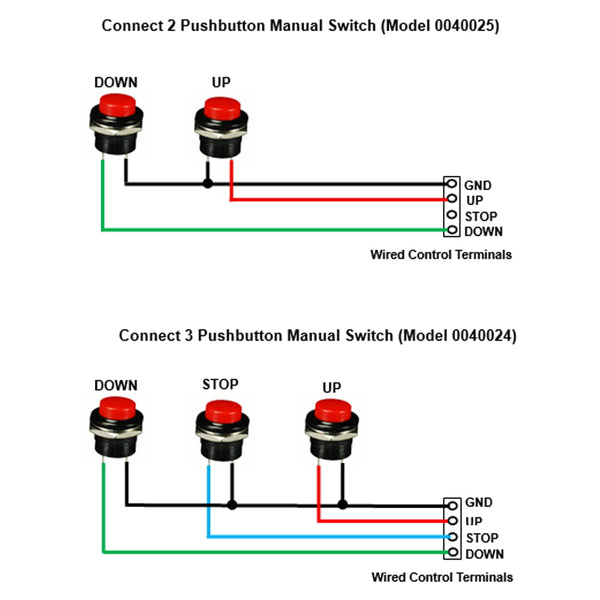

For example, you can connect two or three manual switches to wired control terminals <UP>, <DOWN>, <STOP> and <GND> according to following wiring diagram.
1) In Momentary mode: For example, connect 2 pushbutton manual switch (Model 0040025).
When pressing and holding the UP button, two terminals <UP> and <GND> are connected, then the relay 1 is activated. And when releasing the UP button, two terminals <UP> and <GND> are disconnected, then the relay 1 is deactivated.
When pressing and holding the DOWN button, two terminals <DOWN> and <GND> are connected, then the relay 2 is activated. And when releasing the DOWN button, two terminals <DOWN> and <GND> are disconnected, then the relay 2 is deactivated.
2) In Self-locking mode: For example, connect 2 pushbutton manual switch (Model 0040025).
When pressing the UP button, two terminals <UP> and <GND> are connected, then the relay 1 is activated. And when pressing the UP button again, two terminals <UP> and <GND> are disconnected, then the relay 1 is deactivated.
When pressing the DOWN button, two terminals <DOWN> and <GND> are connected, then the relay 2 is activated. And when pressing the DOWN button again, two terminals <DOWN> and <GND> are disconnected, then the relay 2 is deactivated.
3) In Interlocking mode: For example, connect 3 pushbutton manual switch (Model 0040024).
When pressing the UP button, two terminals <UP> and <GND> are connected, then the relay 1 is activated. And when pressing the STOP button, two terminals <STOP> and <GND> are connected, then the relay 1 is deactivated.
When pressing the DOWN button, two terminals <DOWN> and <GND> are connected, then the relay 2 is activated. And when pressing the STOP button, two terminals <STOP> and <GND> are connected, then the relay 2 is deactivated.
Limit control terminals:
The receiver has limit control terminals, and you can connect external devices (with normally closed or normally open contact), such as sensors, limit switches to limit terminals, then use them to stop the equipment.
And the receiver has two pins for switching the type of normally open or normally closed limit switch.
Note: The receiver needs to be restarted after switching the limit switch type.
For example, when you short two pins with a jumper cap, you can connect a normally closed limit switch to the two terminals of <Upper Limit>, and connect another normally closed limit switch to the two terminals of <Lower Limit>.
When motor rotates in positive direction, if disconnect two terminals of <Upper Limit>, the motor will stop automatically.
When motor rotates in reversal direction, if disconnect two terminals of <Lower Limit>, the motor will stop automatically.
For example, when you do not short two pins, you can connect a normally open limit switch to the two terminals of <Upper Limit>, and connect another normally open limit switch to the two terminals of <Lower Limit>.
When motor rotates in positive direction, if connect two terminals of <Upper Limit>, the motor will stop automatically.
When motor rotates in reversal direction, if connect two terminals of <Lower Limit>, the motor will stop automatically.
Note:
When the limit switch terminals of the receiver are set to normally closed type, if you are not using the limit switch, you need to short-circuit the upper and lower limit switch terminals respectively.
When the limit switch terminals of the receiver are set to normally open type, if you are not using the limit switch, you do not need to short-circuit the upper and lower limit switch terminals.
