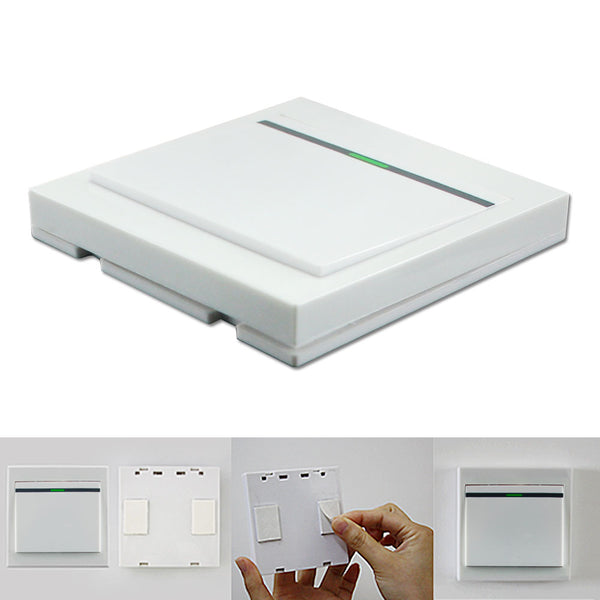

1 Button RF Wireless Wall Mounted Switch Remote Control Electrical Devices On/Off (Model 0021080)

Regular price $15.00

Shipping calculated at checkout.
Product Description:
Model No.: 0021080 (HR-1)
Wall Mounted Switch
Shell Color: White
Channel/Button: 1
Button Symbol: no symbol
Operating Voltage: 12V (1 x 27A -12V battery, can be used for 12 months)
Operating Current: 4mA
Operating Frequency: 433Mhz
Encoding Chip: EV1527
Encoding Type: Learning code (up to 1 million codes, reducing code collision and unauthorized code scanning possibilities.)
Transmitting Distance: 50m / 150ft (theoretically)
The distance of 50m is a theoretical data, it shall be operated in an open ground, no barriers, no any interference. But in the practice, it will be hindered by trees, walls or other constructions, and will be exposed to some interference by other signals. Therefore, the actual distance may or may not reach 50m.
Modulation Mode: ASK
Operating Temperature: -20 ° C to +70 ° C
Unit Size: 86mm x 86mm x 16mm
Weight: 90g

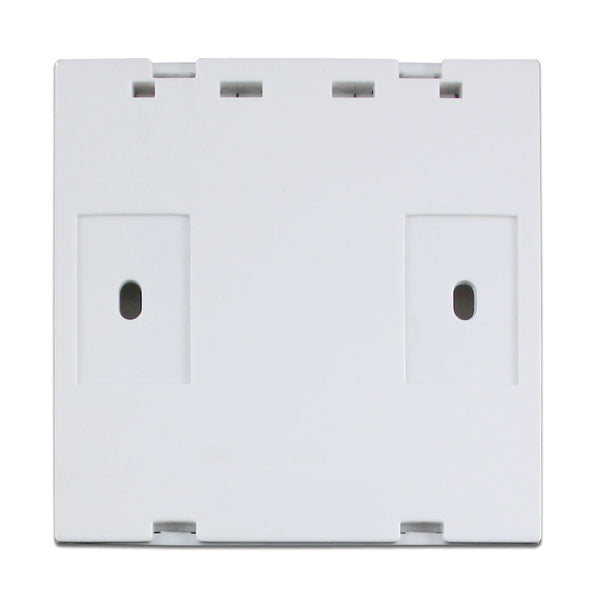

No wires, simply affix the remote control to any place you want by double faced adhesive tape.

This transmitter can work with different kinds of receivers, include model 0020040 (S1T-DC12) , 0020084 (S1T-AC220) , 0020041 (S1M-DC12) , 0020086 (S1M-AC220) , 0020237 (S1PT-AC220), etc.

garage doors, motorcycles, car alarm products, home security products, wireless remote control products, industrial control products.
